C13016_FLARE-MINI-AD-PIN Overview

LED Lighting Lenses Secondary Optic

C13016_FLARE-MINI-AD-PIN Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Ledil
Product Category	LED Lighting Lenses
RoHS	Details
Type	Lens
For Use With	Cree, Lumileds, Nichia, Osram, Samsung
Diameter	16 mm
Packaging	Tray
Color	Clear
Height	8.6 mm
Shape	Round
NumOfPackaging	1
Factory Pack Quantity	120
Unit Weight	0.039542 oz

Preview

Download Datasheet

View All

PRODUCT DATASHEET

Flare series

last update 25/9/2015

DETAILS

Product Number

Family

Type

Color

Diameter

Height

Style

Optic Material

Holder Material

Fastening

Status

ROHS Compliant

Date Updated

glue, pin

production ready

Yes

25/09/2015

C13016_FLARE-MINI-AD-PIN

Flare

Lens

clear

16 mm

8,6 mm

round

PMMA

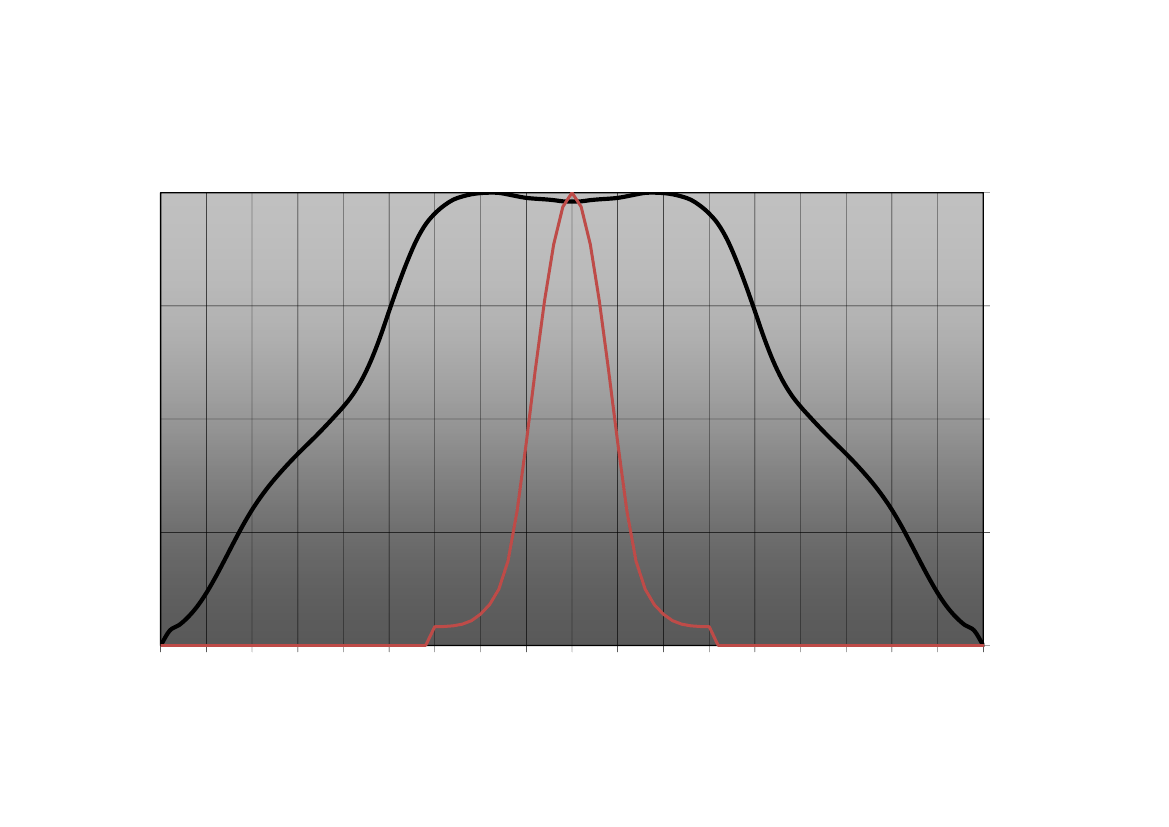

OPTICAL PROPERTIES

Viewing

LED

XB-D

XP-G

XT-E

XP-E2

XP-G2

XP-L

XP-L2

LUXEON C

NVSxx19A

Oslon Square EC

LH351B

LH351Z

Angle

100+16 deg

100+20 deg

104+19 deg

93+19 deg

97+24 deg

111+30 deg

100+30 deg

sim: 15+94

100+20 deg

92+21 deg

98+24 deg

99+25 deg

Light

Beam

Oval

Effi-

ciency

93 %

94 %

90 %

94 %

cd/lm

1.200

1.100

1.300

1.000

0.710

0.760

Connector

-

sim: 93 % sim: 1.350 -

94 %

1.100

1.000

1.100

-

February 17th 2018 3:15 Copyright Ledil Oy - Subject to change without prior notice - Page 1/1

Ledil Oy

Salorankatu 10

24240 SALO, Finland

http://www.ledil.com

email: ledil@ledil.com

FAX: +358-2-733 8001
