XTEAWT-02-0000-00000LAE7 datasheet, PDF

Datasheet> All Categories > LED optoelectronic/LED> XTEAWT-02-0000-00000LAE7

XTEAWT-02-0000-00000LAE7: DescriptionHigh Power LEDs - White White 87.4lm XLamp XTE Series; CategoryLED optoelectronic/LED; File Size2MB，45 Pages; ManufacturerCree; Websitehttp://www.cree.com/

Download Datasheet Parametric View All

XTEAWT-02-0000-00000LAE7 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	XTEAWT-02-0000-00000LAE7	-	-	View	Buy Now

XTEAWT-02-0000-00000LAE7 Overview

High Power LEDs - White White 87.4lm XLamp XTE Series

XTEAWT-02-0000-00000LAE7 Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Cree
Product Category	High Power LEDs - White
RoHS	Details
Package / Case	SMD-2
Illumination Color	White (Warm White)
Wavelength/Color Temperature	3000 K
Luminous Intensity	-
Luminous Flux/Radiant Flux	87.4 lm
Color Rendering Index - CRI	80
Viewing Angle	115 deg
Lens Color/Style	Water Clear
If - Forward Current	350 mA
Vf - Forward Voltage	2.85 V
Power Rating	5 W
Mounting Style	SMD/SMT
Length	3.45 mm
Width	3.45 mm
Height	2.36 mm
Maximum Operating Temperature	+ 85 C
Minimum Operating Temperature	-
Packaging	Cut Tape
Packaging	MouseReel
Packaging	Reel
Features	-
Type	XLamp XT-E LEDs
LED Size	3.45 mm x 3.45 mm x 2.36 mm
Lens Shape	Dome
Color Temperature	3000 K
Lens Dimensions	3.06 mm
NumOfPackaging	3
Factory Pack Quantity	250
Vr - Reverse Voltage	5 V
Unit Weight	0.003527 oz

Preview

Download Datasheet

View All

CLD-DS41 Rev 17

Product family data sheet

Cree

XLamp

XT-E LEDs

XT-E White

XT-E Royal Blue

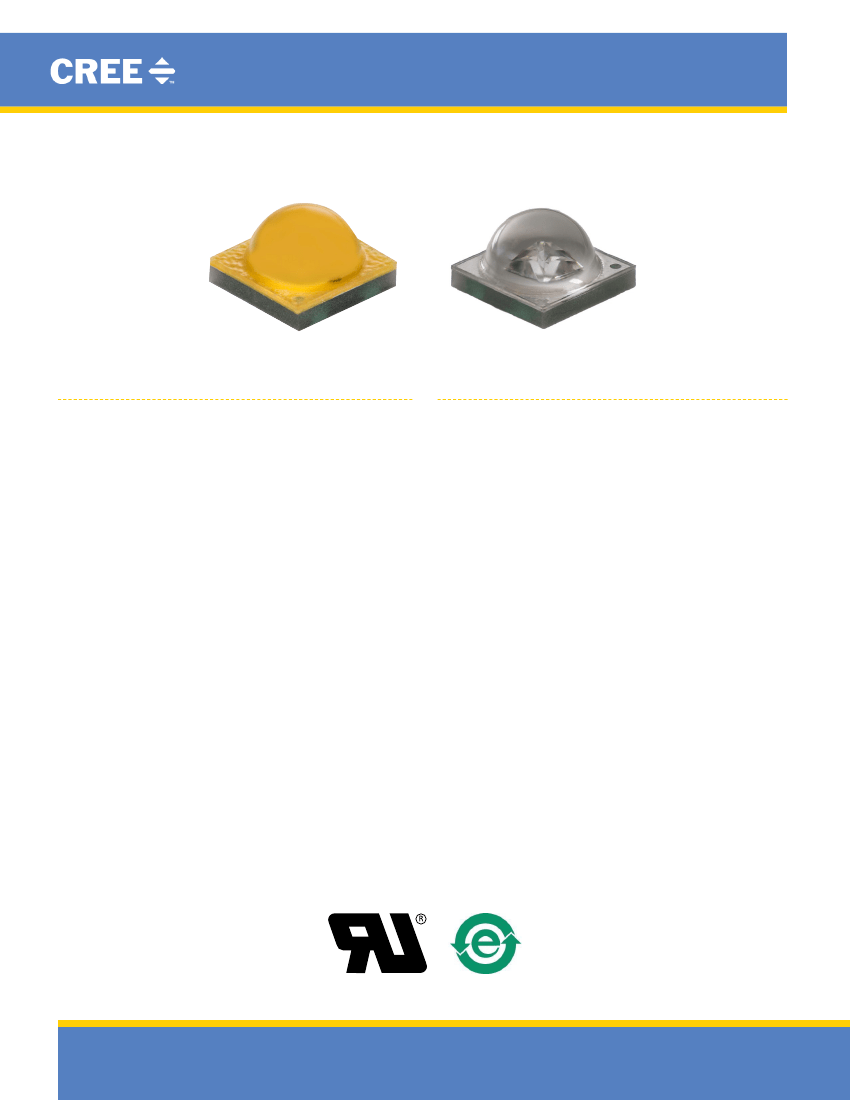

PRoDuCT DEsCRiPTion

Optimized

for

directional,

high-lumen

applications,

from

indoor and outdoor to portable and lamp retrofits, the XLamp

XT-E LED delivers high performance and high reliability in the

industry-standard XP/XT footprint. The XT-E LED offers the

benefits of the XT/XP platform — compact and proven 3.45 mm x

3.45 mm package and established ecosystem — enabling lighting

manufacturers to simplify the design process and shorten time

to market.

The XT-E LED is available in royal blue and white. The XT-E White

LED offers a high-efficacy option. In this document, the term

White denotes the white XT-E LED without regard to its efficacy.

The terms Standard and High Efficacy are used when necessary

to differentiate the performace of the High Efficacy XT-E LED

from the XT-E LED without the high-efficacy option.

FEATuREs

•

Maximum Vf for High Efficacy XT-E White: 2.85 V

Available in 70-, 80- and 90-CRI minimum white

Binned at 85 °C

Available in 2200 K CCT

Thermal resistance: 5 °C/W

Wide viewing angle: 115°-140°

Maximum drive current: White 1.5 A, Royal Blue 1.5 A

Electrically neutral thermal path

Vf binning supported for XT-E White and Royal Blue

XT-E Royal Blue sorted into 2.5-nm-wavelength bins

Unlimited floor life at ≤ 30 ºC/85% RH

Reflow solderable - JEDEC J-STD-020C compatible

RoHS and REACh compliant

recognized component (E349212)

www.cree.com/Xlamp

noTE: For remote phosphor applications, a separate license to certain Cree patents is required.

and XLamp

are

registered trademarks and the Cree logo is a trademark of Cree, Inc. UL

and the UR logo are registered trademarks of UL LLC. Other trademarks,

product, and company names are the property of their respective owners and do not imply specific product and/or vendor endorsement, sponsorship

or association.

Cree, Inc.

4600 Silicon Drive

Durham, NC 27703

USA Tel: +1.919.313.5300

XLamp

XT-E LED

TABLE oF ConTEnTs

Characteristics

....................................................................................................................................................................................................... 3

Flux Characteristics - White, Standard..................................................................................................................................................................

Flux Characteristics - White, High Efficacy ........................................................................................................................................................ 15

Flux Characteristics - Royal Blue ......................................................................................................................................................................... 20

Relative Spectral Power Distribution - White ...................................................................................................................................................... 21

Relative Spectral Power Distribution - Royal Blue .............................................................................................................................................. 21

Relative Luminous Flux vs. Junction Temperature - White ............................................................................................................................... 22

Relative Radiant Flux vs. Junction Temperature - Royal Blue ........................................................................................................................... 22

Electrical Characteristics - White, Standard, Royal Blue .................................................................................................................................... 23

Electrical Characteristics - White, High Efficacy ................................................................................................................................................ 23

Relative Luminous Flux vs. Current - White ........................................................................................................................................................ 24

Relative Radiant Flux vs. Current - Royal Blue .................................................................................................................................................... 24

Relative Chromaticity vs. Current and Temperature .......................................................................................................................................... 25

Typical Spatial Distribution - White ..................................................................................................................................................................... 26

Typical Spatial Distribution - Royal Blue ............................................................................................................................................................. 26

Thermal Design - White ....................................................................................................................................................................................... 27

Thermal Design - Royal Blue................................................................................................................................................................................ 27

Performance Groups - Luminous Flux ................................................................................................................................................................ 28

Performance Groups - Radiant Flux .................................................................................................................................................................... 28

Performance Groups - Dominant Wavelength ................................................................................................................................................... 29

Performance Groups - Forward Voltage ............................................................................................................................................................. 29

Performance Groups - Chromaticity ................................................................................................................................................................... 29

Cree’s White Chromaticity Regions Plotted on the CIE 1931 Curve.................................................................................................................. 33

Cree’s Cool White Kits Plotted on ANSI Standard Chromaticity Regions ......................................................................................................... 34

Cree’s White Kits Plotted on ANSI Standard Chromaticity Regions.................................................................................................................. 35

Cree’s Warm and Neutral White Kits Plotted on ANSI Standard Chromaticity Regions .................................................................................. 36

Cree’s 2200 K CCT White Kit Plotted on ANSI Standard Chromaticity Regions............................................................................................... 37

Cree’s Standard Chromaticity Kits ...................................................................................................................................................................... 37

Bin and Order Code Formats

............................................................................................................................................................................... 38

Reflow Soldering Characteristics ........................................................................................................................................................................ 39

Notes .................................................................................................................................................................................................................... 40

Mechanical Dimensions

...................................................................................................................................................................................... 42

Tape and Reel .......................................................................................................................................................................................................

Packaging ............................................................................................................................................................................................................. 45

and XLamp

are registered trademarks and the Cree logo is a trademark

of Cree, Inc. UL

and the UR logo are registered trademarks of UL LLC. Other trademarks, product, and company names are the property of their respective owners and do not imply specific product and/or

vendor endorsement, sponsorship or association.
