Vacuum Fluorescent Display
Specification
PART NUMBER:
FEATURES:
APPLICATION:
RATINGS:
D0119LT-29-1901
Instrumentation, Decimal Point, Comma
19 Digits, 7-Segmented,
Character Display (
7-Segmented
)
Below

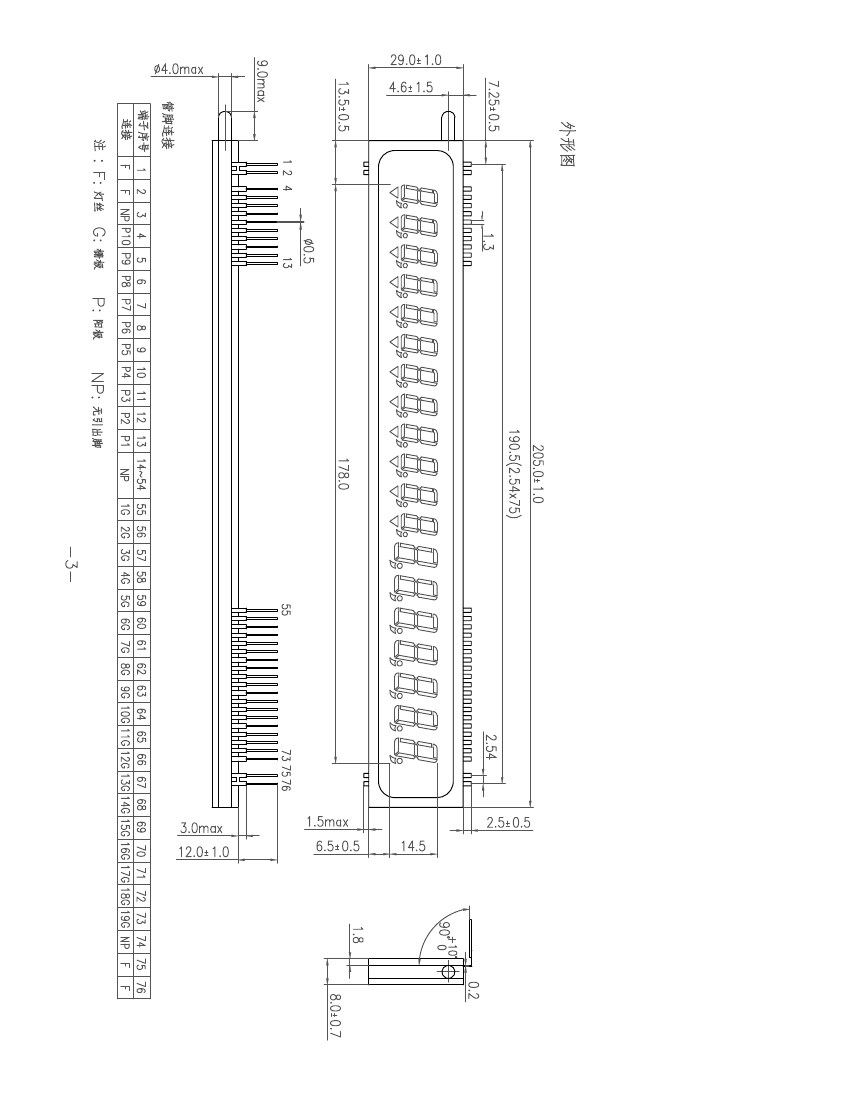

P a ne l L e ngth
P a ne l H e ight
Panel Thickness
L e a d P itc h
L e a d O ut
Character Height
Character Width
P .L.
P .H.
P.T.
L.P .
-
C.H.
C.W.
205. 0
29. 0
8.0
2. 54
S IL
11.0 / 13.0
4.9 / 5.5
mm
mm
mm
mm

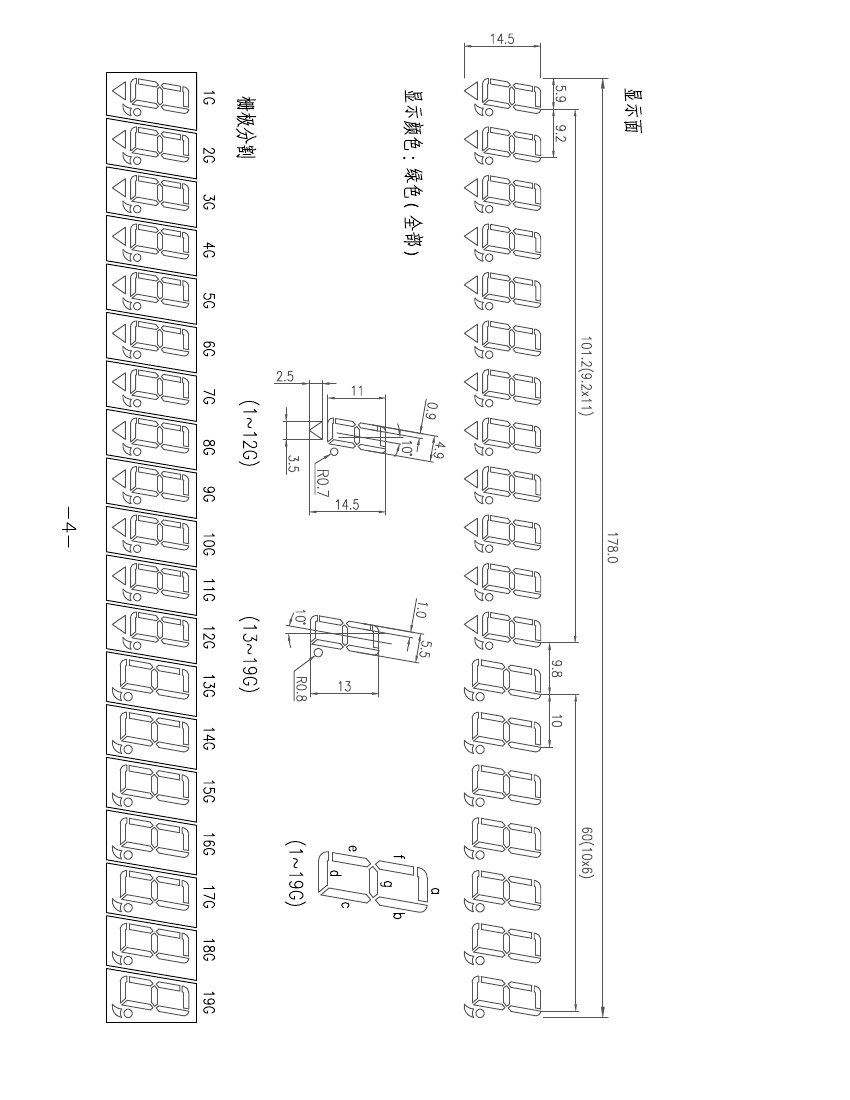

Outer Dimensions
Leads
Character Size
mm
mm
Item
Filament Voltage
Peak Grid Voltage
Peak Anode Voltage
-
Duty
Cycle
Pulse Width
Operating Temperature
Storage Temperature
Color of Illumination
Symbol
Ef
ec
eb
tp
Du
tp
Topr
Tstg
Min.
7.65
-
-
-
-
-
-40
-50
Recommended
8.5
42.0
42.0
-
1/21
100
-
-
Green
Max.
9.35
46.0
46.0
-
-
-
+85
+ 95
Unit
Vac
Vp-p
Vp-p
-
-
uS
C
C
