DE2SRD datasheet, PDF - EEWORLD Datasheet

DE2SRD: DescriptionLED Bars and Arrays Red 640nm 300mcd Diffused Light Bar; CategoryLED optoelectronic/LED photoelectric; File Size212KB，6 Pages; ManufacturerKingbright; Websitehttp://www.us.kingbright.com; Environmental Compliance

Download Datasheet Parametric View All

DE2SRD Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	DE2SRD	-	-	View	Buy Now

LED Bars and Arrays Red 640nm 300mcd Diffused Light Bar

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Kingbright
package instruction	ROHS COMPLIANT PACKAGE-6
Reach Compliance Code	compliant
ECCN code	EAR99
Samacsys Description	7.5mmx14mm LIGHT BAR
Other features	IC COMPATIBLE
color	SUPER BRIGHT RED
Configuration	SEPARATE, 2 ELEMENTS
Maximum forward current	0.03 A
Lens type	DIFFUSED RED
Nominal luminous intensity	300.0 mcd
Installation features	RADIAL MOUNT
Number of functions	1
Number of terminals	6
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	SINGLE COLOR LED
total height	8 mm

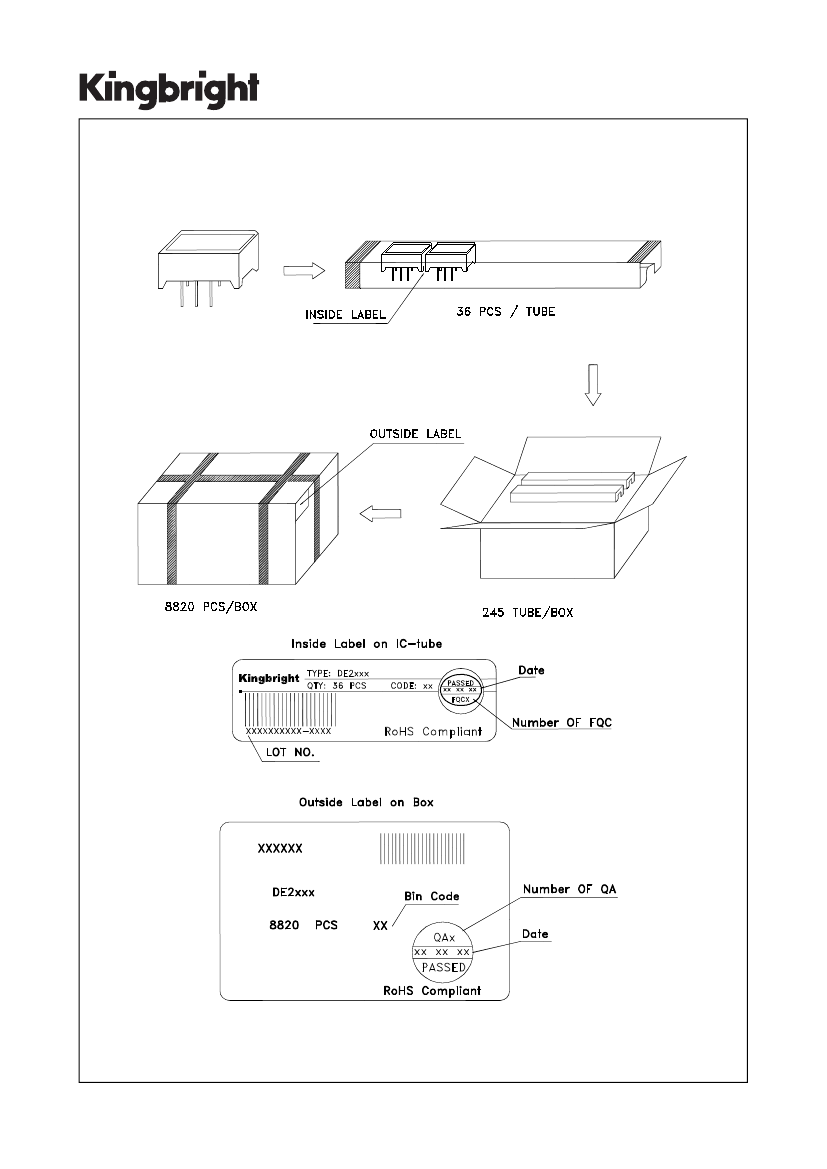

method of packing	TUBE AND BOX
peak wavelength	660 nm
shape	RECTANGULAR
size	12.8 mm
surface mount	NO
Terminal pitch	5.08 mm
perspective	120 deg

7.5mmx14mm LIGHT BAR

Part Number: DE2SRD

Super Bright Red

Features

Uniform light emitting area.

Easily mounted on P.C. boards or industry standard sockets.

Flush mountable.

Excellent on/off contrast.

Can be used with panels and legend mounts.

Mechanically rugged

RoHS compliant.

Description

The Super Bright Red source color devices are made with

Gallium Aluminum Arsenide Red Light Emitting Diode.

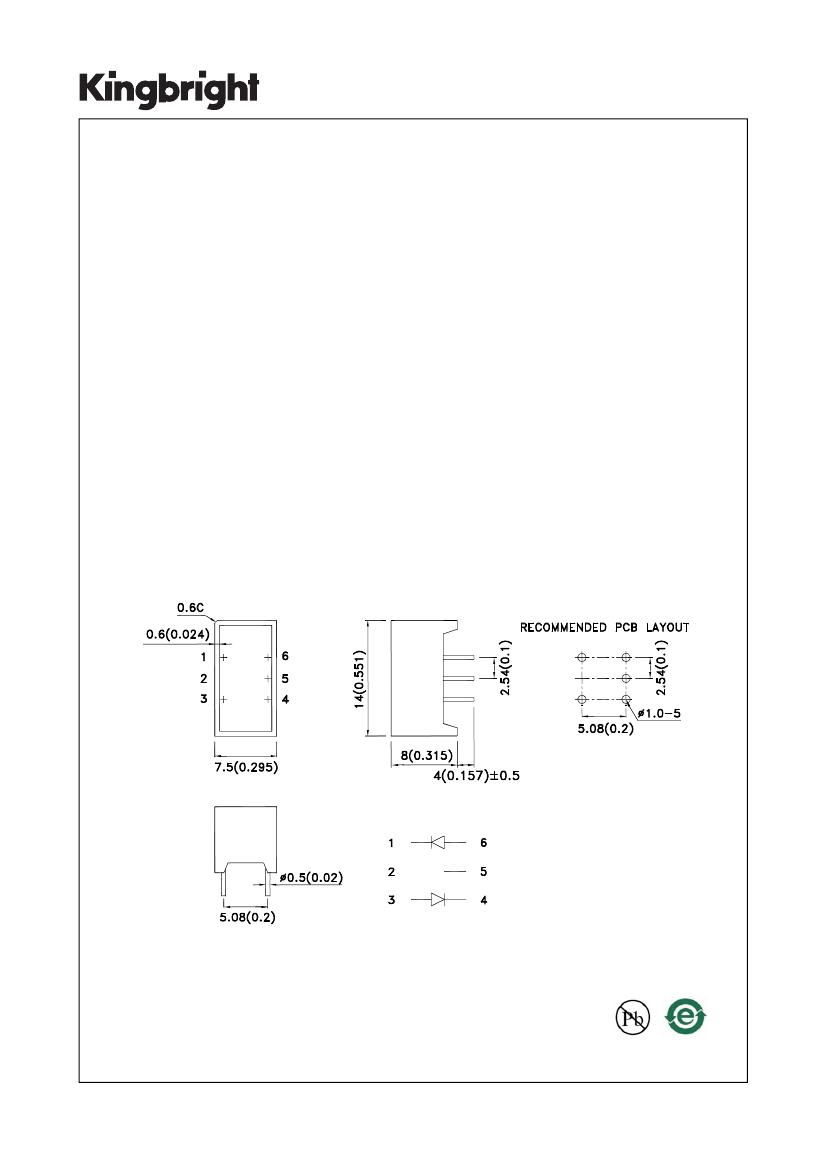

Package Dimensions& Internal Circuit Diagram

Notes:

1. All dimensions are in millimeters (inches). Tolerance is ±0.25(0.01") unless otherwise noted.

2. The specifications, characteristics and technical data described in the datasheet are subject to change without prior notice.

SPEC NO: DSAD1412

APPROVED: WYNEC

REV NO: V.6

CHECKED: Joe Lee

DATE: MAR/24/2011

DRAWN: J.Yu

PAGE: 1 OF 6

ERP: 1334000016
