PC957L0NSZ0F Series
PC957L0NSZ0F
Series
High Speed 1Mb/s, High CMR
DIP 8 pin
∗
OPIC
Photocoupler
■
Description
PC957L0NSZ0F Series
contains a LED optically
coupled to an OPIC chip.
It is packaged in a 8 pin DIP, available in SMT
gullwing lead-form option.
Input-output isolation voltage(rms) is 5.0 kV, High
speed response (TYP. 1Mb/s) and CMR is MIN.
15 kV/µs.
■
Agency approvals/Compliance
1. Recognized by UL1577 (Double protection isolation),
file No. E64380 (as model No.
PC957L)
2. Approved by VDE, DIN EN60747-5-2
(∗)
(as an
option), file No. 40008898 (as model No.
PC957L)
3. Package resin : UL flammability grade (94V-0)
(∗)
DIN EN60747-5-2 : successor standard of DIN VDE0884
■
Features
1. 8 pin DIP package
2. Double transfer mold package
(Ideal for Flow Soldering)
3. High speed response
(t
PHL
: TYP. 0.2
µs,
t
PLH
: TYP. 0.4
µs)
4. High noise immunity due to high instantaneous
common mode rejection voltage (CM
H
: MIN. 15
kV/µs, CM
L
: MIN.
−15
kV/µs)
5. High isolation voltage between input and output
(V
iso(rms)
: 5.0 kV)
6. Lead-free and RoHS directive compliant
■
Applications
1. Programmable controllers
2. Inverter
∗
"OPIC"(Optical IC) is a trademark of the SHARP Corporation. An OPIC consists of a light-detecting element and a signal-processing
circuit integrated onto a single chip.
Notice The content of data sheet is subject to change without prior notice.
In the absence of confirmation by device specification sheets, SHARP takes no responsibility for any defects that may occur in equipment using any SHARP
devices shown in catalogs, data books, etc. Contact SHARP in order to obtain the latest device specification sheets before using any SHARP device.
1
Sheet No.: D2-A06402EN
Date Jun. 30. 2005
© SHARP Corporation
PC957L0NSZ0F Series
■
Internal Connection Diagram
8
7
6
5
1
2
3
4
1
2
3
4
NC
Anode
Cathode
NC
5
6
7
8
GND
V
O
(Open collector)
NC
V
CC
■

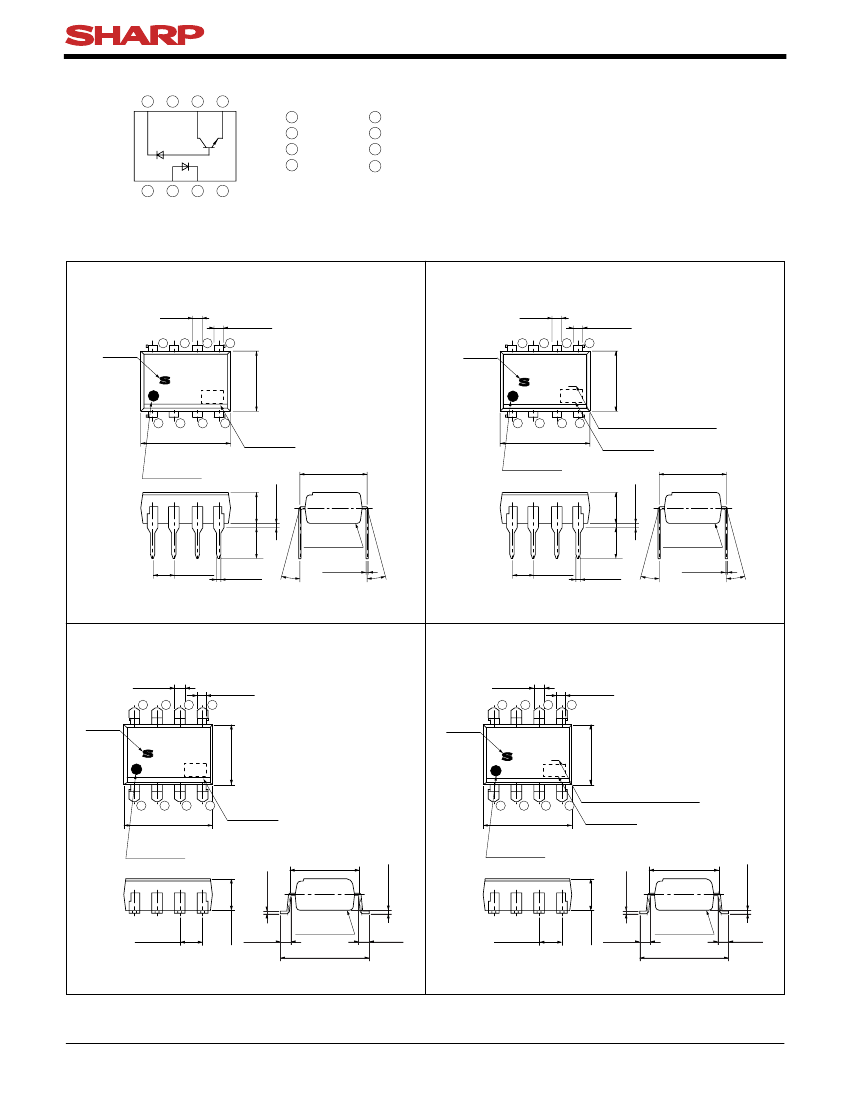

Outline Dimensions
1. Through-Hole [ex.
PC957L0NSZ0F]
1.2
±0.3
SHARP
mark
"S"
8
7
6
5
(Unit : mm)
2. Through-Hole (VDE option) [ex.
PC957L0YSZ0F]
1.2
±0.3
SHARP
mark
"S"
8
7
6
5
0.85
±0.2
0.85
±0.2
6.5
±0.5
4
1
2
3
±0.5
1
2
3
±0.5
4
4
VDE Identification mark
Date code
7.62
±0.3
3.4
±0.5
3.5
±0.5
0.5
TYP.
9.66
Date code
7.62
±0.3
3.4
±0.5
3.5
±0.5
0.5
TYP.
9.66
Primary side
mark
Primary side
mark
Epoxy resin
0.26
±0.1
θ
θ:0
to 13˚
θ
2.54
±0.25
6.5
±0.5
PC957L
PC957L
Epoxy resin
0.26
±0.1
θ
θ:0
to 13˚
θ
2.54
±0.25
0.5
±0.1
0.5
±0.1
Product mass : approx. 0.55g
3. SMT Gullwing Lead-Form [ex.
PC957L0NIP0F]
1.2
±0.3
SHARP
mark
"S"
8
7
6
5
Product mass : approx. 0.55g
4. SMT Gullwing Lead-Form (VDE option)
[ex.
PC957L0YIP0F]
1.2
±0.3
SHARP
mark
"S"
8
7
6
5
0.85
±0.2
0.85
±0.2
6.5
±0.5
4
1
2
3
4
9.66
±0.5
Primary side
mark
Date code
1
2
3
4
9.66
±0.5
Primary side
mark
0.35
±0.25
0.26
3.5
±0.5
2.54
±0.25
1.0
+0.4
−0
Epoxy resin
10.0
+0
−0.5
3.5
±0.5
0.26
1.0
+0.4
−0
2.54
±0.25
1.0
+0.4
−0
Epoxy resin
10.0
+0
−0.5
1.0
+0.4
−0
Product mass : approx. 0.51g
Product mass : approx. 0.51g
Plating material : SnCu (Cu : TYP. 2%)
Sheet No.: D2-A06402EN
2
0.35
±0.25
7.62
±0.3
±0.1
6.5
±0.5
VDE Identification mark
Date code
PC957L
PC957L
7.62
±0.3
±0.1
PC957L0NSZ0F Series
Date code (2 digit)
1st digit
Year of production
A.D
Mark
2002
A
2003
B
2004
C
2005
D
2006
E
2007
F
2008
H
2009
J
2010
K
2011
L
2012
M
·
·
N
·
2nd digit
Month of production
Month
Mark
January
1
February
2
March
3
April
4
May
5
June
6
July
7
August
8
September
9
October
O
November
N
December
D
A.D.
1990
1991
1992
1993
1994
1995
1996
1997
1998
1999
2000
2001
Mark
P
R
S
T
U
V
W
X
A
B
C
·
·
·
repeats in a 20 year cycle
Country of origin
Japan
Rank mark
There is no rank mark indicator.
Sheet No.: D2-A06402EN
3
PC957L0NSZ0F Series
■
Absolute Maximum Ratings
Parameter
Symbol
Rating
*1
25
Forward current
I
F
Input
Reverse voltage
V
R
5
*2
Power dissipation
P
45
−0.5
to
+30
V
CC
Supply voltage
Output voltage
V
O
−0.5
to
+20
Output
Output current
I
O
8
*3
Power dissipation
P
O
100
Operating temperature
−55
to
+85
T
opr
−55
to
+125
T
stg
Storage temperature
*4
V
iso (rms)
Isolation voltage
5.0
*5
270
Soldering temperature
T
sol
(T
a
=25˚C)
Unit
mA
V
mW
V
V
mA
mW
˚C
˚C
kV
˚C
*1 When ambient temperature goes above 70˚C, the power dissipation goes down at
0.8mA/˚C. (Fig.3)
*2 When ambient temperature goes above 70˚C, the power dissipation goes down at
1.5mW/˚C. (Fig.4)
*3 When ambient temperature goes above 70˚C, the power dissipation goes down at
1.8mW/˚C. (Fig.4)
*4 40 to 60%RH, AC for 1minute, f=60Hz
*5 For 10s
■
Electro-optical Characteristics
*6
Parameter
Forward voltage
Reverse current
Input
Terminal capacitance
High level output current (1)
High level output current (2)
High level output current (3)
Output Low level output voltage
Low level supply current
High level supply current (1)
High level supply current (2)
Current transfer ratio (1)
Current transfer ratio (2)
Isolation resistance
Floating capacitance
Transfer "High→Low" propagation delay time
charac-
teristics "Low→High" propagation delay time
Instantaneous common mode
rejection voltage
(High level output)
Instantaneous common mode
rejection voltage
(Low level output)
Symbol
V
F
I
R
C
t
I
OH
(1)
I
OH
(2)
I
OH
(3)
V
OL
I
CCL
I
CCH
(1)
I
CCH
(2)
CTR (1)
CTR (2)
R
ISO
C
f
t
pHL
t
pLH
CM
H
CM
L
(Unless otherwise specified T
a
=0
to 70˚C)
Unit
Conditions
MIN.
TYP. MAX.
1.7
1.95
T
a
=25˚C,
I
F
=16mA
V
−
µA
10
−
T
a
=25˚C,
V
R
=5V
−
T
a
=25˚C,
V=0, f=1MHz
pF
60
150
−
T
a
=25˚C,
I
F
=0,
V
CC
=V
O
=5.5V
nA
−
3
500
µA
T
a
=25˚C,
I
F
=0,
V
CC
=V
O
=15V
−
0.01
1
µA
I
F
=0,
V
CC
=V
O
=15V
−
−
50
I
F
=16mA,
V
CC
=4.5V,
I
O
=2.4mA
V
−
0.1
0.4
I
F
=16mA,
V
CC
=15V,
V
O
=OPEN
µA
−
−
120
µA
T
a
=25˚C,
I
F
=0,
V
CC
=15V,
V
O
=OPEN
−
1
0.02
µA
I
F
=0,
V
CC
=15V,
V
O
=OPEN
−
−
2
%
50
19
−
T
a
=25˚C,
I
F
=16mA,
V
CC
=4.5V,
V
O
=0.4V
−
−
%
15
I
F
=16mA,
V
CC
=4.5V,
V
O
=0.4V
10
11
T
a
=25˚C,
DC500V, 40 to 60%RH
10
−
Ω
5×10
−
0.6
1
pF
T
a
=25˚C,
V=0, f=1MHz
0.2
−
0.8
µs
T
a
=25˚C,
I
F
=16mA
V
CC
=5V,
R
L
=1.9Ω
0.4
0.8
−
µs
T
a
=25˚C,
I
F
=0,
V
CC
=5V
V
CM
=1.0kV
(p-p)
, R
L
=1.9kΩ
T
a
=25˚C,
I
F
=16mA,
V
CC
=5V
V
CM
=1.0kV
(p-p)
, R
L
=1.9kΩ
15
30
−
kV/µs
−15
−30
−
kV/µs
*6 It shall connect a by-pass capacitor of 0.01µF or more between V
CC
(pin 8 ) and GND (pin 5 ) near the device, when it measures transfer characteristics and the output side
characteristics.
Sheet No.: D2-A06402EN
4
PC957L0NSZ0F Series
■
Model Line-up
Through-Hole
SMT Gullwing
Sleeve
Taping
Package
50pcs/sleeve
1 000pcs/reel
−−−−−−
Approved
−−−−−−
Approved
DIN EN60747-5-2
Model No.
PC957L0NSZ0F PC957L0YSZ0F PC957L0NIP0F PC957L0YIP0F
Lead Form
Please contact a local SHARP sales representative to inquire about production status.
Sheet No.: D2-A06402EN
5
