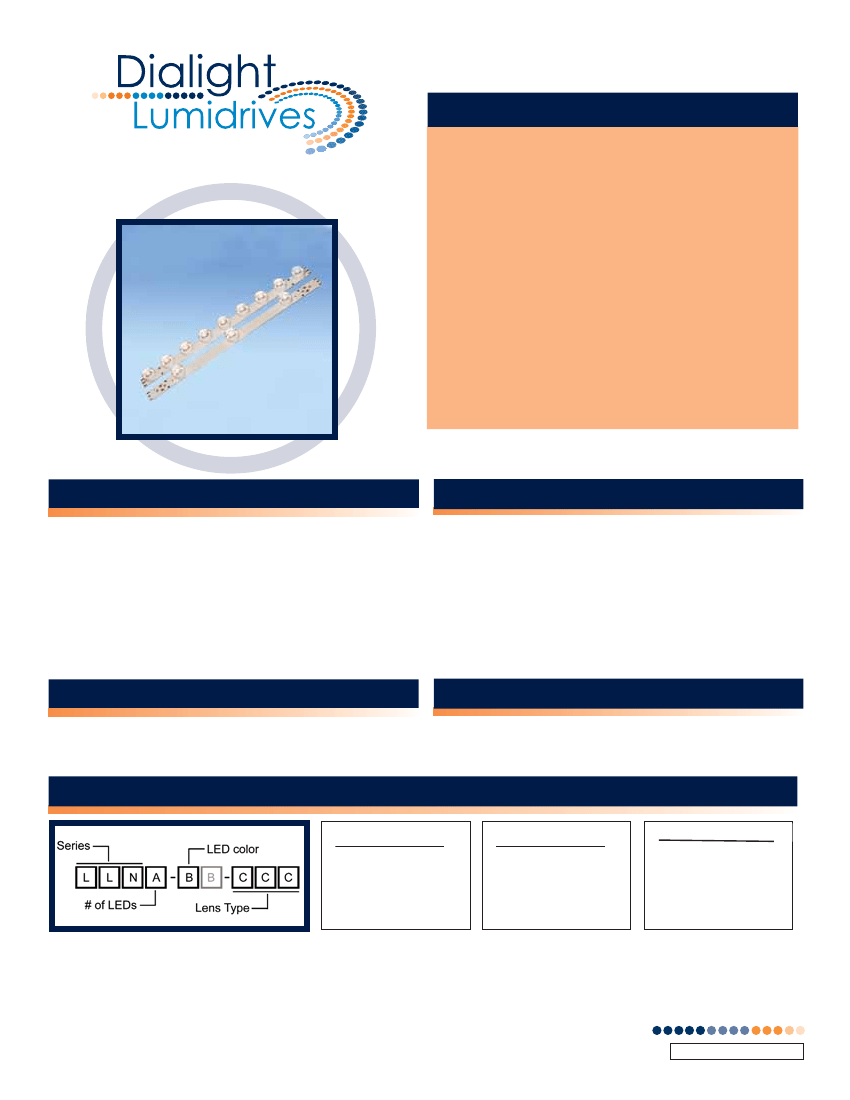

FEATURES / BENEFITS
LUMILINE
LED LIGHT ENGINES
SINGLE COLOR
Extremely long life of 50,000 hours at 55ºC PCB
temperature
Durable F-Form optics holder allow for easy changing
of 4 lens options (5, 15, 25 degree + 5x20 degree
oval)**
Available in 6 colors (Cool White, Warm White, Red,
Blue, Green, Amber)
Aluminium based PCB for easier heat dissipation
and more efficient operation
Units with production dates of 8/07 or later come with
22 AWG 12” lead wires pre-attached (red+ / black-)
Patents pending
OPERATING CONDITIONS
Recommended PCB temp=55ºC
Maximum PCB temp = 105ºC
LED Life @ 55ºC PCB temp = 50,000 hours
For maximum performance efficiency and longevity,
all “LumiLine” LED Light Engines should be screwed
or affixed using thermal adhesive to an appropriate
heat sink
Maximum input current = 350mA
Thermal conductivity = 1.3W/m-k
Breakdown voltage = 2kV
APPLICATIONS
Display case lighting
Cove lighting
Wall washing
Any application requiring efficiency & long life
in a linear light pattern
MECHANICAL DIMENSIONS
Height (all models including lens) = 15.5mm (0.61”)
LumiLine 3: 324mm X 20.5mm (12.75” x 0.8”)
LumiLine 9: 324mm X 20.5mm (12.75” x 0.8”)
MATERIALS/FINISH
LUXEON
®
I LEDs
1.6mm Aluminium clad PCB substrate
White solder resist finish
PART NUMBERS
# of LEDs (A)
3 = 3 LEDs / LumiLine 3
9 = 9 LEDs / LumiLine 9
LED Color (B)
W = Cool White
WW = Warm White
R = Red
G = Green
B = Blue
A = Amber
LENS Type (CCC)**
005 = 5 Degree
015 = 15 Degree
025 = 25 Degree
520 = 5 X 20 Degree
XXX = no lens*
* Lens to be purchased and installed seperately
** This figure indicates half-divergence angle
Dialight Corporation
Dialight reserves the right to make changes at any time
in order to supply the best product possible.
1501 Route 34 South • Farmingdale, NJ 07727 USA
Tel: (1) 732-919-3119 • Fax: (1) 732-751-5778 • www.dialight.com
MDEXLUMILINE_D
LUMILINE
LED LIGHT ENGINES
SINGLE COLOR

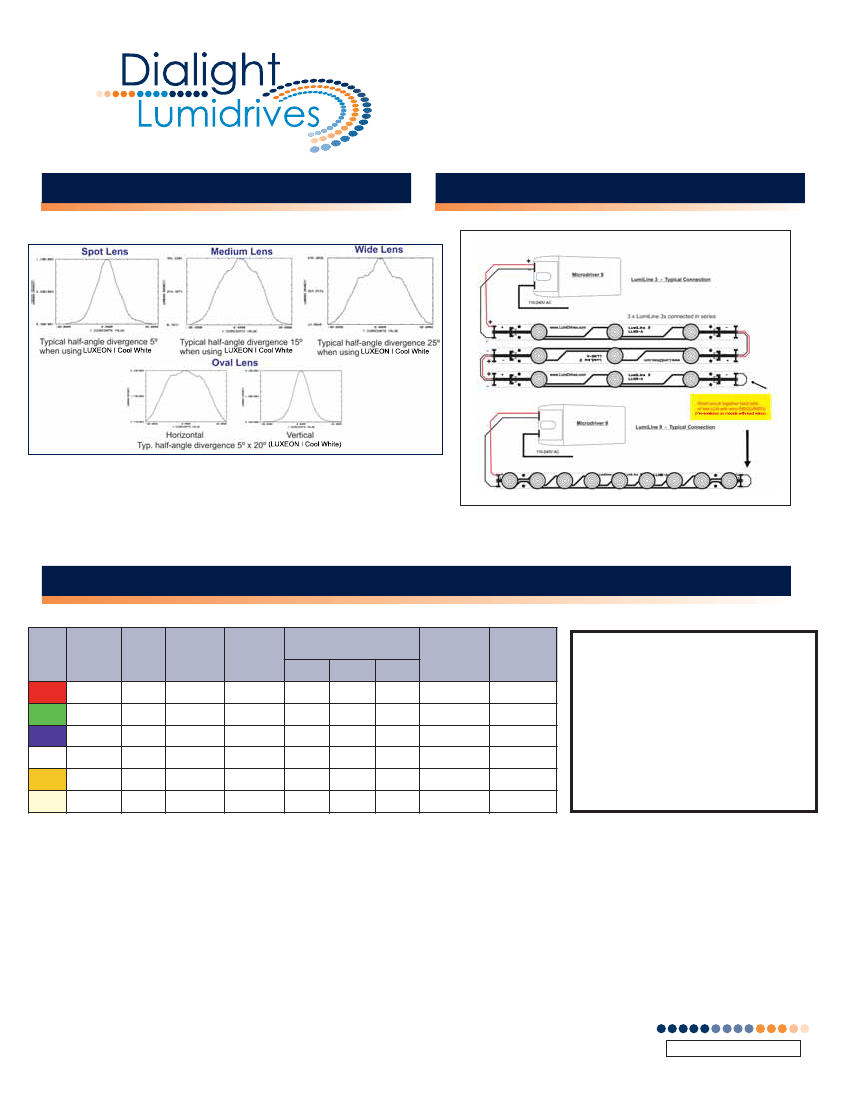

PHOTOMETRIC DATA
ELECTRICAL SPECIFICATIONS
TYPICAL LED PHOTOMETRIC DATA
LED
Color
Forward
Max.Current Max. Power
Voltage
(mA)
(Watts)
(Typ)
2.95
3.42
3.42
3.42
2.95
3.42
350
350
350
350
350
350
1.03
1.20
1.20
1.20
1.03
1.20
Dom Wavelength / CCT
Min
Typ
Max
645 nm
550 nm
460 nm
10000 K
597 nm
3800 K
Min Luminous Typ Luminous
Flux (lm) /
Flux (lm) /
Radiometric
Radiometric
Power (mW) Power (mW)
30.6 lm
30.6 lm
145 mW
30.6 lm
23.5 lm
13.9 lm
44 lm
53 lm
220 mW
45 lm
42 lm
20 lm
Maximum current input 350mA
Maximum power consumption 1.2W
per LED for White / Blue / Green /
Warm White, 1.0W per LED for Red /
Amber.
Recommended min gauge wire,
AWG24
Red
Green
Royal Blue
White
Amber
W White
620.5 nm 627 nm
520 nm
440 nm
4500 K
530 nm
455 nm
5500 K
584.5 nm 590 nm
2850 K
3300 K
Results are LED manufacturer’s test data @ 25ºC JTC’. Light output at 55ºC PCB temperature will be approximately 15-20% lower.
Elevated temperatures will result in further degradation of light output. For maximum performance use appropriate heat sinking.
Dialight Corporation
Dialight reserves the right to make changes at any time
in order to supply the best product possible.
1501 Route 34 South • Farmingdale, NJ 07727 USA
Tel: (1) 732-919-3119 • Fax: (1) 732-751-5778 • www.dialight.com
MDEXLUMILINE_D
