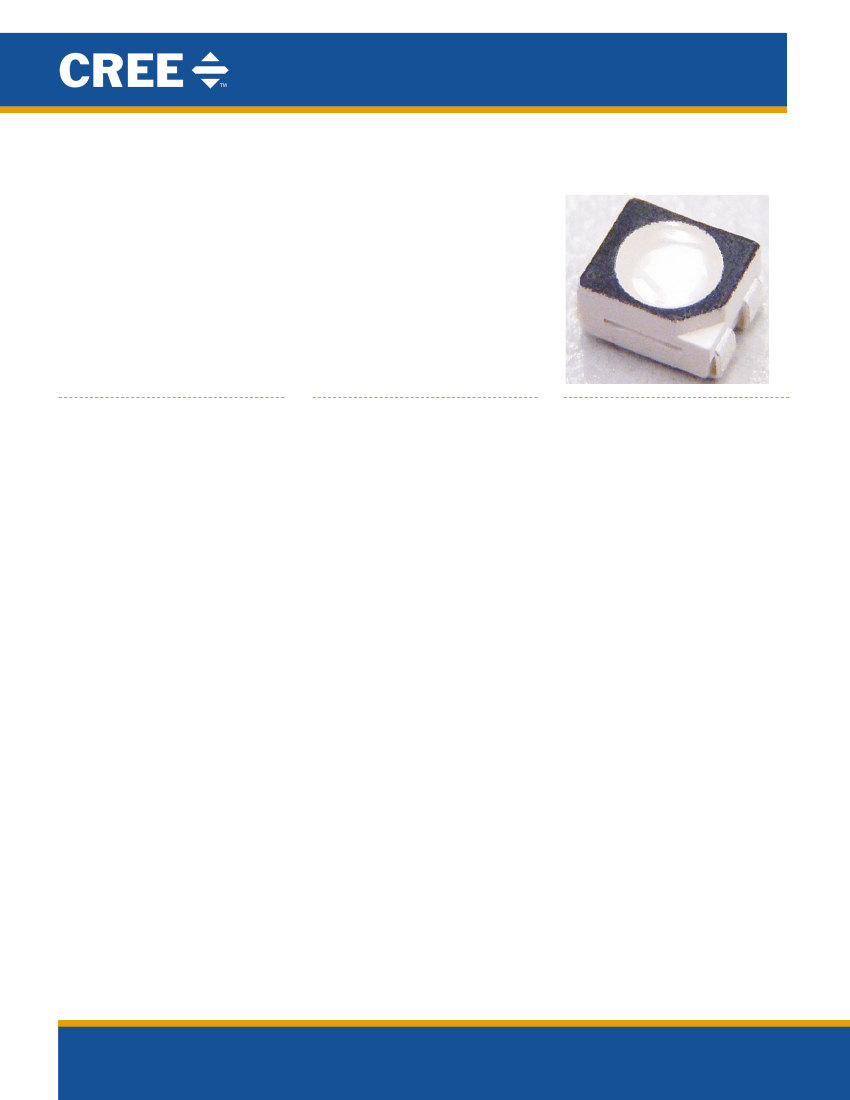

Cree PLCC4 1 in 1 SMD LED
CLM4B-RKB/AKB
INTENSITY BIN LIMIT (I
F
= 50
mA)
Red(CLM4B-RKB)
Bin Code
Wa
Wb
Xa
Xb
Min.(mcd)
1120
1400
1800
2240
Max.(mcd)
1400
1800
2240
2800
Amber(CLM4B-AKB)
Bin Code
Wa
Wb
Xa
Xb
Min.(mcd)
1120
1400
1800
2240
Max.(mcd)
1400
1800
2240
2800
Tolerance of measurement of luminous intensity is ±10%.
COLOR BIN LIMIT (I
F
= 50
mA)
Red (CLM4B-RKB)
Bin Code
RA
Min.(nm)
618
Max.(nm)
630
Amber(CLM4B-AKB)
Bin Code
A2
A3
A4
A5
A6
Min.(nm)
584
587
590
593
596
Max.(nm)
587
590
593
596
599
Tolerance of measurement of dominant wavelength is ±1 nm.
2018 Cree, Inc. All rights reserved. The information in this document is subject to change without notice. Cree and the Cree logo are registered trademarks of Cree, Inc.
3
Cree PLCC4 1 in 1 SMD LED
CLM4B-RKB/AKB
ORDER CODE TABLE*
Color
Red
Red
Kit Number
CLM4B-RKB-CWaXbAA3
CLM4B-RKB-CWbXbAA3
Luminous Intensity (mcd)
Min.
1120
1400
Max.
2800
2800
Color Bin
RA
RA
Dominant Wavelength
Min.(nm)
618
618
Color Bin
RA
RA
Max.(nm)
630
630
Color
Amber
Amber
Kit Number
CLM4B-AKB-CWaXb263
CLM4B-AKB-CWbXb353
Luminous Intensity (mcd)
Min.
1120
1400
Max.
2800
2800
Color Bin
A2
A3
Dominant Wavelength
Min.(nm)
584
587
Color Bin
A6
A5
Max.(nm)
599
596
Notes:
1. The above kit numbers represent order codes that include multiple intensity-bin and color-bin codes. Only one
intensity-bin code and one color-bin code will be shipped on each bulk. Single intensity-bin code and single color-bin
codes will not be orderable.
2. Please refer to the “Cree LED Lamp Reliability Test Standards” document for reliability test conditions.
3.
Please refer to the “Cree LED Lamp Soldering & Handling” document for information about how to use this LED
2018 Cree, Inc. All rights reserved. The information in this document is subject to change without notice. Cree and the Cree logo are registered trademarks of Cree, Inc.
4
Cree PLCC4 1 in 1 SMD LED
CLM4B-RKB/AKB
GRAPHS
IF (mA)
100.0
80.0
60.0
40.0
Amber
Red
(RELATIVE LUMINOUS INTENSITY)
2.5
2.0
1.5
1.0
0.5
Red
Amber
20.0
0.0
1.8
VF(V)
2.0
2.2
2.4
2.6
2.8
0.0
0.0
20
40
60
80
IF(mA)
100
FIG.1 FORWARD CURRENT VS.
FORWARD VOLTAGE.
-60
-50
-40
-30
-20
-10
0
-10
-20
-30
-40
-50
Ir(uA)
FIG.3 RED&AMBER REVERSE CURRENT
VS. REVERSE VOLTAGE.
FIG.2 RELATIVE LUMINOUS INTENSITY VS.
FORWARD CURRENT
(RELATIVE LUMINOUS INTENSITY)
100%
80%
Amber
Red
Vr(V)
60%
40%
20%
0%
300
WL(nm)
800
400
500
600
700
FIG.4 RELATIVE LUMINOUS INTENSITY VS.
WAVELENGTH.
(RELATIVE LUMINOUS INTENSITY)
1.0
IF(mA)
100
Rth j-s=150 C/W
80
60
0.5
40
20
0
Rth j-a=300 C/W
Ta( C)
100
Angle
0
20
40
60
80
0
-90
-60
-30
0
30
60
90
FIG.5 RED&AMBER MAXIMUM FORWARD DC CURRENT VS AMBIENT
TEMPERATURE (Tjmax=110 C)
FIG.6 FAR FIELD PATTERN
The above data are collected from statistical figures that do not necessarily correspond to the actual
parameters of each single LED. Hence, these data will be changed without further notice.
