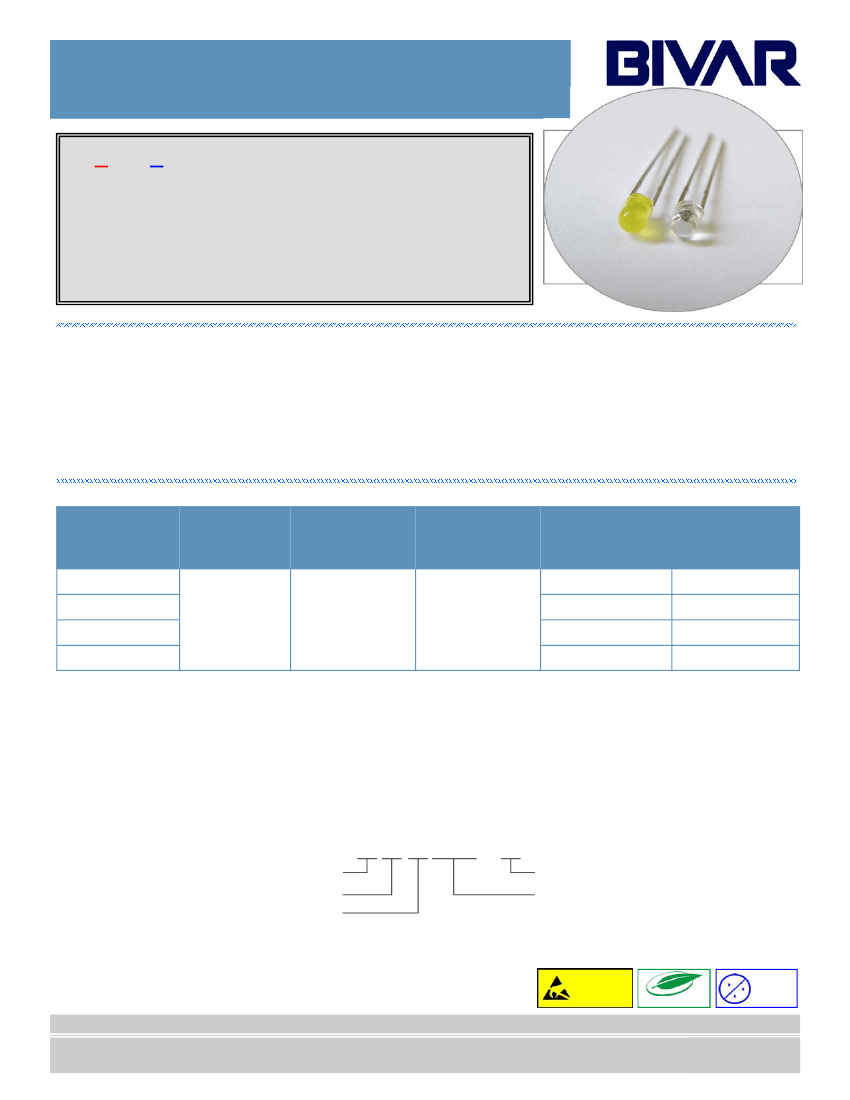

3mm (T1) Package Discrete LED
3mm (T1) Package Discrete LED
YELLOW, Low Bright
TURQUOISE, Bright
BLUE, Low Bright
GREEN, SuperCurrent
AMBER, Ultra Ultra
AMBER 5VCurrent Bright
Ultra
YELLOW, 12V
12V
B
3YX12V-X
♦
♦
♦
♦
♦
♦
Industry Standard 3mm (T1) Package
RoHS Compliant
Water Clear (C) and Diffused (D) Lenses
Available in Flange (F) and Shouldered (S) Lead Frame
styles
12V Operating Voltage
Ideal for Status Indication and Display
Bivar 3mm T1 Package 12V LED is ideal for applications equipped with regular 12V power supplies
such as servers and computer peripherals, and applications operated by 12V batteries such as auto-
mobiles and boats. Bivar offers water clear LED lens for maximum light output and diffused LED lens
for uniform light output. The Flanged LED is ideal for Panel Mount Clip & Ring assemblies. The
Shouldered Lead frame LED is ideal for vertical spacer assemblies without lead bends and also has a
built in strain relief feature which is ideal for right angle holder assemblies that require lead bends.
Part Number
3YC12V-F
3YD12V-F
3YC12V-S
3YD12V-S
Material
Emitted Color
Peak. Wavelength
λp(nm)
TYP.
Lens Appearance
Water Clear
Viewing Angle
20°
35°
30°
40°
GaAsP/Gap
YELLOW
590nm
Yellow Diffused
Water Clear
Yellow Diffused
Part Number Designation
3 X X 12 V - X
LED Body, mm
Emitted Color
Lens Appearance
Lead Frame & Body Style
i.e. -F, -S
12V Operating Voltage
ATTENTION
OBSERVE PRECAUTIONS
FOR HANDLING
ELECTROSTATIC
SENSITIVE DEVICES
RoHS
Compliant
Moisture
Sensitivity
Levels 1
Bivar reserves the right to make changes at any time without notice.
Bivar, Inc. — 4 Thomas, Irvine, California 92618, U.S.A.
Phone: (949) 951-8808 Fax: (949) 951-3974 Web: www.bivar.com
Revision B 06/15
Page 1 of 5
3mm (T1) Package Discrete LED
LEDs
3mm (T1) Package Discrete LED
YELLOW, Low Current
TURQUOISE, Bright
BLUE, Low Bright
GREEN, 12V Ultra
AMBER, 5VCurrent Bright
AMBER Low Current
Ultra
Ultra
Super
YELLOW, 12V Bright

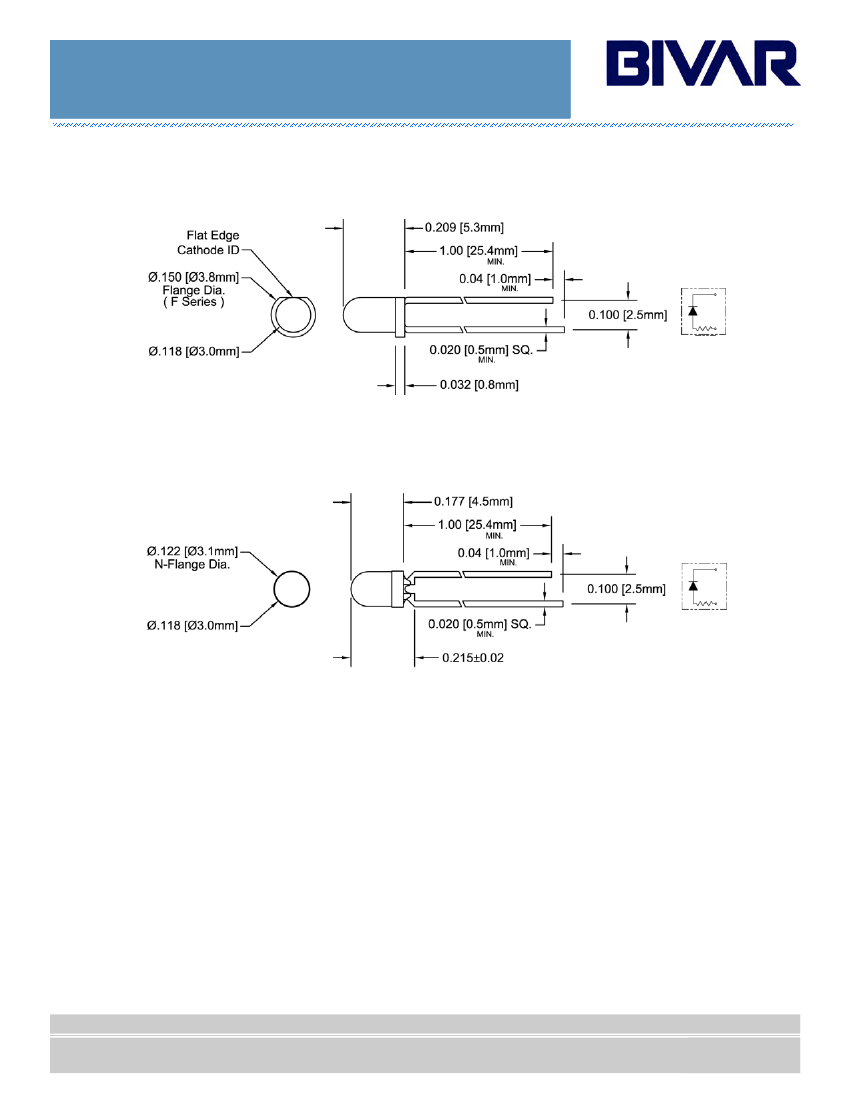

Outline Dimensions
Flanged “3XX12V-F” LED
Shouldered Lead “3XX12V-S” LED
Outline Drawings Notes:
1. All dimensions are in inches [millimeters].
2. Standard tolerance: ±0.010" unless otherwise noted.
3. Tolerance of overall epoxy outline: ±0.020" unless otherwise noted.
4. Epoxy meniscus may extend to 0.060" max.
Bivar reserves the right to Bivar reserves theany time make changes at any time without supply the best product possible.
make changes at right to in order to improve design and to notice.
Bivar, Inc. — 4 Thomas, Irvine, California 92618, U.S.A.
Phone: (949) 951-8808 Fax: (949) 951-3974 Web: www.bivar.com
Revision B 06/15
Page 2 of 5
3mm (T1) Package Discrete LED
LEDs
3mm (T1) Package Discrete LED
YELLOW, Low Current
TURQUOISE, Bright
BLUE, Low Bright
GREEN, 12V Ultra
AMBER, 5VCurrent Bright
AMBER Low Current
Ultra
Ultra
Super
YELLOW, 12V Bright
Absolute Maximum Ratings
T
A
= 25°C unless otherwise noted
Power Dissipation
Forward Current ( DC )
Peak Forward Current
1
Reverse Voltage
Operating Temperature Range
Storage Temperature Range
Lead Soldering Temperature ( 3 mm from the base of the epoxy bulb )
2
Notes: 1. 10% Duty Cycle, Pulse Width
≤
0.1 msec.
/ mW
10mA
12 mA
5V
-25 ~ +85°C
-30 ~ +100°C
260°C
2. Solder time less than 5 seconds at temperature extreme.
Electrical / Optical Characteristics
T
A
= 25°C & Vf = 12V unless otherwise noted
Forward
Voltage (V)
1
Recommend
Forward
Current (mA)
Reverse
Dominant
Current
Wavelength (nm)
2
(μA)
MAX
100
MIN
/
/
/
/
TYP
/
/
/
/
MAX
/
/
/
/
Luminous
Intensity Iv (mcd)
MIN
/
/
/
/
TYP
40
25
40
25
MAX
/
/
/
/
Viewing
Angle
2
Ө
½
(deg)
TYP
20
35
30
40
Part Number
MIN TYP MAX MIN TYP MAX
3YC12V-F
3YD12V-F
3YC12V-S
3YD12V-S
/
/
/
12
/
/
/
/
12
/
/
/
100
Notes: 1. Tolerance of forward voltage : ±0.05V.
2. Tolerance of dominant wavelength : ±1.0nm.
Bivar reserves the right to Bivar reserves theany time make changes at any time without supply the best product possible.
make changes at right to in order to improve design and to notice.
Bivar, Inc. — 4 Thomas, Irvine, California 92618, U.S.A.
Phone: (949) 951-8808 Fax: (949) 951-3974 Web: www.bivar.com
Revision B 06/15
Page 3 of 5
3mm (T1) Package Discrete LED
LEDs
3mm (T1) Package Discrete LED
YELLOW, Low Current
TURQUOISE, Bright
BLUE, Low Bright
GREEN, 12V Ultra
AMBER, 5VCurrent Bright
AMBER Low Current
Ultra
Ultra
Super
YELLOW, 12V Bright
Typical Electrical / Optical Characteristics
T
A
= 25°C unless otherwise noted
Iv
0°
10°
20°
30°
40°
50°
60°
70°
80°
1.0
20°
30°
35°
0.5
40°
0.0
500
λ(nm)
90°
0.5
0.3
0.1
0.2
0.4
0.6

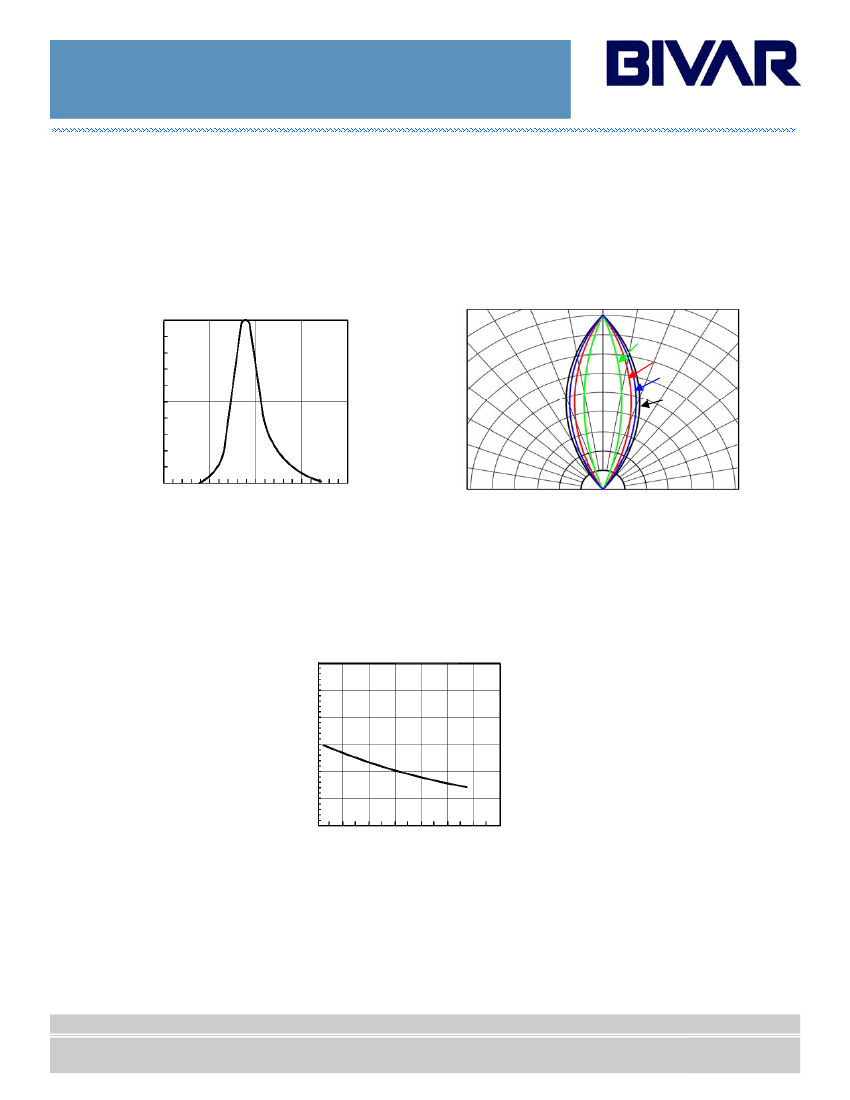

Fig. 2 Directivity Radiation Diagram
550
600
650
700
Fig. 1 Relative Luminous Intensity vs. Wavelength
Iv
3.0
2.0
1.0
0.0
T (°C)
-40
0
40
80
Fig. 3 Relative Luminous Intensity vs. Temperature
Bivar reserves the right to Bivar reserves theany time make changes at any time without supply the best product possible.
make changes at right to in order to improve design and to notice.
Bivar, Inc. — 4 Thomas, Irvine, California 92618, U.S.A.
Phone: (949) 951-8808 Fax: (949) 951-3974 Web: www.bivar.com
Revision B 06/15
Page 4 of 5
3mm (T1) Package Discrete LED
LEDs
3mm (T1) Package Discrete LED
YELLOW, Low Current
TURQUOISE, Bright
BLUE, Low Bright
GREEN, 12V Ultra
AMBER, 5VCurrent Bright
AMBER Low Current
Ultra
Ultra
Super
YELLOW, 12V Bright
Recommended Soldering Conditions
Recommended Lead Free Wave Soldering Profile
Preheat Temperature: 100ºC Max.
Preheat Time: 20 ~ 50 Seconds
Peak Temperature: 260ºC Max.
Solder Time Above 217ºC: 5 Seconds Max.
Note: Turn off top heater at preheat to prevent the lamp body directly exposed to the heat source.
Packaging and Labeling Plan
Anti-Static Poly Bag with Desiccant
(500 pcs Max. per Bag)
Bivar reserves the right to Bivar reserves theany time make changes at any time without supply the best product possible.
make changes at right to in order to improve design and to notice.
Bivar, Inc. — 4 Thomas, Irvine, California 92618, U.S.A.
Bivar, Inc. — 4 Thomas, Irvine, California 92618, U.S.A.
Phone: (949) 951-8808 Fax: (949) 951-3974 Web: www.bivar.com
Phone: (949) 951-8808 Fax: (949) 951-3974 E-mail: bivar@bivar.com Web: www.bivar.com
Rev. A 01/16/08
Revision B 06/15
Page 4 of 4
Page 5 of 5
