558-1801-001

Description
LED Panel Mount Indicators LED SNAPIN PAN IND
CategoryLED optoelectronic/LED    photoelectric
File Size91KB,2 Pages
ManufacturerDIALIGHT
Websitehttps://www.dialight.com
Download Datasheet Parametric Compare View All

558-1801-001 Online Shopping

Suppliers Part Number Price MOQ In stock
558-1801-001 - - View Buy Now

558-1801-001 Overview

LED Panel Mount Indicators LED SNAPIN PAN IND

558-1801-001 Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
package instruction2 PIN
Reach Compliance Codecompliant
Other featuresIC COMPATIBLE, HIGH RELIABILITY
colorRED
color@wavelengthRed
ConfigurationSINGLE
Maximum forward current0.04 A
Maximum forward voltage2.4 V
JESD-609 codee0
Lens typeDIFFUSED
Nominal luminous intensity30.0 mcd
Installation featuresPANEL MOUNT
Number of functions1
Number of terminals2
Maximum operating temperature85 °C
Minimum operating temperature-25 °C
Optoelectronic device typesSINGLE COLOR LED
total height4.78 mm
method of packingBULK
peak wavelength660 nm
shapeROUND
size3 mm
surface mountNO
T codeT-1
Terminal surfaceTin/Lead (Sn/Pb)
Terminal pitch2.54 mm
perspective60 deg
Base Number Matches1

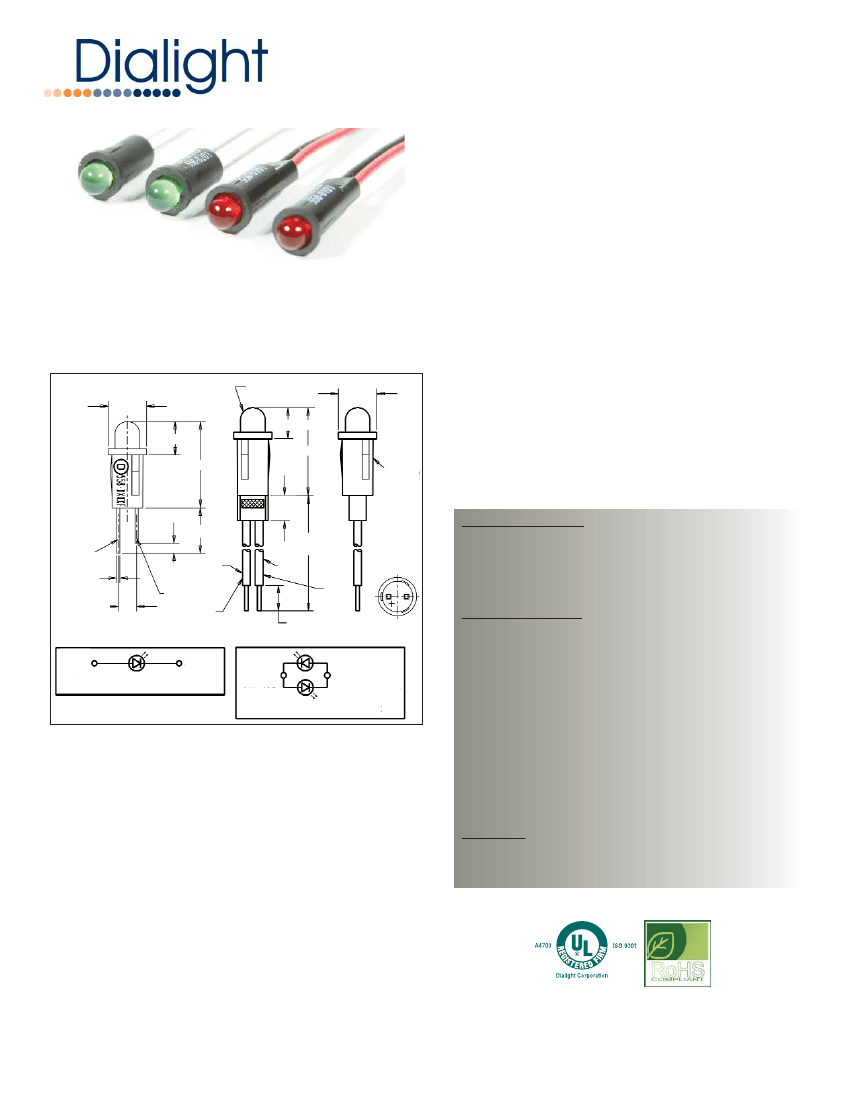

558 Series
Snap-in LED - .156” Mounting Hole
Panel Mount Indicators
ø .3mm LED
ø .190
(4.83)
“A”±.015
“A”±.015
“B”±.020
“B”±.020
HOUSING
(VALOX)
.125
(3,17)
REF.
Application
Dialight's 558 series LED panel mount indicator is available with a variety
of LEDs including AlInGaP and InGaN technology for high brightness
applications, bicolor and integral resistors. These indicators are
designed for a variety of applications such as:
Fan tray assemblies
Datacenter Infrastructure (Servers and Storage)
Networking Equipment (Switches and routers)
Storage Networking Hardware (Fibre channel host bus adapter cards)
Next-Gen Wireless Infrastructure
Electronic Test & Measurement Instruments
Communications Testing Equipment
Process controls
Automation
Medical Equipment
Handheld devices
ø .190
(4,83)
Min. .755
ANODE
LEAD
.20
(.51)
SQ. TYP
NOM
.100±.015
(2.54±0.38)
RED
.040
(1.01) WIRE
MIN
CATHODE
LEAD
PIN 2
Mechanical Information
Mounting Hole Size:
Panel Thickness:
0.155 - 0.158" (3.94 - 4.01 mm)
0.031 - 0.062" (.787 - 1.57 mm)
See
Termination
BLACK
WIRE
PIN 1
.500±.032
(12.7±0.81)
PIN 1
RED CATHODE
FOR R/G LED
YELLOW CATHODE
FOR Y/G LED
Electrical Specifications
Operating Voltage:
1.8 - 2.1 VDC typical (current limiting resistor
required)
5 VDC typical (resistor not required)
See table
(-67°F to +212°F) -55°C to +100°C
PIN 2
PIN 1
ANODE
CATHODE
(-)
(+)
SINGLE COLOR LED SCHEMATIC
PIN 2
GREEN
CATHODE
BI-COLOR LED SCHEMATIC
Operating Temp:
Storage Temp:
Features & Benefits
RoHS compliant
Long life - typically 100K hours
Leads:
Electrical connection:
Straight terminals for wire wrapping or either
6 or 14 inch 26 AWG lead wire
Straight leads
2 leads
Low power consumption - uses up to 90% less energy
than an incandescent indicator
Construction
Housing:
Front panel snap-in mounting requires no additional hardware
No heat generated
Resistant to shock and vibration
Termination - straight terminals for wire wrapping or
lead wire for soldering or optional terminals
Black housing material meets:
UL94V-0 and enhances LED contrast
T
hree leaded bicolor version allows for additional color variations
Available with PVC-free lead wires
www.dialight.com
