PS2565L-2 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> PS2565L-2

PS2565L-2: DescriptionTransistor Output Optocouplers Hi-Iso AC Input 2-Ch; CategoryLED optoelectronic/LED; File Size930KB，16 Pages; ManufacturerCEL; Websitehttp://www.cel.com/

Download Datasheet Parametric Compare View All

PS2565L-2 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	PS2565L-2	-	-	View	Buy Now

PS2565L-2 Overview

Transistor Output Optocouplers Hi-Iso AC Input 2-Ch

PS2565L-2 Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	CEL
Product Category	Transistor Output Optocouplers
RoHS	N
Output Type	NPN Phototransistor
Number of Channels	2 Channel
If - Forward Current	80 mA
Maximum Collector Emitter Voltage	80 V
Maximum Collector Current	50 mA
Isolation Voltage	5000 Vrms
Maximum Collector Emitter Saturation Voltage	300 mV
Vf - Forward Voltage	1.4 V
Pd - Power Dissipation	120 mW
Maximum Operating Temperature	+ 100 C
Minimum Operating Temperature	- 55 C
Packaging	Tube
Configuration	2 Channel
NumOfPackaging	1
Factory Pack Quantity	45

Preview

Download Datasheet

View All

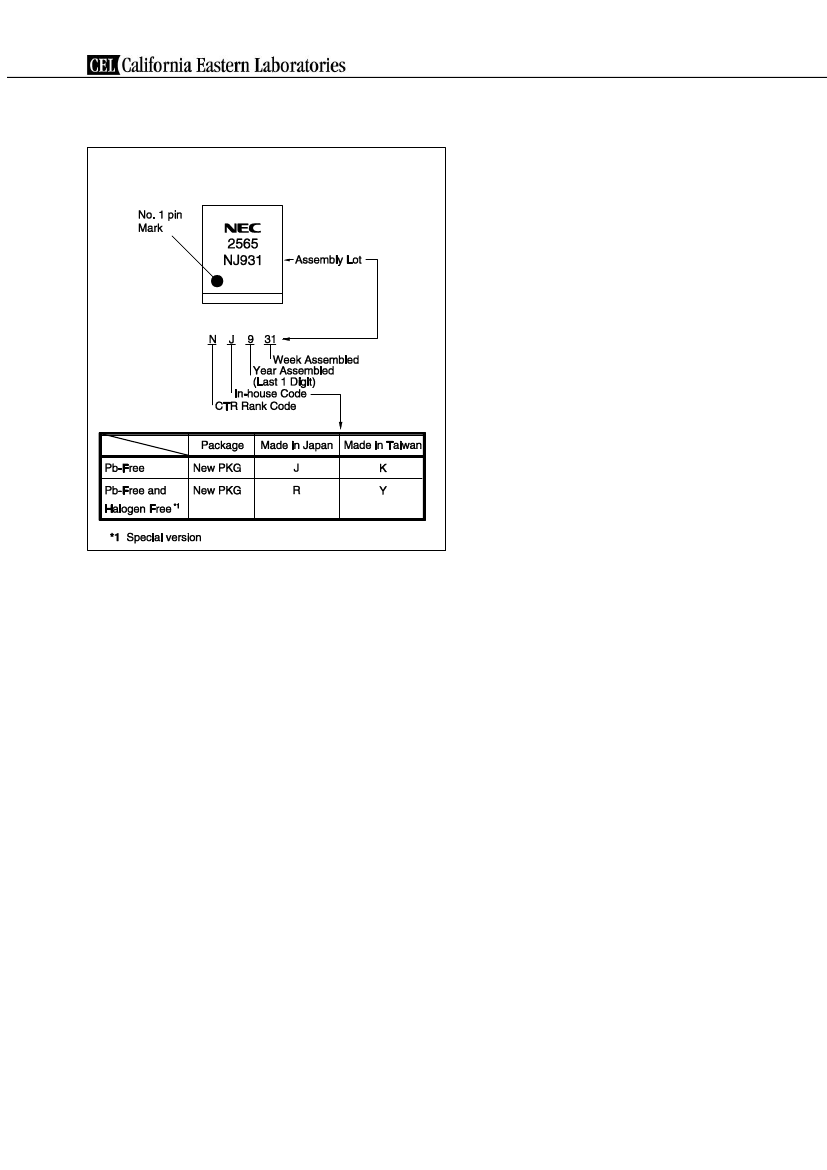

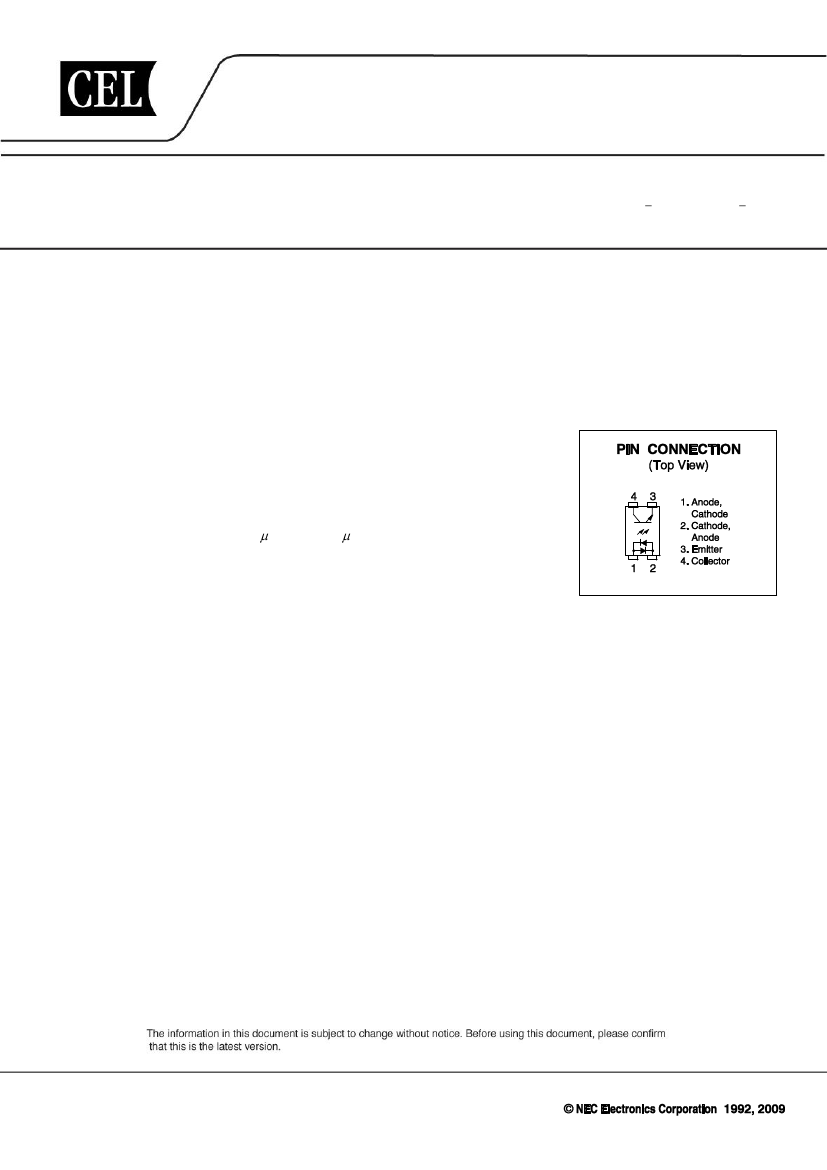

PHOTOCOUPLER

PS2565-1,PS2565L-1,PS2565L1-1,PS2565L2-1

HIGH ISOLATION VOLTAGE

AC INPUT RESPONSE TYPE

MULTI PHOTOCOUPLER SERIES

DESCRIPTION

The PS2565-1 is optically coupled isolators containing GaAs light emitting diodes and an NPN silicon

phototransistor.

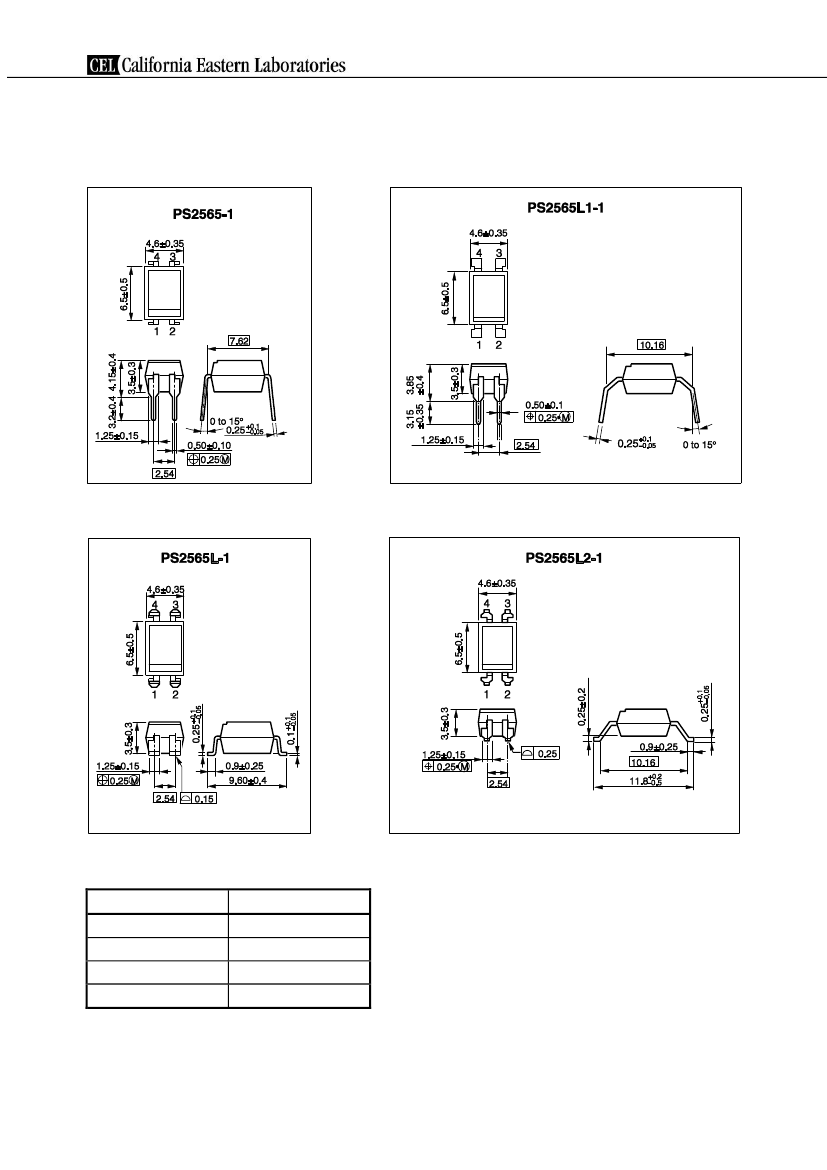

The PS2565-1 is in a plastic DIP (Dual In-line Package) and the PS2565L-1 is lead bending type (Gull-wing) for

surface mount.

The PS2565L1-1 is lead bending type for long creepage distance.

The PS2565L2-1 is lead bending type for long creepage distance (Gull-wing) for surface mount.

NEPOC Series

FEATURES

• AC input response

• High Isolation voltage (BV = 5 000 Vr.m.s.)

• High collector to emitter voltage (V

CEO

= 80 V)

• High current transfer ratio (CTR = 200% TYP.)

• High-speed switching (t

= 3 s TYP., t

= 5 s TYP.)

<R>

• Ordering number of taping product: PS2565L-1-F3 : 2 000 pcs/reel

: PS2565L2-1-E3: 1 000 pcs/reel

• Safety standards

• UL approved: No. E72422

• CSA approved: No. CA 101391 (CA5A, CAN/CSA-C22.2 60065, 60950)

• BSI approved: No. 7112/7420

• SEMKO approved: No. 903238

• NEMKO approved: No. P09210868

• DEMKO approved: No. 314999

• FIMKO approved: No. FI 25119

• DIN EN60747-5-2 (VDE0884 Part2) approved: No. 40008862 (Option)

APPLICATIONS

• Telephone/FAX.

• FA/OA equipment

• Programmable logic controller

Document No. PN10236EJ05V0DS (5th edition)

Date Published November 2009 NS

The mark <R> shows major revised points.

The revised points can be easily searched by copying an "<R>" in the PDF file and specifying it in the "Find what:" field.

PS2565L-2 Related Products

	PS2565L-2	PS2565L-1	PS2565L-1-E3	PS2565L-1-E3-K-A	PS2565-1
Description	Transistor Output Optocouplers Hi-Iso AC Input 2-Ch	Transistor Output Optocouplers Hi-Iso AC Input 1-Ch	Transistor Output Optocouplers Hi-Iso AC Input 1-Ch	Transistor Output Optocouplers Hi-Iso AC Input 1-Ch	Transistor Output Optocouplers Hi-Iso AC Input 1-Ch
Product Attribute	Attribute Value	Attribute Value	Attribute Value	Attribute Value	Attribute Value
Manufacturer	CEL	CEL	CEL	CEL	CEL
Product Category	Transistor Output Optocouplers	Transistor Output Optocouplers	Transistor Output Optocouplers	Transistor Output Optocouplers	Transistor Output Optocouplers
RoHS	N	No -; RoHS Version Available	N	Details	No -; RoHS Version Available
Output Type	NPN Phototransistor	NPN Phototransistor	NPN Phototransistor	NPN Phototransistor	NPN Phototransistor
Number of Channels	2 Channel	1 Channel	1 Channel	1 Channel	1 Channel
If - Forward Current	80 mA	80 mA	80 mA	80 mA	80 mA
Maximum Collector Emitter Voltage	80 V	80 V	80 V	80 V	80 V
Maximum Collector Current	50 mA	50 mA	50 mA	50 mA	50 mA
Isolation Voltage	5000 Vrms	5000 Vrms	5000 Vrms	5000 Vrms	5000 Vrms
Maximum Collector Emitter Saturation Voltage	300 mV	300 mV	300 mV	300 mV	300 mV
Vf - Forward Voltage	1.4 V	1.4 V	1.4 V	1.4 V	1.4 V
Pd - Power Dissipation	120 mW	150 mW	150 mW	150 mW	150 mW
Maximum Operating Temperature	+ 100 C	+ 100 C	+ 100 C	+ 100 C	+ 100 C
Minimum Operating Temperature	- 55 C	- 55 C	- 55 C	- 55 C	- 55 C
Configuration	2 Channel	1 Channel	1 Channel	1 Channel	1 Channel
Factory Pack Quantity	45	100	1000	1000	100
Packaging	Tube	Tube	Reel	Reel	Tube
NumOfPackaging	1	1	2	3	-
