OPA741W23: DescriptionLED Lighting Modules Rng Assy 12/1W White Lensed; CategoryLED optoelectronic/LED; File Size478KB，1 Pages; ManufacturerTT Electronics plc; Websitehttp://www.ttelectronics.com/

Download Datasheet Parametric Compare View All

OPA741W23 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	OPA741W23	-	-	View	Buy Now

OPA741W23 Overview

LED Lighting Modules Rng Assy 12/1W White Lensed

OPA741W23 Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	TT Electronics plc
Product Category	LED Lighting Modules
RoHS	Details
Product	LED Light Rings
Number of LEDs	12
Illumination Color	White (Cool White)
Wavelength/Color Temperature	6500 K
Luminous Flux/Radiant Flux	490 lm
If - Forward Current	700 mA
Vf - Forward Voltage	21.6 V
Width	158.6 mm
Length	158.6 mm
Packaging	Bulk
Diameter	165.1 mm
Height	15.62 mm
Power Rating	12 W
Size	158.6 mm x 158.6 mm x 15.62 mm
Type	LED Linear Lighting
Mounting Style	SMD/SMT
Viewing Angle	23 deg
Color Temperature	6500 K
NumOfPackaging	1
Factory Pack Quantity	25

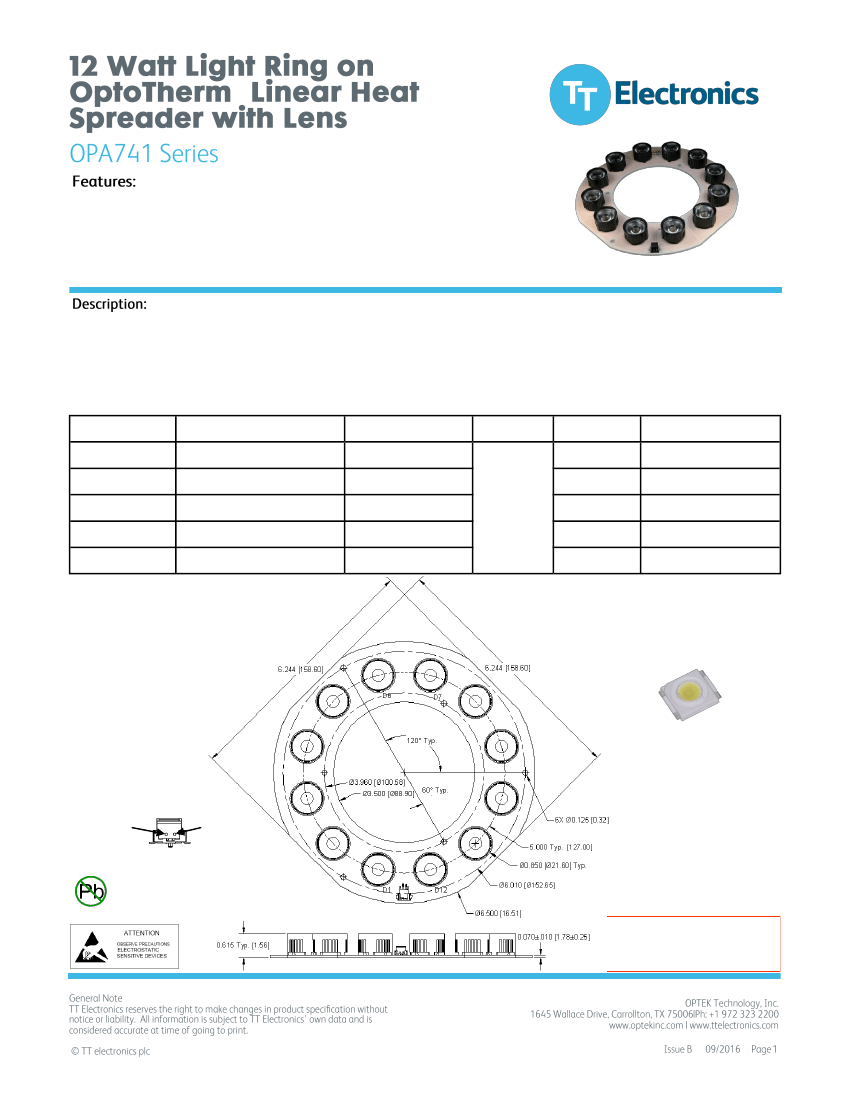

Preview

Download Datasheet

View All



12, 1 watt LEDs per cylindrical substrate

Mono-color per strip (Blue, Green, Red, Yellow, White)

Component beam angle 23°

Universal connector (Tyco 2-292173-2 mates with 173977-2)

RoHS Compliant

OPA741_ (23° Beam Angle)

The

OPA741

Series are designed for areas where lighting intensity and reliability are essential. The light beam angle of 23°

is ideal for illuminating areas close or a long distances from the device while requiring minimal space. A High Performance

Heat Spreader (HPHS) is used to ensure the best heat dissipation of any light assembly in the industry.

For custom colors and design contact your OPTEK representative.

Electrical / Optical Characteristics: T

=25°C, I

=700mA

Part Number

OPA741Y23

OPA741B23

OPA741G23

OPA741R23

OPA741W23

Typical Forward Voltage (V)

15.0

21.6

15.0

21.6

Luminous Flux (lm)

357

490

265

490

23°

Beam Angle

Color

Yellow

Blue

Green

Red

White

Dominant Wavelength

587 nm

470 nm

530 nm

625 nm

6,500°K

OPA741_

See OVSP_BCR4 for

component specifications

Voltage

Ground

RoHS

DO NOT LOOK DIRECTLY AT LED

WITH UNSHIELDED EYES OR

DAMAGE TO RETINA MAY OCCUR.
