LCS072CTP datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> LCS072CTP

LCS072CTP: DescriptionLED Light Pipes Clear Transparent LCS072CTP; CategoryLED optoelectronic/LED photoelectric; File Size82KB，1 Pages; ManufacturerVisual Communications Company, LLC; Websitehttp://vcclite.com; Environmental Compliance

Download Datasheet Parametric View All

LCS072CTP Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	LCS072CTP	-	-	View	Buy Now

LCS072CTP Overview

LED Light Pipes Clear Transparent LCS072CTP

LCS072CTP Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Visual Communications Company, LLC
Reach Compliance Code	unknown
ECCN code	EAR99

Preview

Download Datasheet

View All

REVISIONS

ECN #

REV.

001

002

DESCRIPTION

REVISED PER ECR 111009AZ01

MODIFIED GENERAL TOLERANCE .XX

DATE

8/18/10

11/29/11

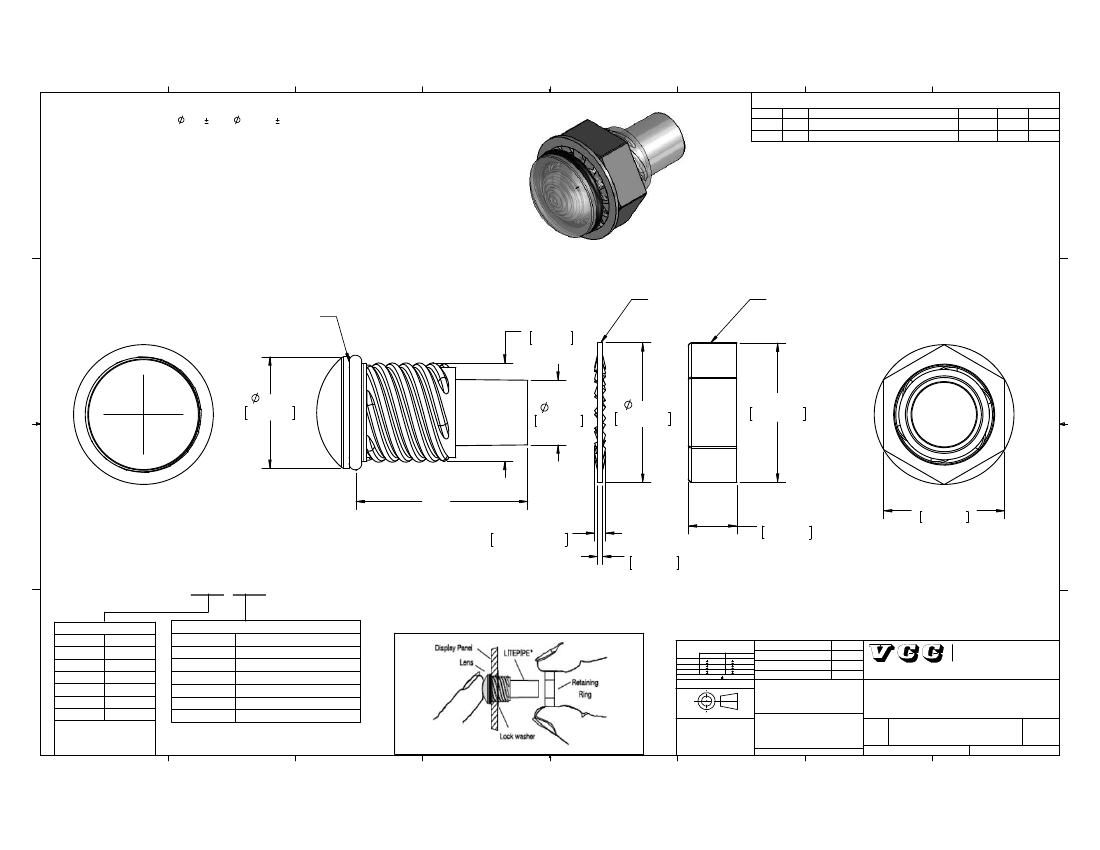

NOTES:

MOUNTING: Mounts in a .312 .002 ( 7.92mm 0.051) panel hole on .500 (12.7mm) centers.

Panel thickness .031 (.8mm) to .125 (3.18mm). Panel hole shall be deburred, but not chamfered.

ASSEMBLY: Insert Litepipe through the panel hole, slide lock washer onto lens barrel on litepipe

and twist on retaining ring. Slide PCB into position aligning LED with the end of the Litepipe unit.

MATERIAL: Litepipe - Acrylic ( Clear optical grade) UL 94-HB

Lens - Polycarbonate UL 94-V2

Seal - EPDM

Lock washer - FH Steel, Nickel Plate

Retaining Nut - Thermoplastic (white) UL 94-V0

Meets NEMA 6P/IP 67 standards

U.S. & Foreign Pat. Issued

INITIALS

CHK'D

MOISTURE SEAL

0.307in

7.8mm

LOCK

WASHER

RETAINING

NUT

.344in

8.74mm

.200in

5.08mm

.432in

10.97mm

.430

10.93mm

.XXX

.034in±.003

0.86mm±0.08

.150in

3.81mm

.016in

0.41mm

.370

9.40mm

ORDERING CODE:

LCS

LITEPIPE

XXX = LENGTH

032

.320"

052

.520"

072

.720"

092

.92"

112

1.12"

1.32"

132

CUSTOM LENGTHS

AVAILABLE UPON

REQUEST

XXX XXX

XXX =

RTP

ATP

GTP

BTP

YTP

CTP

COLOR

RED TRANSPARENT

AMBER TRANSPARENT

GREEN TRANSPARENT

BLUE TRANSPARENT

YELLOW TRANSPARENT

CLEAR TRANSPARENT

ASSEMBLY

LENS

DIMENSION STYLE: INCHES [MM]

GENERAL TOLERANCES UNLESS

OTHERWISE SPECIFIED

APPROVAL

DATE

8/18/10

8/19/10

.XX

.XXX

INCHES

.020

.015

.005

ANGLE 1'

.508

.381

.127

DRAWN

CHECKED

MATERIAL

KHOWARD

DPZ

OPTOELECTRONICS

190 BOSSTICK BLVD. SUITE 101 SAN MARCOS, CA 92069 U.S.A

PHONE: (760) 560-1300, FAX: (760) 560-1301 EMAIL: vccsales@vcclite.com

BREAK ALL CORNERS AND SHARP

EDGES .030 MAX

TITLE:

SEE NOTES

THIRD ANGLE PROJECTION

PROPRIETARY AND CONFIDENTIAL

FINISH

THE INFORMATION CONTAINED IN THIS

DRAWING IS THE SOLE PROPERTY OF

VISUAL COMMUNICATIONS COMPANY, INC.

ANY REPRODUCTION IN PART OR AS

A WHOLE WITHOUT THE WRITTEN

PERMISSION OF VISUAL

COMMUNICATIONS COMPANY, INC IS

PROHIBITED.

5MM THREADED

MOISTURE SEALED

LITEPIPE

REV

SIZE DWG. NO.

SEE NOTES

SCALE: 5:1

LCS XXX XXX

002

SHEET 1 OF 1

DO NOT SCALE DRAWING
