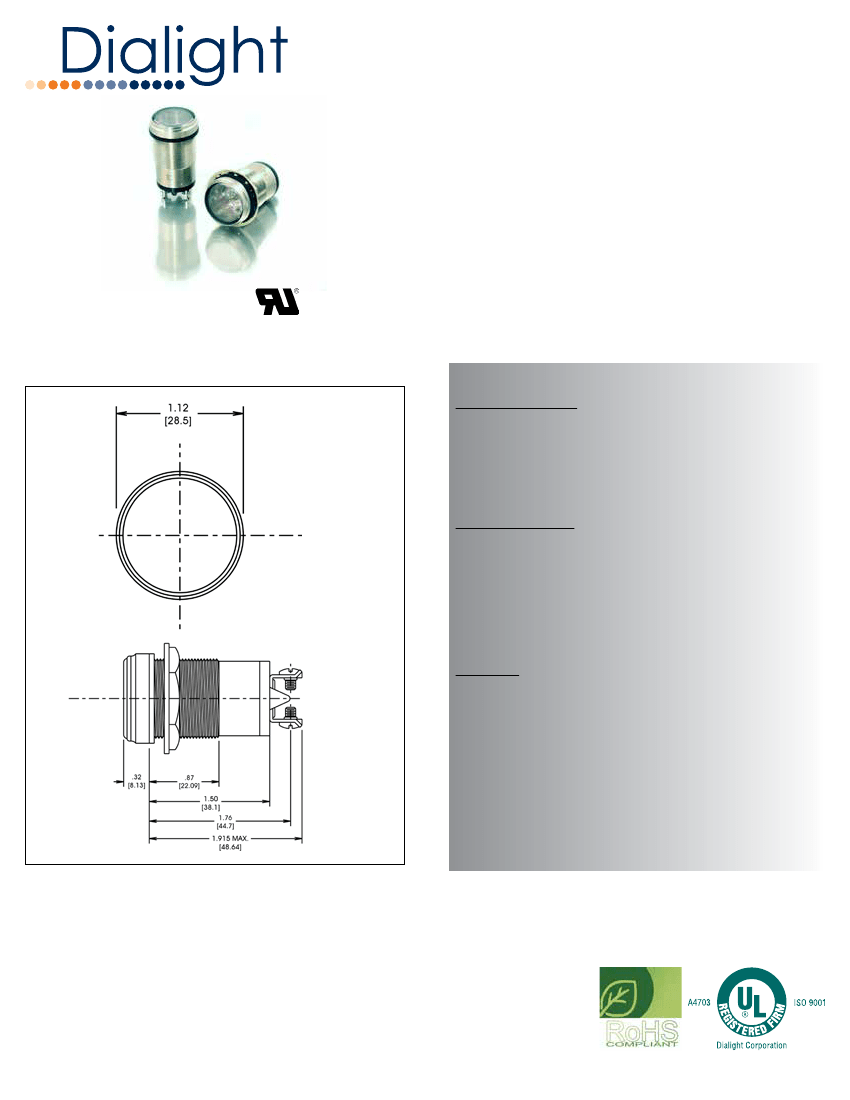

556 Series
Day Light Viewable
Panel Mount Indicators
Application:
The 556 Series LED Panel Mount Indicators incorporate both InGaN
and AlInGaP technologies to offer maximum light output. This is a
highly durable package, designed to withstand outdoor applica-
tions susceptible to rain, dust and sunlight.
• Instrument panels
• Safety applications
• UL 508 panel applications
• Agricultural controls
• Power Generators
• Environmental Monitoring Equipment
• Ground support vehicles
• Pump system controlers
• Transportation - rail, bus, airline
• Lane control
• Display lighting
...and many more!
Mechanical Information
Mounting Hole Size:
Max Panel Thickness:
Mounting Torque:
Electrical specifications
Operating Voltage:
Operating Temp:
Storage Temp:
Electrical connection
Construction
Housing:
Lens Material:
Terminals:
Lock washer:
Nut:
Nickel Plated Brass
Clear UV Stabilized Polycarbonate (UL 94V-0)
Brass – Hot solder dip per Mil-F-14072D,
M258, Type II
Phosphor Bronze – White Nickel Plated
Brass – White Nickel Plated
12 to 125VDC and 125, 230VAC
-30°C to +85°C
-40°C to +100°C
6-32 Screw Terminals
1” (25.4 mm)
.600” (15.24 mm)
40 in-lbs torque
Polarity marking near positive supply terminal
Dimensions in inches [mm]
•
UL1598
•
NEMA 4x IP66
•
RoHS Compliant
•
IK07
Certifications & Ratings
Features and Benefits
•
Daylight viewable – Clear lens to prevent phantom light effect
•
Tamperproof / Designed for high durability
•
Long life, lasting up to 100k hours
•
Uniform illumination - multi-LED construction
•
Low profile flat lens: Non-tinted, non-diffused
•
Available in red, yellow, green, blue, orange, and cyan
www.dialight.com
•
Dialight HQ (P) 732-919-3119
556 Series
Day Light Viewable
•
Panel Mount Indicators
Part Number
556-1503-314F
556-1603-314F
556-1683-314F
556-1703-314F
556-1803-314F
556-1903-314F
556-1504-314F
556-1604-314F
556-1684-314F
556-1704-314F
556-1804-314F
556-1904-314F
556-1508-314F
556-1608-314F
556-1708-314F
556-1506-314F
556-1606-314F
556-1706-314F
556-1507-314F
556-1607-314F
556-1707-314F
556-1505-314F
556-1605-314F
556-1685-314F
556-1705-314F
556-1805-314F
556-1905-314F
556-1509-314F
556-1609-314F
556-1709-314F
556-1809-314F
556-1909-314F
Color
Red
Green
Cyan
Yellow
Blue
Orange
Red
Green
Cyan
Yellow
Blue
Orange
Red
Green
Yellow
Red
Green
Yellow
Red
Green
Yellow
Red
Green
Cyan
Yellow
Blue
Orange
Red
Green
Yellow
Blue
Orange
Voltage
12
12
12
12
12
12
24
24
24
24
24
24
37.5
37.5
37.5
72
72
72
125
125
125
125
125
125
125
125
125
230
230
230
230
230
Voltage Type
VDC
VDC
VDC
VDC
VDC
VDC
VDC
VDC
VDC
VDC
VDC
VDC
VDC
VDC
VDC
VDC
VDC
VDC
VDC
VDC
VDC
VAC
VAC
VAC
VAC
VAC
VAC
VAC
VAC
VAC
VAC
VAC
Current (MA)
95
60
60
95
60
95
46
32
32
46
32
46
20
16
20
18.5
16
20
10
10
10
10.5
9.5
9.5
10.5
9.5
10.5
7
7
7
7
7
Typical Intensity (FL)
3000
4000
4000
3000
1200
3000
3000
4000
4000
3000
1200
1200
2600
4000
2600
1800
1800
1000
700
1000
700
1200
1800
1800
1200
500
500
1200
1800
1200
500
1800
Dialight reserves the right to make changes at any time in order to supply the best product possible. The most current version of this document will always be available at:
www.dialight.com/Assets/Brochures_And_Catalogs/Illumination/M DE L5 5 6C R.pdf. Warranty Statement: EXCEPT FOR THE WARRANTY EXPRESSLY PROVIDED FOR [HEREIN/ABOVE/BELOW], DIALIGHT DISCLAIMS ANY
AND ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING, WITHOUT LIMITATION, ANY WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, TITLE, AND NON-INFRINGEMENT.
www.dialight.com
•
Dialight HQ (P) 732-919-3119
