70929-2000

Description
I/O Connectors LFH MATRIX 60 PLUG
CategoryThe connector    The connector
File Size34KB,2 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Environmental Compliance
Download Datasheet Parametric View All

70929-2000 Online Shopping

Suppliers Part Number Price MOQ In stock
70929-2000 - - View Buy Now

70929-2000 Overview

I/O Connectors LFH MATRIX 60 PLUG

70929-2000 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerMolex
Reach Compliance Codecompliant
ECCN codeEAR99
Factory Lead Time16 weeks
Samacsys Description60w LFH plug cable kit,1.27mm
Other featuresLFH
body width0.494 inch
subject depth0.197 inch
body length1.541 inch
Body/casing typePLUG
Connector typeTELECOM AND DATACOM CONNECTOR
Contact to complete cooperationMATTE TIN
Contact completed and terminatedMatte Tin (Sn)
Contact point genderMALE
Contact materialNOT SPECIFIED
contact modeRECTANGULAR
DIN complianceNO
empty shellYES
Filter functionNO
IEC complianceNO
maximum insertion force.5004 N
Insulation resistance100000000 Ω
Insulator colorBLACK
insulator materialGLASS FILLED LIQUID CRYSTAL POLYMER
JESD-609 codee3
MIL complianceNO
Plug contact pitch0.05 inch
Match contact row spacing0.05 inch
Plug informationMULTIPLE MATING PARTS AVAILABLE
Mixed contactsNO
Installation option 1HOLE .112-.124
Installation typeCABLE
Number of rows loaded4
Maximum operating temperature80 °C
Minimum operating temperature-20 °C
OptionsGENERAL PURPOSE
GuidelineCSA, UL
reliabilityCOMMERCIAL
Shell surfaceTIN OVER COPPER
Shell materialPOLYMER
Termination typeWELD OR SOLDER
Total number of contacts60
UL Flammability Code94V-0
Maximum wire diameter28 AWG
Minimum wire diameter36 AWG
Evacuation force-minimum value.1946 N

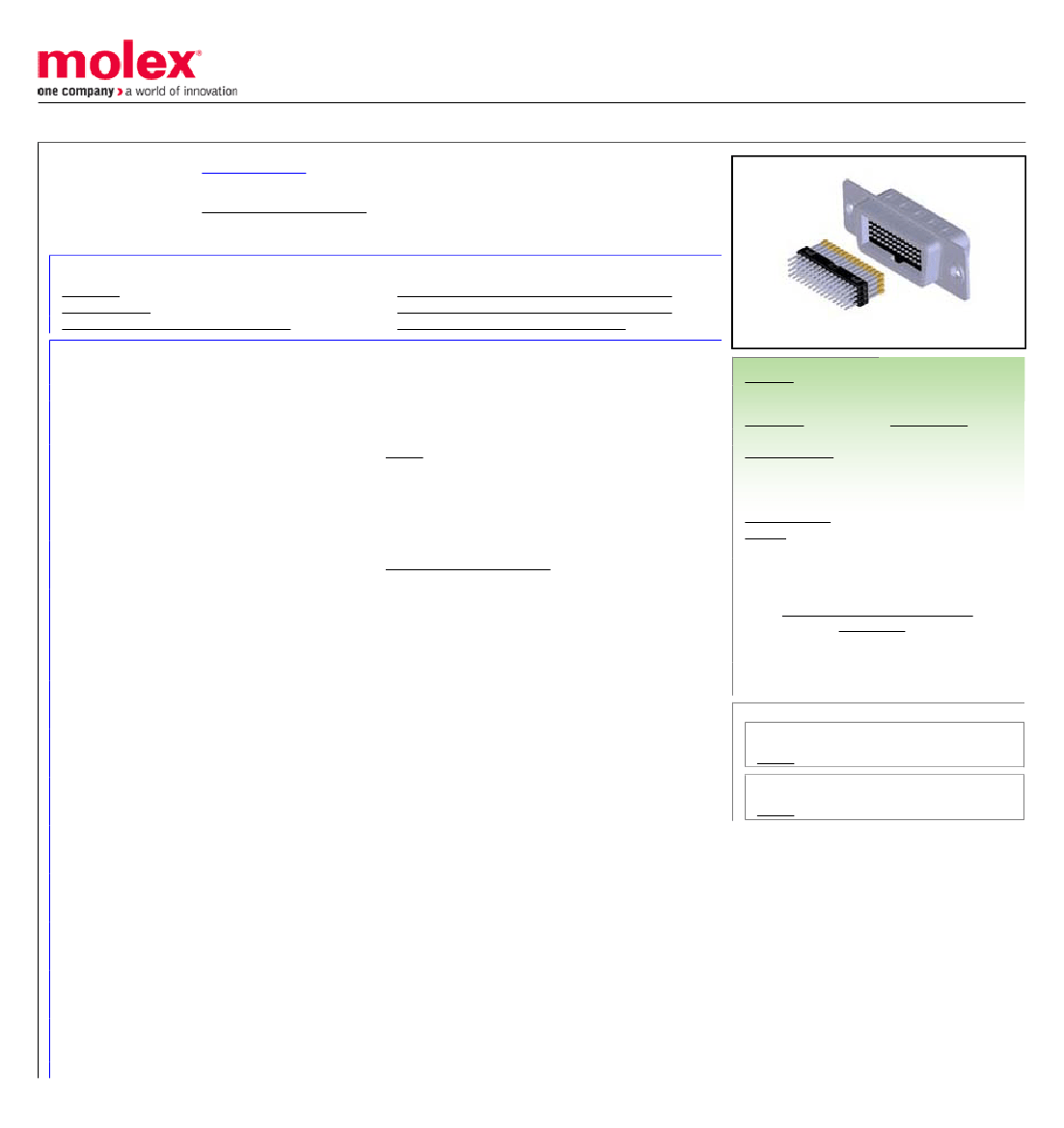

This document was generated on 09/30/2016
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Overview:
Description:
0709292000
Active
LFH™ Interconnect System
1.27mm Pitch LFH™ Matrix 50 Plug Cable Kit, Subassembly, 60 Circuits, Bright Tin
(Sn) Front Shell Plating
Documents:
3D Model
Drawing (PDF)
Product Specification PS-70928 (PDF)
Agency Certification
CSA
UL
General
Product Family
Series
Application
Comments
Application Specification AS-70929-001 (PDF)
Application Specification AS-71624-001 (PDF)
RoHS Certificate of Compliance (PDF)
Series image - Reference only
LR19980
E29179
I/O Connectors
70929
Wire-to-Board
I/O Plug Connector Subassembly|Use Tool 62200-1500
for inserting sticks into subassembly|70984 Terminal
Sticks Supplied Separately
I/O Plug Connector Subassembly
Yes
LFH™ Interconnect System
LFH™
N/A
800753749511
60
60
Black
94V-0
None
Aluminum
Gold
Tin
High Temperature Thermoplastic
4.846/g
Vertical
N/A
Tray
Yes
1.27mm
1.27mm
0.762µm
2.540µm
Yes
N/A
-20°C to +80°C
N/A
28, 30, 32, 34, 36
1.0A
Yes
EU ELV
Not Relevant
EU RoHS
China RoHS
Compliant
REACH SVHC
Not Contained Per -
ED/21/2016 (20 June
2016)
Halogen-Free
Status
Low-Halogen
Need more information on product
environmental compliance?
Email productcompliance@molex.com
Please visit the Contact Us section for any
non-product compliance questions.
China ROHS
ELV
Green Image
Not Relevant
Component Type
MolexKits
Overview
Product Name
Type
UPC
Physical
Circuits (Loaded)
Circuits (maximum)
Color - Resin
Flammability
Lock to Mating Part
Material - Metal
Material - Plating Mating
Material - Plating Termination
Material - Resin
Net Weight
Orientation
PCB Retention
Packaging Type
Panel Mount
Pitch - Mating Interface
Pitch - Termination Interface
Plating min - Mating
Plating min - Termination
Polarized to Mating Part
Surface Mount Compatible (SMC)
Temperature Range - Operating
Termination Interface: Style
Wire Size AWG
Electrical
Current - Maximum per Contact
Shielded
Search Parts in this Series
70929 Series
Mates With
70928 LFH™ Receptacle
