Power Entry Modules with Line Filter

https://www.schurter.com /PG06

DC12

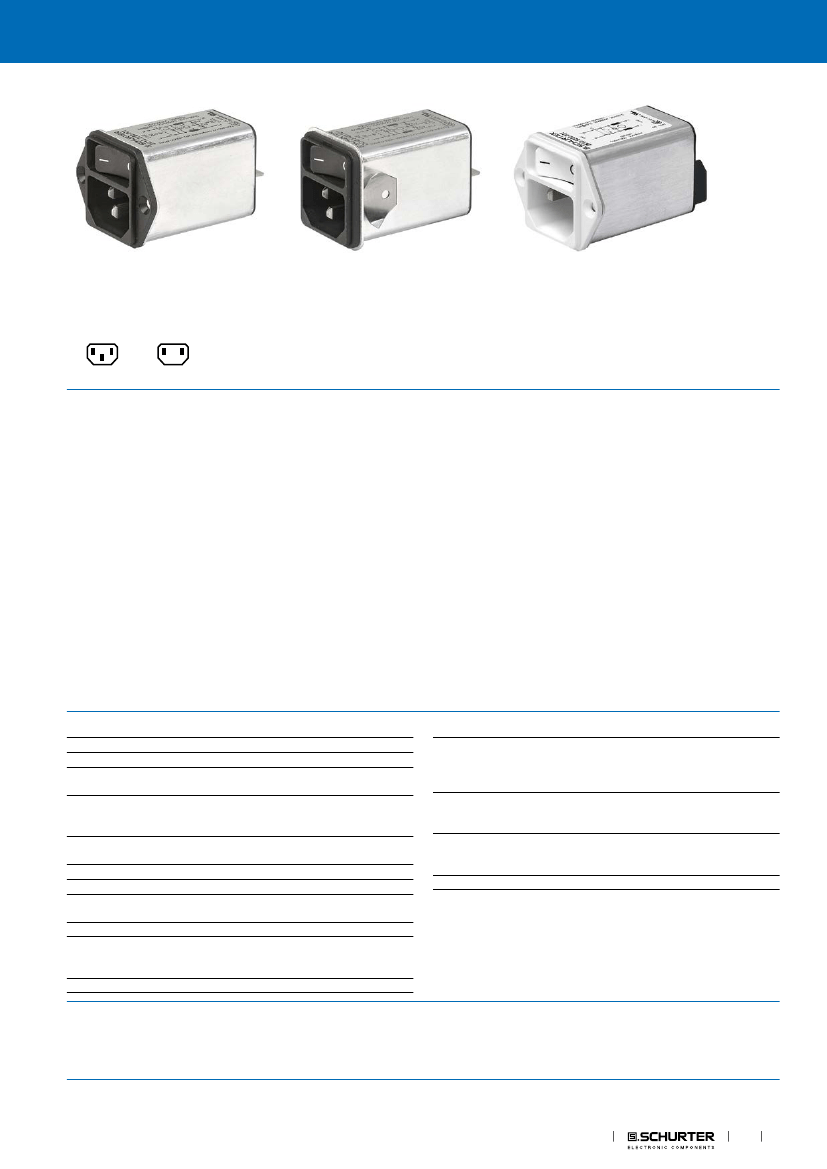

IEC Appliance Inlet C14 with Filter, Line Switch 1- or 2-pole, Front or Rear Side Mounting

Screw-on Version

from front side

Snap-in version

from front side

Screw-on Version

from front side, protection class II

C14

70° C

C18

Approvals and Compliances

70° C

See below:

Description

- Panel Mount :

Screw-on version from front or rear side, snap-in version from front

side

- 3 Functions :

Appliance Inlet protection class I or II , Line Switch 1- or 2-pole , Line

filter in standard and medical version

- Quick connect terminals 6.3 x 0.8 mm

Characteristics

Unique Selling Proposition

-

- Compact design with optimal shielding

Rear side mounting for efficient costsaving assembly

- All single elements are already wired

- Line switch non-illuminated or illuminated

- Universal line filter for standard applications

- Ideal for application with high transient loads

- Suitable for use in equipment according to IEC/UL 60950

Suitable for use in medical equipment according to IEC/UL 60601-1

Compact power entry module

Available in white or black

Switch for high inrush current

V-Lock cord retaining

Other versions on request

- Solder terminals

- Other rocker marking

- Capacitance CX1

References

Weblinks

Alternative: version without line filter

DC11

Substitute for type

KFB1; KFB2

pdf datasheet, html-datasheet, General Product Information, Distributor-

Stock-Check, Accessories, Detailed request for product, Microsite

Newly available variants corresponding to V-Lock mating cordset. The connector is equipped with a notch intended for use with the latching cordset.

The cord latching system prevents against accidental removal of the cordset.

Technical Data

Ratings IEC

Ratings UL/CSA

Leakage Current

Dielectric Strength

1 - 10 A @ Ta 40 °C / 250 VAC; 50 Hz

1 - 10 A @ Ta 40 °C / 125 VAC; 60 Hz

standard < 0.5 mA (250 V / 60 Hz)

medical < 5 µA (250 V / 60 Hz)

> 1.7 kVDC between L-N

> 2.7 kVDC between L/N-PE

Test voltage (2 sec)

-25 °C to 85 °C

25/085/21 acc. to IEC 60068-1

from front side IP 40 acc. to IEC 60529

Suitable for appliances with protection

class I or II acc. to IEC 61140

Quick connect terminals 6.3 x 0.8 mm

Screw: max 8 mm

Mounting screw torque max 0.5 Nm

Snap-in: 1 mm to 3 mm

Thermoplastic, black / white, UL 94V-0

appliance inlet/-outlet

C14 / C18 acc. to IEC 60320-1,

UL 498, CSA C22.2 no. 42 (for cold

conditions) pin-temperature 70 °C, 10 A,

Protection Class I or II

Rocker switch 1 or 2 pole, non-illumina-

ted or illuminated, acc. to IEC 61058-1

Technical Details

Standard and Medical Version, IEC

60939, UL 1283, CSA C22.2 no. 8

Technical Details

> 1'900'000 h acc. to MIL-HB-217 F

Line Switch

Allowable Operation Tempe-

rature

Climatic Category

IP-Protection

Protection Class

Terminal

Panel Thickness S

Line Filter

MTBF

Material: Housing

Approvals and Compliances

Detailed information on product approvals, code requirements, usage instructions and detailed test conditions can be looked up in

Details about

Approvals

EMC Products

1

DC12

Approvals

Power Entry Modules with Line Filter

https://www.schurter.com /PG06

The approval mark is used by the testing authorities to certify compliance with the safety requirements placed on electronic products.

Approval Reference Type: DC12

Approval Logo

Certificates

VDE Approvals

UL Approvals

CQC Approvals

Certification Body

VDE

UL

CQC

Description

Certificate Number: 40001522

UL File Number: E72928

CCC Certificate Number: CQC14001117747

Product standards

Product standards that are referenced

Organization

Design

Designed according to

Standard

IEC 60320-1

IEC 60939

IEC 61058-1

UL 498

UL 1283

CSA C22.2 no. 42

CSA C22.2 no. 8

Description

Appliance couplers for household and similar general purposes

Passive filters for suppressing electromagnetic interference

Switches for appliances. Part 1. General requirements

Standard for Attachment Plugs and Receptacles

Electromagnetic interference filters

General Use Receptacles, Attachment Plugs, and Similar Wiring Devices

Electromagnetic interference (EMI) filters

Application standards

Application standards where the product can be used

Organization

Design

Designed for applications acc.

Standard

IEC/UL 60950

IEC 60601-1

Description

IEC 60950-1 includes the basic requirements for the safety of information

technologyequipment.

Medical electrical equipment - Part 1: General requirements for basic

safety and essential performance

Compliances

The product complies with following Guide Lines

Identification

Details

CE declaration of conformity

Initiator

SCHURTER AG

Description

The CE marking declares that the product complies with the applicable

requirements laid down in the harmonisation of Community legislation on

its affixing in accordance with EU Regulation 765/2008.

EU Directive RoHS 2011/65/EU

The law SJ / T 11363-2006 (China RoHS) has been in force since 1 March

2007. It is similar to the EU directive RoHS.

On 1 June 2007, Regulation (EC) No 1907/2006 on the Registration,

Evaluation, Authorization and Restriction of Chemicals 1 (abbreviated as

"REACH") entered into force.

V-Lock system are based on a matching plug-dose combination. The

connector is equipped with a notch intended for use with the latching

cordset. The cord latching system prevents against accidental removal of

the cordset.

Suitable for use in medical equipment according to IEC/UL 60601-1

RoHS

China RoHS

REACH

SCHURTER AG

MicrositeV-Lock

SCHURTER AG

Medical Equipment

SCHURTER AG

2

EMC Products

Power Entry Modules with Line Filter

https://www.schurter.com /PG06

DC12

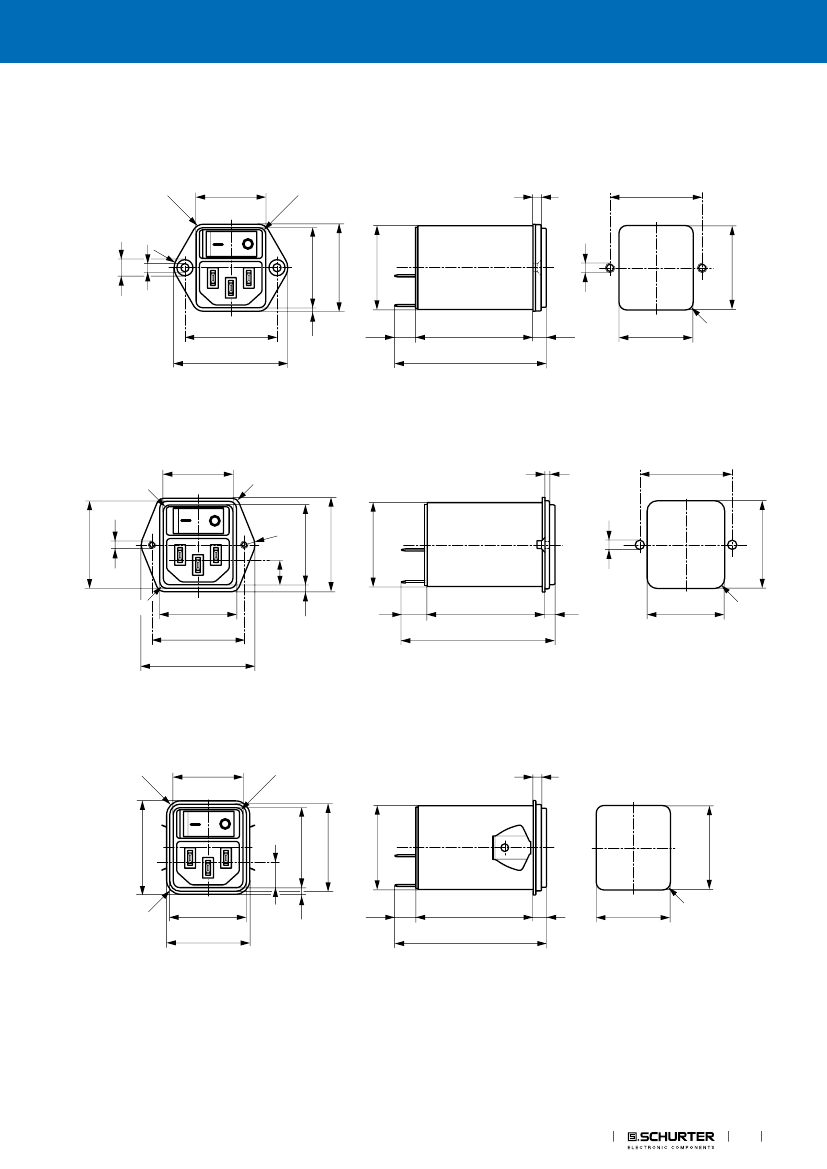

Dimensions [mm]

Screw-on mounting from front side

R4

27.2

R 2.5

3

36

±0.15

1.6

32.70

x28.5

3.6/M3

36

44.3

9.5

46

60.5

5

29.1

±0.10

R 3.0

Screw-On Version from rear side (metal flange)

27.2

R 2.5

R5

2.2

36

±0.15

33.1

±0.10

30.4

±0.10

R4

29.4

- 0.05

+0.10

6.3x90°

R6

31.2

34.4

3.2

32.6

x28.5

M3

31.2

36.5

9.5

R4

30

36

44.3

2.65

9.5

46.8

60.5

4.2

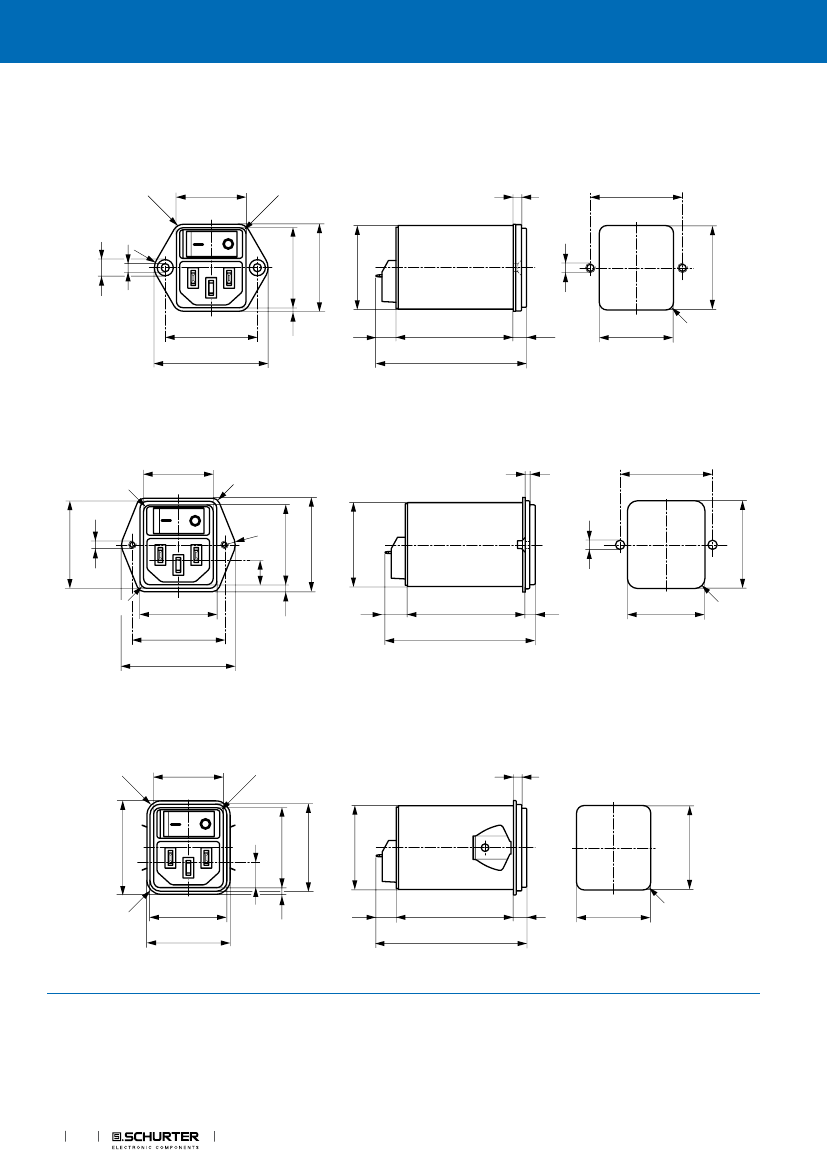

Snap-in mounting from front side

R4

27.2

R 2.5

3

9.5

2.65

R 5.5

30

32.5

9.5

46

60.5

5

R 3.0

EMC Products

33.1

±0.10

32.70

x28.5

36.5

31.2

34

3

34.4

3.6

R4

34

±0.10

DC12

Power Entry Modules with Line Filter

https://www.schurter.com /PG06

Screw-on mounting from front side (protection class II)

R4

27.2

R 2.5

3

36

±0.15

1.6

3.6/M3

36

44.3

8

46

59

5

29.1

±0.10

R 3.0

Screw-on version from rear side (protection class II)

27.2

R 2.5

R5

2.2

36

±0.15

33.1

±0.10

30.4

±0.10

R4

29.4

- 0.05

+0.10

6.3x90°

R6

32.70

x28.5

31.2

34.4

3.2

32.6

x28.5

M3

31.2

36.5

9.5

R4

30

36

44.3

2.65

8

46.8

59

4.2

Snap-in mounting from front side (protection class II)

R4

27.2

R 2.5

3

9.5

2.65

R 5.5

30

32.5

8

46

59

5

R 3.0

4

EMC Products

33.1

±0.10

32.70

x28.5

36.5

31.2

34

34.4

3.6

R4

34

±0.10

Power Entry Modules with Line Filter

https://www.schurter.com /PG06

DC12

Inductances

L [mH]

2 x 10

2x4

2 x 1.5

2 x 0.8

2 x 0.3

2 x 10

2x4

2 x 1.5

2 x 0.8

2 x 0.3

2 x 10

2x4

2 x 1.5

2 x 0.8

2 x 0.3

Capacitance

CX [nF]

100

Capacitance

CY [nF]

2.2

-

0.47

R [MΩ]

1

Technical Data of Filter-Components

Rated Current

[A]

1

2

4

6

10

1

2

4

6

10

1

2

4

6

10

Filter-Type

Standard Version

Medical Version (M5)

Medical Version (M80)

EMC Products

5
