4-2098541-1 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 4-2098541-1

4-2098541-1: Description3POS, MCON 1.2 CB REC 2p TL SEALED; CategoryThe connector; File Size1MB，2 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric View All

4-2098541-1 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	4-2098541-1	-	-	View	Buy Now

4-2098541-1 Overview

3POS, MCON 1.2 CB REC 2p TL SEALED

4-2098541-1 Parametric

Parameter Name	Attribute value
Connector type	Female terminal housing
Connector System	Wire to board, wire to wire, wire to device
Sealable	yes
Hybrid connector	no
Main locking features	Housing integration
strain relief	Add according to attachment
Number of Positions	3
Rows	1
color	brown
Main material	PA GF
Width of docking male end	1.2 mm [ .047 in ]
Terminal position guarantee	yes
Installation features	Without
polarization	yes
Centerline (Pitch)	4 mm [ .157 in ]
length	19 mm [ .748 in ]
width	26.5 mm [ 1.043 in ]
high	15.6 mm [ 0.614 in ]
Working group temperature range	-40 – 150 °C [ -40 – 302 °F ]
Circuit Application	Signal
protection level	IP67
Able to ensure connector position	yes
Repairable	yes

Preview

Download Datasheet

View All

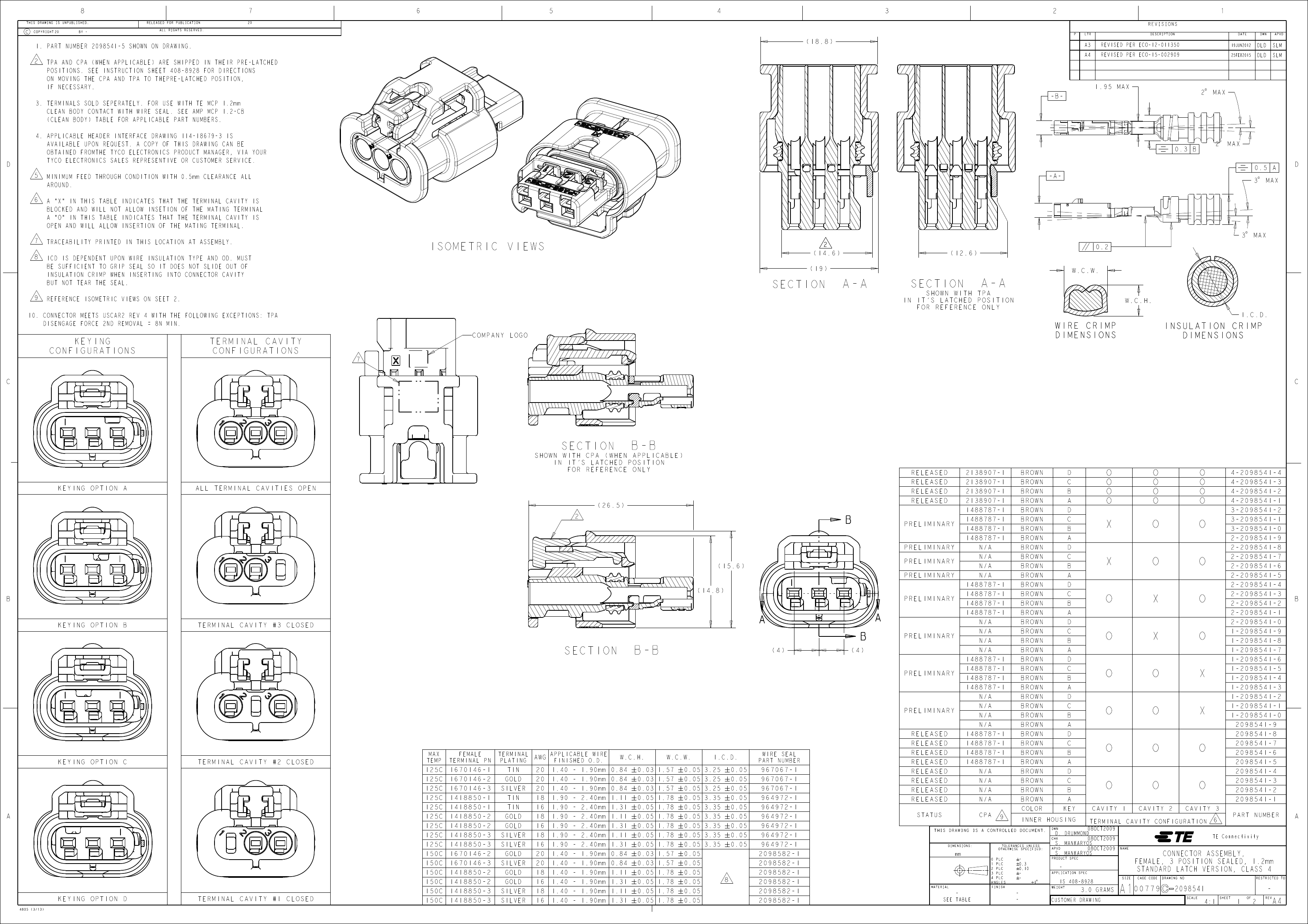

THIS DRAWING IS UNPUBLISHED.

RELEASED FOR PUBLICATION

BY -

REVISIONS

LTR

DESCRIPTION

DATE

DWN

APVD

1. PART NUMBER 2098541-5 SHOWN ON DRAWING.

TPA AND CPA (WHEN APPLICABLE) ARE SHIPPED IN THEIR PRE-LATCHED

POSITIONS. SEE INSTRUCTION SHEET 408-8928 FOR DIRECTIONS

ON MOVING THE CPA AND TPA TO THEPRE-LATCHED POSITION,

IF NECESSARY.

( 18.8 )

REVISED PER ECO-12-011350

REVISED PER ECO-15-002909

19JUN2012

25FEB2015

DLD

SLM

3. TERMINALS SOLD SEPERATELY. FOR USE WITH TE MCP 1.2mm

CLEAN BODY CONTACT WITH WIRE SEAL. SEE AMP MCP 1.2-CB

(CLEAN BODY) TABLE FOR APPLICABLE PART NUMBERS.

4. APPLICABLE HEADER INTERFACE DRAWING 114-18679-3 IS

AVAILABLE UPON REQUEST. A COPY OF THIS DRAWING CAN BE

OBTAINED FROMTHE TYCO ELECTRONICS PRODUCT MANAGER, VIA YOUR

TYCO ELECTRONICS SALES REPRESENTIVE OR CUSTOMER SERVICE.

MINIMUM FEED THROUGH CONDITION WITH 0.5mm CLEARANCE ALL

AROUND.

A "X" IN THIS TABLE INDICATES THAT THE TERMINAL CAVITY IS

BLOCKED AND WILL NOT ALLOW INSETION OF THE MATING TERMINAL

A "O" IN THIS TABLE INDICATES THAT THE TERMINAL CAVITY IS

OPEN AND WILL ALLOW INSERTION OF THE MATING TERMINAL.

TRACEABILITY PRINTED IN THIS LOCATION AT ASSEMBLY.

ICD IS DEPENDENT UPON WIRE INSULATION TYPE AND OD. MUST

BE SUFFICIENT TO GRIP SEAL SO IT DOES NOT SLIDE OUT OF

INSULATION CRIMP WHEN INSERTING INTO CONNECTOR CAVITY

BUT NOT TEAR THE SEAL.

REFERENCE ISOMETRIC VIEWS ON SEET 2.

-B-

1.95 MAX

2 $ MAX

0.3

2 $ MAX

0.5

-A-

3 $ MAX

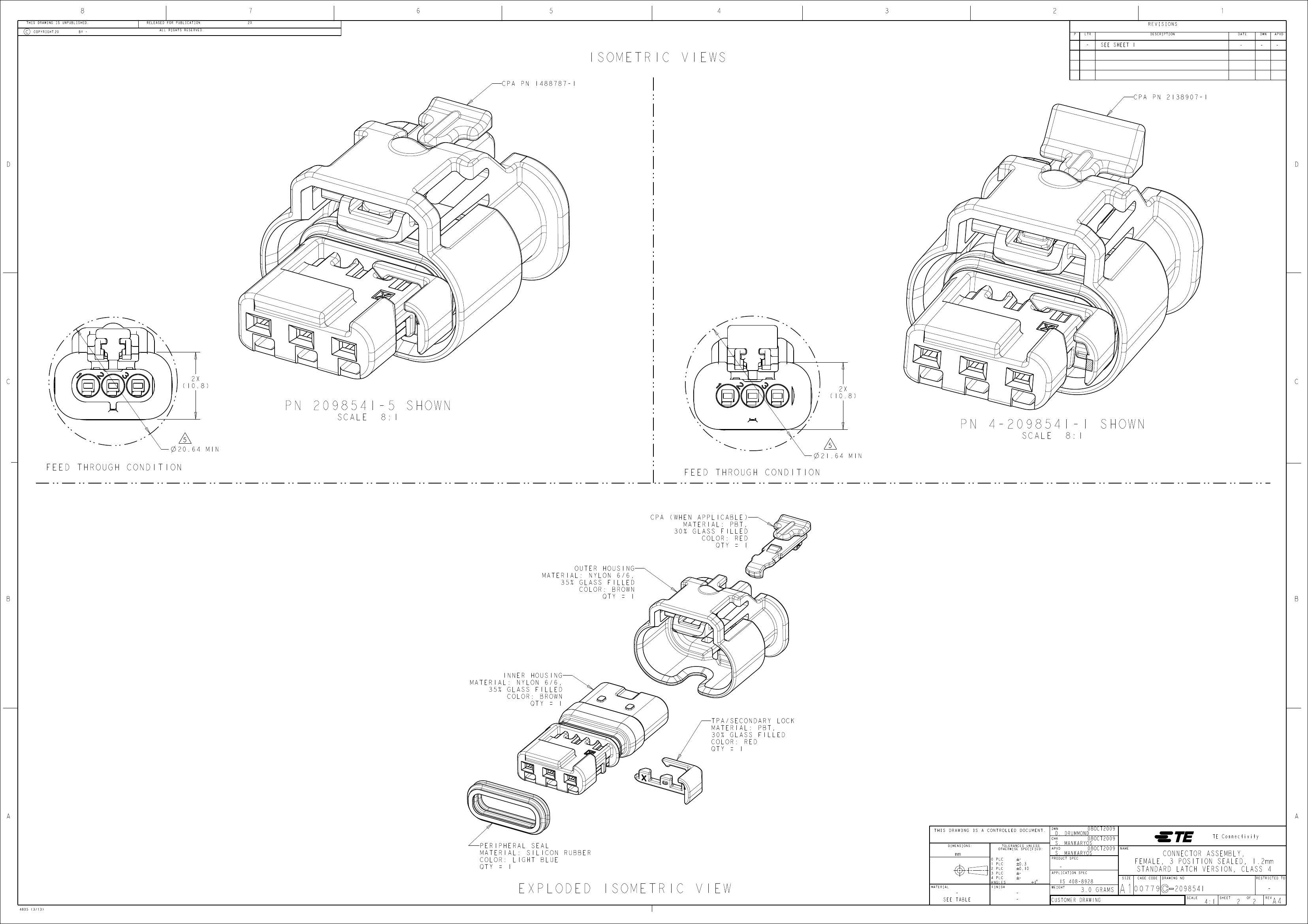

ISOMETRIC VIEWS

( 14.6 )

( 19 )

3 $ MAX

( 12.6 )

W.C.W.

SECTION

A-A

10. CONNECTOR MEETS USCAR2 REV 4 WITH THE FOLLOWING EXCEPTIONS: TPA

DISENGAGE FORCE 2ND REMOVAL = 8N MIN.

SHOWN WITH TPA

IN IT'S LATCHED POSITION

FOR REFERENCE ONLY

SECTION

A-A

W.C.H.

KEYING

CONFIGURATIONS

TERMINAL CAVITY

CONFIGURATIONS

COMPANY LOGO

WIRE CRIMP

DIMENSIONS

INSULATION CRIMP

DIMENSIONS

I.C.D.

SHOWN WITH CPA (WHEN APPLICABLE)

IN IT'S LATCHED POSITION

FOR REFERENCE ONLY

KEYING OPTION A

ALL TERMINAL CAVITIES OPEN

( 26.5 )

SECTION

B-B

RELEASED

PRELIMINARY

( 15.6 )

( 14.8 )

PRELIMINARY

2138907-1

1488787-1

N/A

1488787-1

N/A

1488787-1

N/A

BROWN

COLOR

KEY

DWN

CHK

4-2098541-4

4-2098541-3

4-2098541-2

3-2098541-2

3-2098541-1

3-2098541-0

2-2098541-9

2-2098541-8

2-2098541-7

2-2098541-6

2-2098541-5

2-2098541-4

2-2098541-3

2-2098541-2

2-2098541-1

2-2098541-0

1-2098541-9

1-2098541-8

1-2098541-7

1-2098541-6

1-2098541-5

1-2098541-4

1-2098541-3

1-2098541-2

1-2098541-1

1-2098541-0

2098541-9

2098541-8

2098541-7

2098541-6

2098541-5

2098541-4

2098541-3

2098541-2

2098541-1

4-2098541-1

CAVITY 1

08OCT2009

CAVITY 2

CAVITY 3

KEYING OPTION B

TERMINAL CAVITY #3 CLOSED

PRELIMINARY

SECTION

B-B

(4)

PRELIMINARY

1488787-1

N/A

1488787-1

N/A

CPA

PRELIMINARY

RELEASED

KEYING OPTION C

TERMINAL CAVITY #2 CLOSED

MAX

TEMP

FEMALE

TERMINAL PN

TERMINAL

PLATING

N/A

AWG

125C

150C

1670146-1

1670146-2

1670146-3

1418850-1

1418850-2

1418850-3

1670146-2

1670146-3

1418850-2

1418850-3

SILVER

TIN

GOLD

TIN

APPLICABLE WIRE

FINISHED O.D.

W.C.H.

0.84

1.11

1.31

1.11

1.31

1.11

1.31

0.84

1.11

1.31

1.11

1.31

# 0.03

# 0.05

# 0.03

# 0.05

W.C.W.

1.57

1.78

1.57

1.78

# 0.05

I.C.D.

3.25

3.35

# 0.05

1.40 - 1.90mm

1.90 - 2.40mm

1.40 - 1.90mm

WIRE SEAL

PART NUMBER

RELEASED

STATUS

967067-1

964972-1

GOLD

SILVER

GOLD

INNER HOUSING

D. DRUMMOND

S. MANKARYOS

TERMINAL CAVITY CONFIGURATION

PART NUMBER

THIS DRAWING IS A CONTROLLED DOCUMENT.

DIMENSIONS:

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

08OCT2009

NAME

TE Connectivity

2098582-1

MATERIAL

APVD

0 PLC

1 PLC

2 PLC

3 PLC

4 PLC

ANGLES

FINISH

0.3

0.10

PRODUCT SPEC

APPLICATION SPEC

1 $

KEYING OPTION D

4805 (3/13)

TERMINAL CAVITY #1 CLOSED

SILVER

SEE TABLE

WEIGHT

IS 408-8928

3.0 GRAMS

CUSTOMER DRAWING

00779

SIZE

CONNECTOR ASSEMBLY,

FEMALE, 3 POSITION SEALED, 1.2mm

STANDARD LATCH VERSION, CLASS 4

CAGE CODE

DRAWING NO

RESTRICTED TO

2098541

SCALE

4:1

SHEET

REV
