ZXMP10A13F
100V P-CHANNEL ENHANCEMENT MODE MOSFET
SUMMARY
V
(BR)DSS
= - 100V : R
DS
(
on
)= 1
DESCRIPTION
This new generation of Trench MOSFETs from Zetex utilizes a unique structure that
combines the benefits of low on-resistance with fast switching speed. This makes
them ideal for high efficiency, low voltage, power management applications.
; I
D
= - 0.7A
FEATURES
•
Low on-resistance
•
Fast switching speed
•
Low threshold
•
Low gate drive
•
SOT23 package
SOT23
APPLICATIONS
•
DC-DC Converters
•
Power Management functions
•
Disconnect switches
•
Motor control
ORDERING INFORMATION
DEVICE
ZXMP10A13FTA
ZXMP10A13FTC
REEL
SIZE
7”
13”
TAPE
WIDTH
8mm
8mm
QUANTITY
PER REEL
3000 units
10000units
PINOUT
DEVICE MARKING
•
7P1
ISSUE 1 - MARCH 2005
1
SEMICONDUCTORS
ZXMP10A13F
ABSOLUTE MAXIMUM RATINGS
PARAMETER
Drain-Source Voltage
Gate-Source Voltage
Continuous Drain Current @ V
GS
=10V; T
A
=25°C
(b)
@V
GS
=10V; T
A
=70°C
Pulsed Drain Current
(c)
Continuous Source Current (Body Diode)
Pulsed Source Current (Body Diode)
(c)
Power Dissipation at T
A
=25°C
Linear Derating Factor
Power Dissipation at T
A
=25°C
Linear Derating Factor
(a)
(b)
(b)
(a)
SYMBOL
V
DSS
V
GS
I
D
LIMIT
-100
±20
-0.7
-0.5
-0.6
UNIT
V
V
A
A
A
A
A
A
mW
mW/°C
mW
mW/°C
°C
@ V
GS
=10V; T
A
=25°C
I
DM
I
S
I
SM
P
D
P
D
T
j
, T
stg
-3.1
-1.1
-3.1
625
5
806
6.4
-55 to +150
(b)
Operating and Storage Temperature Range
THERMAL RESISTANCE
PARAMETER
Junction to Ambient
(a)
Junction to Ambient
(b)
SYMBOL
R
JA
R
JA
VALUE
200
155
UNIT
°C/W
°C/W
NOTES
(a) For a device surface mounted on 25mm x 25mm FR4 PCB with high coverage of single sided 1oz copper, in still air conditions.
(b) For a device surface mounted on FR4 PCB measured at t 5 sec.
(c) Repetitive rating 25mm x 25mm FR4 PCB, D = 0.02, pulse width 300 s - pulse width limited by maximum junction temperature.
ISSUE 1 - MARCH 2005
SEMICONDUCTORS
2
ZXMP10A13F
CHARACTERISTICS
ISSUE 1 - MARCH 2005
3
SEMICONDUCTORS
ZXMP10A13F
ELECTRICAL CHARACTERISTICS
(at T
amb
= 25°C unless otherwise stated)
PARAMETER
STATIC
Drain-Source Breakdown Voltage
Zero Gate Voltage Drain Current
Gate-Body Leakage
Gate-Source Threshold Voltage
Static Drain-Source On-State
Resistance
(1)
SYMBOL
MIN.
TYP.
MAX. UNIT CONDITIONS
V
(BR)DSS
I
DSS
I
GSS
V
GS(th)
R
DS(on)
g
fs
C
iss
C
oss
C
rss
t
d(on)
t
r
t
d(off)
t
f
Q
g
Q
g
Q
gs
Q
gd
V
SD
t
rr
-100
-1.0
100
-2.0
-4.0
1
1.45
1.2
V
A
nA
V
I
D
= -250 A, V
GS
=0V
V
DS
= -100V, V
GS
=0V
V
GS
=±20V, V
DS
=0V
I
D
= -250 A, V
DS
=V
GS
V
GS
= -10V, I
D
= -0.6A
V
GS
= -6V, I
D
= -0.5A
Forward Transconductance
(1)(3)
DYNAMIC
(3)
S
V
DS
= -15V, I
D
= -0.6A
Input Capacitance
Output Capacitance
Reverse Transfer Capacitance
SWITCHING
(2) (3)
141
13.1
10.8
pF
pF
pF
V
DS
= -50V, V
GS
=0V
f=1MHz
Turn-On Delay Time
Rise Time
Turn-Off Delay Time
Fall Time
Gate Charge
Total Gate Charge
Gate-Source Charge
Gate-Drain Charge
SOURCE-DRAIN DIODE
Diode Forward Voltage
(1)
Reverse Recovery Time
(3)
Reverse Recovery Charge
(3)
1.6
2.1
5.9
3.3
1.8
3.5
0.6
1.6
ns
ns
ns
ns
nC
nC
nC
nC
V
DS
= -50V, V
GS
= -5V
I
D
= -0.6A
V
DS
= -50V, V
GS
= -10V
I
D
= -0.6A
V
DD
= -50V, I
D
= -1A
R
G
≅
6.0 , V
GS
= -10V
-0.85
29
31
-0.95
V
ns
nC
T
j
=25°C, I
S
= -0.75A,
V
GS
=0V
T
j
=25°C, I
S
= -0.9A,
di/dt=100A/ s
Q
rr
NOTES
(1) Measured under pulsed conditions. Pulse width 300ms; duty cycle 2%.
(2) Switching characteristics are independent of operating junction temperature.
(3) For design aid only, not subject to production testing.
ISSUE 1 - MARCH 2005
SEMICONDUCTORS
4
ZXMP10A13F

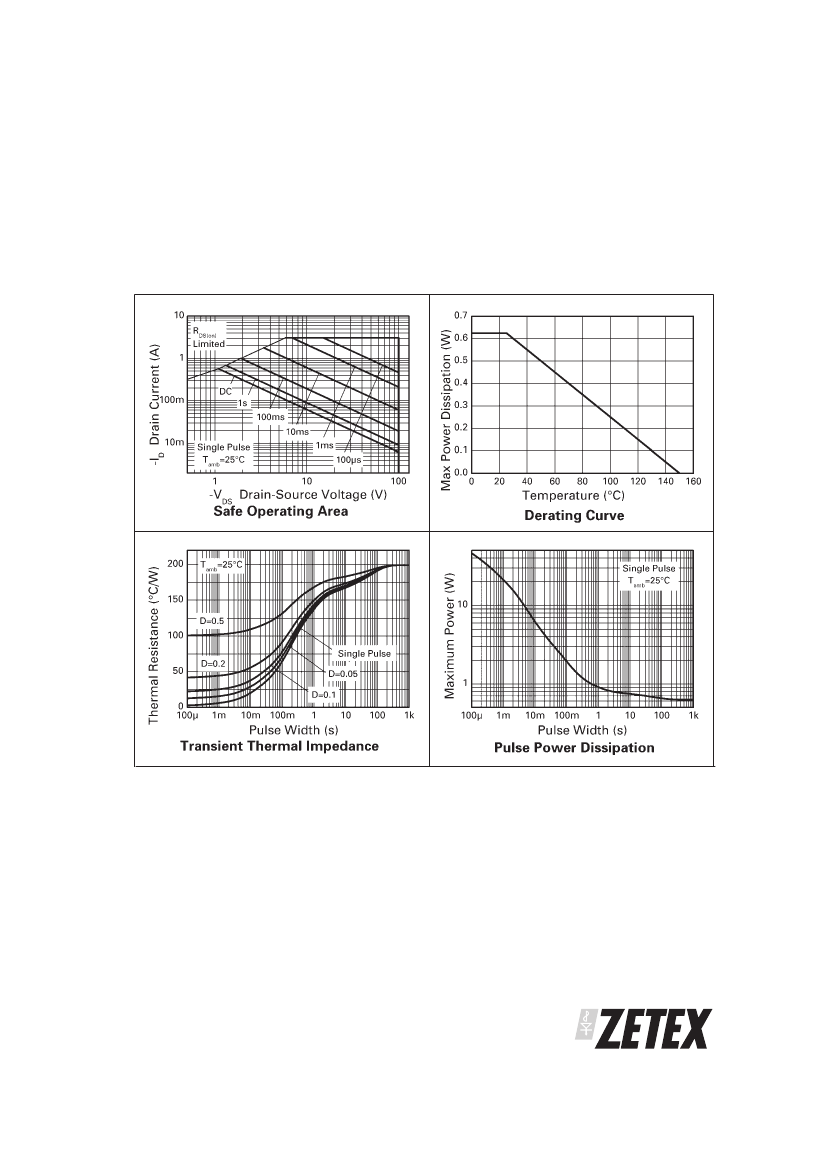

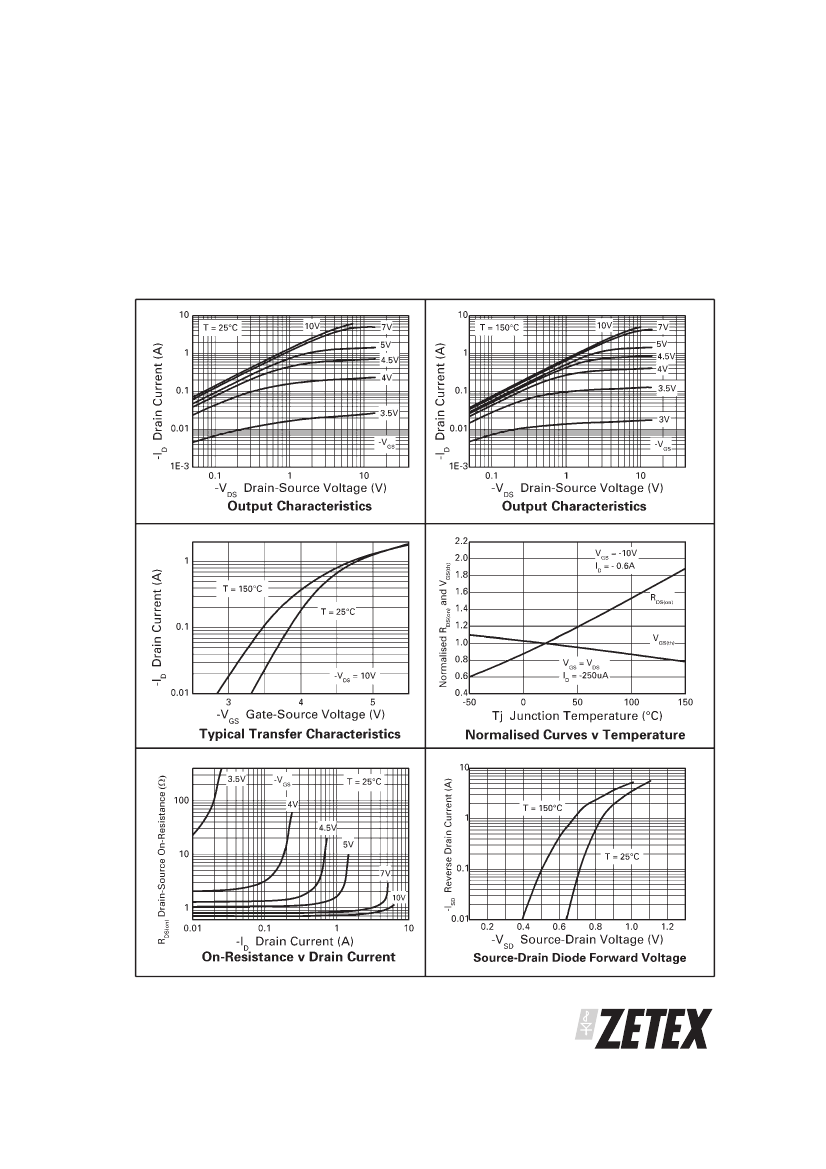

TYPICAL CHARACTERISTICS
ISSUE 1 - MARCH 2005
5
SEMICONDUCTORS
