17-400163 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 17-400163

17-400163: DescriptionStandard Circular Connector 3 POS CABLE SIDE SOCKET CONNECTOR; CategoryThe connector; File Size273KB，1 Pages; ManufacturerCONEC; Websitehttp://www.conec.com

Download Datasheet Parametric View All

17-400163 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	17-400163	-	-	View	Buy Now

17-400163 Overview

Standard Circular Connector 3 POS CABLE SIDE SOCKET CONNECTOR

17-400163 Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	CONEC
Product Category	Standard Circular Connector
RoHS	Details
Product	Connectors
Number of Positions	3 Position
Contact Gender	Socket (Female)
Shell Size	32
Mounting Style	Cable
Termination Style	Crimp
Contact Plating	Gold
IP Rating	IP67
Current Rating	20 A
Housing Material	Polyamide (PA)
Mounting Angle	Straight
Voltage Rating	300 V
Contact Material	Copper Alloy
Flammability Rating	UL 94 V-0
Cable Diameter	13 mm to 18 mm
Insert Arrangement	32-3
Mating Style	Bayonet
NumOfPackaging	1
Factory Pack Quantity	1
Wire Gauge	14 AWG to 12 AWG

Preview

Download Datasheet

View All

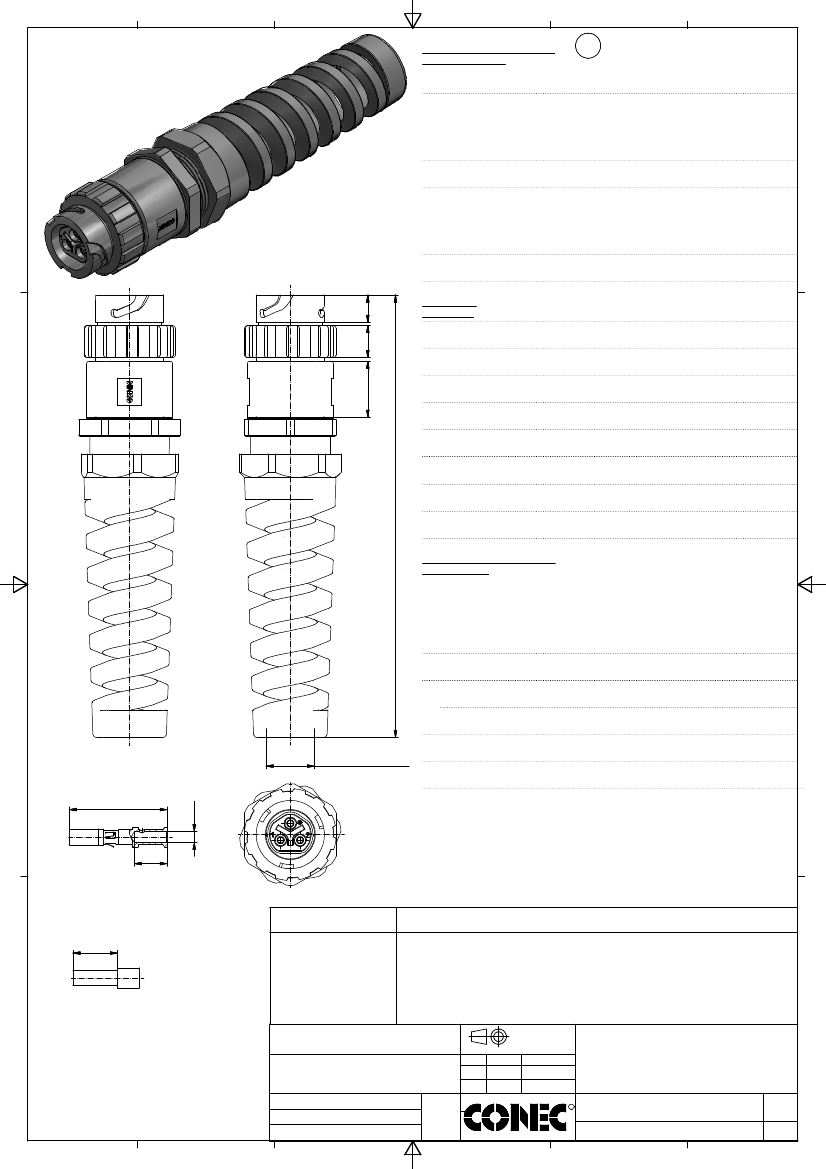

Technical specification:

Technische Daten:

max. 250 V AC/DC

IP67, rated when covered or fully

mated with the appropriate mating

connector/

IP67 bei Verwendung mit Kappe oder

passenden Gegenstecker

Working voltage/

Betriebsspannung:

Degree of protection/

Schutzart:

Temperature range/

Temperaturbereich:

-40 ° ... +100 °C

High power contact crimp; 20 A/

Hochstromkontakt crimp; 20 A

Current rating/

Strombelastbarkeit:

can be crimped with stranded

copper wires: AWG 12-14/

crimpbar an Kupferlitze: AWG 12-14

UL-listed, File No./

UL- gelistet:

E318363

9,8

Materials/

Werkstoffe:

11,4

Coupler ring/

Kupplungsring:

Socket Housing/

Buchsengehäuse:

Cable gland

Kabelanschluss:

Cable gland rubber ring

Kabelanschluss Gummidichtung:

PA GF (black/

schwarz

); UL 94 V-0;

UL (f1) rated

PA GF (black/

schwarz

); UL 94 V-0;

UL (f1) rated

PA (black/

schwarz

); UL 94 V-0;

UL (f1) rated

NBR, black/

schwarz

PA (black/

schwarz

); UL 94 V-0;

UL (f1) rated

Silicone, blue/

Silikon, blau

Cable fitting/

Kabelverschraubung:

Interfacial seal/

Stirnflächendichtung:

Retaining ring/

159

Haltering:

Stainless steel/

Edelstahl

High power contact/

Hochstromkontakt:

Cu alloy, Au over Ni

Installation specifiation/

Montagedaten:

Connector kit is recommended

for use with following cable type/

Stecker wird für die Verwendung

mit folgenden Kabeltypen empfohlen:

3 x Conductor AWG12,

Type SOOW /

3 x Leiter AWG 12, Typ SOOW/

3 x Conductor AWG 14,

Type SOOW/

360X21079X

36-000430

8 for AWG 12

7 for AWG 14

Al-5041-Power

3 x Leiter AWG 14, Typ SOOW

Crimp-Tool/

Tool insert/

Crimp-Werkzeug:

Werkzeugeinsatz:

Selector settings/

Selektor Einstellungen:

Turret position/

3 Contacts will be supplied loose/

3 Kontakte werden lose geliefert

The reproduction, distribution and utilization of this document as well as the communication of its contents to others without express authorization is prohibited. Offenders will be held liable for the payment of damages.

Weitergabe sowie Vervielfältigung dieses Dokuments, Verwertung und Mitteilung seines Inhalts sind verboten, soweit nicht ausdrücklich gestattet. Zuwiderhandlungen verpflichten zu Schadenersatz.

Alle Rechte für den Fall der Patent-, Gebrauchsmuster- oder Geschmacksmustereintragung vorbehalten.

cable/

Kabel

13-18

Kopfposition:

Assembly instruction/

Montageanleitung:

7,8

2,6

23,44

Stripping Dimensions/

Kabelvorbereitung:

Part no. / Part marked

Art.-Nr./ Bedruckung:

Contact plating/

Kontakt Veredelung:

17-400163

Power Contact 20 A/

Hochstromkontakt 20 A:

Plating, mating area:

Veredelung Steckbereich:

Gold flash over Nickel

Gold über Nickel

Zinn über Nickel

vernickelt

Plating, termination side:

Veredelung Anschluss Seite:

Veredelung Schutzhülse:

dim. in mm

Tin over Nickel

Nickel plated/

Plating, protection sleeve:

Date/

Datum

drawn

gez.

Name

02.10.13

Schmidt

Koch

appd./

gepr..

IP67 Power Bayonet 3pos. Socket Kit / crimp

cable mount

13-18 mm

IP67 Power-Bajonett 3pol. Buchsen-Kit / crimp

Kabelmontage

13-18 mm

dwg no /

Z.-nr.:

Index:

Status:

d Ä6469 13.02.17 K.H.

InBearbeitung

scale

Maßstab

1:1

17K1A422

DIN-

RoHS compliant/

konform

1/1
