GWX-SMT-S-88-50

Description
Modular Connectors / Ethernet Connectors SMT,R/A,8P,8CONTACTS SHIELDED, 50u"
CategoryThe connector    The connector
File Size1MB,1 Pages
ManufacturerKycon
Environmental Compliance
Download Datasheet Parametric View All

GWX-SMT-S-88-50 Online Shopping

Suppliers Part Number Price MOQ In stock
GWX-SMT-S-88-50 - - View Buy Now

GWX-SMT-S-88-50 Overview

Modular Connectors / Ethernet Connectors SMT,R/A,8P,8CONTACTS SHIELDED, 50u"

GWX-SMT-S-88-50 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerKycon
package instructionROHS COMPLIANT
Reach Compliance Codecompliant
ECCN codeEAR99
Other featuresLOW PROFILE
Board mount optionsSPLIT BOARD LOCK
body width0.531 inch
body length0.65 inch
Body/casing typeJACK
Connector typeTELECOM AND DATACOM CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact point genderFEMALE
Contact materialNOT SPECIFIED
Contact resistance20 mΩ
Contact styleTELCOM, MODULAR
DIN complianceNO
empty shellNO
Filter functionNO
IEC complianceNO
Insulation resistance500000000 Ω
Insulator colorBLACK
insulator materialPOLYETHYLENE
MIL complianceNO
Mixed contactsNO
Installation option 1LOCKING
Installation methodRIGHT ANGLE
Installation typeBOARD
Number of ports1
OptionsGENERAL PURPOSE
Plating thickness50u inch
Rated current (signal)1.5 A
GuidelineCSA, UL
reliabilityCOMMERCIAL
Shell surfaceNICKEL
Shell materialCOPPER ALLOY
Termination typeSURFACE MOUNT
Total number of contacts8
UL Flammability Code94V-0
2D Drawing
Solder Profile
Certificate of Origin
IGES
CofC RoHS Compliant
Check Stock
STEP
CofC REACH Compliant
Request a Sample
3D PDF
UL Plastic File
Send Us An Email
Generated Part Number
GWX-N-88
Part Number Builder
LR78160
GWX
Series
N
Shield
Option
88
No. of
Positions
& Contacts
Plating
Options
Packaging
Option

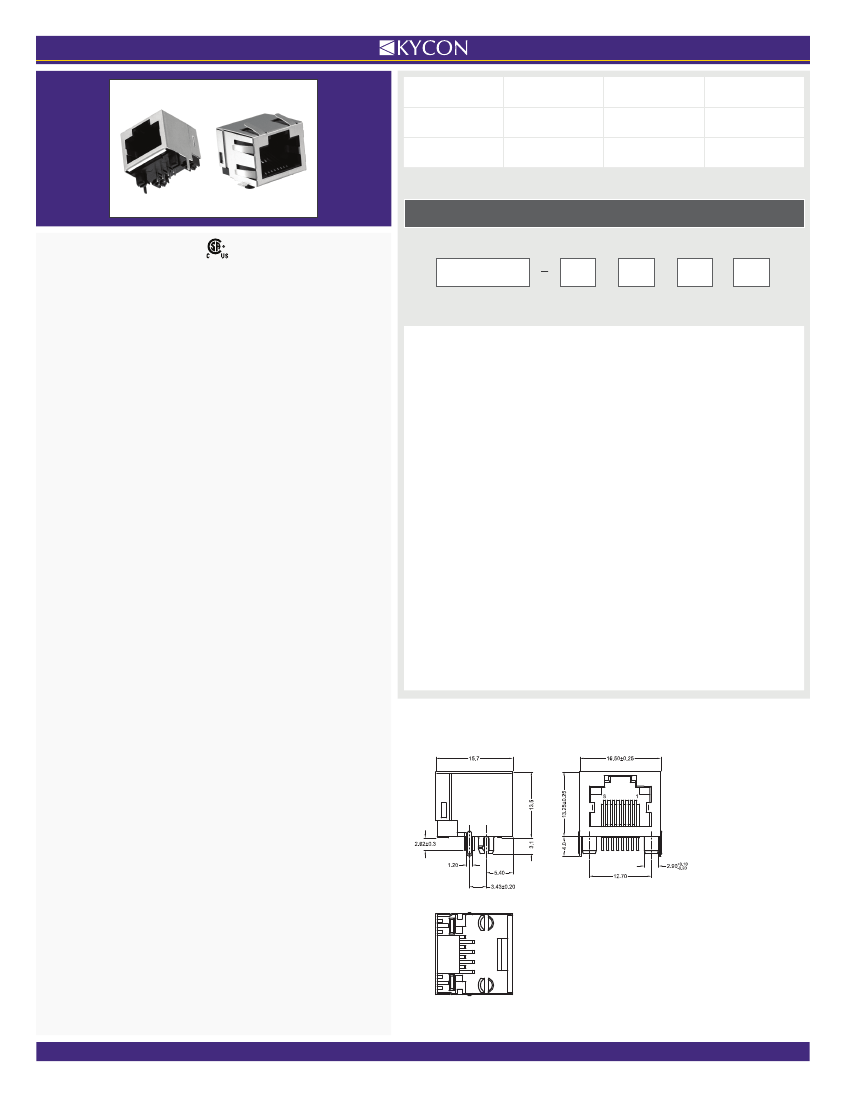

MODULAR JACKS AND PLUGS:
GWX /GWX-SMT Series
Right Angle Modular Jack, Tab Up
Product Features:
Low Profile Design Suitable for PC Add-on
Tab up Design for Easy Insertion/Removal of Mating Plug
Available Fully Shielded for EMI/RFI Protection
Available with Through Hole or Surface Mount
Contact Options
CSA/NTRL Certified File No. LR78160
Series
GWX
- Through Hole, Right Angle
GWX-SMT
- Surface Mount, Right Angle
Shield Option
N
- Non-Shielded
S
- Fully Shielded
S3
- Fully Shielded with Tabs on Top
(Available only with Through Hole)
S9
- Fully Shielded with Tabs on Top and Sides
Performance Specifications
Materials and Finish
Housing
High Temperature Thermoplastic, UL 94V-0 Rated,
Black Color
Contact Material
Phosphor Bronze
Contact Plating
Standard:
Nickel Underplating, Selectively Plated
Gold Flash
50 Option:
Nickel Underplating, Selectively Plated
50µ” Gold
Contact Area, Gold Flash on Soldertails
Shield Material
Copper Alloy, Nickel Plated
Number of Positions/Contacts
88
- 8 Positions / 8 Contacts
Plating Option
Blank
- Gold Flash
50
- 50µ" Gold Plating
Packaging Option
Blank
- Tray
TR
- Tape & Reel
(Available only with SMT Option)
Contact Kycon for Other Options
GWX-S-88
Dimensions in mm
Electrical Characteristic
Insulation Resistance
500 Megohms Min.
Rated Voltage
125V DC
Contact Resistance
20 milliohms Max.
Rated Current
1.5A
Phone: +1.408.494.0330
l
Fax: +1.408.494.0325
l
WWW.KYCON.COM
