3M
™

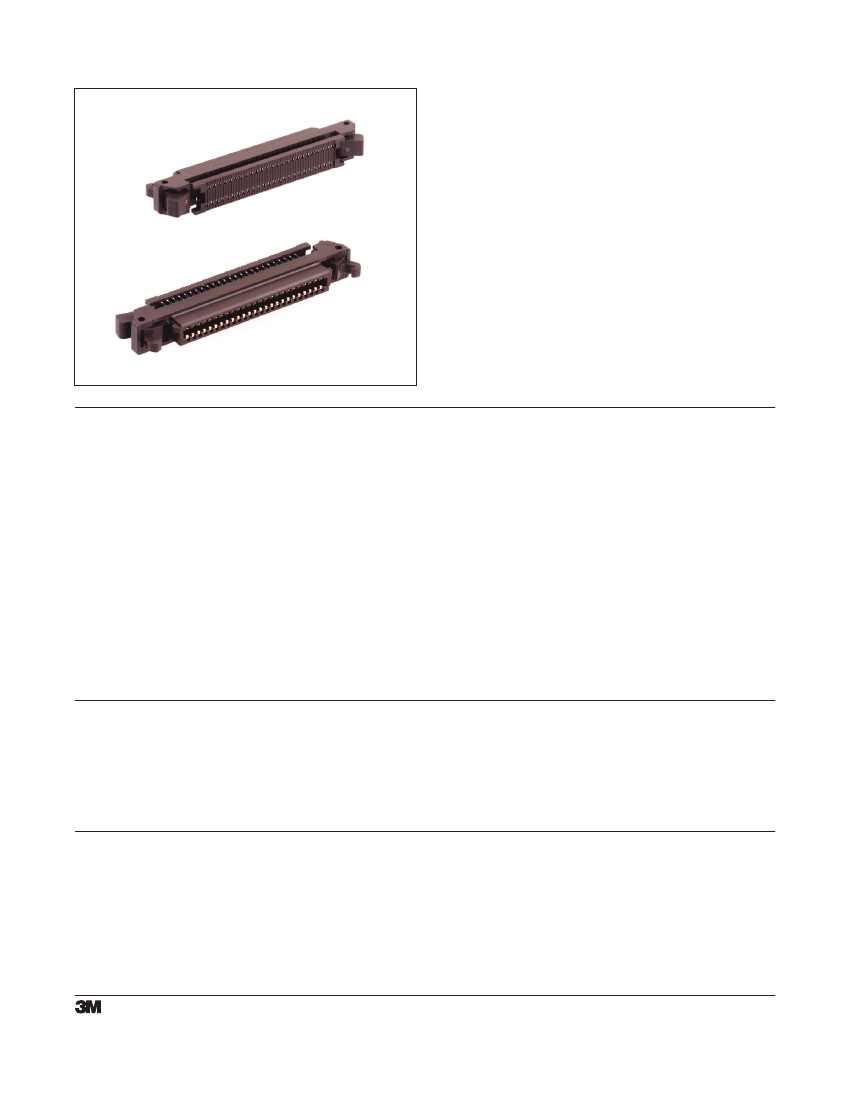

Pak 50 Low Profile Wiremount Socket
.050" for .025" Pitch Cable
P25LE Series
• P25LE terminates 25 mil pitch, 30 AWG stranded
wire, PVC insulated, flat ribbon cable
•
Low profile 11.8 mm mated height
•
P50LE mate offers surface mount, straight and right
angle thru-hole options
•
Latch/eject mechanism maintains a secure connection
•
Cable strain relief standard
•
Tooling available for customer cable assembly
termination
• Visit 3M.com/regs or contact your 3M representative
to find the RoHS compliance status of the 3M part
you are interested in.
Date Modified: April 3, 2017
TS-1142-C
Sheet 1 of 2
Physical
Insulator:
Material:
Glass Filled Nylon
Flammability: UL 94V-0
Color: Brown
Contact Material: Phosphor Bronze
Plating:
Underplating:
Nickel
Wiping Area: Gold Flash
Termination Area: Gold Flash
Wire Accommodation: 30 AWG Stranded PVC Flat Ribbon Cable (3M #3754 or approved equivalent)
Mating Compatibility:
TS-1148
Electrical
Current Rating:
0.5 A
Insulation Resistance:
> 1 × 10
9
Ω
at 250 V
DC
Withstanding Voltage:
300 V
AC
for 1 minute
Environmental
Temperature Rating:
-55ºC to +85ºC
UL File No.: E68080
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
Electronics Materials Solutions Division
http://www.3Mconnectors.com
3M
™
Pak 50 Low Profile Wiremount Socket
.050" for .025" Pitch Cable

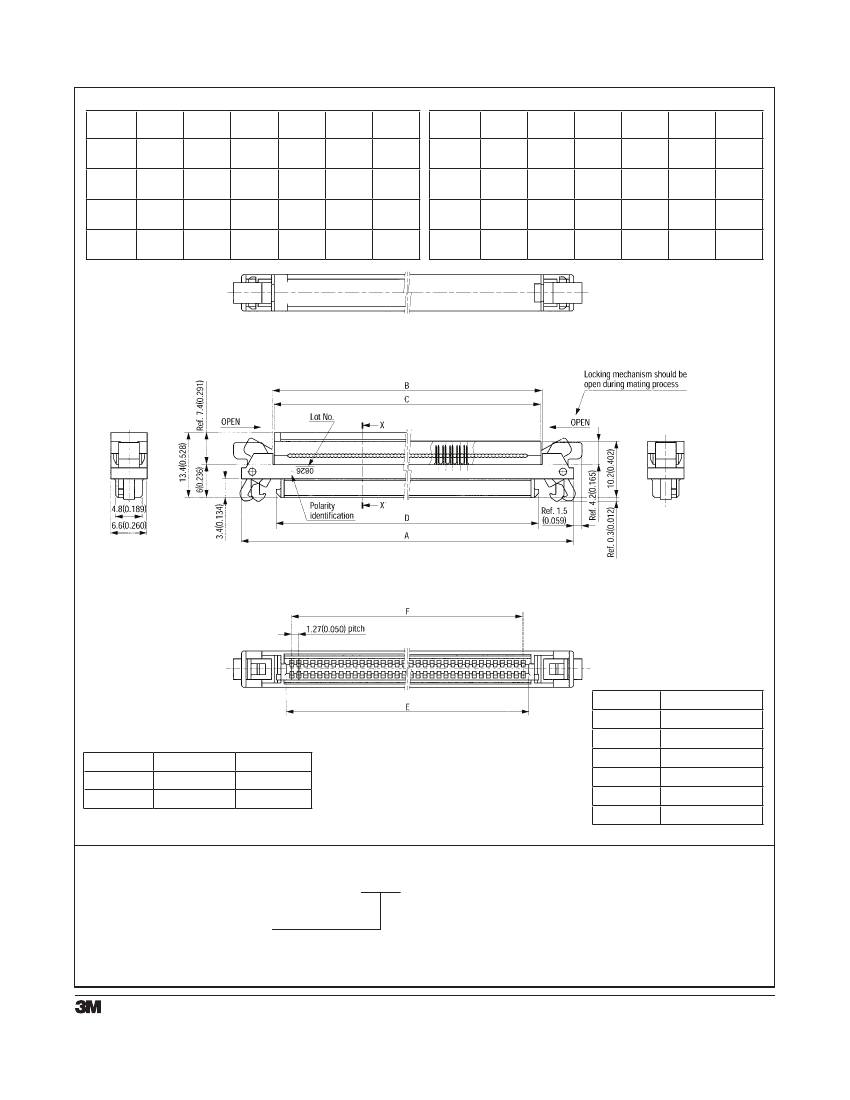

Product Table / Dimensions
Contact
Quantity
20
30
40
50
A
29.63
[1.167]
35.98
[1.417]
42.33
[1.667]
48.68
[1.917]
B
18.23
[0.718]
24.58
[0.968]
30.93
[1.218]
37.28
[1.468]
C
17.83
[0.702]
24.18
[0.952]
30.53
[1.202]
36.88
[1.452]
D
17.03
[0.670]
23.38
[0.920]
29.73
[1.170]
36.08
[1.420]
E
13.43
[0.529]
19.78
[0.779]
26.13
[1.029]
32.48
[1.279]
F
11.43
[0.450]
17.78
[0.700]
24.13
[0.950]
30.48
[1.200]
Contact
Quantity
60
68
80
100
A
55.03
[2.167]
60.11
[2.367]
67.73
[2.667]
80.43
[3.167]
B
43.63
[1.718]
48.71
[1.918]
56.33
[2.218]
69.03
[2.718]
C
43.23
[1.702]
48.31
[1.902]
55.93
[2.202]
68.63
[2.702]
D
42.43
[1.670]
47.51
[1.870]
55.13
[2.170]
67.83
[2.670]
P25LE Series
E
38.83
[1.529]
43.91
[1.729]
51.53
[2.029]
64.23
[2.529]
F
36.83
[1.450]
41.91
[1.650]
49.53
[1.950]
62.23
[2.450]
Conn Size
mm [Inch]
Tolerance Unless Noted
0.0
< 10.0 mm
≥ 10.0 mm
± 0.2 [.008]
± 0.3 [.012]
Note: Strain relief standard.
Locator Plate PN
3443-127A
3443-127B
3443-127C
3443-127D
3443-127E
3443-127F
20
40
0.00
30 & 50
60
68
80 & 100
± 0.10 [.004]
( ) and [ ] Dimensions used for
Reference Only
Ordering Information
Contact Quantity:
See Table
P25LE - XXXS - DA
(RIA E1 and C1 apply)
TS-1142-C
Sheet 2 of 2
Electronics Materials Solutions Division
http://www.3Mconnectors.com
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
Regulatory: For regulatory information about this product, contact your 3M representative.
Technical Information: The technical information, recommendations and other statements contained in this document are
based upon tests or experience that 3M believes are reliable, but the accuracy or completeness of such information is not
guaranteed.
Product Use: Many factors beyond 3M’s control and uniquely within user’s control can affect the use and performance of a
3M product in a particular application. Given the variety of factors that can affect the use and performance of a 3M product,
user is solely responsible for evaluating the 3M product and determining whether it is fit for a particular purpose and suitable
for user’s method of application.
Warranty, Limited Remedy, and Disclaimer: Unless an additional warranty is specifically stated on the applicable 3M product
packaging or product literature, 3M warrants that each 3M product meets the applicable 3M product specification at the time
3M ships the product. 3M MAKES NO OTHER WARRANTIES OR CONDITIONS, EXPRESS OR IMPLIED, INCLUDING, BUT
NOT LIMITED TO, ANY IMPLIED WARRANTY OR CONDITION OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR
PURPOSE OR ANY IMPLIED WARRANTY OR CONDITION ARISING OUT OF A COURSE OF DEALING, CUSTOM OR USAGE
OR TRADE. If the 3M product does not conform to this warranty, then the sole and exclusive remedy is, at 3M’s option,
replacement of the 3M product or refund of the purchase price.
Limitation of Liability: Except where prohibited by law, 3M will not be liable for any loss or damage arising from the 3M
product, whether direct, indirect, special, incidental or consequential, regardless of the legal theory asserted, including
warranty, contract, negligence or strict liability.
3M Electronics Materials Solutions Division
6801 River Place Blvd.
Austin, TX 78726-9000
U.S.A.
1-800-225-5373
www.3Mconnectors.com
3M is a trademark of 3M Company.
Please recycle. Printed in USA.
© 3M 2017. All rights reserved.
RIA-2217B-E
