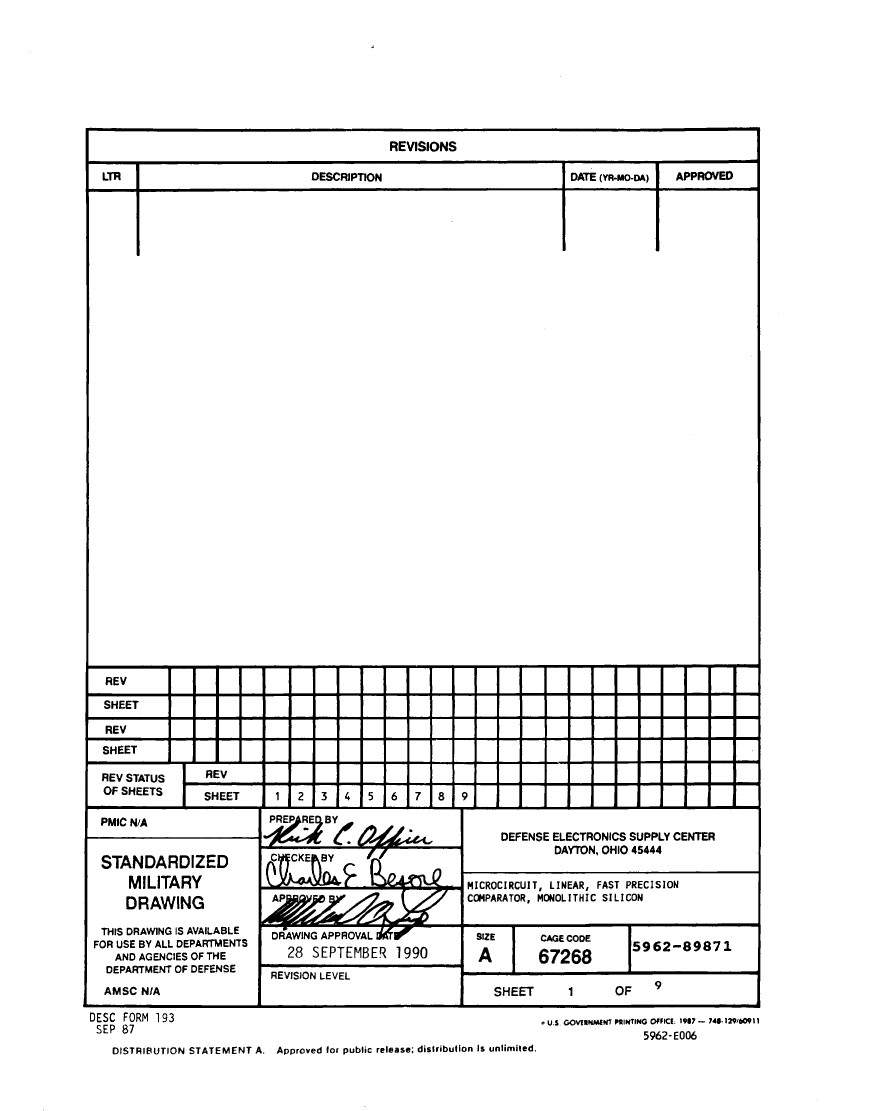

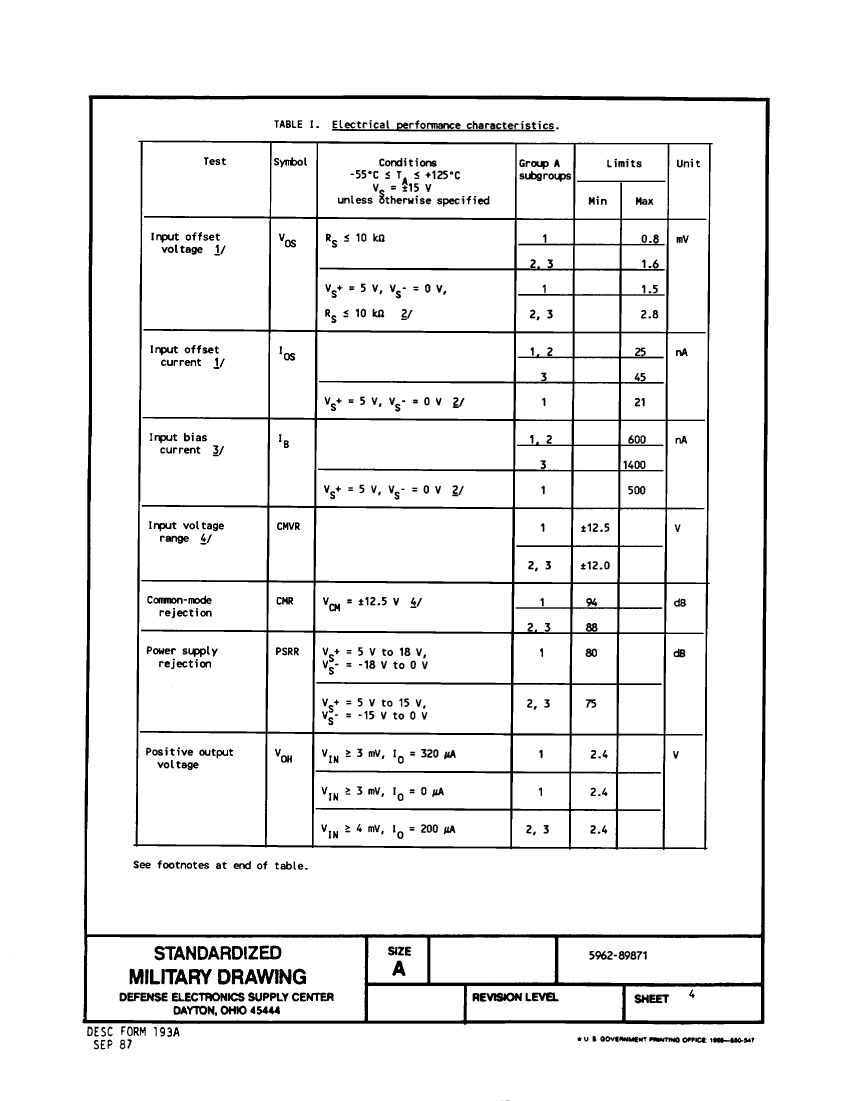

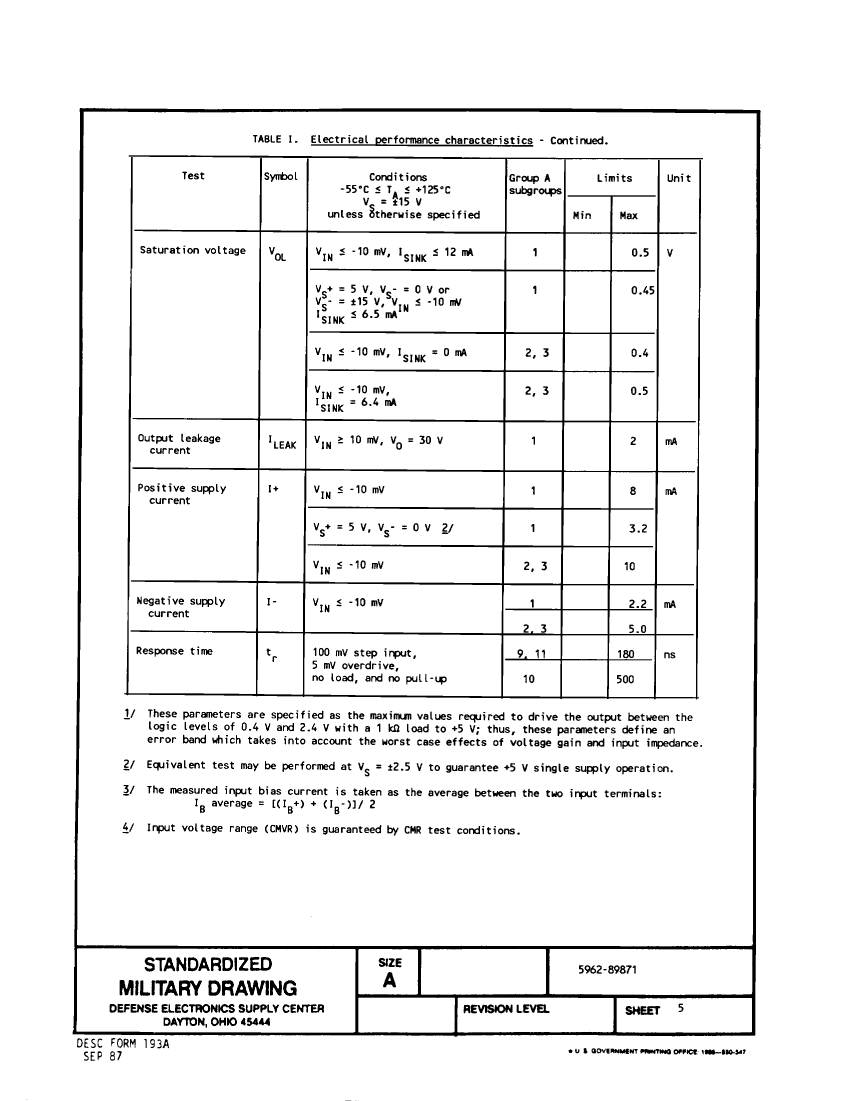

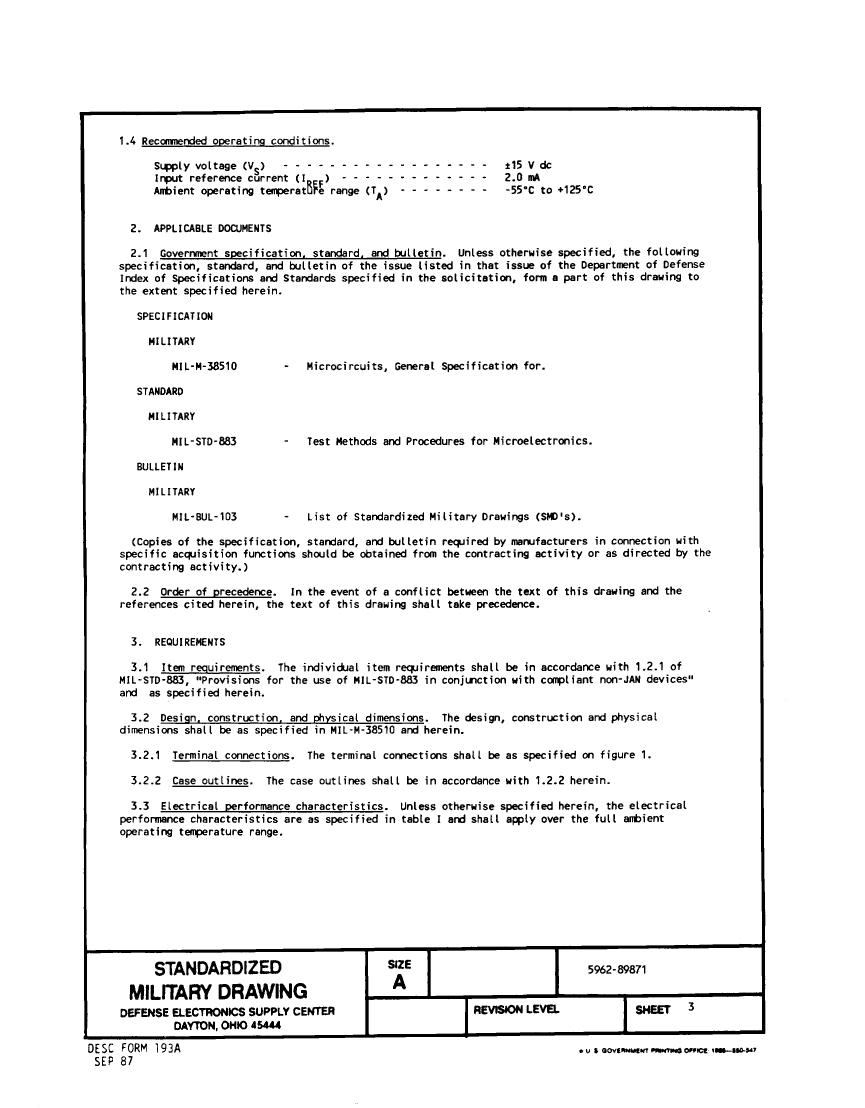

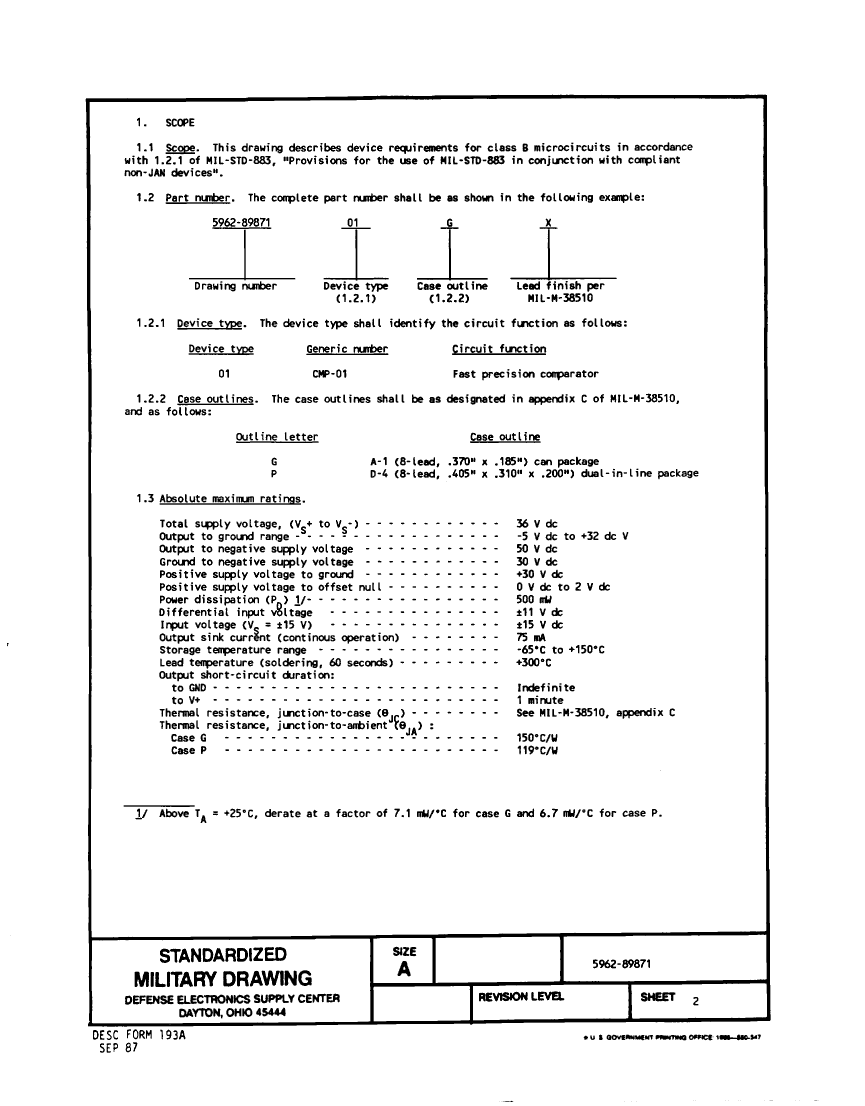

Preview

5962-8987101GX: Description5962-8987101GX amplifier basic information: 5962-8987101GX is a COMPARATOR. Commonly used packaging methods are METAL CAN, 8 PIN 5962-8987101GX amplifier core information: The minimum operating temperature of the 5962-8987101GX is -55 °C and the maximum operating temperature is 125 °C. Its maximum average bias current is 1.4 µA The nominal supply voltage of 5962-8987101GX is 15 V, and its corresponding nominal negative supply voltage is -15 V. The input offset voltage of 5962-8987101GX is 1600 µV (Input offset voltage: the compensation voltage added between the two input terminals to make the output terminal of the op amp 0V (or close to 0V).) Related dimensions of 5962-8987101GX: 5962-8987101GX has 8 terminals. Its terminal position type is: BOTTOM. 5962-8987101GX amplifier additional information: Its temperature grade is: MILITARY. The corresponding JESD-30 code is: O-MBCY-W8. The material of the 5962-8987101GX package is mostly METAL. And its package shape is ROUND. 5962-8987101GX package pin formats are: CYLINDRICAL. Its terminal form is: WIRE.; CategoryAnalog mixed-signal IC Amplifier circuit; File Size265KB，9 Pages; ManufacturerPrecision Monolithics Inc; Alternative parts：5962-8987101GX

Download Datasheet Parametric Compare View All

5962-8987101GX Overview

5962-8987101GX amplifier basic information:

5962-8987101GX is a COMPARATOR. Commonly used packaging methods are METAL CAN, 8 PIN

5962-8987101GX amplifier core information:

The minimum operating temperature of the 5962-8987101GX is -55 °C and the maximum operating temperature is 125 °C. Its maximum average bias current is 1.4 µA

The nominal supply voltage of 5962-8987101GX is 15 V, and its corresponding nominal negative supply voltage is -15 V. The input offset voltage of 5962-8987101GX is 1600 µV (Input offset voltage: the compensation voltage added between the two input terminals to make the output terminal of the op amp 0V (or close to 0V).)

Related dimensions of 5962-8987101GX:

5962-8987101GX has 8 terminals. Its terminal position type is: BOTTOM.

5962-8987101GX amplifier additional information:

Its temperature grade is: MILITARY. The corresponding JESD-30 code is: O-MBCY-W8. The material of the 5962-8987101GX package is mostly METAL. And its package shape is ROUND. 5962-8987101GX package pin formats are: CYLINDRICAL.

Its terminal form is: WIRE.

5962-8987101GX Parametric

Parameter Name	Attribute value
Maker	Precision Monolithics Inc
package instruction	METAL CAN, 8 PIN
Reach Compliance Code	unknown
Amplifier type	COMPARATOR
Maximum average bias current (IIB)	1.4 µA
Maximum input offset voltage	1600 µV
JESD-30 code	O-MBCY-W8
Negative supply voltage upper limit	-18 V
Nominal Negative Supply Voltage (Vsup)	-15 V
Number of functions	1
Number of terminals	8
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	METAL
Package shape	ROUND
Package form	CYLINDRICAL
Certification status	Not Qualified
Filter level	MIL-STD-883
Supply voltage upper limit	18 V
Nominal supply voltage (Vsup)	15 V
surface mount	NO
technology	BIPOLAR
Temperature level	MILITARY
Terminal form	WIRE
Terminal location	BOTTOM
Base Number Matches	1

Preview

Download Datasheet

View All

5962-8987101GX Related Products

	5962-8987101GX	5962-8987101PX	5962-8987101GA	5962-8987101PA
Description	Comparator, 1 Func, 1600uV Offset-Max, BIPolar, MBCY8, METAL CAN, 8 PIN	Comparator, 1 Func, 1600uV Offset-Max, BIPolar, CDIP8, CERAMIC, DIP-8	Comparator, 1 Func, 1600uV Offset-Max, 180ns Response Time, BIPolar, 0.370 X 0.185 INCH, CAN-8	Comparator, 1 Func, 1600uV Offset-Max, 180ns Response Time, BIPolar, 0.405 X 0.310 INCH, 0.200 INCH HEIGHT, DIP-8
Maker	Precision Monolithics Inc	Precision Monolithics Inc	Precision Monolithics Inc	Precision Monolithics Inc
package instruction	METAL CAN, 8 PIN	CERAMIC, DIP-8	0.370 X 0.185 INCH, CAN-8	0.405 X 0.310 INCH, 0.200 INCH HEIGHT, DIP-8
Reach Compliance Code	unknown	unknown	unknown	unknown
Amplifier type	COMPARATOR	COMPARATOR	COMPARATOR	COMPARATOR
Maximum average bias current (IIB)	1.4 µA	1.4 µA	0.6 µA	0.6 µA
Maximum input offset voltage	1600 µV	1600 µV	1600 µV	1600 µV
JESD-30 code	O-MBCY-W8	R-CDIP-T8	O-XBCY-X8	R-XDIP-T8
Negative supply voltage upper limit	-18 V	-18 V	-18 V	-18 V
Nominal Negative Supply Voltage (Vsup)	-15 V	-15 V	-15 V	-15 V
Number of functions	1	1	1	1
Number of terminals	8	8	8	8
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C
Package body material	METAL	CERAMIC, METAL-SEALED COFIRED	UNSPECIFIED	UNSPECIFIED
Package shape	ROUND	RECTANGULAR	ROUND	RECTANGULAR
Package form	CYLINDRICAL	IN-LINE	CYLINDRICAL	IN-LINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Filter level	MIL-STD-883	MIL-STD-883	MIL-STD-883	MIL-STD-883
Supply voltage upper limit	18 V	18 V	18 V	18 V
Nominal supply voltage (Vsup)	15 V	15 V	15 V	15 V
surface mount	NO	NO	NO	NO
technology	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY
Terminal form	WIRE	THROUGH-HOLE	UNSPECIFIED	THROUGH-HOLE
Terminal location	BOTTOM	DUAL	BOTTOM	DUAL
Base Number Matches	1	1	1	-
