AZ764F

Description
20 AMP HIGH TEMPERATURE MINIATURE POWER RELAY
File Size90KB，4 Pages
ManufacturerZETTLER electronics GmbH
Websitehttps://www.zettlerelectronics.com/
Download Datasheet View All

AZ764F Overview

20 AMP HIGH TEMPERATURE MINIATURE POWER RELAY

AZ764F Preview

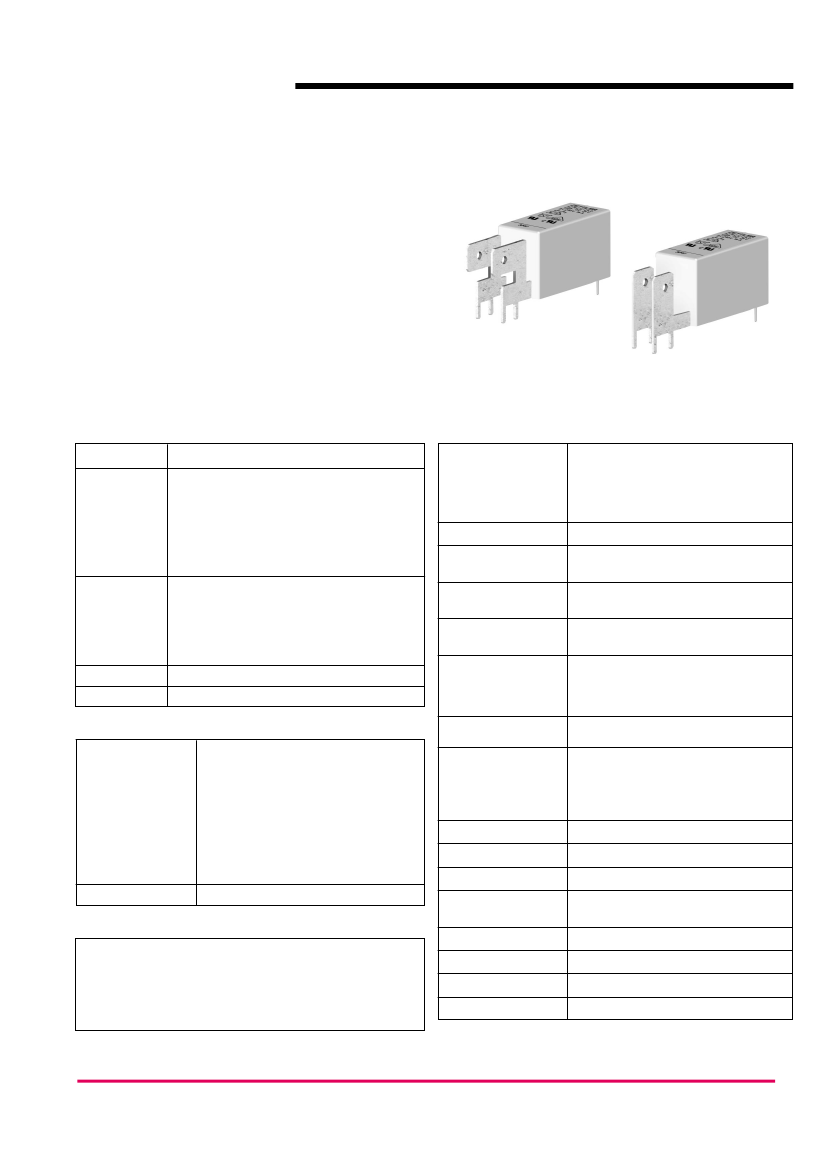

AZ764F
20 AMP HIGH TEMPERATURE
MINIATURE POWER RELAY
FEATURES
Quick connect Faston and PCB terminals
Ambient Temperature up to 105°C (221°F)
Dielectric strength 5000 Vrms
Low height: 15.7 mm
20 Amp switching (18 A over Faston)
AC and DC (standard and sensitive) coils
Isolation spacing greater than 10 mm
Proof tracking index (PTI/CTI) 250
Reinforced insulation, EN 60730-1 (VDE 0631, part 1)
EN 60335-1 (VDE 0700, part 1)
•
UL, CUR pending
•
VDE file 40012572 (sensitive DC coils only)
CONTACTS
Arrangement
Ratings
SPST (1 Form A)
Resistive load:
Max. switched power: 600 W or 5000 VA
Max. switched current: 20 A
Max. switched voltage: 300 VDC* or 400 VAC
*
Note: If switching voltage is greater than 30 VDC,
•
•
•
•
•
•
•
•
•
GENERAL DATA
Life Expectancy
Mechanical
Electrical
(ohmic load at
105°C / 221°F)
Operate Time (typical)
Release Time (typical)
Minimum operations
3 x 10
7
1.7 x 10
5
at 10 A 230 VAC res.
2.8 x 10
5
at 8 A 230 VAC res.
3.2 x 10
5
at 6 A 230 VAC res.
7 ms at nominal coil voltage
3 ms at nominal coil voltage
(with no coil suppression)
special precautions must be taken.
Please contact the factory.
Rated Load
UL, CUR
VDE
20 A at 250 VAC general use
10 A at 250 VAC resistive, 105 °C, 150k cycles
16 A at 250 VAC resistive, 105 °C, 10k cycles
20 A at 250 VAC resistive, 85 °C, 10k cycles
Silver tin oxide
< 100 milliohms initially
Dielectric Strength
5000 Vrms coil to contact
(at sea level for 1 min.)
1000 Vrms between open contacts
Insulation
Resistance
Insulation
(according to
DIN VDE 0110,
IEC 60664-1)
Dropout DC coils
AC coils
Ambient Temperature
Operating
10
5
megohms min. at 500 VDC,
20°C, 50% RH
C250
Overvoltage category: III
Pollution degree: 3
Nominal voltage: 250 VAC
Greater than 10% of nominal coil voltage
Greater than 15% of nominal coil voltage
At nominal coil voltage
-40°C (-40°F) to 105°C (221°F) - DC sens.
-40°C (-40°F) to 85°C (185°F) - DC std.
-40°C (-40°F) to 70°C (158°F) - AC coils
-40°C (-40°F) to 105°C (221°F)
20 g at 30…500 Hz
30 g
P.B.T. polyester, UL-94 : V0
Tinned copper alloy
P.C. and quick connect
270°C (518°F)
5 seconds
16 grams
12 per carton tube / 600 per carton box
Material
Resistance
COIL
Power
At Pickup Voltage
(typical)
Max. Continuous
Dissipation
Temperature Rise
(at nominal voltage)
Max. Temperature
140 mW (sensitive DC coil)
200 mW (standard DC coil)
.422 VA (AC coil)
2.2 W at 20°C (68°F) ambient (DC coil)
1.7 VA at 20°C (68°F) ambient (AC coil)
16°C (29°F) (sensitive DC coil)
26°C (47°F) (standard DC coil)
26°C (47°F) (AC coil)
155°C (311°F)
Storage
Vibration
Shock
Enclosure
Terminals
Max. Solder Temp.
NOTES
1. All values at 20°C (68°F).
2. Relay may pull in with less than “Must Operate” value.
3. Specifications subject to change without notice.
4. Allow suitable slack on leads when wiring and do not subject
the terminals to excessive force.
Max. Solder Time
Weight
Packing unit in pcs
ZETTLER
electronics GmbH
Tel. +49 89 800 97 0
Fax +49 89 800 97 200
office@ZETTLERelectronics.com
www.ZETTLERelectronics.com
2005-08-22
Junkersstrasse 3, D-82178 Puchheim, Germany
AZ764F
RELAY ORDERING DATA
COIL SPECIFICATIONS - DC COIL
Nominal Coil
VDC
5
6
9
12
18
24
48
60
110
Must Operate
VDC
3.5
4.2
6.3
8.4
12.6
16.8
33.6
42.0
77.0
Max. Continuous
VDC
12.7
15.3
22.9
30.6
45.9
61.2
122.0
153.0
280.0
Coil Resistance
Ohm ±10%
60
90
200
360
710
1,440
5,700
7,500
25,200
AZ764FH–1AE–5D
AZ764FH–1AE–6D
AZ764FH–1AE–9D
AZ764FH–1AE–12D
AZ764FH–1AE–18D
AZ764FH–1AE–24D
AZ764FH–1AE–48D
AZ764FH–1AE–60D
AZ764FH–1AE–110D
ORDER NUMBER*
COIL SPECIFICATIONS - DC COIL SENSITIVE VERSION
Nominal Coil
VDC
5
6
9
10
12
24
Must Operate
VDC
3.75
4.5
6.75
7.5
9.0
18.0
Max. Continuous
VDC
15.0
18.0
27.0
30.0
36.0
72.0
Coil Resistance
Ohm ±10%
102
144
330
400
580
2,300
ORDER NUMBER*
AZ764FH–1AE–5DS
AZ764FH–1AE–6DS
AZ764FH–1AE–9DS
AZ764FH–1AE–10DS
AZ764FH–1AE–12DS
AZ764FH–1AE–24DS
COIL SPECIFICATIONS - AC COIL
Nominal Coil
VAC
12
24
115
230
240
Must Operate
VAC
9.0
18.0
86.3
172.5
180.0
Max. Continuous
VAC
18.0
36.0
172.5
345.0
360.0
Nominal Current
mA ± 10%
63.0
31.3
6.5
3.3
3.1
Coil Resistance
Ohm ± 10%
100
400
9,600
38,500
42,500
ORDER NUMBER*
AZ764FH–1AE–12A
AZ764FH–1AE–24A
AZ764FH–1AE–115A
AZ764FH–1AE–230A
AZ764FH–1AE–240A
* Substitue “FV” for “FH” for vertical quick connect terminals.
DC - Coil operating range
3,0
2,8
2,6
U
B
/ U
N
2,4
2,2
2,0
1,8
1,6
1,4
1,2
1,0
0,8
0,6
0
10
20
30
3,0
2,8
AC - Coil operating range
U
B
/ U
N
4
1
2
3
2,6
2,4
2,2
2,0
1,8
1,6
1,4
1,2
I
N
= 16 A
1
3
B
B
A
40
50
60
70
80
90
C
100 110
120
1,0
0,8
0,6
0
10
20
30
40
50
60
70
80
90
100
Ambient temperature [°C]
A - Cold coil ( T
coil
= T
ambient
)
B - Hot coil (1,1 x U
N
), contact load = 16 A
C - Cold coil ( T
coil
= T
ambient
) sensitive coil
1 - no load on contacts
2 - half of rated load on contacts
3 - rated load on contacts
4 - rated load on contacts (sensitive coil)
Ambient temperature [°C]
B - Hot coil (1,1 x U
N
), contact load = I
N
1 - no load on contacts
3 - rated load on contacts
ZETTLER
electronics GmbH
Tel. +49 89 800 97 0
Fax +49 89 800 97 200
office@ZETTLERelectronics.com
www.ZETTLERelectronics.com
2005-08-22
Junkersstrasse 3, D-82178 Puchheim, Germany
AZ764F
MECHANICAL DATA AZ764FH - HORIZONTAL VERSION
PC BOARD LAYOUT
A 6,3-0,8
DIN 46244
1.752
[44.5]
Max.
1.142
[29.0]
Max.
0.500 Max.
[12.7]
.197
[5.0]
1.28
[32.5]
.098
[2.5]
.248
[6.3]
.551
[14.0]
.618
Max.
[15.7]
.295
[7.5]
.098
[2.5]
.167
[4.25]
.154
[3.9]
.295
[7.5]
6 x ø .050
[ø 1.3]
Viewed toward terminals
WIRING DIAGRAM
4 x .031
[0.8]
.031
[0.8]
.031
[0.8]
8
.197
[5.0]
1.28
[32.5]
.098
[2.5]
7
1
2 x ø .024
[ø 0.6]
5
.295
[7.5]
4
2
Viewed toward terminals
MECHANICAL DATA AZ764FV - VERTICAL VERSION
PC BOARD LAYOUT
1.594
[40.5]
A 6,3-0,8
DIN 46244
.248
[6.3]
Max.
1.142
[29.0]
Max.
0.500 Max.
[12.7]
.197
[5.0]
1.28
[32.5]
.098
[2.5]
.52
[13.2]
.618
Max.
[15.7]
.295
[7.5]
.098
[2.5]
.167
[4.25]
.154
[3.9]
.295
[7.5]
6 x ø .050
[ø 1.3]
Viewed toward terminals
WIRING DIAGRAM
4 x .031
[0.8]
.031
[0.8]
.031
[0.8]
.197
[5.0]
1.28
[32.5]
.098
[2.5]
2 x ø .024
[ø 0.6]
5
.295
[7.5]
8
7
1
4
2
Viewed toward terminals
Dimensions in inches with metric equivalents in parentheses. Tolerance: ± .010"
ZETTLER
electronics GmbH
Tel. +49 89 800 97 0
Fax +49 89 800 97 200
office@ZETTLERelectronics.com
www.ZETTLERelectronics.com
2005-08-22
Junkersstrasse 3, D-82178 Puchheim, Germany
AZ764F
Electrical life at 250 VAC, resistive load
10
7
1,0
0,9
Electrical life reduction factor at inductive AC load
F
Number of cycles
10
6
Reduction factor
0,8
0,7
0,6
0,5
10
5
0,4
0,9
0,8
0,7
0,6
0,5
0,4
0,3
0,2
Power factor
10
4
0
0,5
1,0
1,5
2,0
2,5
3,0
3,5
4,0
4,5
5,0
Breaking capacity [kVA]
Max. DC resistive load breaking capacity
50
20
DC current [A]
10
5
2
1
0,5
0,1
10
20
30
40 50
100
200
300
DC voltage [V]
ZETTLER
electronics GmbH
Tel. +49 89 800 97 0
Fax +49 89 800 97 200
office@ZETTLERelectronics.com
www.ZETTLERelectronics.com
2005-08-22
Junkersstrasse 3, D-82178 Puchheim, Germany
j
N
cos
=NxF
j
0,3
1,0
cos
More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

Recommended Resources

Ultrasonic remote control dimmer light circuit

Huayi-Ariston BCD-161 refrigerator circuit

Simple high voltage power supply (1)

Protection circuit for power transistor

Urea-FET measurement circuit

Fishing alarm circuit diagram that can control multiple fishing rods

Saiyuan MCU SC93F8332 lights up the RGB light of WS2812B
Main code:#include "pbdata.h"char j = 5;char k = 5;void RGB_io_init(void){P0CON = 0xFF; //Set P0 to high-impedance modeP0PH = 0x00;P1CON = 0xFF; //Set P1 to strong push-pull modeP1PH = 0x00;P2CON = 0x...
Aguilera Microcontroller MCU
The difference between tsk and mbx
[font=Arial][size=12px] [size=12pt]These two are in DSP/BIOS. Let me give you a brief introduction first. [/size] [size=12pt]tsk:[/size] [size=12pt] task. In scheduling, its priority is higher than ID...
DSP16 DSP and ARM Processors
Avago introduces new SSO package gate driver optocoupler
New optocouplers are half the size of standard dual-in-line packages and meet stringent safety standards Avago Technologies, the world's largest privately held semiconductor company, today announced t...
fighting Automotive Electronics
Introduction to various types of antennas
The content of the article is some brief introduction of TI~~·...
xtss RF/Wirelessly
I am a novice who is preparing to learn DSP and need advice.
I am just starting to learn DSP and I have never been exposed to this subject before. I would like to ask for advice from experts. 1. What DSP books are easy to learn? Please recommend. 2. More specif...
骄傲西瓜 DSP and ARM Processors
Implementation of a Programmable Fully Digital Phase-Locked Loop
...
至芯科技FPGA大牛 FPGA/CPLD
Shortcut:   A0 A1 A2 A3 A4 A5 A6 A7 A8 A9 AA AB AC AD AE AF AG AH AI AJ AK AL AM AN AO AP AQ AR AS AT AU AV AW AX AY AZ B0 B1 B2 B3 B4 B5 B6 B7 B8 B9 BA BB BC BD BE BF BG BH BI BJ BK BL BM BN BO BP BQ BR BS BT BU BV BW BX BY BZ C0 C1 C2 C3 C4 C5 C6 C7 C8 C9 CA CB CC CD CE CF CG CH CI CJ CK CL CM CN CO CP CQ CR CS CT CU CV CW CX CY CZ D0 D1 D2 D3 D4 D5 D6 D7 D8 D9 DA DB DC DD DE DF DG DH DI DJ DK DL DM DN DO DP DQ DR DS DT DU DV DW DX DZ

Popular Components

  1. BU-63149F3-802K
  2. FPR2-T2210.0039OHMS2%
  3. PCE4029031EB025008-FREQ
  4. ED37M44R2Z00
  5. 1N4741AT-G
  6. 2200DA6F008A2HA
  7. C326C155M3N5TA7305
  8. PPC1/21741D7
  9. SC9149AHN
  10. A2004H-6P
  11. A7921WVA-11P-64-C-TH11
  12. C6351HM-3P-BL

Popular Articles

  1. Freescale Kinetis 60 (K60) clock system analysis
  2. Sakuú uses 3D printers to manufacture EV solid-state batteries with a 50% reduction in volume and 30% reduction in weight
  3. Toshiba launches the new M4G group MCU based on Arm® Cortex®-M4 in the TXZ+TM family of advanced series
  4. Why Tesla prefers asynchronous motors over permanent magnet synchronous motors
  5. Illustration of the evolutionary characteristics of the "new species" of autonomous driving and connected cars
  6. In the trillion-level robotics race, who will become the next super unicorn?
  7. MPS expands its isolated power supply segment and launches a series of mid-to-high power application products
  8. Future demands on sensors: Smart sensors for condition monitoring
  9. Intel's Raja Koduri: Enabling the Metaverse
  10. Samsung and others are investing heavily in system semiconductors to expand non-memory businesses

Technical ResourceMore

  1. Control valve calculation and selection textbook
  2. Analog oscilloscope driver
  3. stm32f10x_stdperiph_lib_3.0.0 standard library file
  4. Database Principles and Applications, Download
  5. Research on PSD weighing system based on embedded ARM7 and μClinux
  6. Tongyu Communication Agilent N9360A Mobile Phone Comprehensive Test Seminar
  7. Laser liquid level monitoring and alarm simulation system
  8. Loss calculation of optical splitter in CATV optical network system
  9. MCU test solution for caller ID DTMF decoder 9270D
  10. Design and implementation of analog correlator for ultra-wideband signals

EEWorld
subscription
account

EEWorld
service
account

Automotive
development
circle

Robot
development
community

About Us Customer Service Contact Information Datasheet Sitemap LatestNews
Index Files: 1616  1823  1565  1341  2804  33  37  32  27  57
Datasheet   0 1 2 3 4 5 6 7 8 9 A B C D E F G H I J K L M N O P Q R S T U V W X Y Z
Room 1530, 15th Floor, Building B, No. 18 Zhongguancun Street, Haidian District, Beijing Telephone: (010) 82350740 Postal Code: 100190
Copyright © 2005-2026 EEWORLD.com.cn, Inc. All rights reserved 京ICP证060456号 京ICP备10001474号-1 电信业务审批[2006]字第258号函 京公网安备 11010802033920号
