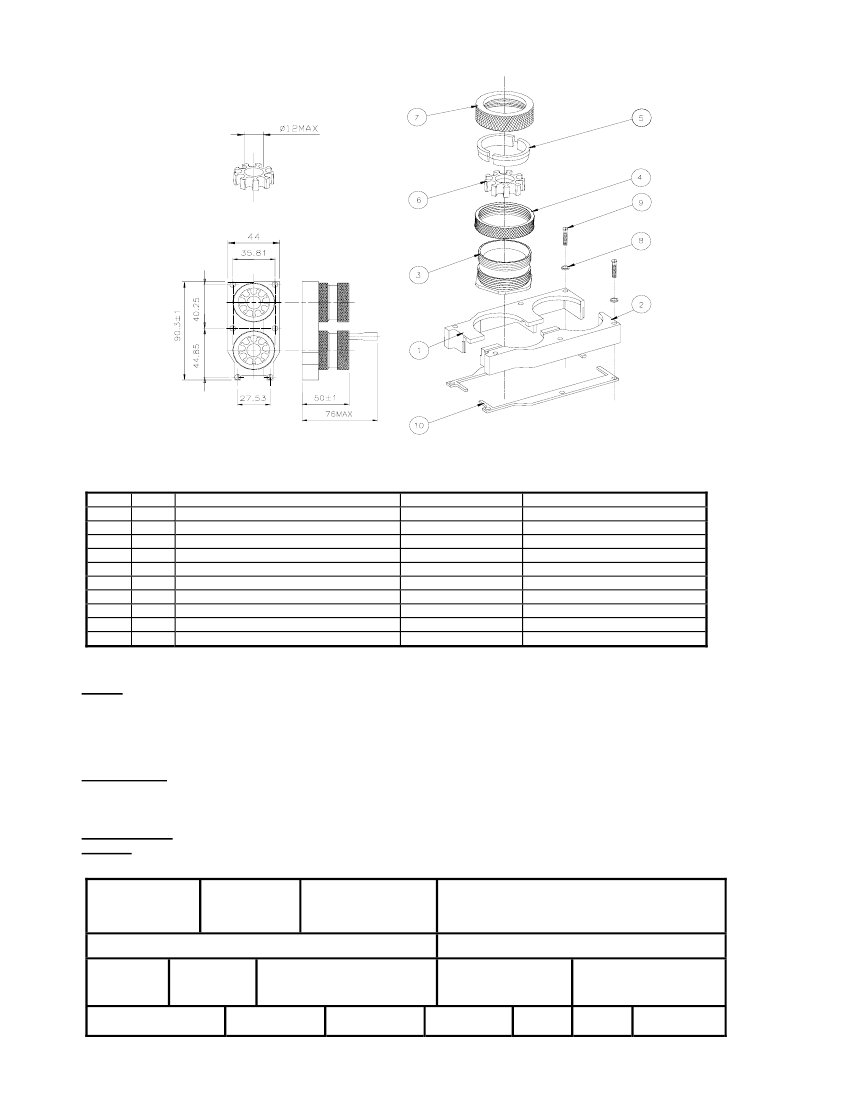

SPECIFICATION CONTROL DRAWING
Center lines tolerance:
±0.2
10
9
8
7
6
5
4
3
2
1
ITEM
2
6
6
2
2
2
2
2
1
1
QTY
RETENTION BAR
PAN HEAD SCREW 4-40 LENGTH 1-1/4”
SPRING WASHER
CLAMPNG NUT
STAR
CONIC RING
HOLDING NUT
BODY
RIGHT SIDE SUPPORT
LEFT SIDE SUPPORT
DESCRIPTION
ALUMINUM ALLOY
STAINLESS STEEL
STAINLESS STEEL
ALUMINUM ALLOY
ALUMINUM ALLOY
ALUMINUM ALLOY
ALUMINUM ALLOY
ALUMINUM ALLOY
ALUMINUM ALLOY
ALUMINUM ALLOY
MATERIAL
HEX-F-007-Y
2
HEX-V-003-3
HEX-V-002-3
HEX-F-002-Y
2
HEX-S-AY
1
-21-1
HEX-R-AY
1
-21
HEX-D-001-Y
2
HEX-D-004-Y
2
HEX-F-102-Y
2
HEX-F-103-Y
2
INDIVIDUAL PRODUCT NAME *
*
Parts are not sold separately.
FINISH:
-Aluminum alloy parts:
Y
1
=B Olive Drab Cadmium to QQ-P-416
Y
1
=C Electroless Nickel to MIL-C-26074, Class 3, Grade B
Y
2
=1 Olive Drab Cadmium
Y
2
=2 Electroless Nickel.
-Stainless steel parts: Passivation.
-This adaptor is designed to be mounted on ARINC 600 connectors, size2 from ITT
Cannon and Radiall.
-It meets Raychem specification RB-110 when assembled properly.
-Used in conjunction with the Ferrules HET-A-OXX, ordered separately (Qty: 18).
-See Raychem installation procedure RPIP 696-01.
-100 grams
DESCRIPTION:
INSTALLATION:
WEIGHT:
Raychem
TOLERANCES:
0.00 N/A
0.0 N/A
0 N/A
DRAWN BY:
THERMOFIT
DEVICES
Raychem Corporation
300 Constitution Drive
Menlo Park, CA 94025
USA
TITLE:
HEXASHIELD ADAPTOR
FOR ARINC 600 CONNECTOR SIZE II
DOCUMENT NO
DCR NUMBER:
UNLESS OTHERWISE SPECIFIED DIMENSIONS ARE IN MILLIMETERS.
Raychem reserves the right to amend this
drawing at any time. Users should
evaluate the suitability of the product for
ROUGHNESS IN
their application.
MICRON
DATE:
REV.:
ANGLES: N/A
HEXA6-AY1-00-02-A18-1
REPLACES:
D980697
DOC. ISSUE:
SCALE::
SIZE:
A600T2
SHEET:
R. MAPALO
04/16/98
C
2
NONE
A
1 of 1
If this document is printed it becomes uncontrolled. Check for the latest revision.
