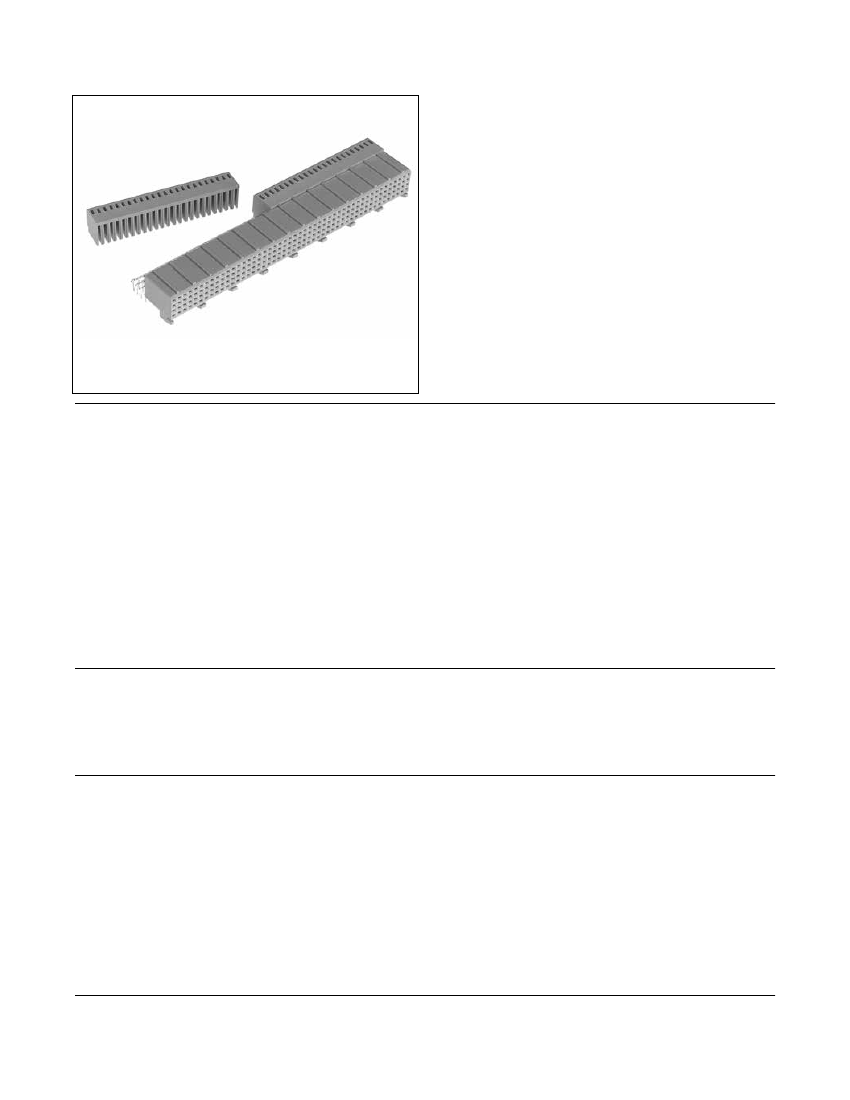

3M
™
MetPak
™

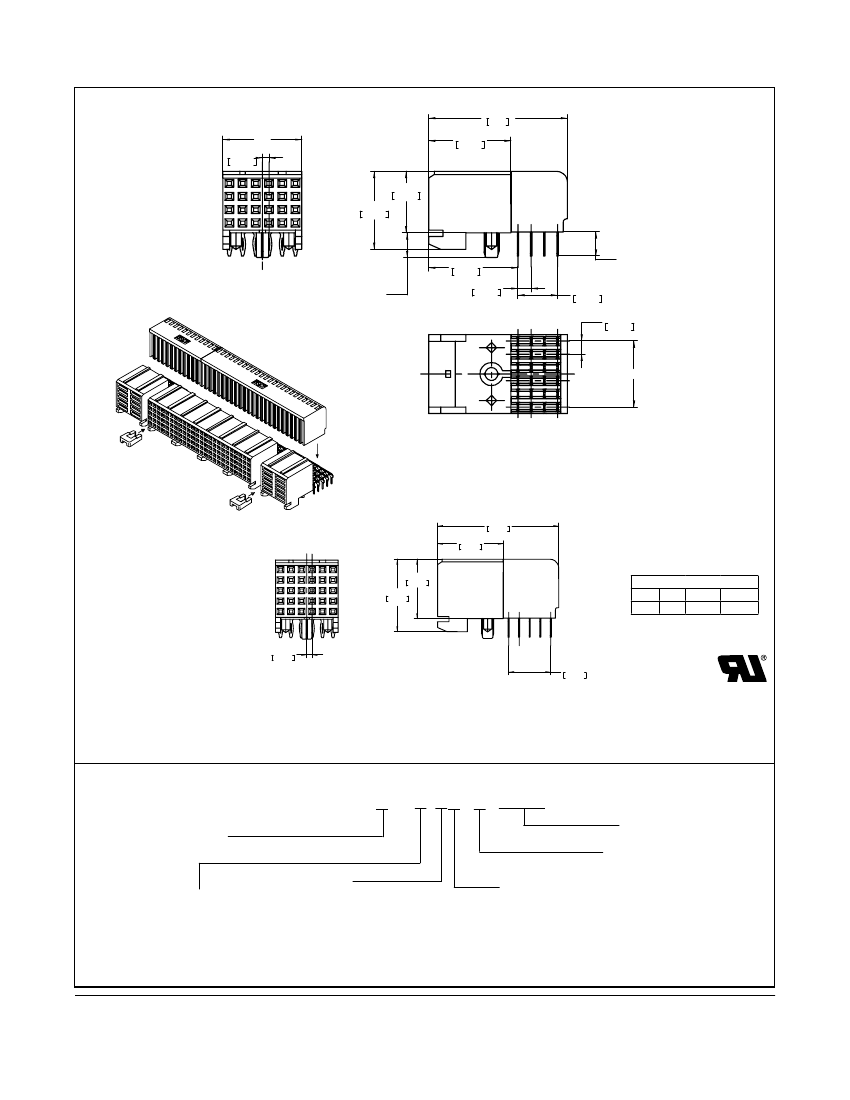

2-FB Socket
2 mm 4/5-Row, Solder Tail or Press-Fit With Tail Cover, Right Angle
•
•
•
•
•
•
•
•
•
MP2 Series
End-to-end stackable
Offset dual-beam contact minimizes insertion force
Expanded pin counts
Protective Push-Cap
Monoblockable
Press or heat stake peg
12 mm modular units
Meets global IEC 61076-4-104 Futurebus+
®
standard
See the Regulatory Information Appendix (RIA)
in the “RoHS compliance” section of
www.3Mconnectors.com for compliance
information (RIA E1 & C1 apply)
Date Modified: September 17, 2013
TS-1115-D
Sheet 1 of 4
Physical
Insulation:
Material: High Temp LCP
Flammability: UL 94V-0
Color: Beige
Contact:
Material: Copper Alloy
Plating:
Underplating: 50 μ” (1.27 μm) Nickel
Wiping Area: See Ordering Information
Solder Tails: See Ordering Information
Electrical
Current Rating:
Signal: 1.5 A - All contacts simultaneously
Insulation Resistance:
10
3
MΩ
Withstanding Voltage:
1,000 V
AC
Environmental
Temperature Rating:
-55° C to 125° C
Process Temperature Rating:
260°C (Profile per J-STD-020C)
Moisture Sensitivity Level:
1 (per J-STD-020C)
UL File No.: E68080
3
Electronic Solutions Division
Interconnect Solutions
http://www.3Mconnectors.com
MetPak is a trademark of 3M Company.
Futurebus+ is a registered trademark of the Institute of Electrical and Electronic Engineers, Inc. (IEEE)
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™
MetPak
™
2-FB Socket
2 mm 4/5-Row, Solder Tail or Press-Fit With Tail Cover, Right Angle
21.0
.83
"A"
1.00
.039
9.30
.366
12.45
.490
MP2 Series
11.80
.465
X
2 1
"D" POST LENGTH
13.50
.531
2.00
.079
TYP.
"C" TAIL LENGTH
6.00
.236
2.00
.079
TYP.
"B"
4 ROW PRODUCT
23.0
.91
ROW
E
D
C
B
A
11.30
.445
12.45
.490
mm
(Inch)
Tolerance Unless Noted
FOR SPECIAL MONOBLOCKS
CONTACT 3M SALES
REPRESENTATIVE
13.80
.543
0
mm ±3
0.0
0.00
±0.3 ±0.13
( ) Dimensions used for
Reference Only
1.00
.039
5 ROW PRODUCT
8.00
.315
Note:
1. Refer to IEC 61076-4-104 Futurebus+
®
global standard.
2. “Press Fit” describes a contact tail having a compliant section designed to make a reliable electrical connection with a plated
through-hole (PTH) in a printed circuit board, typically a “back plane.”
Ordering Information
MP2 - SXXX - X1XX - X - XXXX
Contact Count
(See Table 1)
Plating Options:
(See Table 3)
C = Capped Solder Tail
Blank = Press-Fit
Rows
4 = 4 Rows
5 = 5 Rows
Termination Style
M = Solder Tail (Press Peg)
(press peg requiring arbor press for PCB assembly)
(Contact 3M Sales Rep)
P = Press Fit (w/ Tail Cover)
Tail Length
(See Table 2)
TS-1115-D
Sheet 2 of 4
3
Electronic Solutions Division
Interconnect Solutions
http://www.3Mconnectors.com
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™
MetPak
™
2-FB Socket
2 mm 4/5-Row, Solder Tail or Press-Fit With Tail Cover, Right Angle
Table 1 - Connector & Row Lengths
Pin
Count
024
048
072
096
120
144
168
192
030
060
090
120
150
180
210
240
Dim “A”
mm (Inch)
11.95
23.95
35.95
47.95
59.95
71.95
83.95
95.95
11.95
23.95
35.95
47.95
59.95
71.95
83.95
95.95
[0.471]
[0.943]
[1.415]
[1.889]
[2.36]
[2.833]
[3.305]
[3.778]
[0.471]
[0.943]
[1.415]
[1.888]
[2.361]
[2.833]
[3.305]
[3.778]
Dim “B”
mm (Inch)
10.00
22.00
34.00
46.00
58.00
70.00
82.00
94.00
10.00
22.00
34.00
46.00
58.00
70.00
82.00
94.00
[0.394]
[0.866]
[1.339]
[1.811]
[2.283]
[2.756]
[3.228]
[3.701]
[0.394]
[0.866]
[1.339]
[1.811]
[2.283]
[2.756]
[3.228]
[3.701]
Rows
4
4
4
4
4
4
4
4
5
5
5
5
5
5
5
5
Block
Count
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
MP2 Series
Table 2 - Tail & Post Lengths
Contact-to-PC
Board Tail Termina-
tion Option No.
Solder
M1
M2
P1
*Compliant-Pin Tail
Press-Fit*
2.72 [0.107]
3.53 [0.139]
3.57 [0.141]
3.57 [0.141]
Dim “C”
Dim. “D”
Table 3 - Plating
Plating Suffix
KR
Press-Fit Tails*
(RIA E1 & C1 apply)
Solder Tails
(RIA E1 & C1 apply)
Plating Composition
0.76 μm [30 μ”] Min. Au Contact Area
2.54 μm [100 μ”] Min. Matt Whisker Mitigating Sn Tail Area
1.27 μm [50 μ”] Min. Ni all over
0.08 μm [3 μ”] Min. Au Contact Area
0.67 μm [27 μ”] Min. PdNi Contact Area
2.54 μm [100 μ”] Min. Matt Whisker Mitigating Sn Tail Area
1.27 μm [50 μ”] Min. Ni all over
LR
(RIA E1 & C1 apply)
(RIA E1 & C1 apply)
*Compliant-Pin Tail
TS-1115-D
Sheet 3 of 4
3
Electronic Solutions Division
Interconnect Solutions
http://www.3Mconnectors.com
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™
MetPak
™
2-FB Socket
2 mm 4/5-Row, Solder Tail or Press-Fit With Tail Cover, Right Angle
2.00
.079
2.00
.079
TYP.
3X
6.00
.236
4.00
.157
1.00
.039
4.00
.157
THESE HOLES CONSTITUTE MODULAR
REPEATING PATTERN
MP2 Series
A1
UNPLATED THROUGH-HOLE
"B"
12.00
.472
2.05
+.05
-.00
Ø
0.10
.081
+.002
-.000
UNPLATED THRU HOLE
Ø
UNPLATED THROUGH-HOLE
Ø
"D" PLATED THRU HOLE
“D” PLATED THROUGH-HOLE
Ø
0.10
3.00
.118
1.50
.059
+.10
-.00
+.004
-.000
Ø
0.10
UNPLATED THROUGH-HOLE
2.00
.079
4X
8.00
.315

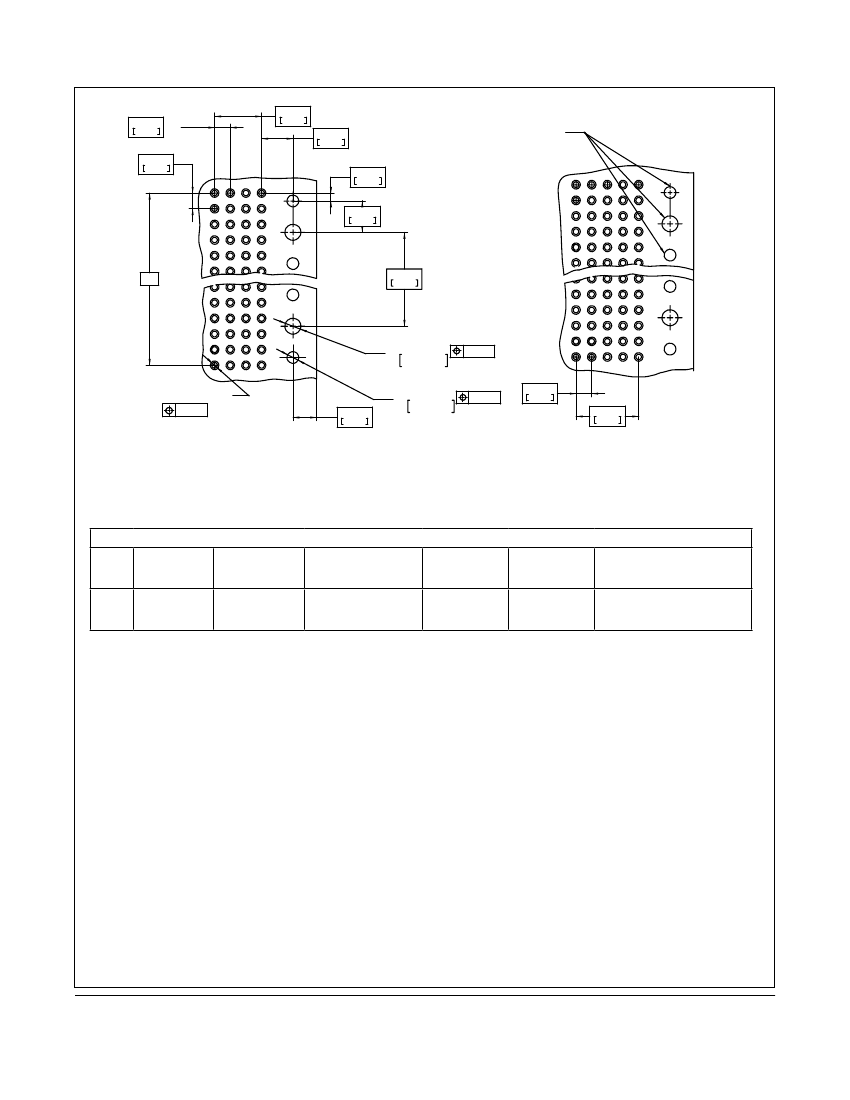

RECOMMENDED 4 ROW PCB HOLE
MOUNTING PATTERN
RECOMMENDED 5 ROW PCB HOLE
MOUNTING PATTERN
Table 4: HOLE PLATING FINISHES
HOLE
Finished Dia.
mm [in]
0.700-0.800
[.0276-.0315]
Cu Thickness
mm [in]
0.025-0.045
[0.001-0.002]
Immersion Matte Sn
Thickness
microns [μ”]
0.5 - 2.5
[20 - 100]
Electrolitic Au
Thickness
microns [μ”]
0.1 - 0.5
[4 - 20]
OSP ENTEK
Thickness
microns [μ”]
0.2 - 0.5
[8 - 20]
Drilled Hole Dia.
mm [in]
0.830-0.860 [.0330-.0340] or
0.85mm [ #66 ] TWIST
DRILL
“D”
TS-1115-D
Sheet 4 of 4
3
Electronic Solutions Division
Interconnect Solutions
http://www.3Mconnectors.com
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M is a trademark of 3M Company.
Important Notice
All statements, technical information, and recommendations related to 3M’s products are based on information believed to be reliable,
but the accuracy or completeness is not guaranteed. Before using this product, you must evaluate it and determine if it is suitable for
your intended application. You assume all risks and liability associated with such use. Any statements related to the product which are
not contained in 3M’s current publications, or any contrary statements contained on your purchase order shall have no force or effect
unless expressly agreed upon, in writing, by an authorized officer of 3M.
Warranty; Limited Remedy; Limited Liability.
This product will be free from defects in material and manufacture for a period of one (1) year from the time of purchase.
3M MAKES
NO OTHER WARRANTIES INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A
PARTICULAR PURPOSE.
If this product is defective within the warranty period stated above, your exclusive remedy shall be, at 3M’s
option, to replace or repair the 3M product or refund the purchase price of the 3M product.
Except where prohibited by law, 3M will
not be liable for any indirect, special, incidental or consequential loss or damage arising from this 3M product, regardless of
the legal theory asserted.
3
3M Electronics Solutions Division
6801 River Place Blvd.
Austin, TX 78726-9000
U.S.A.
1-800-225-5373
www.3Mconnectors.com
Please recycle. Printed in USA.
© 3M 2013. All rights reserved.
RIA-2217B-E
