380-071
EMI/RFI Non-Environmental Backshell
with Strain Relief
Type G - Rotatable Coupling - Low Profile
38
CONNECTOR
DESIGNATORS
380 F S 071 M 16 08 A 6
Product Series
Connector
Designator
Angle and Profile
A = 90°
B = 45°
S = Straight
Basic Part No.
.500 (12.7) Max
A Thread
(Table I)
C Typ.
(Table I)
Length: S only
(1/2 inch increments:
e.g. 6 = 3 inches)
Strain Relief Style (H, A, M, D)
Cable Entry (Table X, XI)
Shell Size (Table I)
Finish (Table II)
Length ± .060 (1.52)
Minimum Order
Length 1.5 Inch
(See Note 4)
A-F-H-L-S
ROTATABLE
COUPLING
TYPE G INDIVIDUAL
OR OVERALL
SHIELD TERMINATION
Length ± .060 (1.52)
Minimum Order Length 2.0 Inch
(See Note 4)

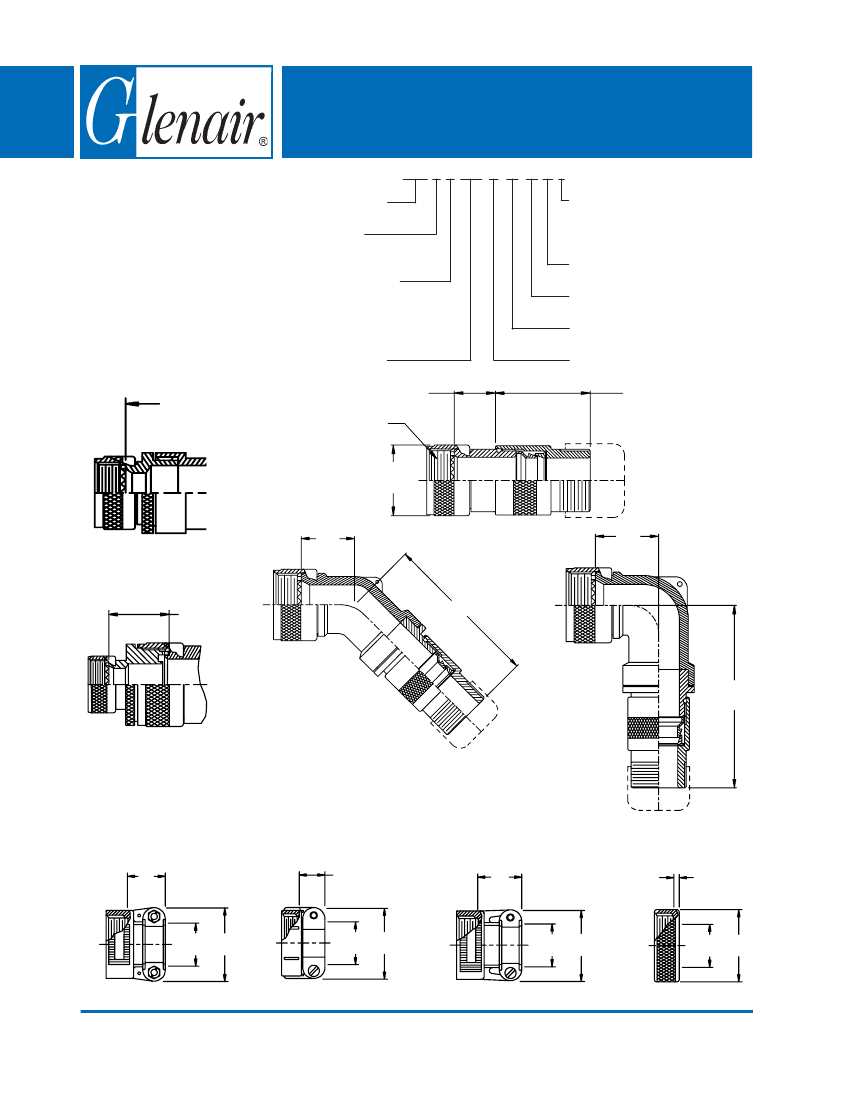

STYLE 2
(STRAIGHT
See Note 1)
.88 (22.4)
Max
E
(Table III)
G
(Table III)
F (Table III)
H (Table III)
STYLE 2
(45° & 90°
See Note 1)
STYLE H
Heavy Duty
(Table X)
T
STYLE A
Medium Duty
(Table XI)
W
STYLE M
Medium Duty
(Table XI)
X
STYLE D
Medium Duty
(Table XI)
.135 (3.4)
Max
Cable
Range
V
Cable
Range
Y
Cable
Range
Y
Cable
Entry
Z
© 2005 Glenair, Inc.
CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
Series 38 - Page 124
with Strain Relief
Type G - Rotatable Coupling - Low Profile
TABLE III: ELBOW DIMENSIONS
Shell Size
E
Conn. Desig.
Max
A-F-L-S H
.457 (11.6)
08 09
.520 (13.2)
10 11
.582 (14.8)
12 13
15
.645 (16.4)
14
17
.738 (18.7)
16
.926 (23.5)
18 19
.926 (23.5)
20 21
22 23 1.020 (25.9)
24 25 1.020 (25.9)
1.145 (29.1)
28
1.207 (30.7)
32
1.238 (31.4)
36
F
Max
3.460 (87.9)
3.520 (89.4)
3.580 (90.9)
3.900 (99.1)
4.010 (101.9)
4.200 (106.7)
4.200 (106.7)
4.350 (110.5)
4.350 (110.5)
4.400 (111.8)
4.500 (114.3)
4.590 (116.6)
G
Max
.510 (13.0)
.595 (15.1)
.610 (15.5)
.700 (17.8)
.885 (22.5)
.975 (24.8)
.975 (24.8)
1.125 (28.6)
1.125 (28.6)
1.225 (31.1)
1.575 (40.0)
1.775 (45.1)
H
Max
3.460 (87.9)
3.590 (91.2)
3.610 (91.7)
3.910 (99.3)
4.000 (101.6)
4.170 (105.9)
4.170 (105.9)
4.280 (108.7)
4.280 (108.7)
4.450 (113.0)
4.700 (119.4)
4.700 (119.4)
TABLE II: STANDARD FINISHES
GLENAIR
SYMBOL
B
M
NF
FINISH
Cadmium Plate, Olive Drab
Electroless Nickel
Cadmium Plate, Olive Drab
Over Electroless Nickel
See Inside Back Cover
for Additional Finish Options
See inside back cover
fold-out or pages 13 and
14 for unabridged
Tables I and II.
TABLE X: CABLE ENTRY
Cable Range
Dash
T
V
Max
No.
Max
Min
Max
.780 (19.8)
.957 (24.3)
.125 (3.2) .312 (7.9)
04
06
.780 (19.8) 1.145 (29.1)
.250 (6.4) .437 (11.1)
08
.780 (19.8) 1.332 (33.8)
.312 (7.9) .562 (14.3)
.350 (8.9) .625 (15.9)
10
.780 (19.8) 1.332 (33.8)
12
.811 (20.6) 1.551 (39.4)
.500 (12.7) .750 (19.1)
.905 (23.0) 1.770 (45.0)
.625 (15.9) .937 (23.8)
16
.875 (22.2) 1.250 (31.8)
20
1.092 (27.7) 2.113 (53.7)
24
1.124 (28.5) 2.363 (60.0) 1.000 (25.4) 1.375 (34.9)
28
1.399 (35.5) 2.770 (70.4) 1.250 (31.8) 1.625 (41.3)
32
1.399 (35.5) 3.020 (76.7) 1.437 (36.5) 1.875 (47.6)
1. When maximum cable entry (page 21)
is exceeded, Style 2 will be supplied.
Dimensions E, F, G and H will not apply.
Please consult factory.
2. Metric dimensions (mm) are indicated in
parentheses.
3. Cable range is defined as the accom-
modations range for the wire bundle or
cable. Dimensions shown are not
intended for inspection criteria.
4. Consult factory for shorter lengths on
straight backshells.
TABLE XI: CABLE ENTRY
Dash
W
Z
Y
X
Cable Range
No.
Max
Max
Max
Max
Max
Min **
03* .437 (11.1) .760 (19.3) .843 (21.4)
.630 (16.0) .156 (4.0) .250 (6.4)
04* .437 (11.1) .760 (19.3) .906 (23.0)
.755 (19.2) .188 (4.8) .312 (7.9)
06* .500 (12.7) .760 (19.3) 1.093 (27.8)
.942 (23.9) .281 (7.1) .438 (11.1)
08
.563 (14.3) .760 (19.3) 1.187 (30.1) 1.067 (27.1) .344 (8.7) .562 (14.3)
10
.563 (14.3) .760 (19.3) 1.281 (32.5) 1.192 (30.3) .375 (9.5) .625 (15.9)
12
.563 (14.3) .760 (19.3) 1.500 (38.1) 1.380 (35.1) .438 (11.1) .750 (19.1)
16
.656 (16.7) 1.073 (27.3) 1.719 (43.7) 1.535 (39.0) .562 (14.3) .938 (23.8)
20
.656 (16.7) 1.323 (33.6) 2.062 (52.4) 1.848 (46.9) .750 (19.1) 1.250 (31.8)
24
.656 (16.7) 1.323 (33.6) 2.312 (58.7) 2.255 (57.3) .781 (19.8) 1.375 (34.9)
28 1.188 (30.2) 1.572 (39.9) 2.719 (69.1) 2.505 (63.6) .969 (24.6) 1.625 (41.3)
32* 1.187 (30.1) 1.572 (39.9) 2.969 (75.4) 2.755 (70.0) 1.125 (28.6) 1.875 (47.6)
40* 1.125 (28.6) 1.572 (39.9) 3.531 (89.7) 3.255 (82.7) 1.469 (37.3) 2.375 (60.3)
* Not available in Style M clamp.
** Not Applicable Style D
© 2005 Glenair, Inc.
CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
Series 38 - Page 125
38
380-071
EMI/RFI Non-Environmental Backshell
