390-004
Water-Tight EMI/RFI Cable Sealing Backshell
with Strain Relief
Type A - Direct Coupling - Low Profile
39
A-B -C-D-E-F
G-H-J-K-L-S
* Conn. Desig. B See Note 6
CONNECTOR
DESIGNATORS
*
390 F S 004 M 16 10 E 6
Product Series
Connector
Designator
Angle and Profile
A = 90°
B = 45°
S = Straight
Basic Part No.
Length: S only
(1/2 inch increments:
e.g. 6 = 3 inches)
Strain Relief Style (C, E)
Cable Entry (Tables X, XI)
Shell Size (Table I)
Finish (Table II)

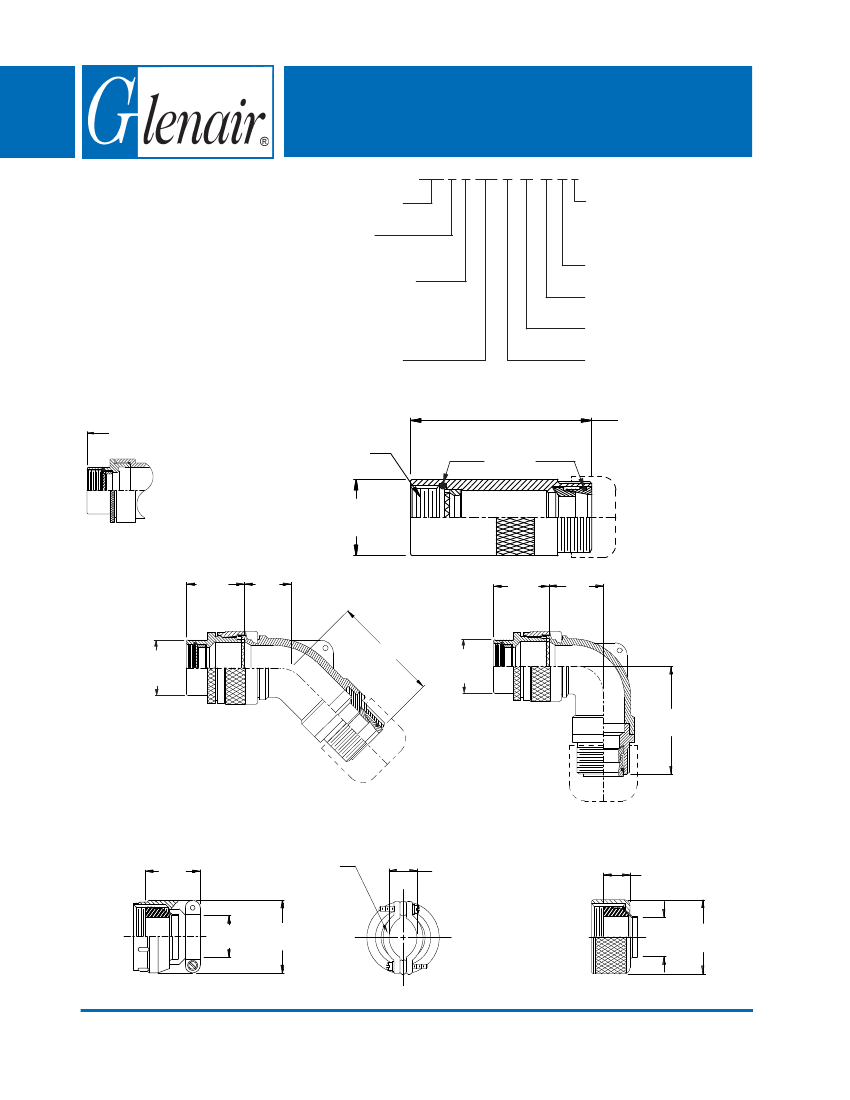

DIRECT COUPLING
TYPE A OVERALL
SHIELD TERMINATION
Length ± .060 (1.52)
Min. Order Length 2.0 Inch
(See Note 4)
A Thread
(Table I)
B
(Table I)
O-Rings
Length ± .060 (1.52)
Min. Order
Length 1.5 Inch
(See Note 4)
STYLE 2
(STRAIGHT
See Note 1)
E
J
(Table III) (Table
IV)
B
(Table I)
J
(Table
III)
F (Table IV)
B
(Table I)
G
(Table
IV)
H (Table IV)
T
STYLE C
Medium Duty
(Table X)
Clamping
Bars
STYLE E
Medium Duty
(Table XI)
X (See
Note 5)
Y
Cable
Range
W
Cable
Range
Z
© 2005 Glenair, Inc.
CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
Series 39 - Page 22
with Strain Relief
Type A - Direct Coupling - Low Profile
See inside back cover fold-out or pages 13 and 14 for Tables I and II.
Shell
Size
08/09
10/11
12/13
14/15
16/17
18/19
20/21
22/23
24/25
28/29
32/33
36
40
TABLE III: FRONT ADAPTER
J Max - Conn. Designator
A-E-F
J-H-L-S
D-B-G-K
C
1.180 (30.0) 1.440 (36.6)
1.180 (30.0) 1.440 (36.6)
1.180 (30.0) 1.440 (36.6) 1.735 (44.1)
1.180 (30.0) 1.440 (36.6) 1.915 (48.6)
1.380 (35.0) 1.560 (39.6) 1.915 (48.6)
1.380 (35.0) 1.560 (39.6) 1.915 (48.6)
1.380 (35.0) 1.560 (39.6) 1.915 (48.6)
1.380 (35.0) 1.560 (39.6) 1.915 (48.6)
1.380 (35.0) 1.560 (39.6) 1.915 (48.6)
1.610 (40.9) 1.560 (39.6) 1.915 (48.6)
1.610 (40.9) 1.750 (44.5) 1.915 (48.6)
1.610 (40.9) 1.750 (44.5) 1.915 (48.6)
1.610 (40.9) 2.190 (55.6) 1.915 (48.6)
Dash
No.
03
04
06
08
10
12
16
20
24
28
32
Dash
No.
03
04
06
08
10
12
16
20
24
28
32
T
Max
1.219 (31.0)
1.219 (31.0)
1.219 (31.0)
1.219 (31.0)
1.281 (32.5)
1.281 (32.5)
1.406 (35.7)
1.656 (42.1)
1.906 (48.4)
1.906 (48.4)
2.000 (50.8)
TABLE IV: ELBOW DIMENSIONS
E
G
Dash
F
Max
Max
No.
Max
04 .630 (16.0) 1.250 (31.8) .636 (16.2)
06 .630 (16.0) 1.250 (31.8) .710 (18.0)
08 .692 (17.6) 1.312 (33.3) .731 (18.6)
10 .755 (19.2) 1.655 (42.0) .825 (21.0)
12 .848 (21.5) 1.765 (44.8) .988 (25.1)
16 1.036 (26.3) 1.952 (49.6) 1.087 (27.6)
20 1.130 (28.7) 2.098 (53.3) 1.325 (33.7)
24 1.255 (31.9) 2.155 (54.7) 1.337 (34.0)
28 1.317 (33.5) 2.250 (57.2) 1.827 (46.4)
32 1.348 (34.2) 2.343 (59.5) 2.027 (51.5)
H
Max
1.200 (30.5)
1.320 (33.5)
1.340 (34.0)
1.660 (42.2)
1.750 (44.5)
1.925 (48.9)
2.033 (51.6)
2.250 (57.2)
2.450 (62.2)
2.450 (62.2)
TABLE X: CABLE ENTRY
Cable Range
X
W
Ref
Min
Max
Max
.135 (3.4)
.156 (4.0)
.812 (20.6)
.219 (5.6)
.203 (5.2)
.188 (4.8)
.937 (23.8)
.312 (7.9)
.281 (7.1)
.285 (7.2)
1.062 (27.0)
.438 (11.1)
.350 (8.9)
.312 (7.9)
1.188 (30.2)
.531 (13.5)
.375 (9.5)
.390 (9.9)
1.312 (33.3)
.625 (15.9)
.460 (11.7)
.500 (12.7)
1.562 (39.7)
.750 (19.1)
.510 (13.0)
.625 (15.9)
1.750 (44.5)
.938 (23.8)
.695 (17.7)
.938 (23.8)
2.250 (57.2)
1.250 (31.8)
1.000 (25.4)
.715 (18.2)
2.375 (60.3)
1.375 (34.9)
.915 (23.2)
1.250 (31.8)
2.625 (66.7)
1.625 (41.3)
1.500 (38.1)
1.070 (27.2)
2.812 (71.4)
1.875 (47.6)
1. When maximum cable entry
(page 22) is exceeded, Style 2
will be supplied. (Function S
only).
2. Metric dimensions (mm) are
indicated in parentheses.
3. Cable range is defined as the
accommodations range for the
wire bundle or cable. Dimen-
sions shown are not intended for
inspection criteria.
4. Consult factory for shorter
lengths on straight backshells.
5. Saddles are bottomed on Clamp
Ears.
6. When using Connector Designa-
tor B refer to pages 18 and 19 for
part number development.
Printed in U.S.A.
TABLE XI: CABLE ENTRY
Cable Range
Y
Z
Max
Max
Min
Max
.739 (18.8)
.812 (20.6)
.156 (4.0)
.219 (5.6)
.739 (18.8)
.937 (23.8)
.188 (4.8)
.312 (7.9)
.739 (18.8)
1.062 (27.0)
.281 (7.1)
.438 (11.1)
.739 (18.8)
1.188 (30.2)
.312 (7.9)
.531 (13.5)
.791 (20.1)
1.312 (33.3)
.375 (9.5)
.625 (15.9)
.880 (22.4)
1.562 (39.7)
.500 (12.7)
.750 (19.1)
.901 (22.9)
1.750 (44.5)
.625 (15.9)
.938 (23.8)
1.031 (26.2)
2.250 (57.2)
.938 (23.8)
1.250 (31.8)
1.250 (31.8)
2.375 (60.3)
1.000 (25.4)
1.375 (34.9)
1.250 (31.8)
2.625 (66.7)
1.250 (31.8)
1.625 (41.3)
1.312 (33.3)
2.812 (71.4)
1.500 (38.1)
1.875 (47.6)
© 2005 Glenair, Inc.
CAGE Code 06324
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
Series 39 - Page 23
39
390-004
Water-Tight EMI/RFI Cable Sealing Backshell
