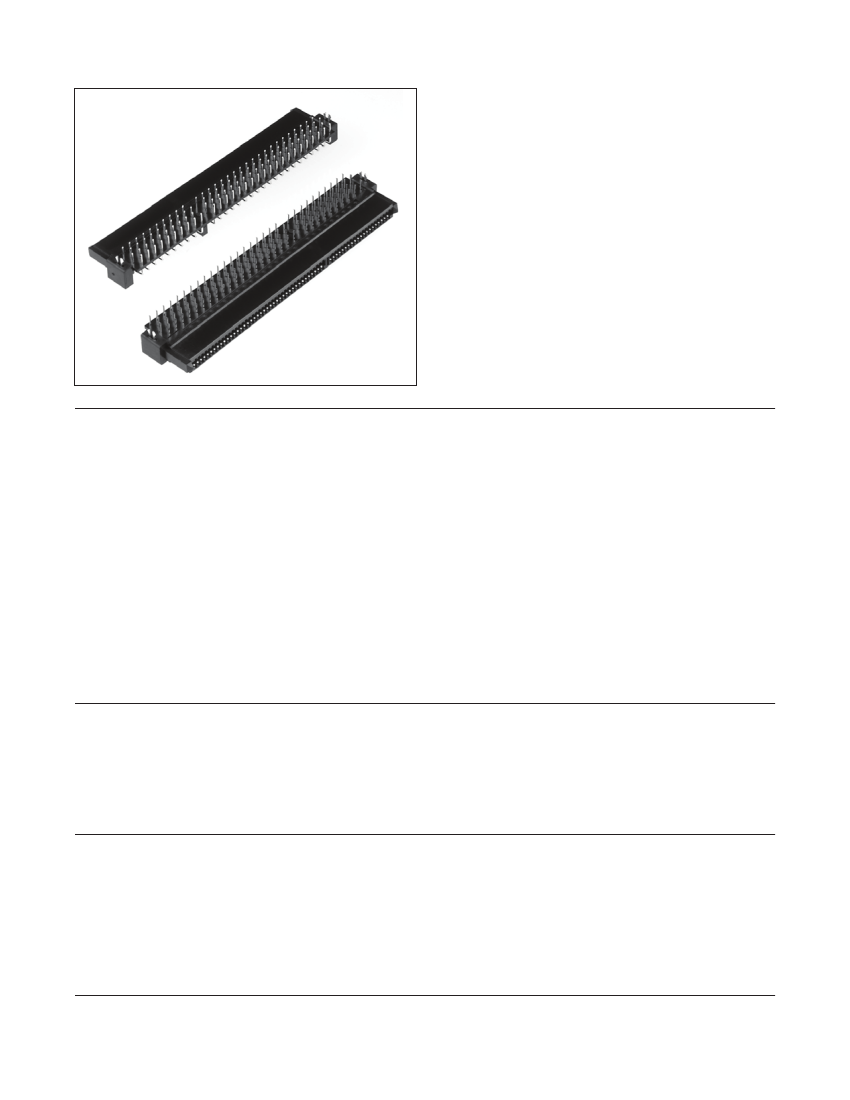

3M
™
Pak 50 Boardmount Socket
.050" Straight and Right Angle Maxi-Mate
•
•
•
•
P50 Series
High density connectors with up to 200 contacts
Horizontal, parallel and vertical mating availability
Insulator designed to prevent mating misalignment
RoHS Compliant. See the Regulatory Information
Appendix (RIA) in the "RoHS Compliance" section
of www.3Mconnector.com for compliance
information (RIA E1 and C1 apply)
Date Modified: February 3, 2010
TS-2050-B
Sheet 1 of 6
Physical
Insulator:
Material: Glass Filled Nylon
Flammability: UL 94V-0
Color: Black
Contact Material: Phosphor Bronze
Plating:
Underplating: Nickel
Wiping Area: 10 µ" [ 0.25 µm ] Gold
Solder Tails: Gold Flash
Retaining Clips: Tin-Copper
Mating Compatibility: TS-2049
Electrical
Current Rating:
0.5 A
Insulation Resistance:
> 1 × 10
9
Ω
at 500 V
DC
Withstanding Voltage:
650 V
AC
for 1 minute
Environmental
Temperature Rating:
-55ºC to +85ºC
Process Rating:
260ºC Wave Solder Compatible
UL File No.: E68080
3
Electronic Solutions Division
Interconnect Solutions
http://www.3Mconnector.com
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™
Pak 50 Boardmount Socket
.050" Straight and Right Angle Maxi-Mate

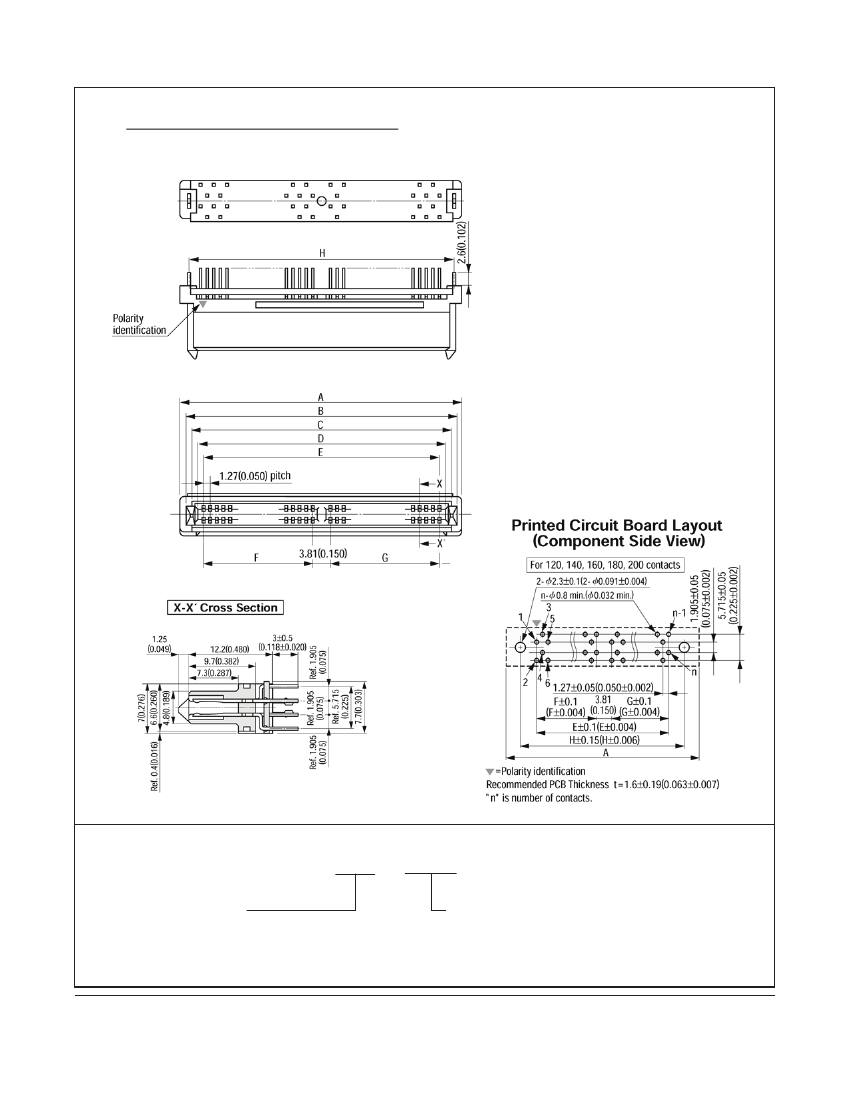

Straight without Flanges and with Retention Clips
P50 Series
Ordering Information
P50 - XXXS - XXXX - EA
Contact Quantity:
See Table
Solder Tail, Flange and Clip Options:
S1 = Straight, with Flanges, without Retention Clips
SR1 = Right Angle, with Flanges, without Retention Clips
R1 = Straight, without Flanges, with Retention Clips
RR1 = Right Angle, without Flanges, with Retention Clips
TS-2050-B
Sheet 2 of 5
3
Electronic Solutions Division
Interconnect Solutions
http://www.3Mconnector.com
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™
Pak 50 Boardmount Socket
.050" Straight and Right Angle Maxi-Mate
P50 Series

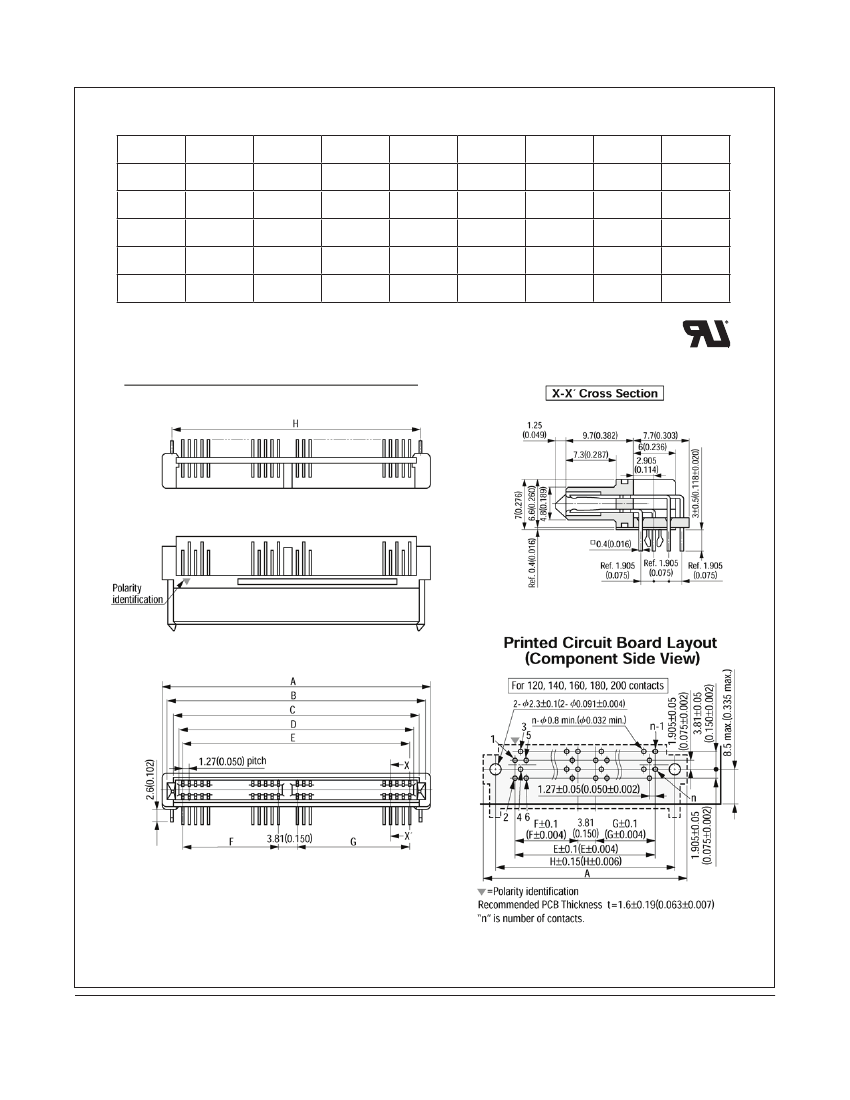

Product Table / Dimensions for Straight and Right Angle without Flanges and with Retention Clips
Contact
Quantity
120
140
160
180
200
A
86.50
[3.406]
99.20
[3.906]
111.90
[4.406]
124.60
[4.906]
B
84.10
[3.311]
96.80
[3.811]
109.50
[4.311]
122.20
[4.811]
C
81.47
[3.207]
94.17
[3.707]
106.87
[4.207]
119.57
[4.707]
D
79.47
[3.129]
92.17
[3.629]
104.87
[4.129]
117.57
[4.629]
E
77.47
[3.050]
90.17
[3.550]
102.87
[4.050]
115.57
[4.550]
F
24.13
[0.950]
24.13
[0.950]
36.83
[1.450]
49.53
[1.950]
G
49.53
[1.950]
62.23
[2.450]
62.23
[2.450]
62.23
[2.450]
H
83.82
[3.300]
96.52
[3.800]
109.22
[4.300]
121.92
[4.800]
137.30
[5.406]
134.90
[5.311]
132.27
[5.207]
130.27
[5.129]
128.27
[5.050]
62.23
[2.450]
62.23
[2.450]
134.62
[5.300]
Notes:
These connectors do not have a symmetrical board layout pattern. The 120 pin connectors have 80 pins on one side and 40 pins on the other.
All other pin counts have 100 pins on one side and the balance on the other side.
Right Angle without Flanges and with Retention Clips
TS-2050-B
Sheet 3 of 5
3
Electronic Solutions Division
Interconnect Solutions
http://www.3Mconnector.com
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™
Pak 50 Boardmount Socket
.050" Straight and Right Angle Maxi-Mate

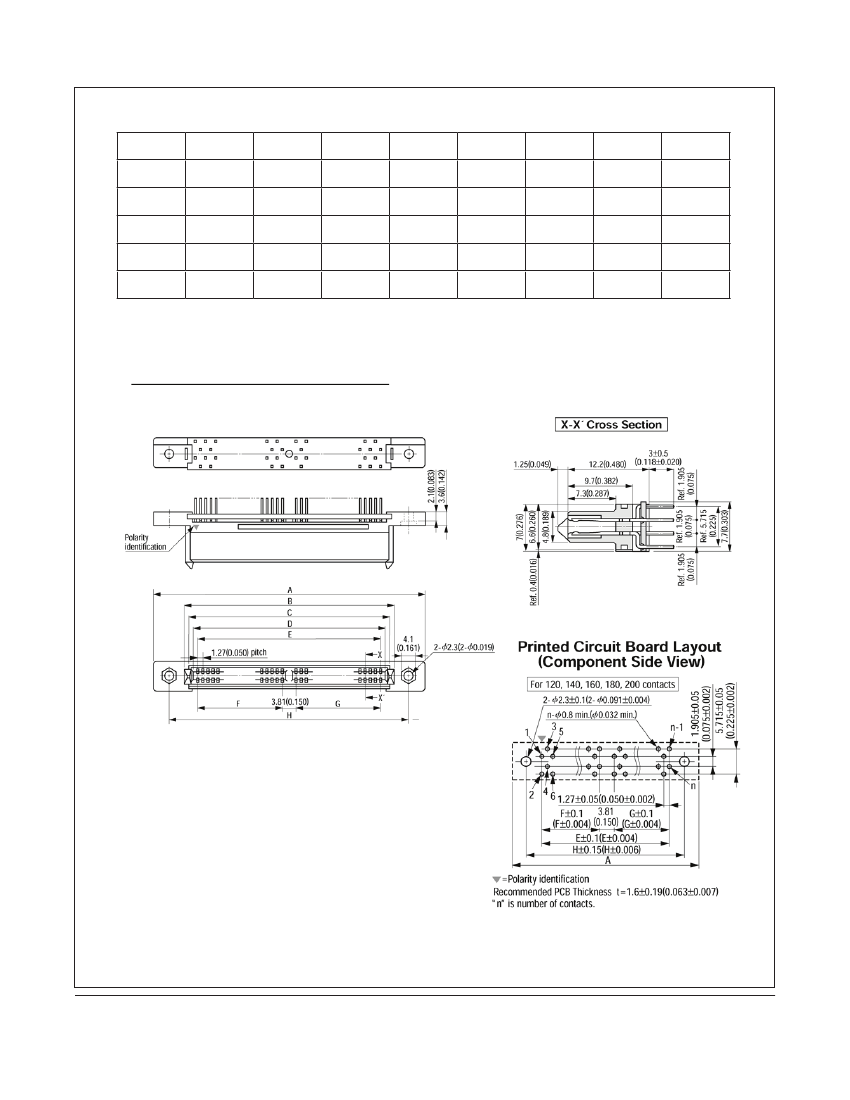

Product Table / Dimensions for Straight with Flanges and without Retention Clips
Contact
Quantity
120
140
160
180
200
A
99.20
[3.906]
B
84.10
[3.311]
C
81.47
[3.207]
D
79.47
[3.129]
E
77.47
[3.050]
F
24.13
[0.950]
G
49.53
[1.950]
H
91.44
[3.600]
P50 Series
137.30
[5.406]
150.00
[5.906]
111.90
[4.406]
124.60
[4.906]
122.20
[4.811]
134.90
[5.311]
96.80
[3.811]
109.50
[4.311]
119.57
[4.707]
132.27
[5.207]
94.17
[3.707]
106.87
[4.207]
117.57
[4.629]
130.27
[5.129]
92.17
[3.629]
104.87
[4.129]
115.57
[4.550]
128.27
[5.050]
90.17
[3.550]
102.87
[4.050]
49.53
[1.950]
62.23
[2.450]
24.13
[0.950]
36.83
[1.450]
62.23
[2.450]
62.23
[2.450]
62.23
[2.450]
62.23
[2.450]
129.54
[5.100]
142.24
[5.600]
104.14
[4.100]
116.84
[4.600]
Notes:
These connectors do not have a symmetrical board layout pattern. The 120 pin connectors have 80 pins on one side and 40 pins on the other.
All other pin counts have 100 pins on one side and the balance on the other side.
Straight with Flanges an d without Retention Clips
TS-2050-B
Sheet 4 of 5
3
Electronic Solutions Division
Interconnect Solutions
http://www.3Mconnector.com
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™
Pak 50 Boardmount Socket
.050" Straight and Right Angle Maxi-Mate

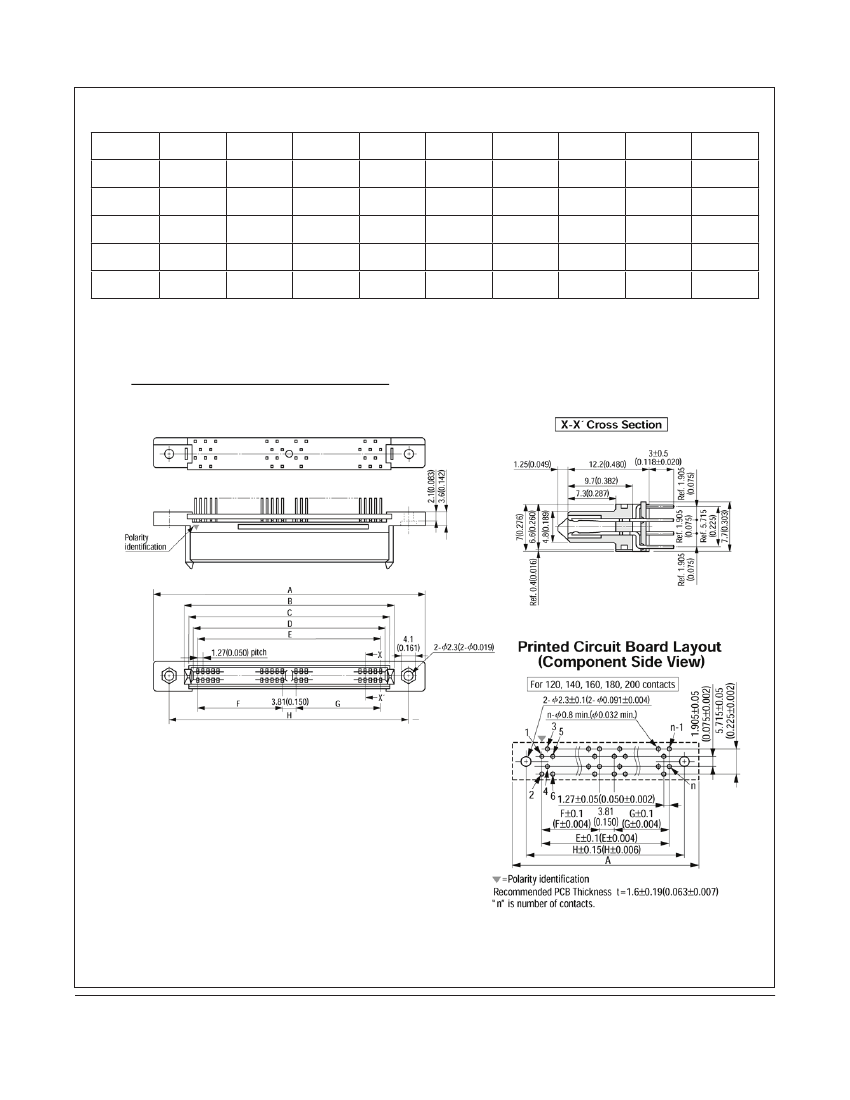

Product Table / Dimensions for Right Angle with Flanges and without Retention Clips
Contact
Quantity
120
140
160
180
200
A
99.20
[3.906]
B
84.10
[3.311]
C
81.47
[3.207]
D
79.47
[3.129]
E
77.47
[3.050]
F
24.13
[0.950]
G
49.53
[1.950]
H
91.44
[3.600]
J
86.50
[3.406]
P50 Series
111.90
[4.406]
124.60
[4.906]
137.30
[5.406]
150.00
[5.906]
96.80
[3.811]
109.50
[4.311]
122.20
[4.811]
134.90
[5.311]
94.17
[3.707]
106.87
[4.207]
119.57
[4.707]
132.27
[5.207]
92.17
[3.629]
104.87
[4.129]
117.57
[4.629]
130.27
[5.129]
90.17
[3.550]
102.87
[4.050]
115.57
[4.550]
128.27
[5.050]
24.13
[0.950]
36.83
[1.450]
49.53
[1.950]
62.23
[2.450]
62.23
[2.450]
62.23
[2.450]
62.23
[2.450]
62.23
[2.450]
104.14
[4.100]
116.84
[4.600]
129.54
[5.100]
142.24
[5.600]
99.20
[3.906]
111.90
[4.406]
124.60
[4.906]
137.30
[5.406]
Notes:
These connectors do not have a symmetrical board layout pattern. The 120 pin connectors have 80 pins on one side and 40 pins on the other.
All other pin counts have 100 pins on one side and the balance on the other side.
Straight with Flanges an d without Retention Clips
TS-2050-B
Sheet 5 of 5
3
Electronic Solutions Division
Interconnect Solutions
http://www.3Mconnector.com
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
