KMDGX-6S-N datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> KMDGX-6S-N

KMDGX-6S-N: DescriptionCircular DIN Connector, 6 Contact(s), Female, Board Mount, Solder Terminal, Locking, Plug, ROHS AND REACH COMPLIANT; CategoryThe connector The connector; File Size377KB，1 Pages; ManufacturerKycon; Environmental Compliance

Download Datasheet Parametric Compare View All

KMDGX-6S-N Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	KMDGX-6S-N	-	-	View	Buy Now

KMDGX-6S-N Overview

Circular DIN Connector, 6 Contact(s), Female, Board Mount, Solder Terminal, Locking, Plug, ROHS AND REACH COMPLIANT

KMDGX-6S-N Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	1598158376
package instruction	ROHS AND REACH COMPLIANT
Reach Compliance Code	compliant
Country Of Origin	Taiwan
Samacsys Description	Circular DIN Connectors MINI-DIN PANEL MNT 6P SNAP&LOCK 200 W
Samacsys Manufacturer	Kycon
Samacsys Modified On	2023-06-15 10:19:53
YTEOL	7.5
Other features	ROHS COMPLIANT
body width	0.511 inch
subject depth	0.508 inch
body length	0.551 inch
Body/casing type	PLUG
Connector type	CIRCULAR DIN CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	Gold (Au)
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
Contact resistance	60 mΩ
Contact style	RND PIN-SKT
DIN compliance	YES
Dielectric withstand voltage	700VAC V
Durability	500 Cycles
Electromagnetic interference shielding	NO
IEC compliance	NO
Insulation resistance	500000000 Ω
JESD-609 code	e4
MIL compliance	NO
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of ports	1
Maximum operating temperature	80 °C
Minimum operating temperature	-25 °C
Options	GENERAL PURPOSE
Plating thickness	FLASH inch
polarization key	POLARIZED HOUSING
Rated current (signal)	2 A
Guideline	UL
Shell surface	NICKEL
Shell material	BRASS
Terminal length	0.125 inch
Termination type	SOLDER
Total number of contacts	6

Preview

Download Datasheet

View All

2D Drawing

Solder Profile

Certificate of Origin

IGES

CofC RoHS Compliant

Check Stock

STEP

CofC REACH Compliant

Request a Sample

3D PDF

UL Plastic File

Send Us An Email

Generated Part Number

KMDGX-3S-N

Part Number Builder

KMDGX

E 140125

LR78160

Number

of Contacts

Contact

Type

Option

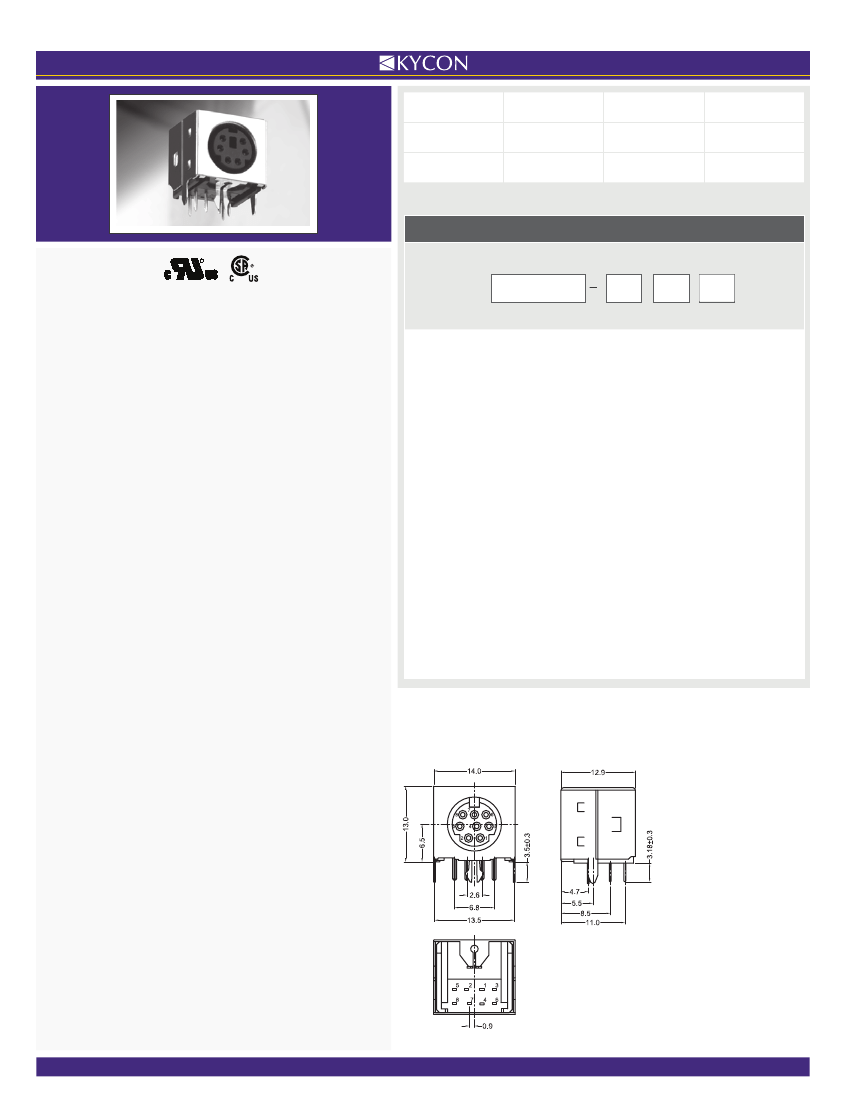

MINI/CIRCULAR DINs:

KMDGX Series

Right Angle Mini-DIN

Product Features

PC99 Colors Available

Shielded Options Available for Good Conductivity,

Grounding and EMI/RFI Protection

Mates with Standard and Snap and Lock Plugs

Visual and Mechanical Polarization for Plug Insertion

Reflow Compatible Design Available

Gold Plated Contacts

CSA/NRTL Certified File No. LR78160

UL File No. E140125

Series

KMDGX

- Right Angle PCB Mount Mini-DIN

Number of Contacts

Contacts

(10 Available only with BS option)

Performance Specifications

Materials and Finish

Body

PBT Thermoplastic, Black, Purple, or Green Color

Contacts

Copper Alloy, Gold Plated

Shield

See Drawing

Contact Type

- Receptacle

Shielding

Option

- Non-Shielded

Sides and Back Shielded

- Fully Shielded

Mechanical Characteristics

Insertion Force

4.5kg Max.

Extraction Force

0.4kg - 3.5kg

Durability

500 Cycles Min.

Contact Kycon for Other Options

KMDGX Series

KMDGX-8S-BS

Dimensions in mm

Electrical Characteristics

Rated Current

Rated Voltage

12V DC

Insulation Resistance

500 Megohm Min. at 500V DC

Contact Resistance

Before Durability Test

Plug to Terminals: 30 milliohms Max.

After Durability Test

Plug to Terminals: 60 milliohms Max.

Dielectric Withstanding Voltage

500V RMS AC for 1 Minute

Operating Temperature

-25°C to + 80°C

Phone: +1.408.494.0330

Fax: +1.408.494.0325

WWW.KYCON.COM

1217

KMDGX-6S-N Related Products

	KMDGX-6S-N	KMDGX-9S-N
Description	Circular DIN Connector, 6 Contact(s), Female, Board Mount, Solder Terminal, Locking, Plug, ROHS AND REACH COMPLIANT	Circular DIN Connectors 9P R/A MINI-DIN SKT
Is it Rohs certified?	conform to	conform to
package instruction	ROHS AND REACH COMPLIANT	ROHS AND REACH COMPLIANT
Reach Compliance Code	compliant	compliant
Other features	ROHS COMPLIANT	ROHS COMPLIANT
body width	0.511 inch	0.511 inch
subject depth	0.508 inch	0.508 inch
body length	0.551 inch	0.551 inch
Body/casing type	PLUG	PLUG
Connector type	CIRCULAR DIN CONNECTOR	CIRCULAR DIN CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	GOLD
Contact completed and terminated	Gold (Au)	Gold (Au)
Contact point gender	FEMALE	FEMALE
Contact material	NOT SPECIFIED	COPPER ALLOY
Contact resistance	60 mΩ	60 mΩ
Contact style	RND PIN-SKT	RND PIN-SKT
DIN compliance	YES	YES
Dielectric withstand voltage	700VAC V	700VAC V
Durability	500 Cycles	500 Cycles
Electromagnetic interference shielding	NO	NO
IEC compliance	NO	NO
Insulation resistance	500000000 Ω	500000000 Ω
JESD-609 code	e4	e4
MIL compliance	NO	NO
Installation option 1	LOCKING	LOCKING
Installation method	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD
Number of ports	1	1
Maximum operating temperature	80 °C	80 °C
Minimum operating temperature	-25 °C	-25 °C
Options	GENERAL PURPOSE	GENERAL PURPOSE
Plating thickness	FLASH inch	FLASH inch
polarization key	POLARIZED HOUSING	POLARIZED HOUSING
Rated current (signal)	2 A	2 A
Guideline	UL	UL
Shell surface	NICKEL	NICKEL
Shell material	BRASS	BRASS
Terminal length	0.125 inch	0.125 inch
Termination type	SOLDER	SOLDER
Total number of contacts	6	9
