31-5486-10-RFX: DescriptionRF Connectors / Coaxial Connectors RIGHT ANGLE RECEPTACLE; CategoryThe connector; File Size841KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

31-5486-10-RFX Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	31-5486-10-RFX	-	-	View	Buy Now

31-5486-10-RFX Overview

RF Connectors / Coaxial Connectors RIGHT ANGLE RECEPTACLE

31-5486-10-RFX Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Amphenol
Product Category	RF Connectors / Coaxial Connectors
RoHS	Details
Product	Connectors
RF Series	BNC
Gender	Jack
Impedance	50 Ohms
Maximum Frequency	1 GHz
Termination Style	PCB - Through Hole
Orientation	Right Angle
Mounting Type	Bulkhead - Rear Mount
Packaging	Tray
Body Material	Zinc Die Cast
Body Style	Bulkhead
Contact Plating	Gold
Contact Termination	Solder
Isolation	Isolated
Voltage Rating	500 V
Contact Material	Phosphor Bronze
Body Finish	Nickel
Coupling Mechanism	Bayonet
Mating Cycles	500
Maximum Operating Temperature	+ 85 C
NumOfPackaging	1
Factory Pack Quantity	50
Unit Weight	0.391541 oz

Preview

Download Datasheet

View All

NOTES:

1.

MATERIALS OF CONSTRUCTION:

BODY = ZINC DIE CAST, NICKEL PLATED (.000100 MIN. THICK)

CONTACT PIN = PHOSPHOR BRONZE (QQ-B-750), GOLD FLASH OVER NICKEL PLATED

(.000050 MIN THICK)

POST = COPPER, BRIGHT TIN PLATED (.000080 THICK).

CONTACT TAILS ARE TIN OVER NICKEL (.000050 THICK)

FORK PINS (2) = BRASS (QQ-B-613), TIN PLATED

LOCKWASHER = BRASS (QQ-B-613), NICKEL PLATED (.000100 MIN THICK)

HOUSING = PBT (UL 94 V-0), COLOR WHITE

INSULATOR = POLYPROPYLENE (UL 94 HB), COLOR NATURAL

HEX NUT = BRASS (ASTM-B16 H02, C36000), NICKEL PLATED (.000100 MIN.

THICK)

3.

MAX. PANEL THICKNESS = 5mm [.197]

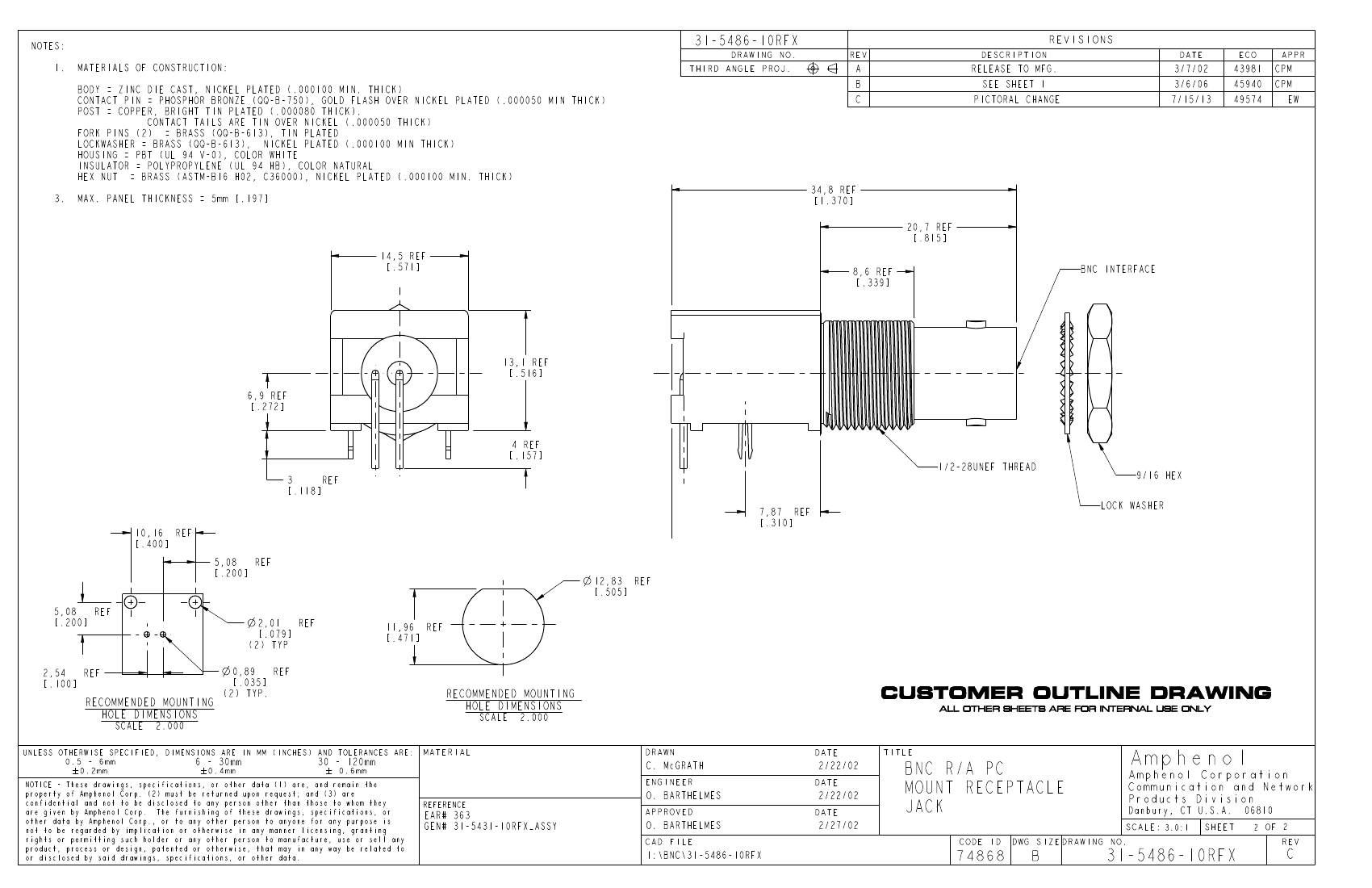

31-5486-10RFX

THIRD ANGLE PROJ.

REVISIONS

REV

DRAWING NO.

A

B

C

RELEASE TO MFG.

PICTORAL CHANGE

SEE SHEET 1

DESCRIPTION

7/15/13

3/6/06

3/7/02

DATE

43981

45940

49574

ECO

CPM

APPR

EW

34,8 REF

[1.370]

20,7 REF

[.815]

14,5 REF

[.571]

8,6 REF

[.339]

BNC INTERFACE

13,1 REF

[.516]

6,9 REF

[.272]

4 REF

[.157]

3

REF

[.118]

7,87 REF

[.310]

5,08

REF

[.200]

5,08

REF

[.200]

1/2-28UNEF THREAD

9/16 HEX

LOCK WASHER

10,16 REF

[.400]

12,83 REF

[.505 ]

11,96 REF

[.471]

2,01

REF

[.079 ]

(2) TYP

0,89

REF

[.035 ]

(2) TYP.

2,54

REF

[.100]

RECOMMENDED MOUNTING

HOLE DIMENSIONS

SCALE

2.000

RECOMMENDED MOUNTING

HOLE DIMENSIONS

SCALE

2.000

UNLESS OTHERWISE SPECIFIED, DIMENSIO NS ARE IN MM (INCHES) AND TOLERANCES ARE:

0.5 - 6mm

6 - 30mm

30 - 120mm

#

0.2mm

#

0.4mm

# 0.6mm

NOTICE - These drawings, specificati

property of Amphenol Corp. (2) must

confidential and not to be disclosed

are given by Amphenol Corp. The fur

other data by Amphenol Corp., or to

not to be regarded by implication or

rights or permitting such holder or

product, process or design, patented

or disclosed by said drawings, speci

ons, or other data (1) are, and rema

be returned upon request; and (3) ar

to any person other than those to w

nishing of these drawings, specifica

any other person to anyone for any p

otherwise in any manner licensing,

any other person to manufacture, use

or otherwise, that may in any way b

fications, or other data.

in the

e

hom they

tions, or

urpose is

granting

or sell any

e related to

MATERIAL

DRAWN

C. McGRATH

DATE

2/22/02

TITLE

ENGINEER

REFERENCE

O. BARTHELMES

I:\BNC\ 31-5486-10RFX

2/22/02

2/27/02

EAR# 363

GEN# 31-5431-10RFX_ASSY

APPROVED

CAD FILE

BNC R/A PC

MOUNT RECEPTACLE

JACK

74868

CODE ID

Amphenol Corporation

Communication and Network

Products Division

Danbury, CT U.S.A.

SCALE: 3.0:1

Amphenol

SHEET

06810

2 OF 2

REV

DWG SIZE DRAWING NO.

B

31-5486-10RFX

C

31-5486-10-RFX Related Products

	31-5486-10-RFX	031-5486-10RFX
Description	RF Connectors / Coaxial Connectors RIGHT ANGLE RECEPTACLE	RF Connectors / Coaxial Connectors RIGHT ANGLE RECEPTACLE
Product Attribute	Attribute Value	Attribute Value
Manufacturer	Amphenol	Amphenol
Product Category	RF Connectors / Coaxial Connectors	RF Connectors / Coaxial Connectors
RoHS	Details	Details
Product	Connectors	Connectors
RF Series	BNC	BNC
Gender	Jack	Jack
Impedance	50 Ohms	50 Ohms
Maximum Frequency	1 GHz	1 GHz
Termination Style	PCB - Through Hole	PCB - Through Hole
Orientation	Right Angle	Right Angle
Mounting Type	Bulkhead - Rear Mount	Bulkhead - Rear Mount
Packaging	Tray	Tray
Body Material	Zinc Die Cast	Zinc Die Cast
Body Style	Bulkhead	Bulkhead
Contact Plating	Gold	Gold
Contact Termination	Solder	Solder
Isolation	Isolated	Isolated
Voltage Rating	500 V	500 V
Contact Material	Phosphor Bronze	Phosphor Bronze
Body Finish	Nickel	Nickel
Coupling Mechanism	Bayonet	Bayonet
Mating Cycles	500	500
Maximum Operating Temperature	+ 85 C	+ 85 C
Factory Pack Quantity	50	50
Unit Weight	0.391541 oz	0.391541 oz

Recommended Resources

Dual power supply adjustable regulated power supply

Light controlled electric fan speed regulator circuit

Fahrenheit thermometer

Anti-theft alarm that consumes very little power

CATV open circuit transmitter

Digital paging system (F36-F/F36-J)
