D15P33E4PA00LF datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> D15P33E4PA00LF

Preview

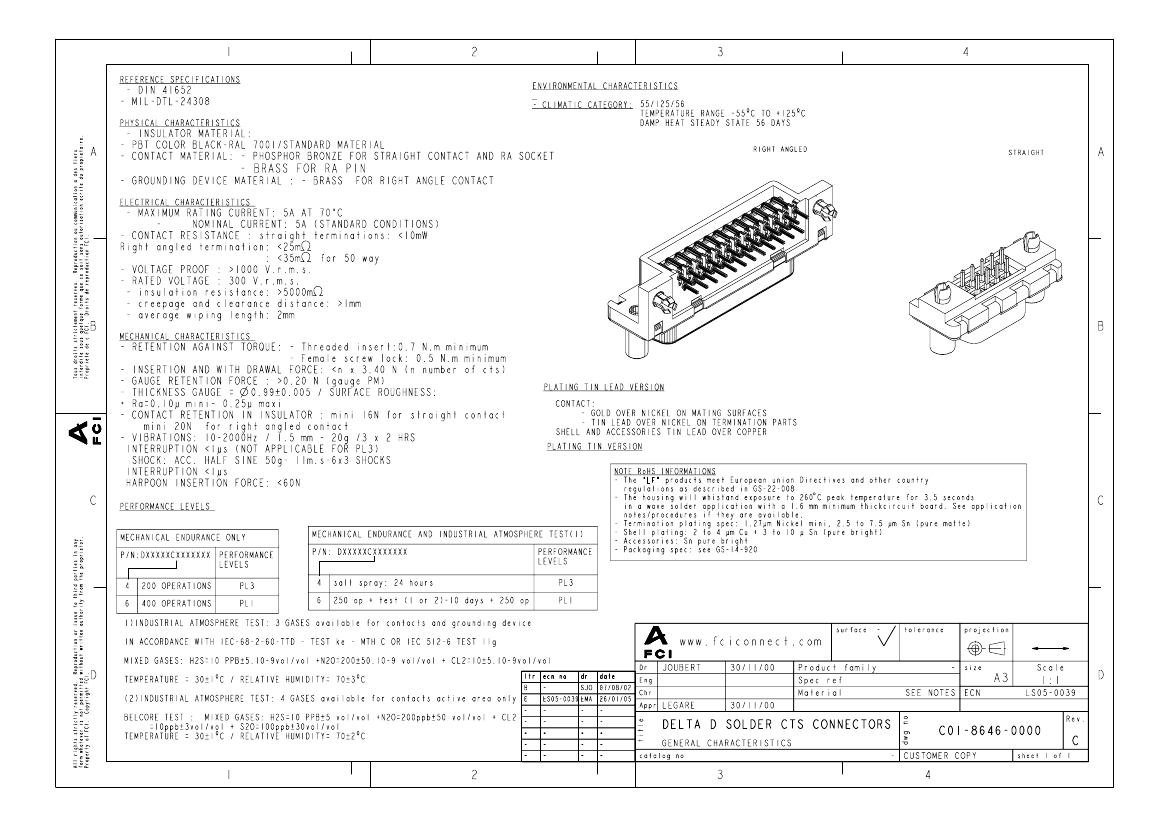

D15P33E4PA00LF: DescriptionD-Sub Standard Connectors 15P PIN RA SOLDER SHELL SIZE A; CategoryThe connector; File Size194KB，1 Pages; ManufacturerFCI [First Components International]

Download Datasheet Parametric Compare View All

D15P33E4PA00LF Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	D15P33E4PA00LF	-	-	View	Buy Now

D15P33E4PA00LF Overview

D-Sub Standard Connectors 15P PIN RA SOLDER SHELL SIZE A

D15P33E4PA00LF Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	FCI [First Components International]
Product Category	D-Sub Standard Connectors
RoHS	Details
Number of Positions	15 Position
Contact Gender	Pin (Male)
Termination Style	Through Hole
Mounting Angle	Right Angle
Number of Rows	2 Row
Shell Size	2 (A)
Contact Plating	Gold
Packaging	Tray
Current Rating	5 A
Gender	Male
Type	Plug
Voltage Rating	300 V
Pitch	2.84 mm
Shell Plating	Bright Pure Tin over Nickel
Insert Arrangement	A15
Maximum Operating Temperature	+ 125 C
Minimum Operating Temperature	- 55 C
NumOfPackaging	1
Factory Pack Quantity	25

Preview

Download Datasheet

View All

PDM: Rev:C

STATUS:

Released

Printed: Apr 27, 2006

.
