RCP398-1-1-9-16-F datasheet, PDF

Datasheet> All Categories > Mechanical and electronic products> switch> RCP398-1-1-9-16-F

RCP398-1-1-9-16-F: DescriptionRotary Switch, 9 Positions, SP8T, On-on, Circular, 0.5A, 30VDC, 28 PCB Hole Cnt, Solder Terminal, Rotary Shaft Actuator, Through Hole-straight; CategoryMechanical and electronic products switch; File Size253KB，1 Pages; ManufacturerChiefdom Electronic Co., Ltd.

Download Datasheet Parametric View All

RCP398-1-1-9-16-F Overview

Rotary Switch, 9 Positions, SP8T, On-on, Circular, 0.5A, 30VDC, 28 PCB Hole Cnt, Solder Terminal, Rotary Shaft Actuator, Through Hole-straight

RCP398-1-1-9-16-F Parametric

Parameter Name	Attribute value
Maker	Chiefdom Electronic Co., Ltd.
Reach Compliance Code	unknown
Actuator length	0.393 inch
Actuator type	ROTARY SHAFT
body width	35.5092 mm
Body length or diameter	38.989 mm
Casing diameter	0.354 inch
Nozzle length	0.236 inch
Maximum contact current (DC)	0.5 A
Contact (DC) maximum rated R load	0.5A@30VDC
Contact function	ON-ON
Contact resistance	0.025 mΩ
contact time	MAKE-BEFORE-BREAK
Maximum contact voltage (DC)	30 V
Dielectric withstand voltage	500VDC V
Graduation angle	90 deg
Insulation resistance	100000000 Ω
Manufacturer's serial number	RCP398
Installation features	THROUGH HOLE-STRAIGHT
Number of positions	9
PCB hole count	28
surface mount	NO
Switch action	CIRCULAR
switch function	SP8T
Switch type	ROTARY SWITCH
Terminal length	0.138 inch
Termination type	SOLDER
Base Number Matches	1

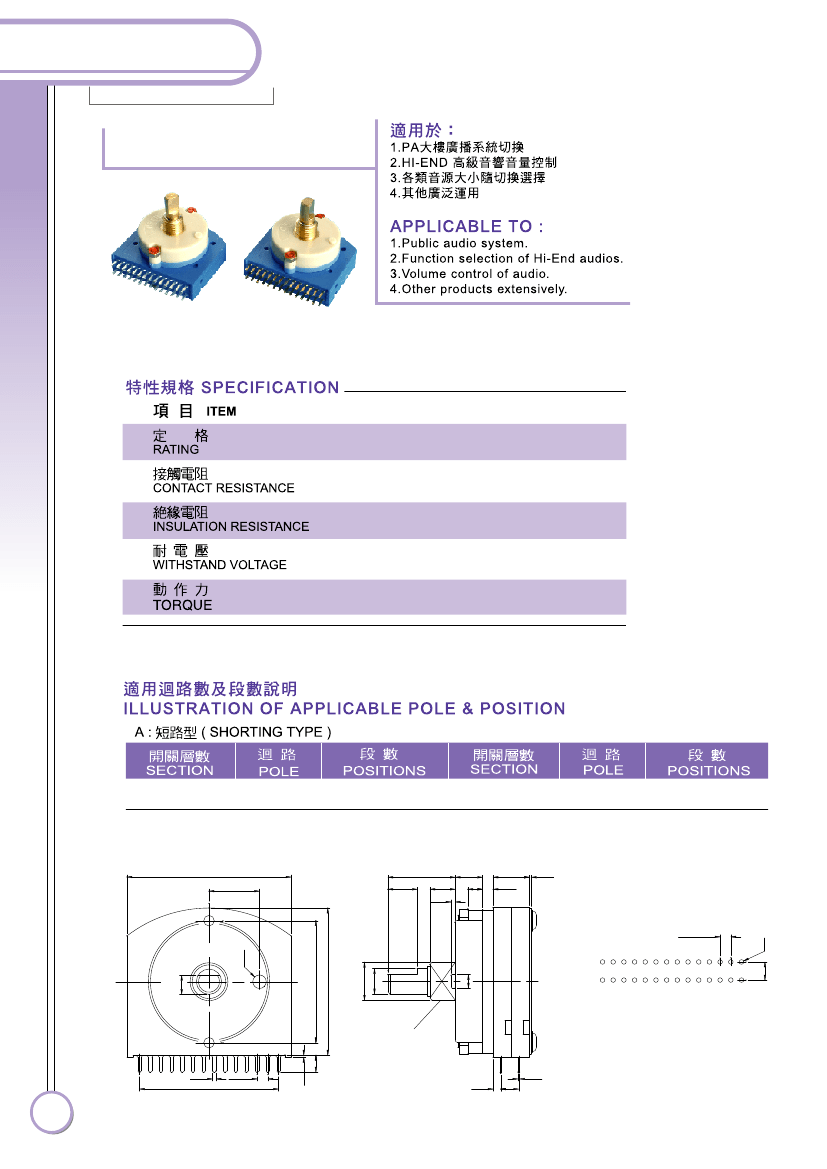

Preview

Download Datasheet

View All

Rotary

Switches

RCP 398 SERIES

DC 30V 0.5A

25mΩ MAX

DC 500V 100MΩ MIN

500V 1 MINUTE

1±0.5kg (REFERENCE)

2-12

39.0

12.0

7.0

16.0

6.0

1.0

6.5

3.5

8.6

2.5

0.5

Ø3.2

12 11 10 9

COM 1

12 11 10 9

Ø9.0

Ø6.0

29.0

35.0

4.5

3.2

COM 2

2 POLE 12 POSITION P.C. BOARD MOUNTING HOLE

M9*0.75P

4.0 3.0

0.8

33.02

2.54

0.5

0.4

1.8

4.3

COM 1

Ø1.1

13-2.54
