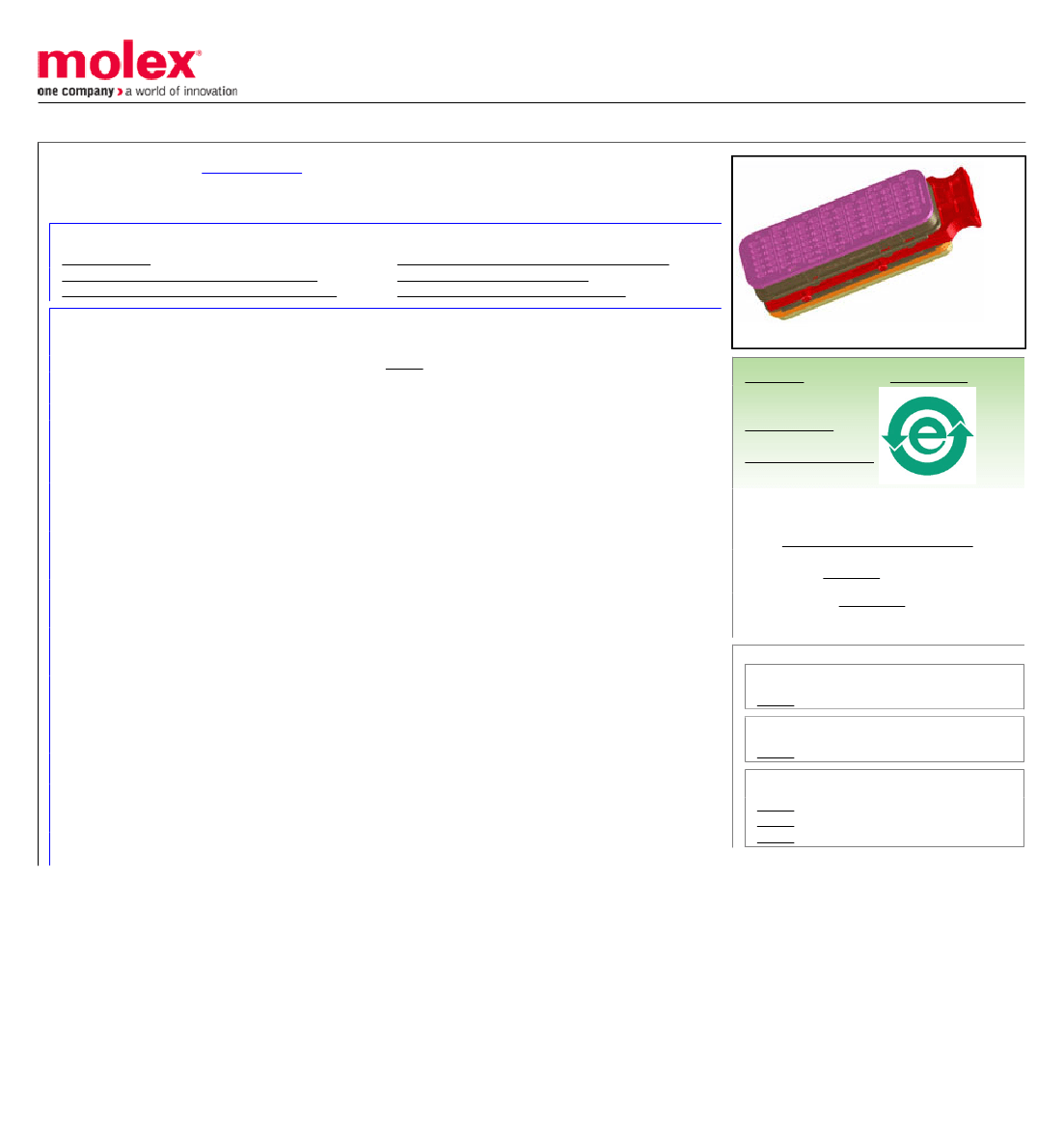

This document was generated on 03/28/2012
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Description:
85070-0500
Active
4.00mm SRC Heavy Duty Plug Housing, 84 Way, Nylon, Black
Documents:
Drawing (PDF)
Product Specification PS-85070-001 (PDF)
Application Specification AS-85070-001 (PDF)
Packaging Specification PK-85070-001 (PDF)
Test Summary STR-1193 (PDF)
RoHS Certificate of Compliance (PDF)
Series
Crimp Housings
85070
Power, Wire-to-Wire
Polarized to mating part
SRC
image - Reference only
EU RoHS
ELV and RoHS
Compliant
REACH SVHC
Contains SVHC: No
Low-Halogen Status
Not Reviewed
China RoHS
General
Product Family
Series
Application
Comments
Product Name
Physical
Circuits (maximum)
Color - Resin
Gender
Glow-Wire Compliant
Keying to Mating Part
Lock to Mating Part
Material - Resin
Number of Rows
Packaging Type
Panel Mount
Pitch - Mating Interface
Polarized to Mating Part
Stackable
Temperature Range - Operating
84
Black
Female
No
None
Yes
Nylon
14
Bag
No
0.30mm
Yes
No
-40°C to +125°C
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Electrical
Current - Maximum per Contact
40A
Search Parts in this Series
85070Series
Mates With
85071 SRC Heavy Duty Connector
AS-85070-001
PK-85070-001
PS-85070-001
SD-85070-500
STR-1193
Use With
33012 Female Terminals, Tin, AWG 1422.
33001 Female Terminal, Gold, AWG 1422.
19434 Female Terminal, Tin, AWG 812
Material Info
Reference - Drawing Numbers
Application Specification
Packaging Specification
Product Specification
Sales Drawing
Test Summary
