“Slim Line” Hybrid for IDT
0803-6500-04
FEATURES
•
•
•
•
Supports IDT82V2084 quad and IDT82P2282 dual channel chipsets for T1/E1 long and short haul
applications,
Minimum board space requirement - ideal for multiple interface line cards
Protection circuit designed to meet Telcordia GR1089
Approved to supplementary isolation 1500V, working voltage 250V of UL60950
SCHEMATIC
©2004 Bel Fuse Inc. Specifications subject to change without notice. 11.19.04
Bel Fuse Inc.
206 Van Vorst Street, Jersey City, NJ 07302 • Tel 201-432-0463 • Fax 201-432-9542 • www.belfuse.com
Page 1
“Slim Line” Hybrid for IDT
0803-6500-04
ELECTRICAL SPECIFICATIONS @ 25° C
IDT Chipset
IDT82V2084 Quad
IDT82P2282 Dual
Application
Protection
RX TR
Chip : Line
1:1
TX TR
Chip : Line
1:2
T1/E1/J1 (Z0 = 75/100/120
Ω
)
Longitudinal
TRANSFORMER SPECIFICATIONS (RX AND TX)
IWC
pF max
50
DCR
max
0.6R
OCL (Line)
mH min
1.2
LL
µH max
0.6

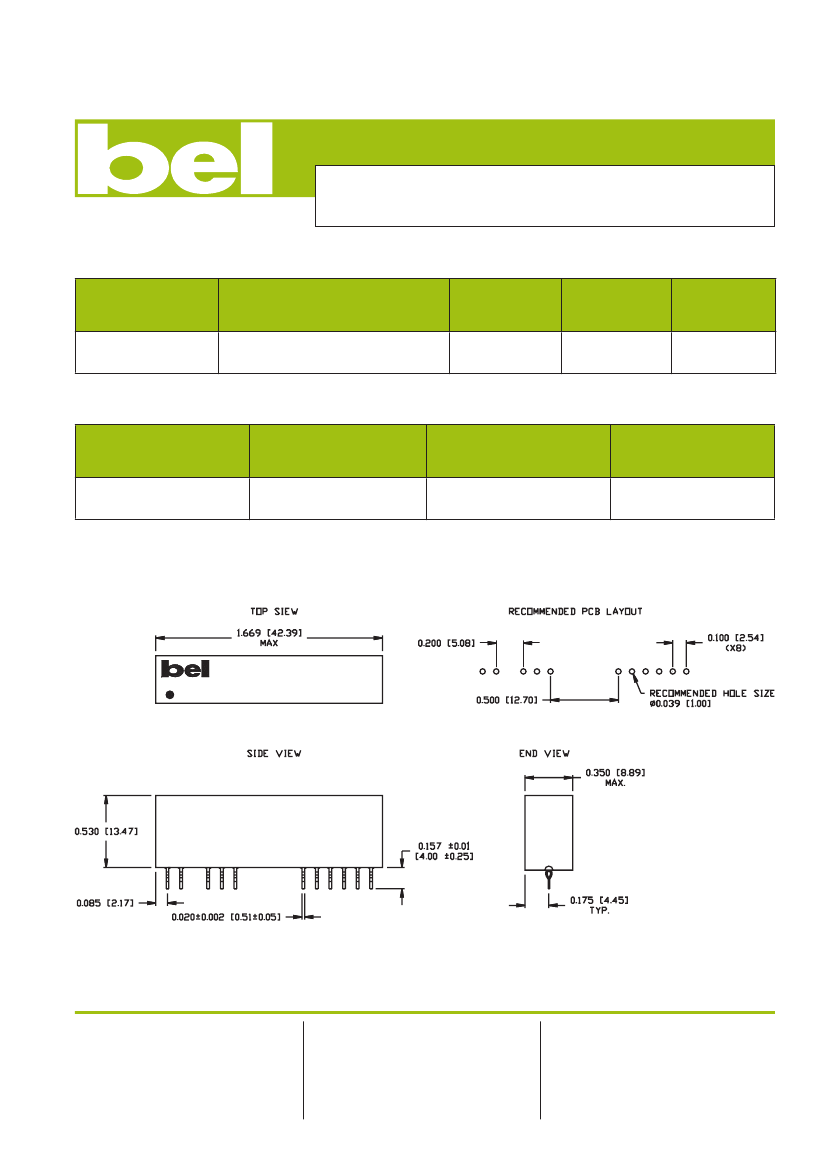

MECHANICAL
0803-6500-04
½½½½½
NOTE: ALL DIMENSIONS IN INCHES [MM]
