CLOCK
CE7200A-LZ-25.000-LP
APPROVALS
RALTRON
Eng. approval, date:
Sales approval, date:
Created by, date: PartGenerator
Revision:

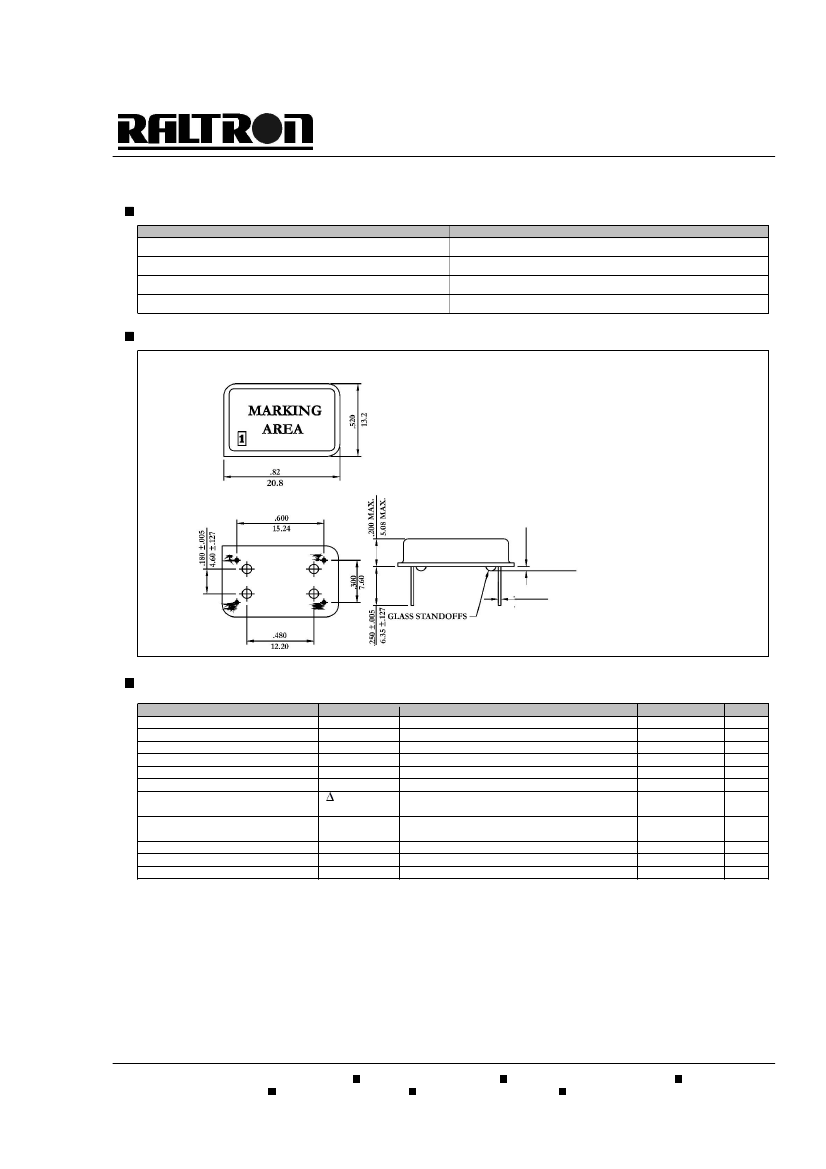

MECHANICAL SPECIFICATION
Name (please print):
Title (please print):
Signature, date:
OUTLINE TOLERANCE:
+0.015" / 0.4mm
(Unless otherwise specified)
PIN FUNCTIONS:
[1] ENABLE / DISABLE
[7] CASE / GROUND
[8] OUTPUT
[14] SUPPLY VOLTAGE
MARKING:
CE7200A-LZ
25.000-LP
RAL D/C
ELECTRICAL SPECIFICATION
PARAMETER
SYMBOL
CONDITIONS
VALUE
UNIT
Frequency, nom
Supply Voltage, max.
Supply Current, max.
HCMOS output levels
Duty Cycle
Rise- / fall time, max.
Overall freq. stability, max.
Enable option (pin 1)
Diable option (pin 1)
Operating temperature range
Storage temperature range
Absolute voltage Range
fo
Vcc
Is
VOH / VOL
DC
tr / tf
f/fc
En
Dis
Ta
T(stg)
Vcc (abs)
-
25.000
Vcc ±5%
+5.0
Vcc=±5%, Ta=+25°C, 15 pF load
35.0
Vcc=+5.0VDC, load=15 pF
4.5/0.5
load=15pF / @ 50%Vcc, Ta=+25°C
40...60
20%~80% Vout, 80%~20% Vout
10.00
Including temp., ±5% load & supply variations, 100.0
calibration @+25°C and 10 year aging
High or open (min.)
+2.4
+0.4
Ground (output pin high impedance)
-
0...70
-
-55...125
Non-destructive, DC
-0.5...+7.0
MHz
V
mA
V
%
ns
ppm
V
V
°C
°C
V
R A L T R O N E L E C T R O N I C S C O R P.
1 0 6 5 1 N. W. 1 9 th S t
M i a m i, F l o r i d a 3 3 1 7 2
U. S. A.
phone: +001(305) 593-6033
fax: +001(305)594-3973
e-mail: sales@raltron.com
internet: http://www.raltron.com
CLOCK
2
PAGE 2 OF

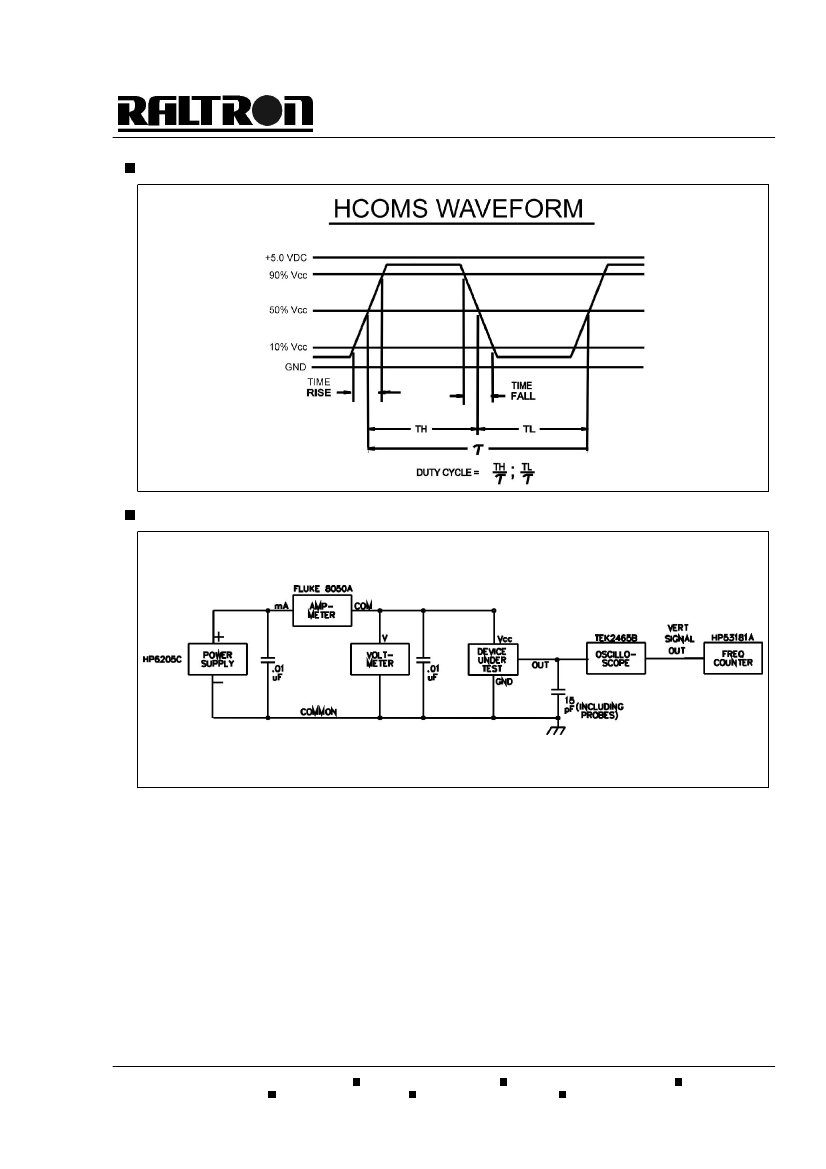

TIMING DIAGRAM
ELECTRICAL TEST DIARGRAM
