LMV82x, LMV82xA
Low power, high accuracy, general-purpose operational amplifier
Datasheet — production data
Features
•
Low power consumption: 400 µA max at 5 V
•
Low power shutdown mode: 50 nA max
•
Low offset voltage: 0.8 mV max at 25°C
•
Tiny packages
•
Extended temperature range: -40°C to +125°C
•
Low supply voltage: 2.5 V - 5.5 V
•
Gain bandwidth product: 5.5 MHz
•
Automotive qualification

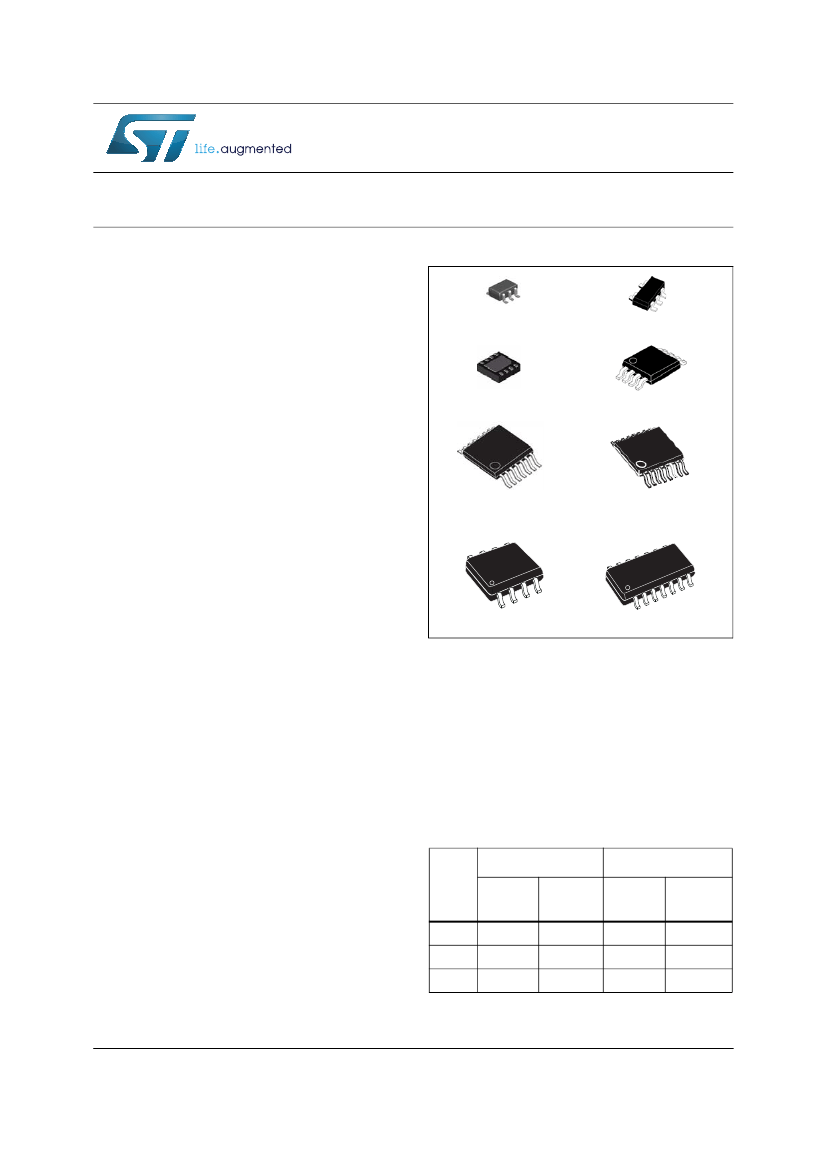

DFN8 2x2
MiniSO8 / MiniSO10
SC70-5
SOT23-5 / SOT23-6
Benefits
•
Longer lifetime in battery-powered applications
•
Higher accuracy without calibration
•
Smaller form factor than equivalent competitor
devices
•
Application performances guaranteed over
wide temperature range
TSSOP14
TSSOP16
SO8
SO14
Related products
•
See TSV85x series for lower power
consumption (180 µA max at 5 V)
product (5.5 MHz). The LMV821, LMV822 and
LMV824 are offered with standard pinouts.
The LMV820, LMV823, and LMV825 include a
power-saving shutdown feature that reduces the
supply current to a maximum of 50 nA at 25 °C.
The wide temperature range, high ESD tolerance,
and automotive grade qualification make them
particularly suitable for use in harsh automotive
applications.
Table 1. Device summary
Without shutdown
With shutdown
Applications
•
Battery-powered applications
•
Portable devices
•
Automotive signal conditioning
•
Active filtering
•
Medical instrumentation
Description
The LMV82x and LMV82xA series of single, dual,
and quad operational amplifiers offer low voltage
operation with rail-to-rail output swing. They
outperform the industry standard LMV321,
especially with regard to the gain bandwidth
Single
Dual
Quad
Standard Enhanced Standard Enhanced
Vio
Vio
Vio
Vio
LMV821 LMV821A
LMV822 LMV822A
LMV824 LMV824A
LMV820
LMV823
LMV825
LMV820A
LMV823A
LMV825A
April 2017
This is information on a product in full production.
DocID022467 Rev 4
1/32
www.st.com
Contents
LMV82x, LMV82xA
Contents
1
2
3
4
Package pin connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Absolute maximum ratings and operating conditions . . . . . . . . . . . . . 4
Electrical characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Application information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
4.1
4.2
4.3
4.4
4.5
4.6
4.7
Operating voltages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Input common mode range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Rail-to-rail output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Input offset voltage drift over temperature . . . . . . . . . . . . . . . . . . . . . . . . 16
PCB layouts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Macromodel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Shutdown function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
5
Package information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
5.1
5.2
5.3
5.4
5.5
5.6
5.7
5.8
5.9
5.10
SC70-5 (or SOT323-5) package information . . . . . . . . . . . . . . . . . . . . . . 19
SOT23-5 package information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
SOT23-6 package information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
DFN8 2 x 2 mm package information . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
MiniSO-8 package information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
MiniSO-10 package information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
TSSOP14 package information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
TSSOP16 package information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
SO-8 package information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
SO-14 package information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
6
7
Ordering information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Revision history . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
2/32
DocID022467 Rev 4
LMV82x, LMV82xA
Package pin connections
1
Package pin connections

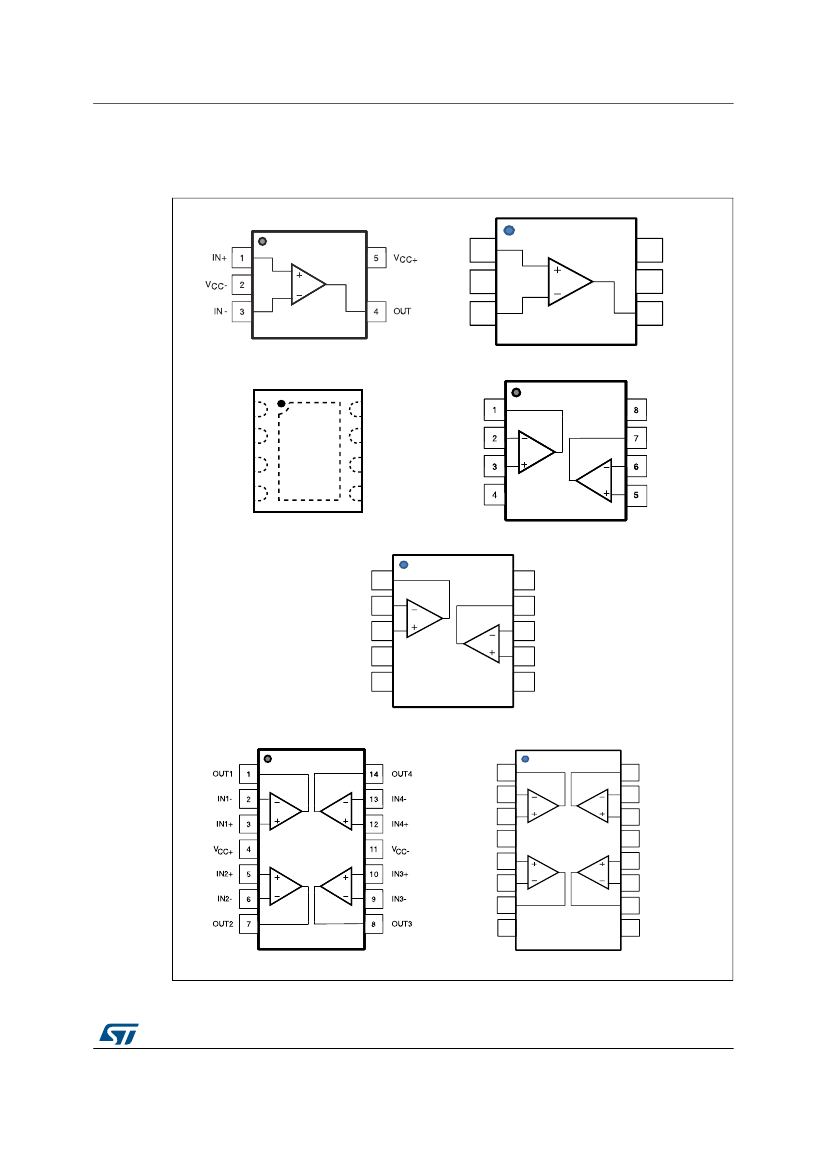

Figure 1. Pin connections for each package (top view)
SC70-5 / SOT23-5
SOT23-6
DFN8 2x2
(1)
MiniSO8
MiniSO10
TSSOP14 / SO14
TSSOP16
1. The exposed pad of DFN8 2x2 can be connected to VCC- or left floating.
DocID022467 Rev 4
3/32
32
Absolute maximum ratings and operating conditions
LMV82x, LMV82xA
2
Absolute maximum ratings and operating conditions
Table 2. Absolute maximum ratings (AMR)
Symbol
V
cc
V
id
V
in
I
in
SHDN
T
stg
Supply voltage
(1)
Differential input voltage
(2)
Input pins (IN+ and IN- pins) voltage
(3)
Input current
(4)
Shutdown voltage
(5)
Storage temperature
Thermal resistance junction to ambient
(6)(7)
– SC70-5
– SOT23-5
– DFN8 2x2
– MiniSO8
R
thja
– SO8
– TSSOP14
– SO14
– SOT23-6
– MiniSO10
– TSSOP16
T
j
Maximum junction temperature
HBM: human body model (except shutdown pin)
(8)
HBM: human body model (shutdown pin)
(8)
ESD
MM: machine model
(9)
CDM: charged device model
(10)
CDM: charged device model LMV825
(10)
Latch-up immunity
205
250
57
190
125
100
105
240
113
95
150
4
3.5
250
1.3
1
200
°C
kV
V
kV
mA
°C/W
Parameter
Value
6
±V
cc
V
cc-
- 0.3 to V
cc+
+ 0.3
10
V
cc-
- 0.2 to V
cc+
+ 0.2
-65 to +150
mA
V
°C
V
Unit
1. All voltage values, except the differential voltage are with respect to the network ground terminal.
2. Differential voltages are the non-inverting input terminal with respect to the inverting input terminal.
3.
V
cc
-V
in
must not exceed 6 V, V
in
must not exceed 6 V.
4. The input current must be limited by a resistor in series with the inputs.
5.
V
cc
-V
shdn
must not exceed 6 V, V
in
must not exceed 6 V.
6. Short-circuits can cause excessive heating and destructive dissipation.
7. R
th
are typical values.
8. Human body model: a 100 pF capacitor is discharged through a 1.5 kΩ resistor between two pins of the
device. This is done for all couples of pin combinations while other pins are floating.
9. Machine model: a 200 pF capacitor is charged to the specified voltage, then discharged directly between
two pins of the device with no external series resistor (internal resistor < 5
Ω).
This is done for all couples of
pin combinations while other pins are floating.
10. Charged device model: all pins and package are charged together to the specified voltage and then
discharged directly to ground.
4/32
DocID022467 Rev 4
LMV82x, LMV82xA
Absolute maximum ratings and operating conditions
Table 3. Operating conditions
Symbol
V
cc
V
icm
T
oper
Supply voltage
Parameter
Value
2.5 to 5.5
V
cc-
- 0.2 to V
cc+
- 1
-40 to +125
Unit
V
°C
Common mode input voltage range
Operating free air temperature range
DocID022467 Rev 4
5/32
32
Power technology
