DTA144EUBTL

Description
Bipolar Transistors - Pre-Biased TRANS DIGI BJT PNP 100MA TR
CategoryDiscrete semiconductor    The transistor
File Size2MB,13 Pages
ManufacturerROHM Semiconductor
Websitehttps://www.rohm.com/
Environmental Compliance
Download Datasheet Parametric View All

DTA144EUBTL Online Shopping

Suppliers Part Number Price MOQ In stock
DTA144EUBTL - - View Buy Now

DTA144EUBTL Overview

Bipolar Transistors - Pre-Biased TRANS DIGI BJT PNP 100MA TR

DTA144EUBTL Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerROHM Semiconductor
Parts packaging codeSC-85
package instructionSMALL OUTLINE, R-PDSO-F3
Contacts3
Reach Compliance Codecompliant
ECCN codeEAR99
Other featuresBUILT IN BIAS RESISTOR RATIO 1
Maximum collector current (IC)0.1 A
Collector-emitter maximum voltage50 V
ConfigurationSINGLE WITH BUILT-IN RESISTOR
Minimum DC current gain (hFE)68
JESD-30 codeR-PDSO-F3
JESD-609 codee1
Humidity sensitivity level1
Number of components1
Number of terminals3
Maximum operating temperature150 °C
Package body materialPLASTIC/EPOXY
Package shapeRECTANGULAR
Package formSMALL OUTLINE
Peak Reflow Temperature (Celsius)260
Polarity/channel typePNP
Maximum power dissipation(Abs)0.2 W
Certification statusNot Qualified
surface mountYES
Terminal surfaceTin/Silver/Copper (Sn/Ag/Cu)
Terminal formFLAT
Terminal locationDUAL
Maximum time at peak reflow temperature10
transistor applicationsSWITCHING
Transistor component materialsSILICON
Nominal transition frequency (fT)250 MHz

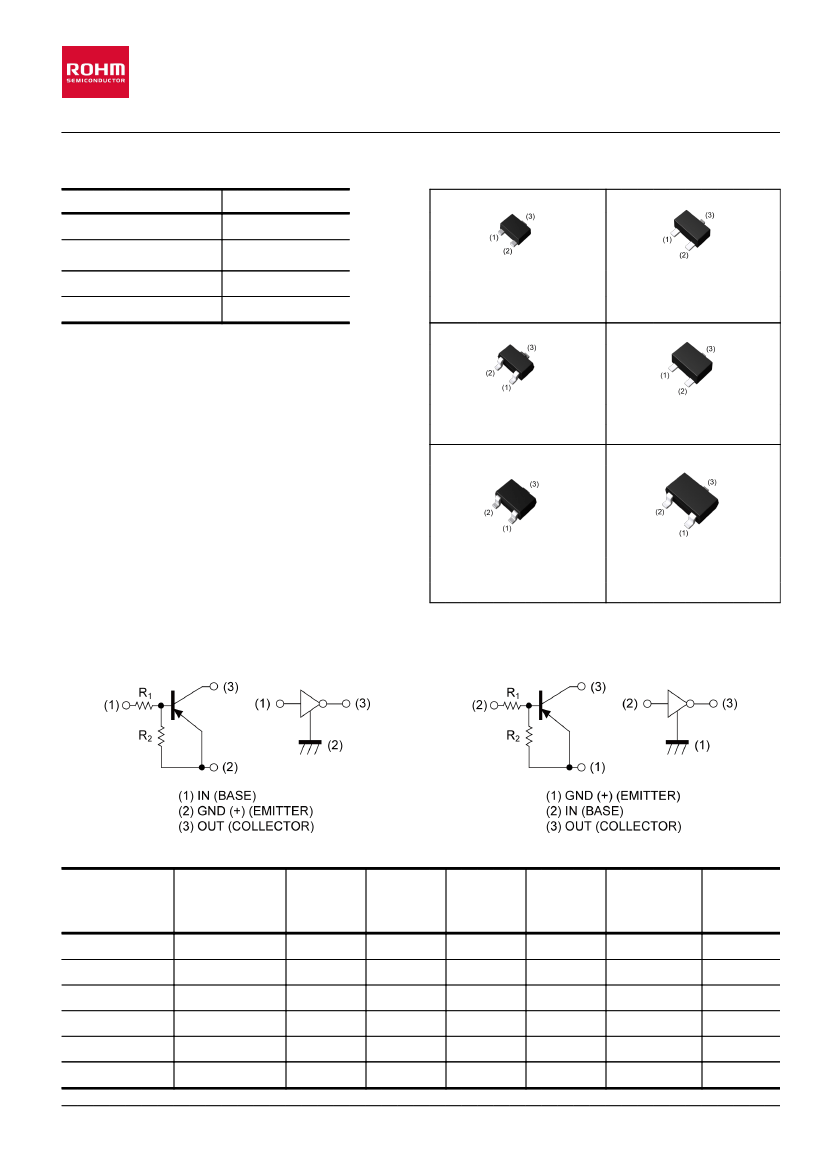

DTA144E series
PNP -100mA -50V Digital Transistor (Bias Resistor Built-in Transistor)
Datasheet
l
Outline
Parameter
V
CC
I
C(MAX.)
R
1
R
2
Value
-50V
-100mA
47kΩ
47kΩ
SOT-723
SOT-416FL

DTA144EM
(VMT3)
SOT-416

DTA144EEB
(EMT3F)
SOT-323FL
l
Features
1) Built-In Biasing Resistors, R
1
= R
2
= 47kΩ
2) Built-in bias resistors enable the configuration of

an inverter circuit without connecting external

input resistors (see inner circuit) .
3) Only the on/off conditions need to be set

for operation, making the circuit design easy.
4) Complementary NPN Types: DTC144 series
l
Application
INVERTER, INTERFACE, DRIVER
l
Inner circuit
DTA144EM/ DTA144EEB/ DTA144EUB

DTA144EE
(EMT3)
SOT-323

DTA144EUB
(UMT3F)
SOT-346

DTA144EUA
(UMT3)

DTA144EKA
(SMT3)
DTA144EE/ DTA144EUA/ DTA144EKA
l
Packaging specifications

Part No.
DTA144EM
DTA144EEB
DTA144EE
DTA144EUB
DTA144EUA
DTA144EKA
Package
SOT-723
SOT-416FL
SOT-416
SOT-323FL
SOT-323
SOT-346
Package
size
1212
1616
1616
2021
2021
2928
Taping
code
T2L
TL
TL
TL
T106
T146
1/10
Reel size Tape width
(mm)
(mm)
180
180
180
180
180
180
8
8
8
8
8
8
Basic
ordering
unit.(pcs)
8000
3000
3000
3000
3000
3000
Marking
16
16
16
16
16
16

www.rohm.com
© 2015 ROHM Co., Ltd. All rights reserved.
20151001 - Rev.002
