NCV301LSN28T1 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> NCV301LSN28T1

NCV301LSN28T1: DescriptionSupervisory Circuits 2.8V Detector; CategoryPower/power management The power supply circuit; File Size239KB，26 Pages; ManufacturerON Semiconductor; Websitehttp://www.onsemi.cn

Download Datasheet Parametric View All

NCV301LSN28T1 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	NCV301LSN28T1	-	-	View	Buy Now

NCV301LSN28T1 Overview

Supervisory Circuits 2.8V Detector

NCV301LSN28T1 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	ON Semiconductor
Parts packaging code	TSOP
package instruction	SC-59, SOT-23, TSOP-5
Contacts	5
Reach Compliance Code	not_compliant
ECCN code	EAR99
Other features	DETECTION THRESHOLD VOLTAGE IS 2.8V
Adjustable threshold	YES
Analog Integrated Circuits - Other Types	POWER SUPPLY SUPPORT CIRCUIT
JESD-30 code	R-PDSO-G5
JESD-609 code	e0
length	3 mm
Number of channels	1
Number of functions	1
Number of terminals	5
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	TSSOP
Encapsulate equivalent code	TSOP5/6,.11,37
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
power supply	0.8/10 V
Certification status	Not Qualified
Maximum seat height	1.1 mm
Maximum supply current (Isup)	0.0013 mA
Maximum supply voltage (Vsup)	10 V
Minimum supply voltage (Vsup)	0.8 V
Nominal supply voltage (Vsup)	1.5 V
surface mount	YES
technology	CMOS
Temperature level	AUTOMOTIVE
Terminal surface	Tin/Lead (Sn80Pb20)
Terminal form	GULL WING
Terminal pitch	0.95 mm
Terminal location	DUAL
Threshold voltage nominal	+2.8V
width	1.5 mm

Preview

Download Datasheet

View All

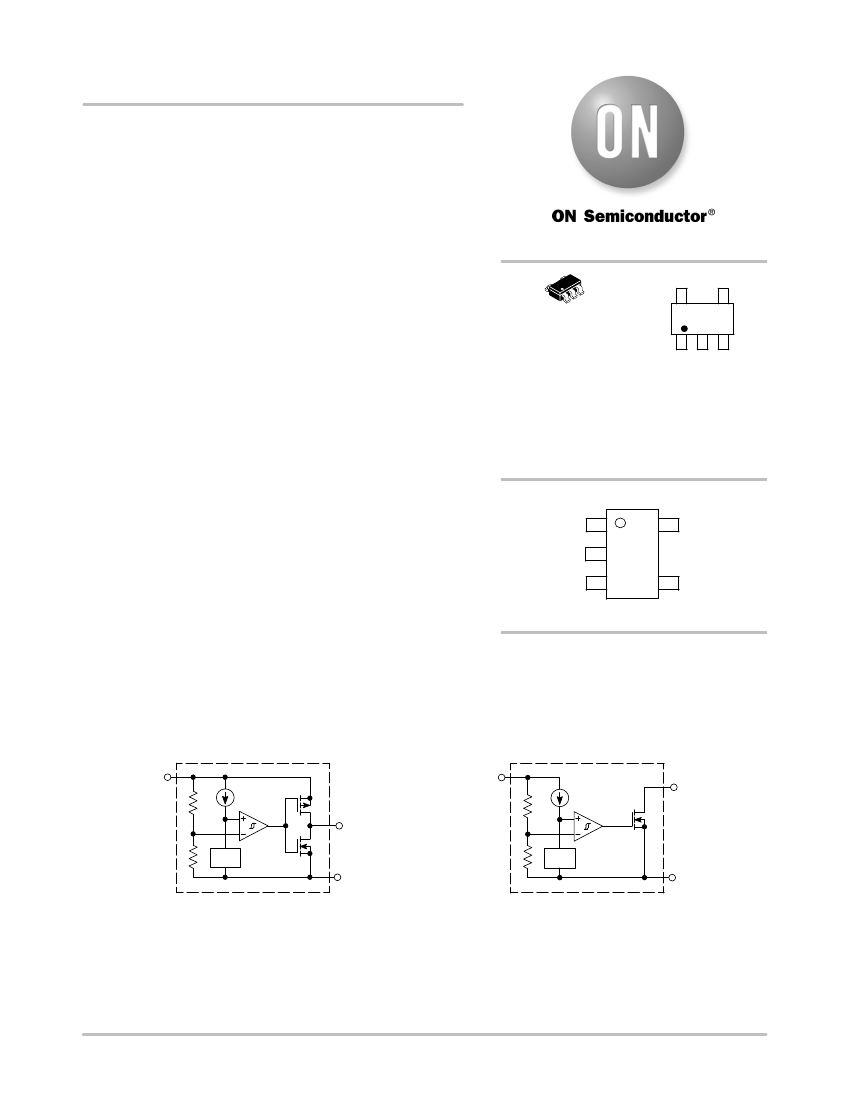

NCP300, NCP301

Voltage Detector Series

The NCP300 and NCP301 series are second generation ultra−low

current voltage detectors. These devices are specifically designed for

use as reset controllers in portable microprocessor based systems

where extended battery life is paramount.

Each series features a highly accurate undervoltage detector with

hysteresis which prevents erratic system reset operation as the

comparator threshold is crossed.

The NCP300 series consists of complementary output devices that

are available with either an active high or active low reset output. The

NCP301 series has an open drain N−Channel output with either an

active high or active low reset output.

The NCP300 and NCP301 device series are available in the

Thin TSOP−5 package with standard undervoltage thresholds.

Additional thresholds that range from 0.9 V to 4.9 V in 100 mV steps

can be manufactured.

Features

http://onsemi.com

MARKING DIAGRAM

THIN SOT23−5/

TSOP−5/SC59−5

CASE 483

xxx

xxx AYWG

•

Quiescent Current of 0.5

Typical

High Accuracy Undervoltage Threshold of 2.0%

Wide Operating Voltage Range of 0.8 V to 10 V

Complementary or Open Drain Reset Output

Active Low or Active High Reset Output

Specified Over the

−40°C

to +125°C Temperature Range

(Except for Voltage Options from 0.9 to 1.1 V)

•

Pb−Free Packages are Available

Typical Applications

= Specific Device Code

= Assembly Location

= Year

= Work Week

= Pb−Free Package

(Note:Microdot may be in either location)

PIN CONNECTIONS

Reset

Output

Input

Ground

(Top View)

4 N.C.

5 N.C.

•

Microprocessor Reset Controller

Low Battery Detection

Power Fail Indicator

Battery Backup Detection

NCP300xSNxxT1

Complementary Output Configuration

Input

ORDERING INFORMATION

See detailed ordering and shipping information in the ordering

information section on page 21 of this data sheet.

NCP301xSNxxT1

Open Drain Output Configuration

Reset Output

ref

Reset Output

ref

GND

* The representative block diagrams depict active low reset output ‘L’ suffix devices. The comparator

inputs are interchanged for the active high output ‘H’ suffix devices.

This device contains 25 active transistors.

Figure 1. Representative Block Diagrams

Semiconductor Components Industries, LLC, 2009

October, 2009

−

Rev. 27

Publication Order Number:

NCP300/D
