BAS19W - BAS21W
SURFACE MOUNT FAST SWITCHING DIODE
Please click here to visit our online spice models database.
Features
•
•
•
•
•
•
•
Fast Switching Speed
Surface Mount Package Ideally Suited for Automated Insertion
For General Purpose Switching Applications
High Conductance
Lead Free/RoHS Compliant (Note 3)
Qualified to AEC-Q101 Standards for High Reliability
"Green" Device (Notes 4 and 5)
Mechanical Data
•
•
•
•
•
•
•
•
•
•
SOT-323
Case: SOT-323
Case Material: Molded Plastic, "Green" Molding Compound,
Note 5. UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020D
Terminal Connections: See Diagram
Terminals: Solderable per MIL-STD-202, Method 208
Lead Free Plating (Matte Tin Finish annealed over Alloy 42
leadframe)
BAS19W Marking: KA8 or KT2 or KT3 (See Page 2)
BAS20W Marking: KT2 or KT3 (See Page 2)
BAS21W Marking: KT3 (See Page 2)
Weight: 0.006 grams (approximate)
TOP VIEW
TOP VIEW
Internal Schematic
Maximum Ratings
@T
A
= 25°C unless otherwise specified
Symbol
V
RRM
V
RWM
V
R
V
R(RMS)
I
FM
I
O
@ t = 1.0μs
@ t = 1.0s
I
FSM
I
FRM
BAS19W
120
100
71
BAS20W
200
150
106
400
200
2.5
0.5
625
BAS21W
250
200
141
Unit
V
V
V
mA
mA
A
mA
Characteristic
Repetitive Peak Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
RMS Reverse Voltage
Forward Continuous Current (Note 1)
Average Rectified Output Current (Note 1)
Non-Repetitive Peak Forward Surge Current
Repetitive Peak Forward Surge Current
Thermal Characteristics
Characteristic
Power Dissipation
Thermal Resistance Junction to Ambient Air (Note 1)
Operating and Storage Temperature Range
Symbol
P
D
R
θ
JA
T
J
, T
STG
Value
200
625
-65 to +150
Unit
mW
°C/W
°C
Electrical Characteristics
Characteristic
Reverse Breakdown Voltage (Note 2)
@T
A
= 25°C unless otherwise specified
Symbol
BAS19W
BAS20W
BAS21W
V
(BR)R
V
F
I
R
C
T
t
rr
Min
120
200
250
⎯
⎯
⎯
⎯
Max
⎯
⎯
⎯
1.0
1.25
100
15
5.0
50
Unit
V
V
nA
μA
pF
ns
Test Condition
I
R
= 100μA
I
F
= 100mA
I
F
= 200mA
T
J
= 25°C
T
J
= 100°C
V
R
= 0, f = 1.0MHz
I
F
= I
R
= 30mA,
I
rr
= 0.1 x I
R
, R
L
= 100Ω
Forward Voltage
Reverse Current
@ Rated DC Blocking Voltage (Note 2)
Total Capacitance
Reverse Recovery Time
Notes:
1. Part mounted on FR-4 PC board with minimum recommended pad layout, which can be found on our website at
http://www.diodes.com/datasheets/ap02001.pdf.
2. Short duration pulse test used to minimize self-heating effect.
3. No purposefully added lead.
4. Diodes Inc.'s "Green" policy can be found on our website at http://www.diodes.com/products/lead_free/index.php.
5. Product manufactured with Date Code 0627 (week 27, 2006) and newer are built with Green Molding Compound. Product manufactured prior to Date
Code 0627 are built with Non-Green Molding Compound and may contain Halogens or Sb
2
O
3
Fire Retardants.
BAS19W - BAS21W
Document number: DS30118 Rev. 13 - 2
1 of 3
www.diodes.com
March 2008
© Diodes Incorporated
BAS19W - BAS21W
I
F
, INSTANTANEOUS FORWARD CURRENT (A)
250
Note 1
1
P
D
, POWER DISSIPATION (mW)
200
0.1
150
100
0.01
50
0
0
100
T
A
, AMBIENT TEMPERATURE (
°
C)

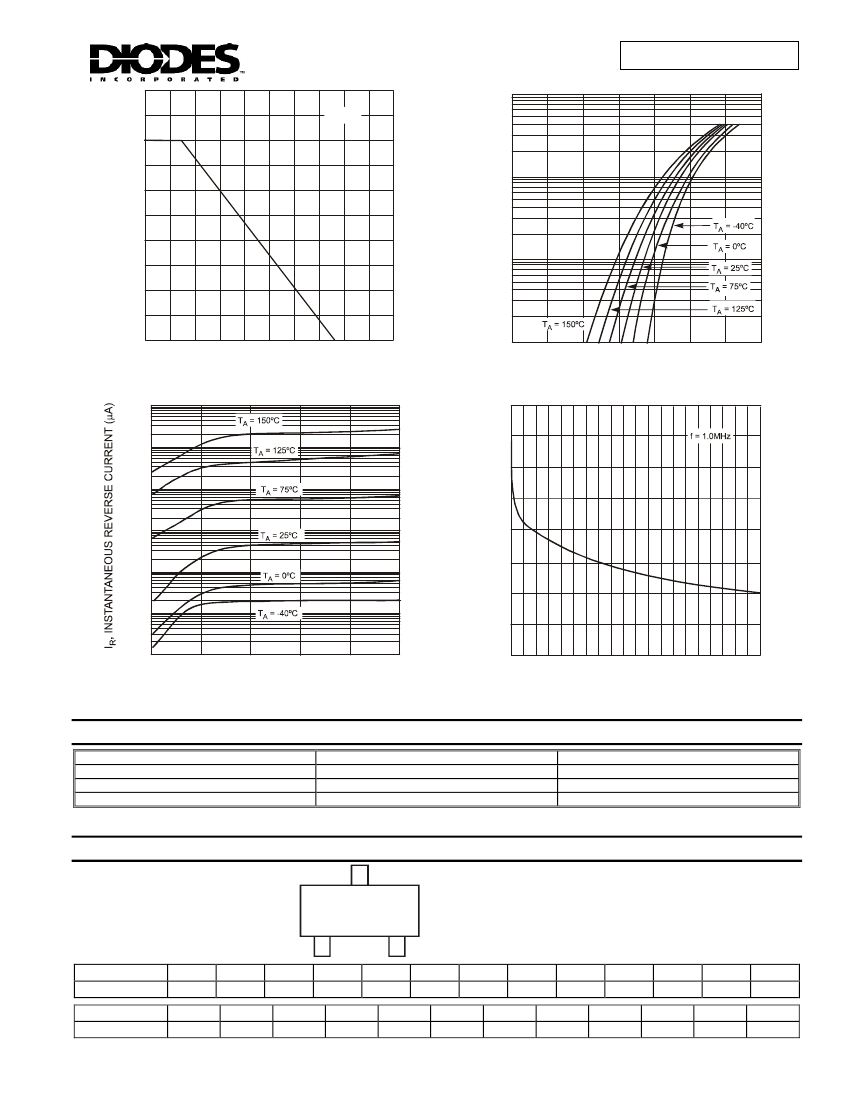

Fig. 1 Power Derating Curve
200
0.001
0
0.8
1.0
1.2
0.2
0.4
1.4
0. 6
V
F
, INSTANTANEOUS FORWARD VOLTAGE (V)
Fig. 2 Typical Forward Characteristics
100
4.0
3.5
C
T
, TOTAL CAPACITANCE (pF)
10
3.0
2.5
2.0
1.5
1.0
0.5
0.0
1
0.1
0.01
0.001
0.0001
0
150
200
50
100
250
V
R
, INSTANTANEOUS REVERSE VOLTAGE (V)
Fig. 3 Typical Reverse Characteristics
0
10
20
30
40
V
R
, DC REVERSE VOLTAGE (V)
Fig. 4 Total Capacitance vs. Reverse Voltage
Ordering Information
Part Number
BAS19W-7-F
BAS20W-7-F
BAS21W-7-F
Notes:
(Notes 5 & 6)
Case
SOT-323
SOT-323
SOT-323
Packaging
3000/Tape & Reel
3000/Tape & Reel
3000/Tape & Reel
6. For packaging details, go to our website at http://www.diodes.com/datasheets/ap02007.pdf.
Marking Information
XXX = Product Type Marking Code (See Page 1)
YM = Date Code Marking
Y = Year ex: N = 2002
M = Month ex: 9 = September
XXX
Date Code Key
Year
Code
Month
Code
2000
L
Jan
1
2001
M
Feb
2
2002
N
Mar
3
2003
P
Apr
4
2004
R
May
5
YM
2005
S
Jun
6
2006
T
2007
U
Jul
7
2008
V
Aug
8
2009
W
Sep
9
2010
X
Oct
O
2011
Y
Nov
N
2012
Z
Dec
D
March 2008
BAS19W - BAS21W
Document number: DS30118 Rev. 13 - 2
2 of 3
www.diodes.com
© Diodes Incorporated
BAS19W - BAS21W
Package Outline Dimensions
A
TOP VIEW
B C
G
H
K
M
J
D
F
L
SOT-323
Dim
Min
Max
A
0.25
0.40
B
1.15
1.35
C
2.00
2.20
D
0.65 Nominal
F
0.30
0.40
G
1.20
1.40
H
1.80
2.20
J
0.0
0.10
K
0.90
1.00
L
0.25
0.40
M
0.10
0.18
0°
8°
α
All Dimensions in mm
Suggested Pad Layout
Y
Z
G
C
X
E
Dimensions Value (in mm)
Z
2.8
G
1.0
X
0.7
Y
0.9
C
1.9
E
0.65
