PR3001 - PR3005
3.0A FAST RECOVERY RECTIFIER
Features
·
·
·
·
·
Diffused Junction
Fast Switching for High Efficiency
Surge Overload Rating to 150 A Peak
Low Reverse Leakage Current
Lead Free Finish, RoHS Compliant (Note 4)
A
B
A
C
Mechanical Data
·
·
·
·
·
·
·
·
Case: DO-201AD
Case Material: Molded Plastic. UL Flammability
Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020C
Terminals: Finish - Tin. Plated Leads Solderable per
e
3
MIL-STD-202, Method 208
Polarity: Cathode Band
Marking: Type Number
Ordering Information: See Page 3
Weight: 1.12 grams (approximate)
D
DO-201AD
Dim
A
B
C
D
Min
25.40
7.20
1.20
4.80
Max
¾
9.50
1.30
5.30
All Dimensions in mm
Maximum Ratings and Electrical Characteristics
Single phase, half wave, 60Hz, resistive or inductive load.
For capacitive load, derate current by 20%.
Characteristic
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage (Note 5)
RMS Reverse Voltage
Average Rectified Output Current
(Note 1)
@ T
A
= 90°C
Non-Repetitive Peak Forward Surge Current
8.3ms Single half sine-wave Superimposed on Rated Load
Forward Voltage
Peak Reverse Current
at Rated DC Blocking Voltage (Note 5)
Reverse Recovery Time (Note 3)
Typical Total Capacitance (Note 2)
Typical Thermal Resistance Junction to Ambient
Operating and Storage Temperature Range
Notes:
1.
2.
3.
4.
5.
@ T
A
= 25°C unless otherwise specified
Symbol
V
RRM
V
RWM
V
R
V
R(RMS)
I
O
I
FSM
V
FM
I
RM
t
rr
C
T
R
qJA
T
j,
T
STG
PR
3001
50
35
PR
3002
100
70
PR
3003
200
140
3.0
150
1.2
5.0
100
150
50
15
-65 to +150
PR
3004
400
280
PR
3005
600
420
Unit
V
V
A
A
V
mA
@ I
F
= 3.0A
@ T
A
= 25°C
@ T
A
= 100°C
250
ns
pF
°C/W
°C
Valid provided that leads are maintained at ambient temperature at a distance of 9.5mm from the case.
Measured at 1.0MHz and applied reverse voltage of 4.0V DC.
Measured with I
F
=0.5A, I
R
= 1.0A, I
rr
= 0.25A. See figure 5.
RoHS revision 13.2.2003. High temperature solder exemption applied, see
EU Directive Annex Note 7.
Short duration pulse test used to minimize self-heating effect.
DS26014 Rev. 4 - 2
1 of 3
www.diodes.com
PR3001 - PR3005
ã
Diodes Incorporated
I
(AV)
, AVERAGE FORWARD RECTIFIED
CURRENT (A)
Single phase half wave
Resistive or Inductive load
3
I
F
, INSTANTANEOUS FOWRARD CURRENT (A)
4
10
1.0
2
0.1
1
T
j
= 25 C
o
0
0
25
50
75
100
125
150
175
T
A
, AMBIENT TEMPERATURE (°C)

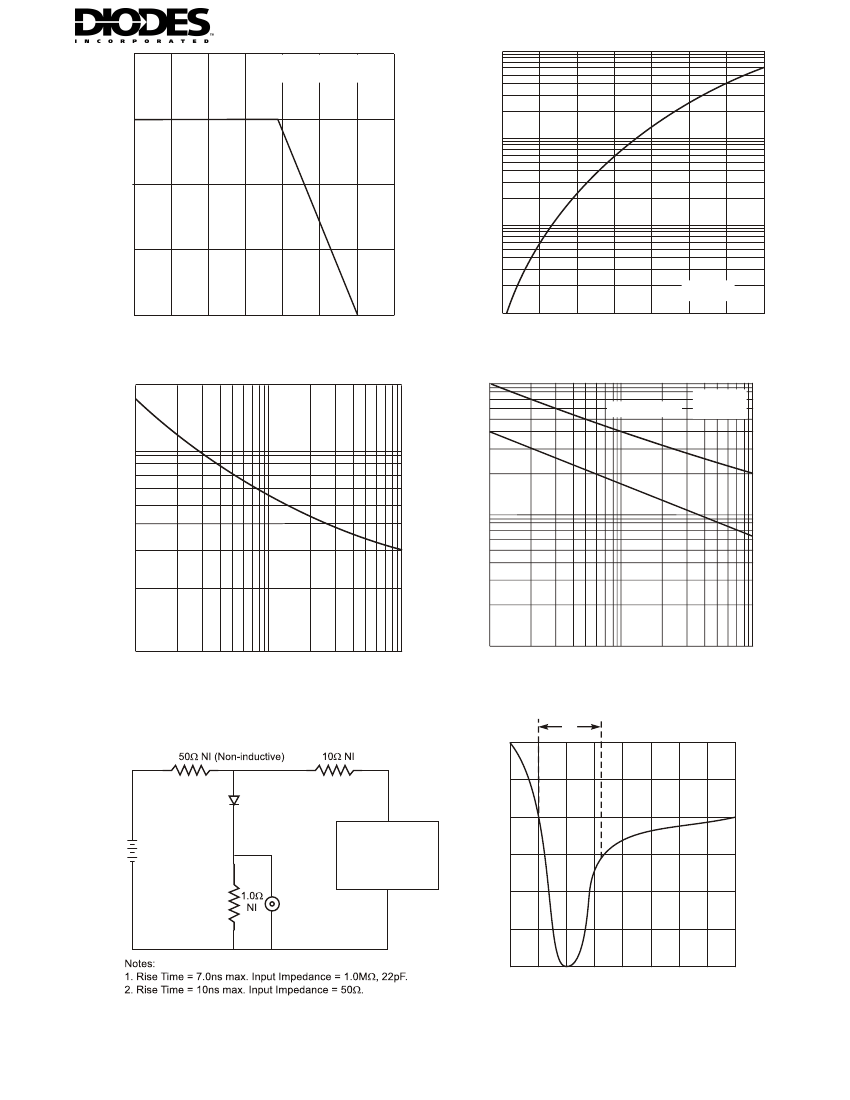

Fig. 1 Forward Derating Curve
0.01
0.6
0.8
1.0
1.2
V
F
, INSTANTANEOUS FORWARD VOLTAGE (V)
Fig. 2 Typical Forward Characteristics
200
I
FSM
, PEAK FORWARD SURGE CURRENT (A)
100
PR3001 - PR3004
T
j
= 25°C
f = 1.0MHz
100
C
T
, TOTAL CAPACITANCE (pF)
PR3005
10
10
1
10
NUMBER OF CYCLES AT 60Hz
Fig. 3 Peak Forward Surge Current
100
1
1
10
V
R
, REVERSE VOLTAGE (V)
Fig. 4 Typical Total Capacitance
t
rr
+0.5A
100
Device
Under
Test
(-)
Pulse
Generator
(Note 2)
0A
(+)
50V DC
Approx
-0.25A
(-)
Oscilloscope
(Note 1)
(+)
-1.0A
Set time base for 50/100 ns/cm
Fig. 5 Reverse Recovery Time Characteristic and Test Circuit
DS26014 Rev. 4 - 2
2 of 3
www.diodes.com
PR3001 - PR3005
Ordering Information
Device
PR3001-B
PR3001-T
PR3002-B
PR3002-T
PR3003-B
PR3003-T
PR3004-B
PR3004-T
PR3005-B
PR3005-T
Notes:
(Note 6)
Packaging
DO-201AD
DO-201AD
DO-201AD
DO-201AD
DO-201AD
DO-201AD
DO-201AD
DO-201AD
DO-201AD
DO-201AD
Shipping
500/Bulk
1.2K/Tape & Reel, 13-inch
500/Bulk
1.2K/Tape & Reel, 13-inch
500/Bulk
1.2K/Tape & Reel, 13-inch
500/Bulk
1.2K/Tape & Reel, 13-inch
500/Bulk
1.2K/Tape & Reel, 13-inch
6. For packaging details, visit our website at http://www.diodes.com/datasheets/ap02008.pdf.
