CAT24C04C4ATR datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> storage> CAT24C04C4ATR

CAT24C04C4ATR: DescriptionEEPROM 4KB I2C SER EEPROM; Categorystorage storage; File Size183KB，23 Pages; ManufacturerON Semiconductor; Websitehttp://www.onsemi.cn

Download Datasheet Parametric Compare View All

CAT24C04C4ATR Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	CAT24C04C4ATR	-	-	View	Buy Now

CAT24C04C4ATR Overview

EEPROM 4KB I2C SER EEPROM

CAT24C04C4ATR Parametric

Parameter Name	Attribute value
Brand Name	ON Semiconductor
Is it lead-free?	Lead free
Parts packaging code	BGA
package instruction	WLCSP-4
Contacts	4
Manufacturer packaging code	567DC
Reach Compliance Code	compliant
Factory Lead Time	9 weeks
Maximum clock frequency (fCLK)	0.4 MHz
Data retention time - minimum	100
Durability	1000000 Write/Erase Cycles
I2C control byte	1010000R
JESD-30 code	R-PBGA-B4
JESD-609 code	e1
length	0.86 mm
memory density	4096 bit
Memory IC Type	EEPROM
memory width	8
Humidity sensitivity level	1
Number of functions	1
Number of terminals	4
word count	512 words
character code	512
Operating mode	SYNCHRONOUS
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
organize	512X8
Package body material	PLASTIC/EPOXY
encapsulated code	VFBGA
Encapsulate equivalent code	BGA4,2X2,16
Package shape	RECTANGULAR
Package form	GRID ARRAY, VERY THIN PROFILE, FINE PITCH
Parallel/Serial	SERIAL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	1.8/5 V
Certification status	Not Qualified
Maximum seat height	0.38 mm
Serial bus type	I2C
Maximum standby current	0.000001 A
Maximum slew rate	0.002 mA
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	1.7 V
Nominal supply voltage (Vsup)	3.3 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Silver/Copper (Sn/Ag/Cu)
Terminal form	BALL
Terminal pitch	0.4 mm
Terminal location	BOTTOM
Maximum time at peak reflow temperature	NOT SPECIFIED
width	0.84 mm
Maximum write cycle time (tWC)	5 ms
Base Number Matches	1

Preview

Download Datasheet

View All

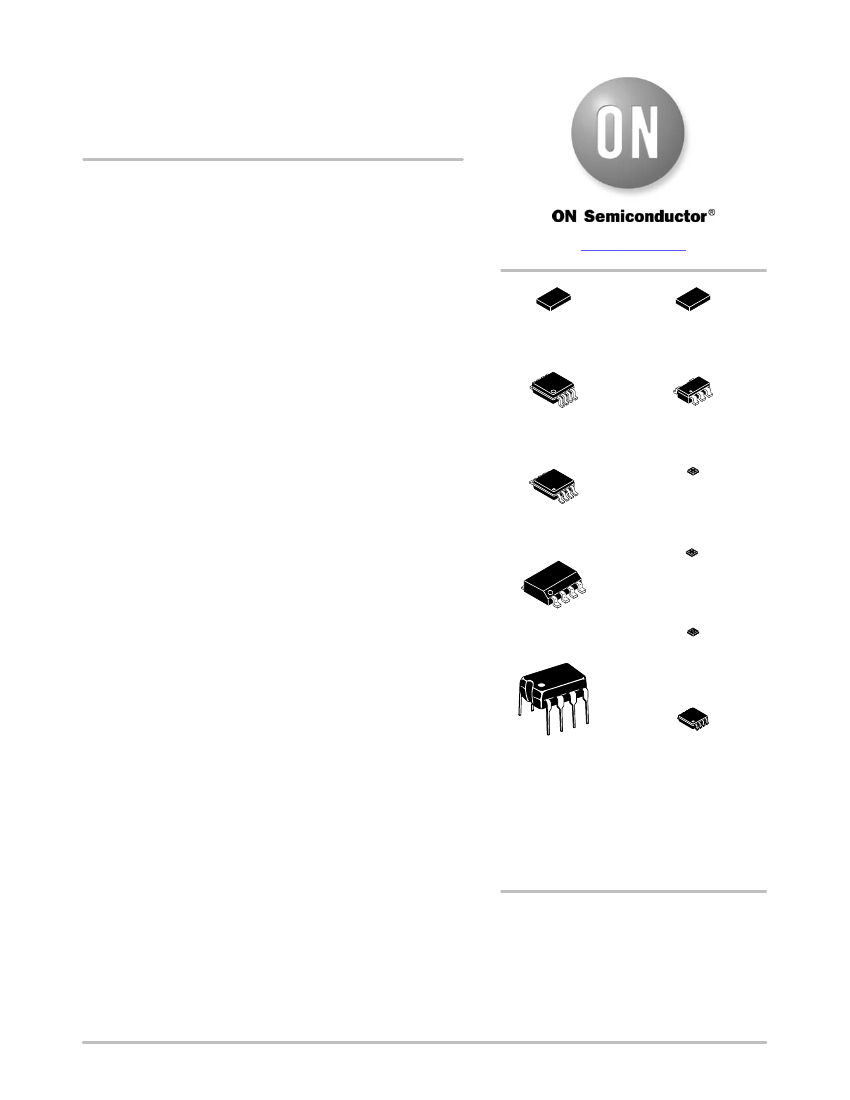

CAT24C01, CAT24C02,

CAT24C04, CAT24C08,

CAT24C16

1-Kb, 2-Kb, 4-Kb, 8-Kb and

16-Kb I

C CMOS Serial

EEPROM

Description

www.onsemi.com

The CAT24C01/02/04/08/16 are 1−Kb, 2−Kb, 4−Kb, 8−Kb and

16−Kb respectively CMOS Serial EEPROM devices organized

internally as 8/16/32/64 and 128 pages respectively of 16 bytes each.

All devices support both the Standard (100 kHz) as well as Fast

(400 kHz) I

C protocol.

Data is written by providing a starting address, then loading 1 to 16

contiguous bytes into a Page Write Buffer, and then writing all data to

non−volatile memory in one internal write cycle. Data is read by

providing a starting address and then shifting out data serially while

automatically incrementing the internal address count.

External address pins make it possible to address up to eight

CAT24C01 or CAT24C02, four CAT24C04, two CAT24C08 and one

CAT24C16 device on the same bus.

Features

TDFN−8*

VP2 SUFFIX

CASE 511AK

UDFN8−EP

HU4 SUFFIX

CASE 517AZ

MSOP−8

Z SUFFIX

CASE 846AD

TSOT−23

TD SUFFIX

CASE 419AE

•

Supports Standard and Fast I

C Protocol

1.7 V to 5.5 V Supply Voltage Range

16−Byte Page Write Buffer

Hardware Write Protection for Entire Memory

Schmitt Triggers and Noise Suppression Filters on I

C Bus Inputs

(SCL and SDA)

Low power CMOS Technology

More than 1,000,000 Program/Erase Cycles

100 Year Data Retention

Industrial and Extended Temperature Range

These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS

Compliant

TSSOP−8

Y SUFFIX

CASE 948AL

WLCSP−4***

C4A SUFFIX

CASE 567DC

WLCSP−4***

C4U SUFFIX

CASE 567NX

SOIC−8

W SUFFIX

CASE 751BD

WLCSP−5***

C5A SUFFIX

CASE 567DD

PDIP−8

L SUFFIX

CASE 646AA

US8**

US SUFFIX

CASE 493

This document contains information on some products that are still under development.

ON Semiconductor reserves the right to change or discontinue these products without

notice.

* The TDFN (VP2) package is not recommended for

new designs.

** Preliminary, please contact factory for availability.

*** WLCSP are available for the CAT24C04,

CAT24C08 and CAT24C16 only.

ORDERING INFORMATION

See detailed ordering and shipping information in the package

dimensions section on page 21 of this data sheet.

Semiconductor Components Industries, LLC, 2016

November, 2016 − Rev. 31

Publication Order Number:

CAT24C01/D

CAT24C04C4ATR Related Products

	CAT24C04C4ATR	CAT24C08C4CTR	CAT24C08C5ATR
Description	EEPROM 4KB I2C SER EEPROM	EEPROM 8KB I2C SER EEPROM	EEPROM 8KB I2C SER EEPROM
Brand Name	ON Semiconductor	ON Semiconductor	ON Semiconductor
Is it lead-free?	Lead free	Lead free	Lead free
Parts packaging code	BGA	BGA	BGA
package instruction	WLCSP-4	WLCSP-4	WLCSP-5
Contacts	4	4	5
Manufacturer packaging code	567DC	567DC	567DD
Reach Compliance Code	compliant	compliant	compliant
Factory Lead Time	9 weeks	4 weeks	10 weeks
Maximum clock frequency (fCLK)	0.4 MHz	0.4 MHz	0.4 MHz
Data retention time - minimum	100	100	100
Durability	1000000 Write/Erase Cycles	1000000 Write/Erase Cycles	1000000 Write/Erase Cycles
I2C control byte	1010000R	10100MMR	10100MMR
JESD-30 code	R-PBGA-B4	R-PBGA-B4	R-PBGA-B5
length	0.86 mm	0.86 mm	0.86 mm
memory density	4096 bit	8192 bit	8192 bit
Memory IC Type	EEPROM	EEPROM	EEPROM
memory width	8	8	8
Number of functions	1	1	1
Number of terminals	4	4	5
word count	512 words	1024 words	1024 words
character code	512	1000	1000
Operating mode	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS
Maximum operating temperature	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C
organize	512X8	1KX8	1KX8
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	VFBGA	VFBGA	VFBGA
Encapsulate equivalent code	BGA4,2X2,16	BGA4,2X2,16	BGA5,3X3,10/6
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	GRID ARRAY, VERY THIN PROFILE, FINE PITCH	GRID ARRAY, VERY THIN PROFILE, FINE PITCH	GRID ARRAY, VERY THIN PROFILE, FINE PITCH
Parallel/Serial	SERIAL	SERIAL	SERIAL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
power supply	1.8/5 V	1.8/5 V	1.8/5 V
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	0.38 mm	0.38 mm	0.39 mm
Serial bus type	I2C	I2C	I2C
Maximum standby current	0.000001 A	0.000001 A	0.000001 A
Maximum slew rate	0.002 mA	0.002 mA	0.002 mA
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	1.7 V	1.7 V	1.7 V
Nominal supply voltage (Vsup)	3.3 V	3.3 V	3.3 V
surface mount	YES	YES	YES
technology	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal form	BALL	BALL	BALL
Terminal pitch	0.4 mm	0.4 mm	0.3 mm
Terminal location	BOTTOM	BOTTOM	BOTTOM
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
width	0.84 mm	0.84 mm	0.84 mm
Maximum write cycle time (tWC)	5 ms	5 ms	5 ms
JESD-609 code	e1	e1	-
Humidity sensitivity level	1	1	-
Terminal surface	Tin/Silver/Copper (Sn/Ag/Cu)	Tin/Silver/Copper (Sn/Ag/Cu)	-
Maker	-	ON Semiconductor	ON Semiconductor
