PDU620CT
Green
6A DUAL ULTRA-FAST RECOVERY RECTIFIER
PowerDI5
Product Summary
(@T
A
= +25°C)
V
RRM
(V)
200
I
O
(A)
6
V
F
Max (V)
1.2
I
R
Max (μA)
5
Features and Benefits
Glass Passivated Die Construction
Ultra-Fast Recovery Time for High Efficiency
Low Leakage Current
High Forward Surge Current Capability
Lead-Free Finish; RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
NEW PRODUCT
Description
PDU620CT, a 6.0A Glass Passivated Dual Ultra-Fast Recovery
®
Rectifier in our thermally efficient PowerDI 5 package, offers ultra-fast
recovery time for high efficiency, high forward surge current for use in
high frequency inverters, freewheeling and polarity protection
applications.
Mechanical Data
Case: PowerDI5
Case Material: Molded Plastic, “Green” Molding Compound.
UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Finish – Matte Tin Annealed over Copper Leadframe.
Solderable per MIL-STD-202, Method 208
Weight: 0.096 grams (Approximate)
Top View
Bottom View
Ordering Information
(Note 4)
Part Number
PDU620CT-13
Notes:
Compliance
Commercial
Case
PowerDI5
Packaging
5,000/Tape & Reel
1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at http://www.diodes.com/products/packages.html.
Marking Information
PowerDI is a registered trademark of Diodes Incorporated.
PDU620CT
Document number: DS30622 Rev. 5 - 2
1 of 6
www.diodes.com
March 2016
© Diodes Incorporated
PDU620CT
Maximum Ratings
(@T
A
= +25°C, unless otherwise specified.)
Single phase, half wave, 60Hz, resistive or inductive load.
For capacitive load, derate current by 20%.
Characteristic
Symbol
V
RRM
V
RWM
V
R
V
R(RMS)
(Per element)
(Total device)
I
O
I
FSM
Value
200
141
3
6
90
Unit
V
V
A
A
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
RMS Reverse Voltage
Average Rectified Output Current (See Figure 4)
NEW PRODUCT
Non-Repetitive Peak Forward Surge Current
8.3ms Single Half Sine-Wave Superimposed on Rated Load
Thermal Characteristics
Characteristic
Thermal Resistance Junction to Soldering Point
Thermal Resistance Junction to Ambient Air (Note 5)
Thermal Resistance Junction to Ambient Air (Note 6)
Thermal Resistance Junction to Ambient Air (Note 7)
Operating Temperature Range
Storage Temperature Range
T
A
= +25°C
T
A
= +25°C
T
A
= +25°C
Symbol
R
θJS
R
θJA
R
θJA
R
θJA
T
J
T
STG
Typ
80
65
45
-65 to +150
-65 to +150
Max
3.0
Unit
°C/W
°C/W
°C/W
°C/W
°C
°C
Electrical Characteristics
(@T
A
= +25°C, unless otherwise specified.)
Characteristic
Minimum Reverse Breakdown Voltage (Note 8)
Maximum Forward Voltage (Per element)
Maximum Reverse Leakage Current (Per element)
(Note 8)
Maximum Reverse Recovery Time
Notes:
Symbol
V
(BR)R
V
FM
Value
200
1.00
0.96
1.20
1 13
5
250
25
Unit
V
V
Test Condition
I
R
= 5µA
I
F
= 3A, T
S
= +25°C
I
F
= 3A, T
S
= +125°C
I
F
= 6A, T
S
= +25°C
I
F
= 6A, T
S
= +125°C
T
S
= +25°C, V
R
= 200V
T
S
= +125°C, V
R
= 200V
I
F
= 0.5A, I
R
= 1.0A
I
RR

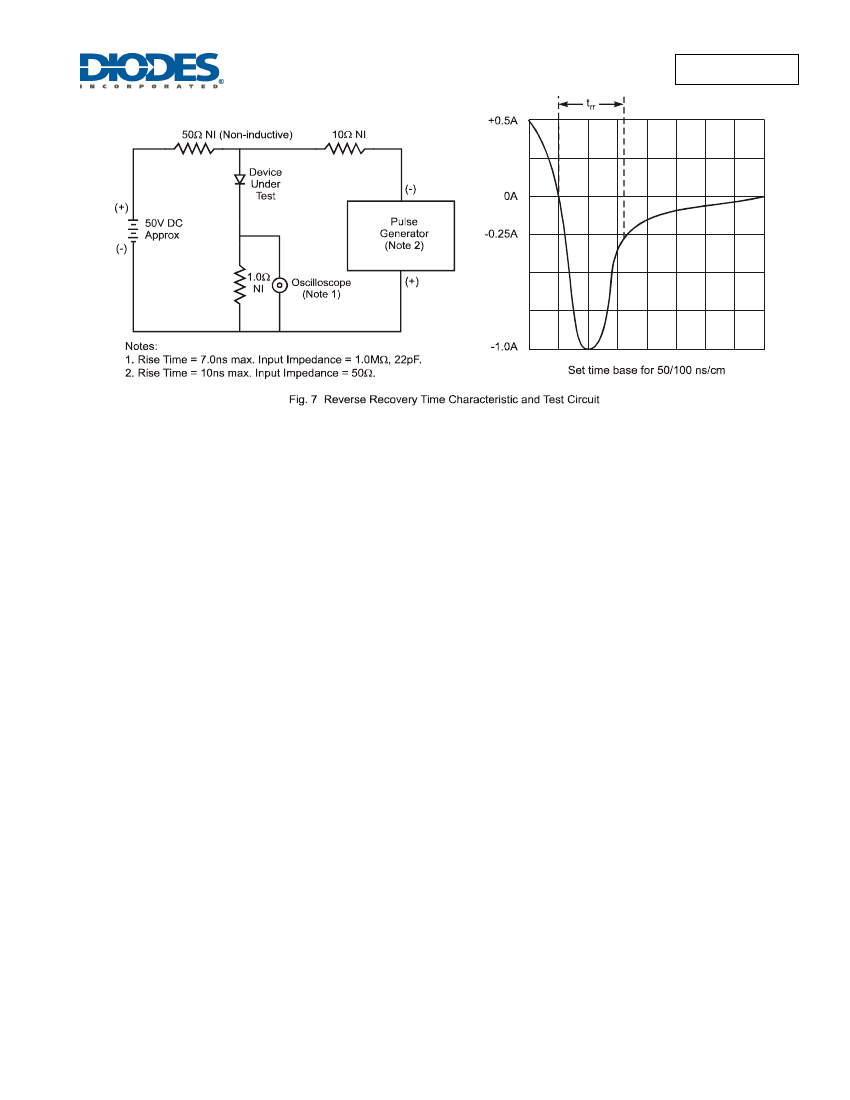

= 0.25A (See Figure 7)
I
RM
t
RR
µA
ns
5. FR-4 PCB, 2 oz. Copper, minimum recommended pad layout per http://www.diodes.com/package-outlines.html.
6. Polymide PCB, 2oz. Copper, minimum recommended pad layout per http://www.diodes.com/package-outlines.html.
7. Polymide PCB, 2oz. Copper. Cathode pad dimensions 9.4mm x 7.2mm. Anode pad dimensions 2.7mm x 1.6mm.
8. Short duration pulse test used to minimize self-heating effect.
PDU620CT
Document number: DS30622 Rev. 5 - 2
2 of 6
www.diodes.com
March 2016
© Diodes Incorporated
PDU620CT
I
F
, INSTANTANEOUS FORWARD CURRENT (A)
100
10
1
T
j
= 150°C
1,000
100
T
j
= 150°C
10
T
j
= 125°C
T
j
= 125°C
T
j
= 85°C
NEW PRODUCT
100m
10m
1m
1
T
j
= 85°C
T
j
= 25°C
0.1
T
j
= 25°C
0.01
T
j
= -65°C
T
j
= -65°C
0
0.4
0.8
1.2
1.6
0.001
0
50
100
150
200
V
R
, INSTANTANEOUS REVERSE VOLTAGE (V)
Fig. 2 Typical Reverse Characteristics
3.75
V
F
, INSTANTANEOUS FORWARD VOLTAGE (V)
Fig. 1 Typical Forward Characteristics, per element
240
210
f = 1MHz
I
F
, DC FORWARD CURRENT (A)
C
T
, TOTAL CAPACITANCE (pF)
180
150
120
90
60
30
0
0
10
20
30
40
3.0
Note 6
2.25
Note 5
1.5
0.75
0
0
25
50
75
100
125
150
175
T
A
, AMBIENT TEMPERATURE (°C)
Fig. 4 DC Forward Current Derating, per element
V
R
, REVERSE VOLTAGE (V)
Fig. 3 Typical Total Capacitance vs. Reverse Voltage,
per element
6
250
I
PK
I
AV
= 1 (DC)
P
F
, FORWARD POWER DISSIPATION (W)
Note 5
4.5
V
R
, DC REVERSE VOLTAGE (V)
0
1.5
3
4.5
6
7.5
200
150
3
100
1.5
50
0
I
F
, FORWARD CURRENT (A)
Fig. 5 Forward Power Dissipation, per element
0
0
50
100
150
200
T
A
, DERATED AMBIENT TEMPERATURE (°C)
Fig. 6 Operating Temperature Derating
PDU620CT
Document number: DS30622 Rev. 5 - 2
3 of 6
www.diodes.com
March 2016
© Diodes Incorporated
PDU620CT
NEW PRODUCT
PDU620CT
Document number: DS30622 Rev. 5 - 2
4 of 6
www.diodes.com
March 2016
© Diodes Incorporated
PDU620CT
Package Outline Dimensions
Please see http://www.diodes.com/package-outlines.html for the latest version.
PowerDI5
NEW PRODUCT
E1
E1/2
e
A1
2X b1
E/2
E
A2
10
°±
1°
10
°±
b2 D
A
5°
±1
L1
E2
L1
W
D2
PowerDI5
Dim
Min
Max
Typ
A
1.05 1.15
1.10
A1
0.00 0.05
--
A2
0.33 0.43 0.381
b1
0.80 0.99
0.89
b2
1.70 1.88
1.78
D
3.90 4.05 3.966
D2
--
--
3.054
E
6.40 6.60 6.504
e
--
--
1.84
E1
5.30 5.45
5.37
E2
--
--
3.549
L
0.75 0.95
0.85
L1
0.50 0.65
0.57
W
1.10 1.41 1.255
All Dimensions in mm
1°
°
Suggested Pad Layout
Please see http://www.diodes.com/package-outlines.html for the latest version.
5°
±
1°
L
L
PowerDI5
X1
Y1
Dimensions
C
G
X
X1
Y
Y1
Value (in mm)
1.840
0.852
1.390
3.360
1.400
4.860
G
Y
X
C
PDU620CT
Document number: DS30622 Rev. 5 - 2
5 of 6
www.diodes.com
March 2016
© Diodes Incorporated
