504618-1010 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 504618-1010

504618-1010: DescriptionBoard to Board & Mezzanine Connectors 0.35mm Pitch B/B Rec Assy 10Ckt; CategoryThe connector The connector; File Size29KB，1 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

504618-1010 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	504618-1010	-	-	View	Buy Now

504618-1010 Overview

Board to Board & Mezzanine Connectors 0.35mm Pitch B/B Rec Assy 10Ckt

504618-1010 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
ECCN code	EAR99
Board mount options	FITTING NAIL
body width	0.079 inch
subject depth	0.024 inch
body length	0.154 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	GOLD OVER NICKEL
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	80 mΩ
Dielectric withstand voltage	350VAC V
Durability	30 Cycles
Insulation resistance	100000000 Ω
Insulator color	BLACK
insulator material	LIQUID CRYSTAL POLYMER (LCP)
Manufacturer's serial number	504618
Plug contact pitch	0.014 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	1.905 mm
polarization key	POLARIZED HOUSING
Rated current (signal)	0.3 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	0.3556 mm
Termination type	SURFACE MOUNT
Total number of contacts	10
Base Number Matches	1

Preview

Download Datasheet

View All

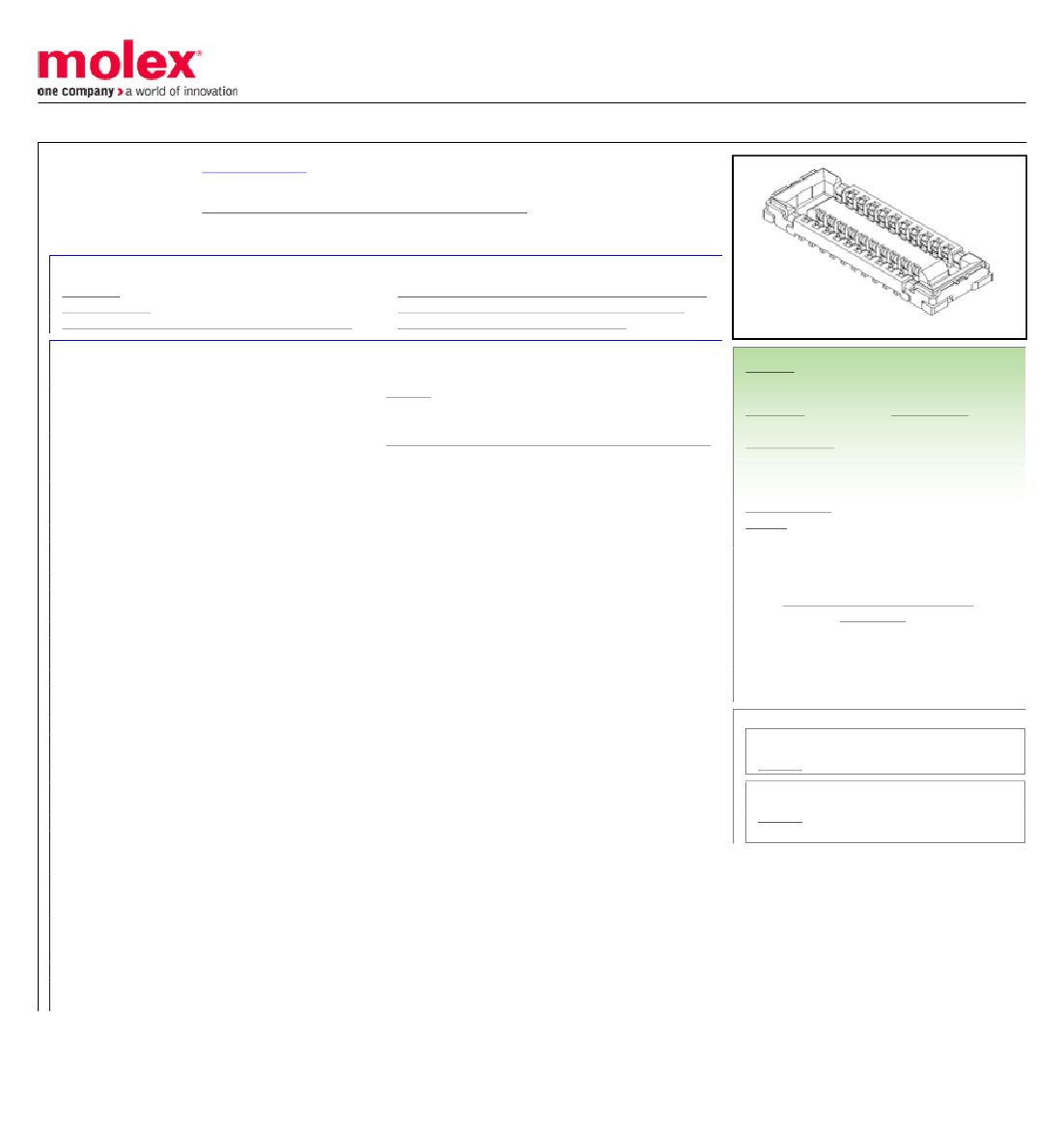

This document was generated on 02/27/2018

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

5046181010

Active

SlimStack™ 0.35mm pitch Board-to-Board Connectors

0.35mm Pitch SlimStack SSB6 Board-to-Board Receptacle, Surface Mount, Dual Row,

Vertical, 0.60mm Stacking Height, 2.00mm Width, 10 Circuits

Documents:

3D Model

Drawing (PDF)

Product Specification PS-504622-001-001 (PDF)

General

Product Family

Series

Application

Comments

Overview

Product Name

UPC

Physical

Circuits (Loaded)

Circuits (maximum)

Color - Resin

Durability (mating cycles max)

Glow-Wire Capable

Mated Height

Material - Metal

Material - Plating Mating

Material - Plating Termination

Net Weight

Number of Rows

Orientation

PCB Retention

Packaging Type

Pitch - Mating Interface

Polarized to Mating Part

Polarized to PCB

Stackable

Temperature Range - Operating

Termination Interface: Style

Electrical

Current - Maximum per Contact

Voltage - Maximum

Material Info

Reference - Drawing Numbers

Application Specification

Packaging Specification

Product Specification

Sales Drawing

Application Specification AS-504618-001-001 (PDF)

Packaging Specification 5046189200-200 (PDF)

RoHS Certificate of Compliance (PDF)

Series image - Reference only

EU ELV

Not Relevant

EU RoHS

China RoHS

Compliant

REACH SVHC

Not Contained Per -

ED/30/2017 (7 July

2017)

Halogen-Free

Status

Low-Halogen

Need more information on product

environmental compliance?

Email productcompliance@molex.com

Please visit the Contact Us section for any

non-product compliance questions.

China ROHS

ELV

RoHS Phthalates

Green Image

Not Relevant

Not Contained

PCB Receptacles

504618

Board-to-Board

PCB Retention via Solder Tab

SlimStack™ 0.35mm pitch Board-to-Board Connectors

SlimStack

887191687667

Black

0.60mm

Copper Alloy

Gold

15.685/mg

Vertical

Yes

Embossed Tape on Reel

0.35mm

Yes

-40°C to +85°C

Surface Mount

0.3A

50V

Search Parts in this Series

504618 Series

Mates With

504622 0.35mm Pitch SlimStack SSB6

Board-to-Board Plug Connector

AS-504618-001-001

5046189200-200

PS-504622-001-001

SD-504618-001, SD-504618-002

This document was generated on 02/27/2018

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
