30473 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 30473

30473: DescriptionHeaders & Wire Housings STL140/3 Rightangle; CategoryThe connector; File Size21KB，1 Pages; ManufacturerAltech; Websitehttp://www.altechcorp.com/

Download Datasheet Parametric View All

30473 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	30473	-	-	View	Buy Now

30473 Overview

Headers & Wire Housings STL140/3 Rightangle

30473 Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Altech
Product Category	Headers & Wire Housings
RoHS	In Transition
Product	Headers
Type	Breakaway
Number of Positions	3 Position
Pitch	5 mm
Number of Rows	1 Row
Mounting Style	Straight Pin
Termination Style	Through Hole
Mounting Angle	Right Angle
Contact Gender	Pin (Male)
Accessory Type	-
Contact Type	-
Current Rating	10 A
Housing Material	Polyamide (PA)
Voltage Rating	250 V
Row Spacing	-
NumOfPackaging	1
Factory Pack Quantity	100

Preview

Download Datasheet

View All

HOME

FIND IT

PLUGGABLE

PRINTED CIRCUIT

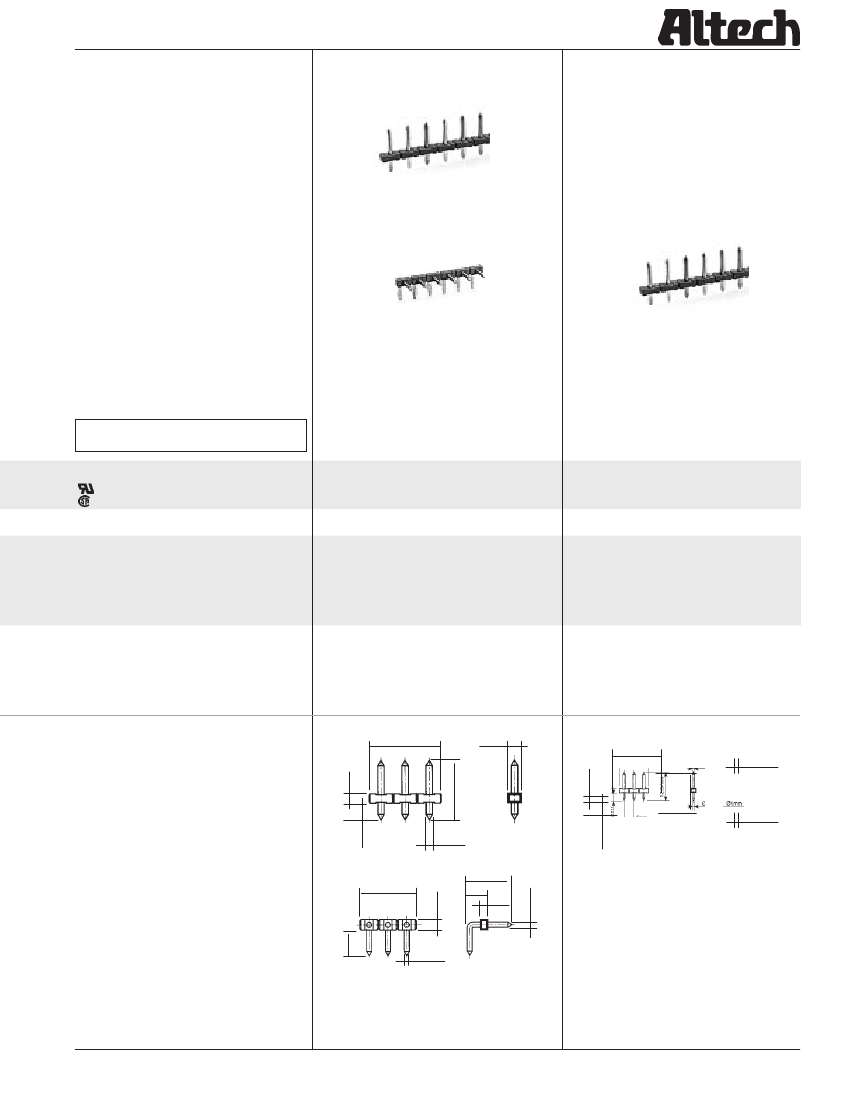

US Pin Spacing

Pin Headers

STL(Z)130, STL(Z)132 Straight and

STL(Z)140 Right Angle Pin Headers are

used with the highly cost effective

Tubular Screw Clamp Plugs, Type

AK(Z)130 and AK(Z)132, in lighter duty

applications where infrequent wire to

board connections must be made. Type

STL(Z)132 features a reduced pin

diameter of 1.0mm (.0394") on the

soldering side.

Open Pin Headers are supplied in strips

up to 6 poles. The Pin Header strip

features breakaway construction that

eliminates cutting or sawing.

• Straight and Right Angle

• Strip Material: Polyamide 6.6

• Standard Color: Gray

Blocks with metric pin spacing

begin on page 132.

Ratings

IEC/VDE

Smaller pin diameter for 1.0mm (.0394")

through-holes

STL(Z)130

Straight Pin Header

STL(Z)140

Right Angle Pin Header

STL(Z)132

Straight Pin Header

Pin Spacing 5mm (.197)

Use with AK(Z)130, AK(Z)132 Plugs

Current

10A

Voltage

250V

300V

Length L

mm (in.)

10.00

15.00

20.00

25.00

30.00

( .39)

( .59)

( .79)

( .99)

(1.18)

Std. Pk.

100

Use with AK(Z)130, AK(Z)132 Plugs

Current

10A

Type

STL(Z)132/2

STL(Z)132/3

STL(Z)132/4

STL(Z)132/5

STL(Z)132/6

Cat. No.

32.502

32.503

32.504

32.505

32.506

Length L

mm (in.)

10.00

15.00

20.00

25.00

30.00

( .39)

( .59)

( .79)

( .99)

(1.18)

Voltage

250V

300V

Std. Pk.

100

(File No. E101811)

(File No. LR68503)

Ordering Information

Straight Pin Header,

US (Inch) Pin Spacing

No. of

Poles

Type

STL(Z)130/2

STL(Z)130/3

STL(Z)130/4

STL(Z)130/5

STL(Z)130/6

Cat. No.

30.352

30.353

30.354

30.355

30.356

Right Angle Pin Header,

US (Inch) Pin Spacing

STL(Z)140/2

STL(Z)140/3

STL(Z)140/4

STL(Z)140/5

STL(Z)140/6

30.472

30.473

30.474

30.475

30.476

10.00 ( .39)

15.00 ( .59)

20.00 ( .79)

25.00 ( .99)

30.00 (1.18)

100

2.8mm

2mm

12.5mm

Ø1.3mm

®®

2mm

12.5mm

® ®

Ø1.3mm

STL(Z)130

Dimensions

1.00

1.30

2.00

2.80

3.50

in.

0.039

0.051

0.079

0.110

0.138

5.50

6.00

11.80

12.50

in.

0.217

0.236

0.465

0.492

2.8mm

6mm

® ®

Ø1.3mm

11.8mm

5.5mm

2mm

® ®

To insure proper pin positioning, install header into AK(Z)130

or AK(Z)132 Plug before soldering into board.

Appropriate for use in US (inch) pin spacings up to the

number of poles shown providing minimum PC Board

Hole Size is 1.5mm(.059 in.)

Appropriate for use in US (inch) pin spacings up to the

number of poles shown providing minimum PC Board

Hole Size is 1.5mm(.059 in.)

Pending, STL(Z)140 and STL(Z)132

Altech Corp.

• 35 Royal Road • Flemington NJ 08822-6000 • Phone (908) 806-9400 • Fax (908) 806-9490

3.5mm

® ®

Ø1.0mm

3.5mm

121
