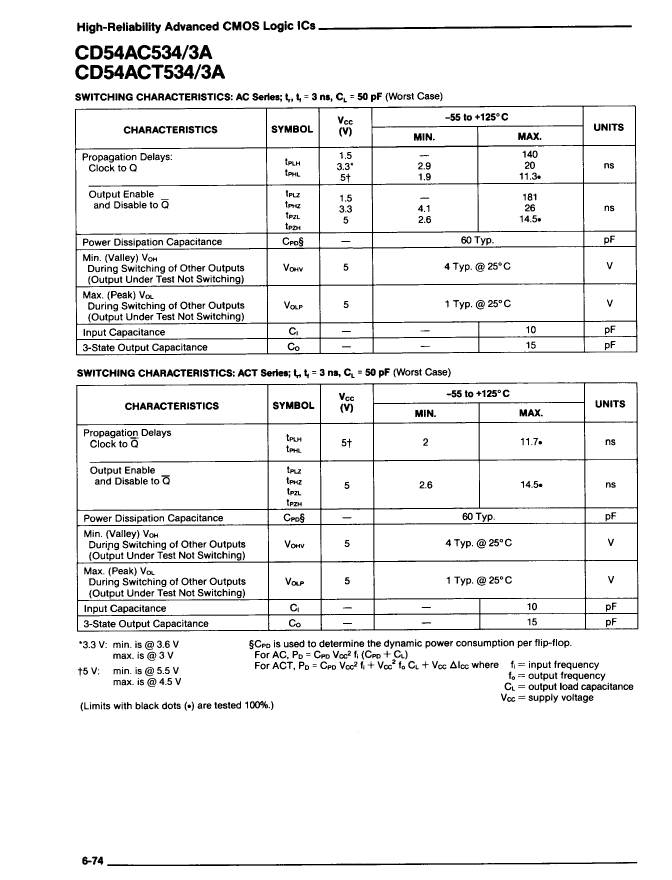

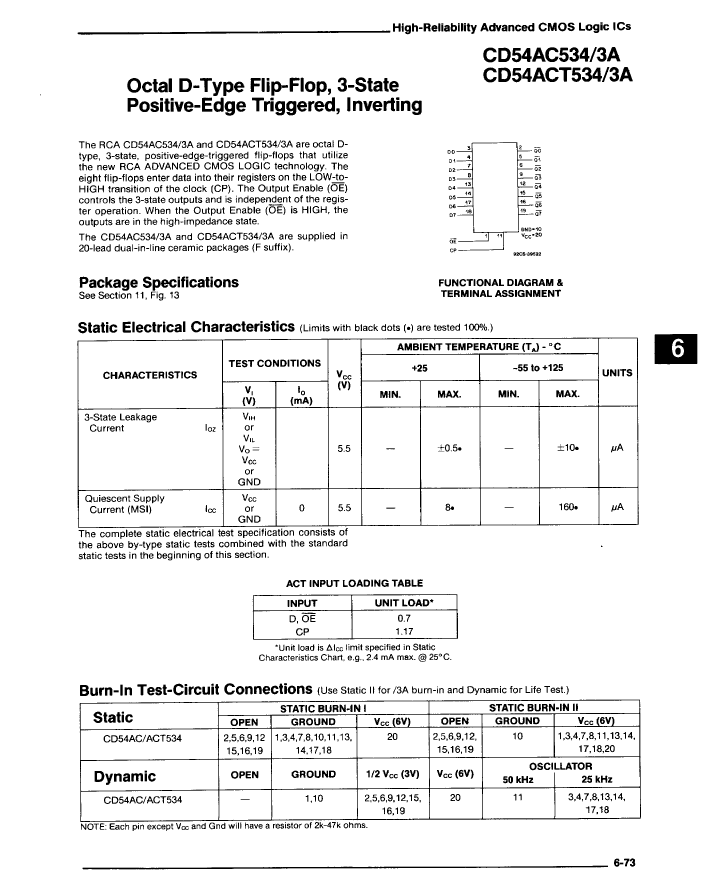

CD74AC534EX: DescriptionD Flip-Flop, 8-Func, Positive Edge Triggered, CMOS, PDIP20,; Categorylogic logic; File Size115KB，2 Pages; ManufacturerRCA

Download Datasheet Parametric Compare View All

CD74AC534EX Overview

D Flip-Flop, 8-Func, Positive Edge Triggered, CMOS, PDIP20,

CD74AC534EX Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	RCA
package instruction	DIP, DIP20,.3
Reach Compliance Code	unknown
JESD-30 code	R-PDIP-T20
JESD-609 code	e0
Load capacitance (CL)	50 pF
Logic integrated circuit type	D FLIP-FLOP
Maximum Frequency@Nom-Sup	89000000 Hz
MaximumI(ol)	0.024 A
Number of functions	8
Number of terminals	20
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	3-STATE
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP20,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	3.3/5 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Trigger type	POSITIVE EDGE
Base Number Matches	1

Preview

Download Datasheet

View All

CD74AC534EX Related Products

	CD74AC534EX	CD74AC534E	CD54AC534F3/A	CD54AC534F
Description	D Flip-Flop, 8-Func, Positive Edge Triggered, CMOS, PDIP20,	D Flip-Flop, 8-Func, Positive Edge Triggered, CMOS, PDIP20,	D Flip-Flop, 8-Func, Positive Edge Triggered, CMOS, CDIP20	D Flip-Flop, 8-Func, Positive Edge Triggered, CMOS, CDIP20
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible
Maker	RCA	RCA	RCA	RCA
package instruction	DIP, DIP20,.3	DIP, DIP20,.3	DIP, DIP20,.3	DIP, DIP20,.3
Reach Compliance Code	unknown	unknown	unknown	unknown
JESD-30 code	R-PDIP-T20	R-PDIP-T20	R-XDIP-T20	R-XDIP-T20
JESD-609 code	e0	e0	e0	e0
Load capacitance (CL)	50 pF	50 pF	50 pF	50 pF
Logic integrated circuit type	D FLIP-FLOP	D FLIP-FLOP	D FLIP-FLOP	D FLIP-FLOP
Maximum Frequency@Nom-Sup	89000000 Hz	89000000 Hz	89000000 Hz	89000000 Hz
MaximumI(ol)	0.024 A	0.024 A	0.024 A	0.024 A
Number of functions	8	8	8	8
Number of terminals	20	20	20	20
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	CERAMIC	CERAMIC
encapsulated code	DIP	DIP	DIP	DIP
Encapsulate equivalent code	DIP20,.3	DIP20,.3	DIP20,.3	DIP20,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE
power supply	3.3/5 V	3.3/5 V	3.3/5 V	3.3/5 V
surface mount	NO	NO	NO	NO
technology	CMOS	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL
Trigger type	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE
Certification status	-	Not Qualified	Not Qualified	Not Qualified
