Z84C2006FEC datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> Z84C2006FEC

Z84C2006FEC: DescriptionMicroprocessors - MPU 6MHz Z80 CMOS PIO XT; CategoryThe embedded processor and controller Microcontrollers and processors; File Size339KB，16 Pages; ManufacturerZilog, Inc.; Websitehttps://www.zilog.com/

Download Datasheet Parametric Compare View All

Z84C2006FEC Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	Z84C2006FEC	-	-	View	Buy Now

Z84C2006FEC Overview

Microprocessors - MPU 6MHz Z80 CMOS PIO XT

Z84C2006FEC Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Zilog, Inc.
Objectid	1450432860
Parts packaging code	QFP
package instruction	QFP, QFP44,.57SQ,32
Contacts	44
Reach Compliance Code	unknown
ECCN code	EAR99
compound_id	3533417
maximum clock frequency	6.17 MHz
External data bus width	8
JESD-30 code	S-PQFP-G44
JESD-609 code	e0
length	10 mm
Humidity sensitivity level	3
Number of I/O lines	16
Number of ports	2
Number of terminals	44
Maximum operating temperature	100 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	QFP
Encapsulate equivalent code	QFP44,.57SQ,32
Package shape	SQUARE
Package form	FLATPACK
Peak Reflow Temperature (Celsius)	225
power supply	5 V
Certification status	Not Qualified
Maximum seat height	2.5 mm
Maximum slew rate	6 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	0.8 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	30
width	10 mm
uPs/uCs/peripheral integrated circuit type	PARALLEL IO PORT, GENERAL PURPOSE

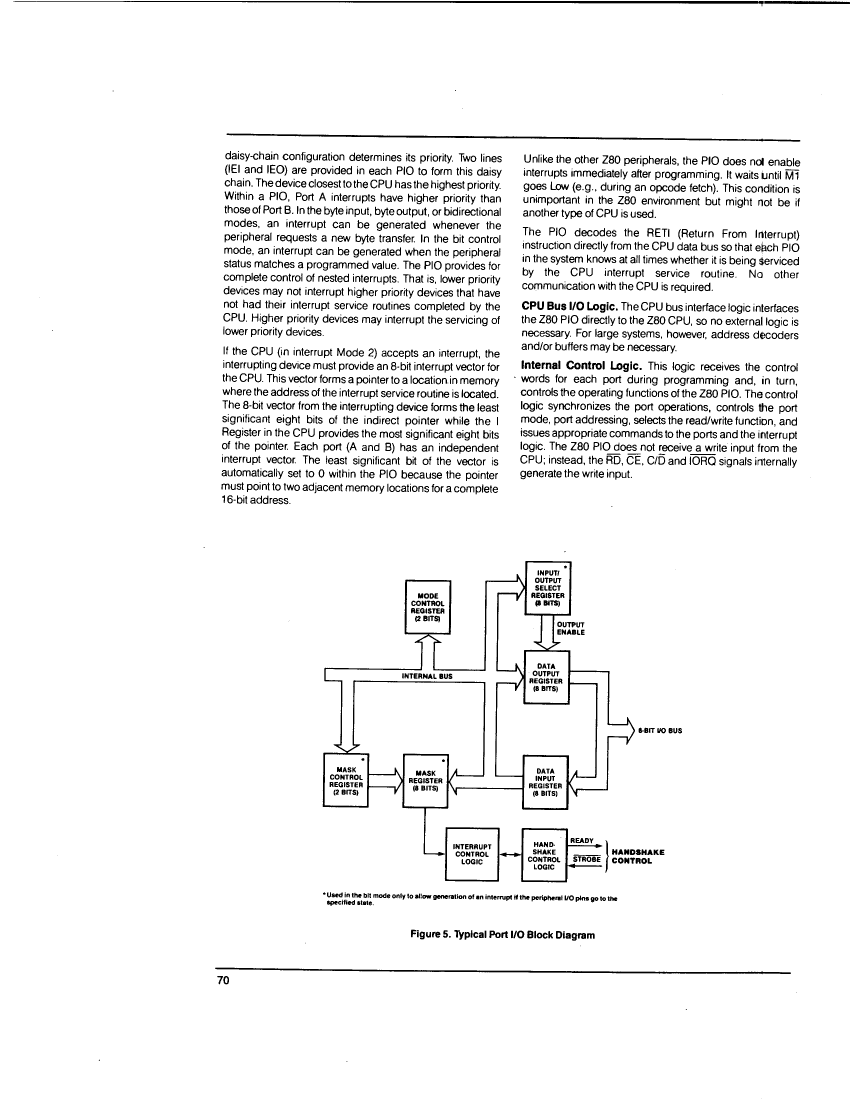

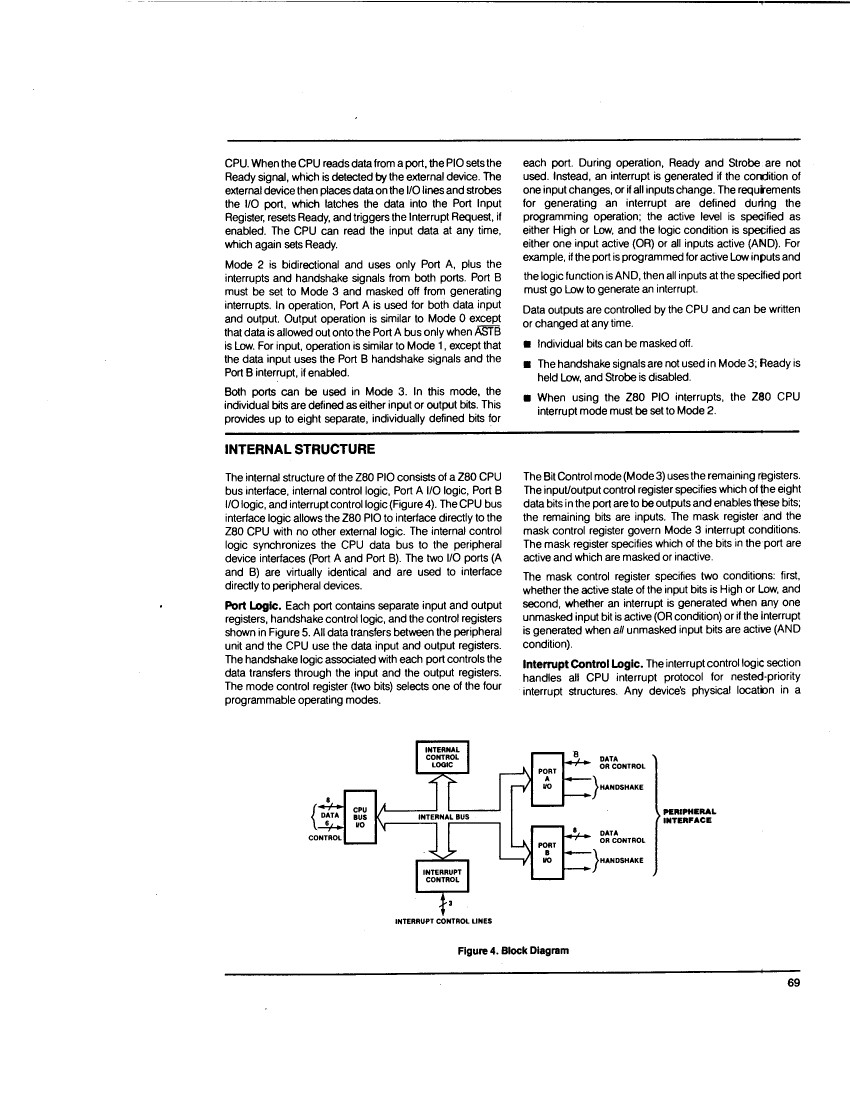

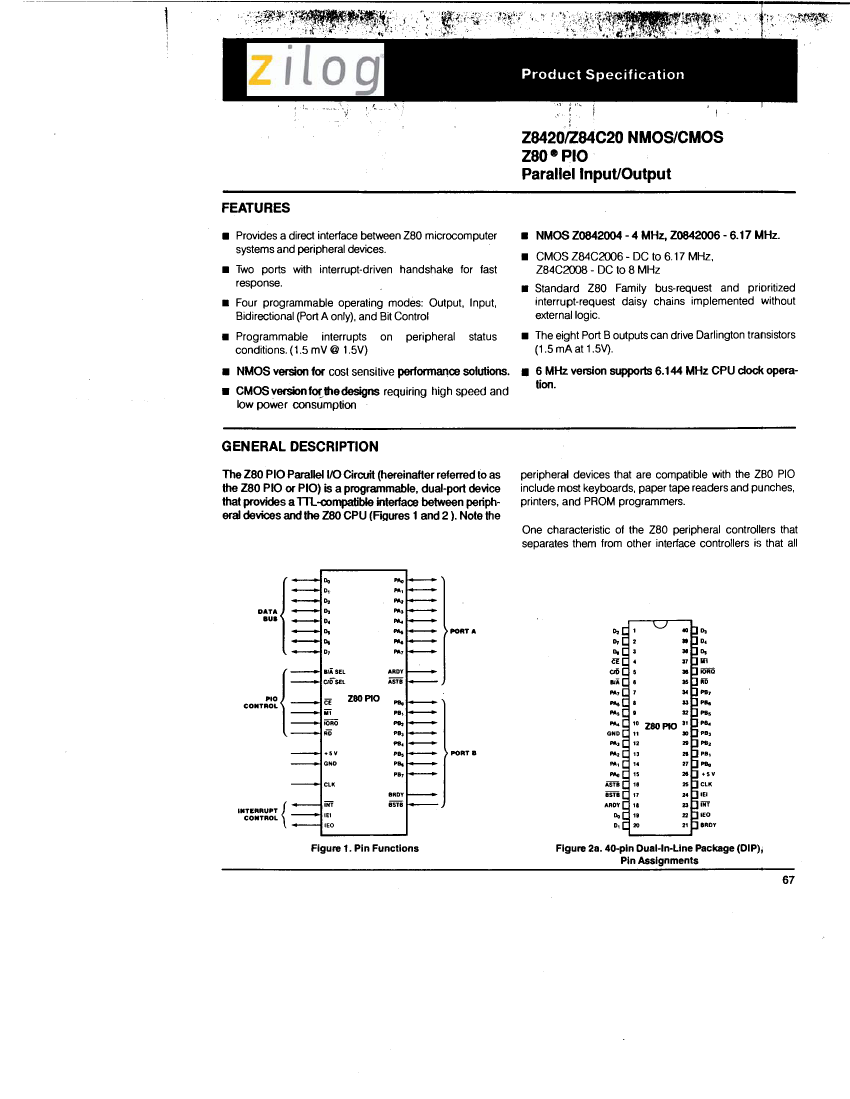

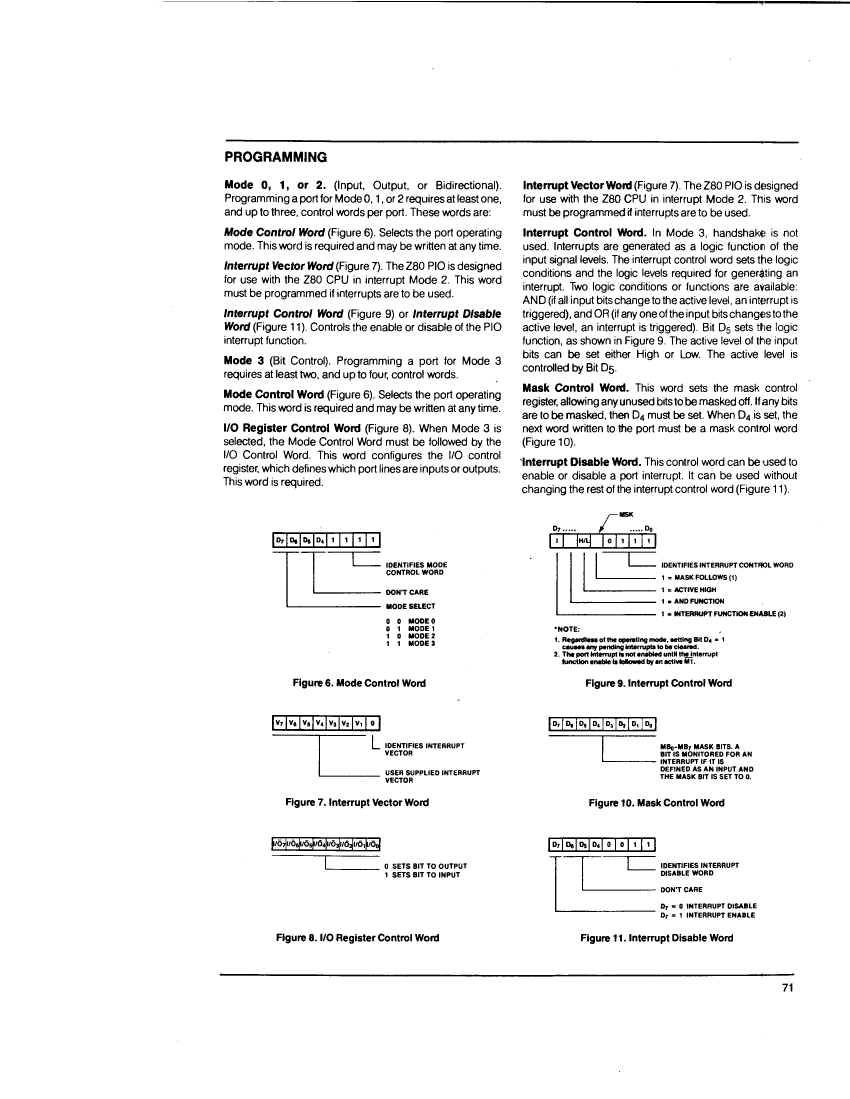

Preview

Download Datasheet

View All

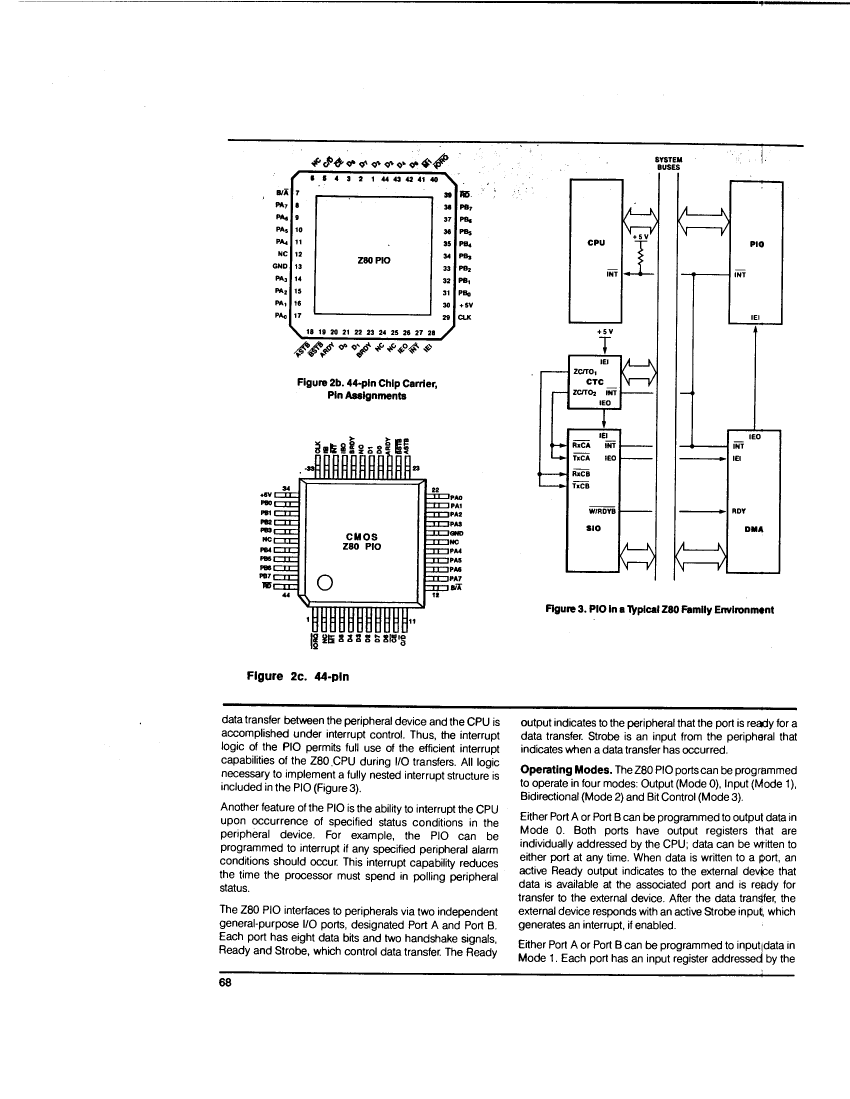

LQFP package is only available in CMOS version.

The CPU Configures the Z80 PIO to interface with

a wide range of

PS018001-0602

Z84C2006FEC Related Products

	Z84C2006FEC	Z84C2006VEC	Z84C2006PEC	Z84C2008VEC	Z84C2006FEG
Description	Microprocessors - MPU 6MHz Z80 CMOS PIO XT	Microprocessors - MPU 6MHz Z80 CMOS PIO XT	Microprocessors - MPU 6MHz Z80 CMOS PIO XT	Microprocessors - MPU 8MHz Z80 CMOS PIO XT	Microprocessors - MPU 6MHz Z80 CMOS PIO XT
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	conform to
Parts packaging code	QFP	LCC	DIP	LCC	QFP
package instruction	QFP, QFP44,.57SQ,32	QCCJ, LDCC44,.7SQ	DIP, DIP40,.6	QCCJ, LDCC44,.7SQ	QFP,
Contacts	44	44	40	44	44
Reach Compliance Code	unknown	unknown	unknown	unknown	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
maximum clock frequency	6.17 MHz	6.17 MHz	6.17 MHz	8 MHz	6.17 MHz
External data bus width	8	8	8	8	8
JESD-30 code	S-PQFP-G44	S-PQCC-J44	R-PDIP-T40	S-PQCC-J44	S-PQFP-G44
JESD-609 code	e0	e0	e0	e0	e3
length	10 mm	16.5862 mm	52.325 mm	16.5862 mm	10 mm
Number of I/O lines	16	16	16	16	16
Number of ports	2	2	2	2	2
Number of terminals	44	44	40	44	44
Maximum operating temperature	100 °C	100 °C	100 °C	100 °C	100 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	QFP	QCCJ	DIP	QCCJ	QFP
Package shape	SQUARE	SQUARE	RECTANGULAR	SQUARE	SQUARE
Package form	FLATPACK	CHIP CARRIER	IN-LINE	CHIP CARRIER	FLATPACK
Peak Reflow Temperature (Celsius)	225	225	NOT SPECIFIED	225	260
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	2.5 mm	4.57 mm	4.75 mm	4.57 mm	2.5 mm
Maximum slew rate	6 mA	6 mA	6 mA	7 mA	6 mA
Maximum supply voltage	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	NO	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	MATTE TIN
Terminal form	GULL WING	J BEND	THROUGH-HOLE	J BEND	GULL WING
Terminal pitch	0.8 mm	1.27 mm	2.54 mm	1.27 mm	0.8 mm
Terminal location	QUAD	QUAD	DUAL	QUAD	QUAD
Maximum time at peak reflow temperature	30	30	NOT SPECIFIED	30	40
width	10 mm	16.5862 mm	15.24 mm	16.5862 mm	10 mm
uPs/uCs/peripheral integrated circuit type	PARALLEL IO PORT, GENERAL PURPOSE	PARALLEL IO PORT, GENERAL PURPOSE	PARALLEL IO PORT, GENERAL PURPOSE	PARALLEL IO PORT, GENERAL PURPOSE	PARALLEL IO PORT, GENERAL PURPOSE
Maker	Zilog, Inc.	Zilog, Inc.	-	Zilog, Inc.	Zilog, Inc.
Encapsulate equivalent code	QFP44,.57SQ,32	LDCC44,.7SQ	DIP40,.6	LDCC44,.7SQ	-
power supply	5 V	5 V	5 V	5 V	-
