SI9104DW-E3

Description
Switching Voltage Regulators 3W HV Switchmode Reg
CategoryPower/power management    The power supply circuit
File Size164KB,10 Pages
ManufacturerVishay
Websitehttp://www.vishay.com
Download Datasheet Parametric Compare View All

SI9104DW-E3 Online Shopping

Suppliers Part Number Price MOQ In stock
SI9104DW-E3 - - View Buy Now

SI9104DW-E3 Overview

Switching Voltage Regulators 3W HV Switchmode Reg

SI9104DW-E3 Parametric

Parameter NameAttribute value
MakerVishay
package instructionSOP, SOP16,.4
Reach Compliance Codeunknown
ECCN codeEAR99
Analog Integrated Circuits - Other TypesBATTERY CHARGE CONTROLLER
control modeCURRENT-MODE
JESD-30 codeR-PDSO-G16
JESD-609 codee3
Humidity sensitivity level1
Number of terminals16
Maximum operating temperature85 °C
Minimum operating temperature-40 °C
Maximum output current0.1 A
Package body materialPLASTIC/EPOXY
encapsulated codeSOP
Encapsulate equivalent codeSOP16,.4
Package shapeRECTANGULAR
Package formSMALL OUTLINE
Certification statusNot Qualified
surface mountYES
Maximum switching frequency1000 kHz
technologyBCDMOS
Temperature levelINDUSTRIAL
Terminal surfaceMatte Tin (Sn)
Terminal formGULL WING
Terminal pitch1.27 mm
Terminal locationDUAL
Work in Progress
SiP2800, SiP2801, SiP2802, SiP2803, SiP2804, SiP2805
Vishay Siliconix
Low Power Consumption Current Mode Controller
DESCRIPTION
The SiP280X family includes six high-speed, low power
consumption, BiCMOS Current Mode Controllers. These
integrated circuits contain all of the control and drive
functions required for off-line and DC/DC current-mode
switching power supplies. Their advanced architecture
enables the implementation of full-featured designs with
minimal external parts count.
The SiP280X family controllers is available in lead (Pb)-free,
SO-8 packages, and are rated for operation over the
industrial temperature range of -40 °C to 85 °C.
FEATURES
• Pin-for-pin compatible with UCC280X
controllers
Available
• Enhanced performance UC284X
for new designs
Available
• 100 µA typical start-up current
• 500 µA typical operating current
• Internal soft start at power-on and after fault
• 100 ns internal leading edge blanking
• Material categorization: For definitions of compliance
please see
www.vishay.com/doc?99912
APPLICATIONS
Part Number
SiP2800
SiP2801
SiP2802
SiP2803
SiP2804
SiP2805
Maximum Duty Cycle
100 %
50 %
100 %
100 %
50 %
50 %
Efficiency-enhanced DC/DC converter modules
Low quiescent current standby power supplies
Offline (AC/DC) power supplies
Universal input power supplies
Buck, boost, and buck-boost converters
Turn-On Threshold
7.2 V
9.4 V
12.5 V
4.1 V
12.5 V
4.1 V
Turn-Off Threshold
6.9 V
7.4 V
8.3 V
3.6 V
8.3 V
3.6 V
Reference Voltage
5V
5V
5V
4V
5V
4V
TYPICAL APPLICATION CIRCUIT
+ 48 V
+
+
12 V/3 A
+
FB
V
CC
COMP
SiP2801
RC
REF
GND
OUT
CS
GND
Flyback Converter for Point of Load Application
* Pb containing terminations are not RoHS compliant, exemptions may apply.
Document Number: 72660
S11-0598-Rev. E, 25-Apr-11
For technical questions, contact:
powerictechsupport@vishay.com
This document is subject to change without notice.
THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
www.vishay.com
1

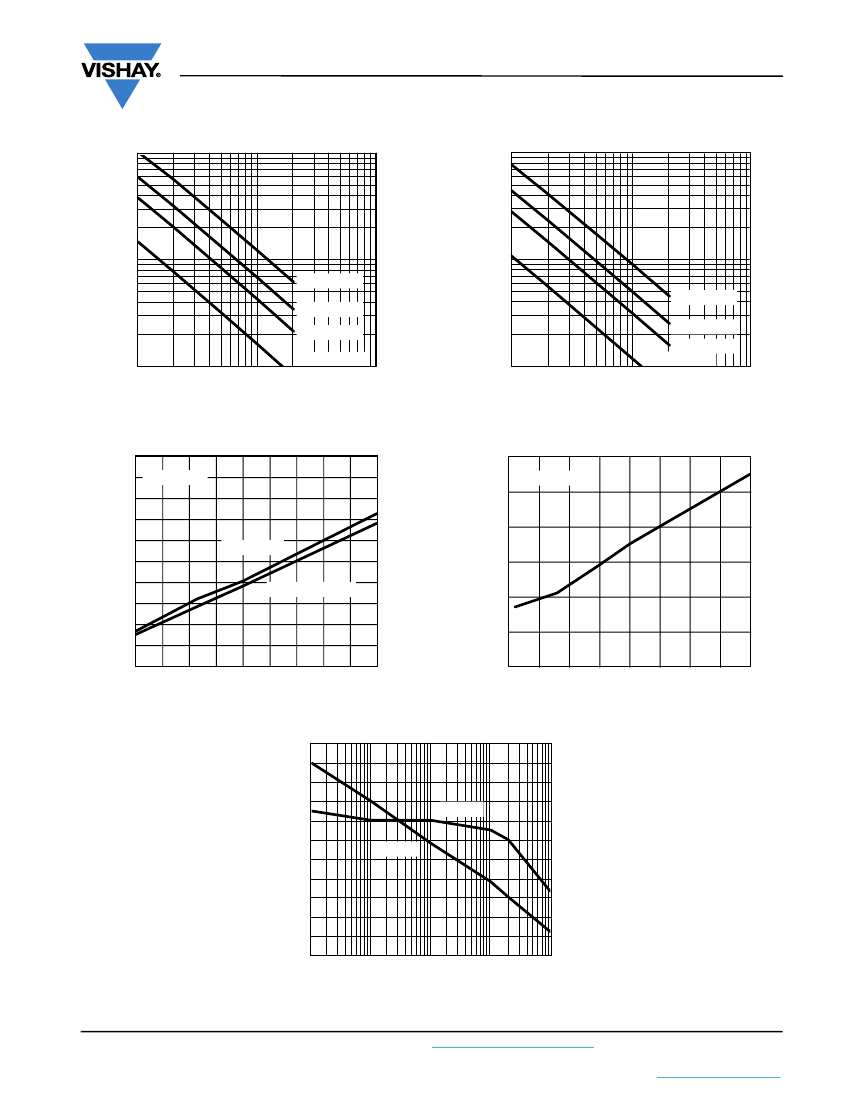

SI9104DW-E3 Related Products

SI9104DW-E3 SI9104DW-T1 SI9104DW
Description Switching Voltage Regulators 3W HV Switchmode Reg Switching Voltage Regulators 3W High-Voltage Switchmode Switching Voltage Regulators 3W HV Switchmode Reg
Maker Vishay Vishay Vishay
package instruction SOP, SOP16,.4 SOP, SOP, SOP16,.4
Reach Compliance Code unknown unknown unknown
control mode CURRENT-MODE CURRENT-MODE CURRENT-MODE
JESD-30 code R-PDSO-G16 R-PDSO-G16 R-PDSO-G16
JESD-609 code e3 e0 e0
Number of terminals 16 16 16
Maximum operating temperature 85 °C 85 °C 85 °C
Minimum operating temperature -40 °C -40 °C -40 °C
Maximum output current 0.1 A 2 A 0.1 A
Package body material PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY
encapsulated code SOP SOP SOP
Package shape RECTANGULAR RECTANGULAR RECTANGULAR
Package form SMALL OUTLINE SMALL OUTLINE SMALL OUTLINE
Certification status Not Qualified Not Qualified Not Qualified
surface mount YES YES YES
Maximum switching frequency 1000 kHz 3000 kHz 1000 kHz
technology BCDMOS BCDMOS BCDMOS
Temperature level INDUSTRIAL INDUSTRIAL INDUSTRIAL
Terminal surface Matte Tin (Sn) TIN LEAD Tin/Lead (Sn/Pb)
Terminal form GULL WING GULL WING GULL WING
Terminal pitch 1.27 mm 1.27 mm 1.27 mm
Terminal location DUAL DUAL DUAL
ECCN code EAR99 EAR99 -
Analog Integrated Circuits - Other Types BATTERY CHARGE CONTROLLER SWITCHING REGULATOR -
Encapsulate equivalent code SOP16,.4 - SOP16,.4
Is it lead-free? - Contains lead Contains lead
Parts packaging code - SOIC SOIC
Contacts - 16 16
