MKP 1846
Not for new designs
Vishay Roederstein
Double Metallized Polypropylene Film Capacitor
Radial AC and Pulse Capacitor
Dimensions in millimeters
L Max.
W Max.
Marking
FEATURES
Product is completely lead (Pb)-free
Product is RoHS-compliant
OPERATING TEMPERATURE RANGE
H
Max.
6
6.0
- 1
- 55°C to + 100°C
CAPACITANCE RANGE
1000pF to 0.68µF
±
0.4
CAPACITANCE TOLERANCES
± 20% (M), ± 10% (K), ± 5% (J)
RATED VOLTAGES (U
R
):
pcm
±
0.4
Ø
d
630 VDC, 1000 VDC, 1600 VDC, 2000 VDC
PERMISSIBLE AC VOLTAGES (RMS) UP TO 60Hz
W
< 16.0
16.0
Ød
0.8
1.0
400 VAC, 600 VAC, 650 VAC, 700 VAC
TEST VOLTAGE (ELECTRODE/ELECTRODE)
1.6 x U
R
for 2 s
MAIN APPLICATIONS
High voltage, high current and high pulse operations,
deflection circuits in TV sets (S-correction and fly-back
tuning). Protection circuits in SMPS’s. Snubber and
electronic ballast circuits. Input and output filtering in SPS
designs, storage, timing and integrating circuits.
INSULATION RESISTANCE
Measured at 100 VDC after one minute
For C
0.33µF:
100,000 M minimum value
TIME CONSTANT
MARKING
Manufacturer's logo/type/C-value/rated voltage/tolerance/
date of manufacture
Measured at 100 VDC after one minute
For C > 0.33µF:
30,000 s minimum value
TEMPERATURE COEFFICIENT
- 250 x 10
-6
/°C (typical value)
DIELECTRIC
Polypropylene film
CAPACITANCE DRIFT
Up to + 40°C, ± 0.5% for a period of two years
ELECTRODES
Vacuum deposited aluminum
DERATING FOR DC AND AC.CATEGORY VOLTAGE U
C
At + 85°C: U
C
= 1.0 U
R
At + 100°C: U
C
= 0.7 UR
COATING
Flame retardant plastic case (UL-class 94 V-0), blue, epoxy
resin sealed
SELF INDUCTANCE
~ 6 nH measured with 2mm long leads
CONSTRUCTION
Extended double-sided metallized polyester film, internal
series connection, single-sided metallized polypropylene film
(refer to general information)
PULL TEST ON LEADS
RELIABILITY
30 N in direction of leads according to IEC 60068-2-21
Operational life > 300,000 h
Failure rate < 5 FIT (40°C and 0.5 x U
R
)
For further details, please refer to the general information
available at www.vishay.com/doc?26033.
LEADS
Tinned wire
IEC TEST CLASSIFICATION
55/100/56, according to IEC 60068
MAXIMUM PULSE RISE TIME
630 VDC
1000 VDC
1600 VDC
15
3430
6600
11100
22.5
2120
2800
3800
27.5
1524
2000
2680
37.5
980
1280
1690
If the maximum pulse voltage is less than the rated voltage higher d
v
/d
t
values can be permitted.
Document Number: 26020
Revision: 23-Jun-05
For technical questions contact; dc-film@vishay.com
PCM
(mm)
Maximum Pulse Rise Time d
v
/d
t
[V/µs]
2000 VDC
—
6200
4200
2600
www.vishay.com
1
MKP 1846
Vishay Roederstein
DISSIPATION FACTOR TAN
MEASURED AT
1kHz
10kHz
100kHz
C
0.1µF
0.3 x 10
-3
0.4 x 10
-3
1.5 x 10
-3
Maximum values
0.1µF < C
1.0µF
0.3 x 10
-3
0.4 x 10
-3
—
Double Metallized Polypropylene Film Capacitor
Radial AC and Pulse Capacitor
CAPACI-
TANCE
CAPACI-
TANCE
CODE
W
VOLTAGE
CODE 63
630 VDC/400 VAC
H
—
—
—
—
—
10.5
10.5
12.5
13.5
14.5
15.5
16.5
18.5
20.5
23.5
24.5
24.5
32.5
L
—
—
—
—
—
18.0
18.0
18.0
18.0
18.0
26.5
26.5
26.5
31.5
31.5
31.5
41.5
41.5
PCM
—
—
—
—
—
15
15
15
15
15
22.5
22.5
22.5
27.5
27.5
27.5
37.5
37.5
W
VOLTAGE
CODE 10
1000 VDC/600 VAC
H
—
—
—
10.5
10.5
12.5
14.5
14.5
14.5
15.5
18.5
21.0
20.5
23.5
29.5
—
—
—
L
—
—
—
18.0
18.0
18.0
26.5
26.5
26.5
26.5
26.5
26.5
31.5
31.5
31.5
—
—
—
PCM
—
—
—
15
15
15
22.5
22.5
22.5
22.5
22.5
22.5
27.5
27.5
27.5
—
—
—
W
VOLTAGE
CODE 13
1600 VDC/650 VAC
H
10.5
10.5
10.5
12.5
13.5
14.5
14.5
15.5
16.5
18.5
20.5
20.5
24.5
24.5
28.5
—
—
—
L
18.0
18.0
18.0
18.0
18.0
18.0
26.5
26.5
26.5
26.5
31.5
31.5
31.5
41.5
41.5
—
—
—
PCM
15
15
15
15
15
15
22.5
22.5
22.5
22.5
27.5
27.5
27.5
37.5
37.5
—
—
—
W
VOLTAGE
CODE 20
2000 VDC/700 VAC
H
14.5
14.5
14.5
14.5
14.5
15.5
16.5
18.5
20.5
23.5
24.5
29.5
28.5
—
—
—
—
—
L
26.5
26.5
26.5
26.5
26.5
26.5
26.5
26.5
31.5
31.5
31.5
31.5
41.5
—
—
—
—
—
PCM
22.5
22.5
22.5
22.5
22.5
22.5
22.5
22.5
27.5
27.5
27.5
27.5
37.5
—
—
—
—
—
1000pF
1500pF
2200pF
3300pF
4700pF
6800pF
0.01µF
0.015µF
0.022µF
0.033µF
0.047µF
0.068µF
0.1µF
0.15µF
0.22µF
0.33µF
0.47µF
0.68µF
- 210
- 215
- 222
- 233
- 247
- 268
- 310
- 315
- 322
- 333
- 347
- 368
- 410
- 415
- 422
- 433
- 447
- 468
—
—
—
—
—
5.5
5.5
6.5
7.5
8.5
7.5
8.5
10.5
11.5
13.5
15.0
14.5
18.0
—
—
—
5.5
5.5
6.5
6.5
6.5
6.5
7.5
10.5
11.0
11.5
13.5
16.5
—
—
—
5.5
5.5
5.5
6.5
7.5
8.5
6.5
7.5
8.5
10.5
11.5
11.5
15.0
14.5
16.0
—
—
—
6.5
6.5
6.5
6.5
6.5
7.5
8.5
10.5
11.5
13.5
15.0
16.5
16.0
—
—
—
—
—
Further C-values upon request.
RECOMMENDED PACKAGING
LETTER
CODE
D
G
F
W
V
G
—
TYPE OF
PACKAGING
AMMO
AMMO
REEL
REEL
REEL
AMMO
BULK
HEIGHT (H)
(mm)
16.5
18.5
16.5
18.5
18.5
18.5
—
REEL DIAMETER
(mm)
S*
S*
350
350
500
L*
—
ORDERING CODE
EXAMPLES
MKP 1846-310/635-D
MKP 1846-310/635-G
MKP 1846-310/635-F
MKP 1846-310/635-W
MKP 1846-410/105-V
MKP 1846-410/105-G
MKP 1846-422-135
PCM
15
X
X
X
X
X
—
X
PCM
22.5 - 27.5
—
—
—
—
X
X
X
PCM
37.5
—
—
—
—
—
—
X
*S = box size 55 x 210 x 340mm (W x H x L)
*L = box size 60 x 360 x 510mm (W x H x L)
www.vishay.com
2
For technical questions contact; dc-film@vishay.com
Document Number: 26020
Revision: 23-Jun-05
MKP 1846
Double Metallized Polypropylene Film Capacitor
Radial AC and Pulse Capacitor
Vishay Roederstein
1000
7
5
3
2
100
7
5
3
2
630 VDC
10
10
3
2
3
5 7 10
4
2
3
Capacitance in pF and µF
6
8
00
0.
01
5
0.
0.
6
8
1000
7
5
3
2
0.
VRMS
VRMS
Capacitance in pF and
∝F
33
00
47
22
0.
1
00
0.
0.
04
01
2
03
3
0.
0.
06
33
8
0.
15
100
7
5
3
2
1000 VDC
10
10
3
7 0.0
2
5 7 10
5
2
3
5
7 10
6
f [Hz]
2
3
5 7 10
4
2
3
5 7 10
5
2
3
5
7 10
6
f [Hz]

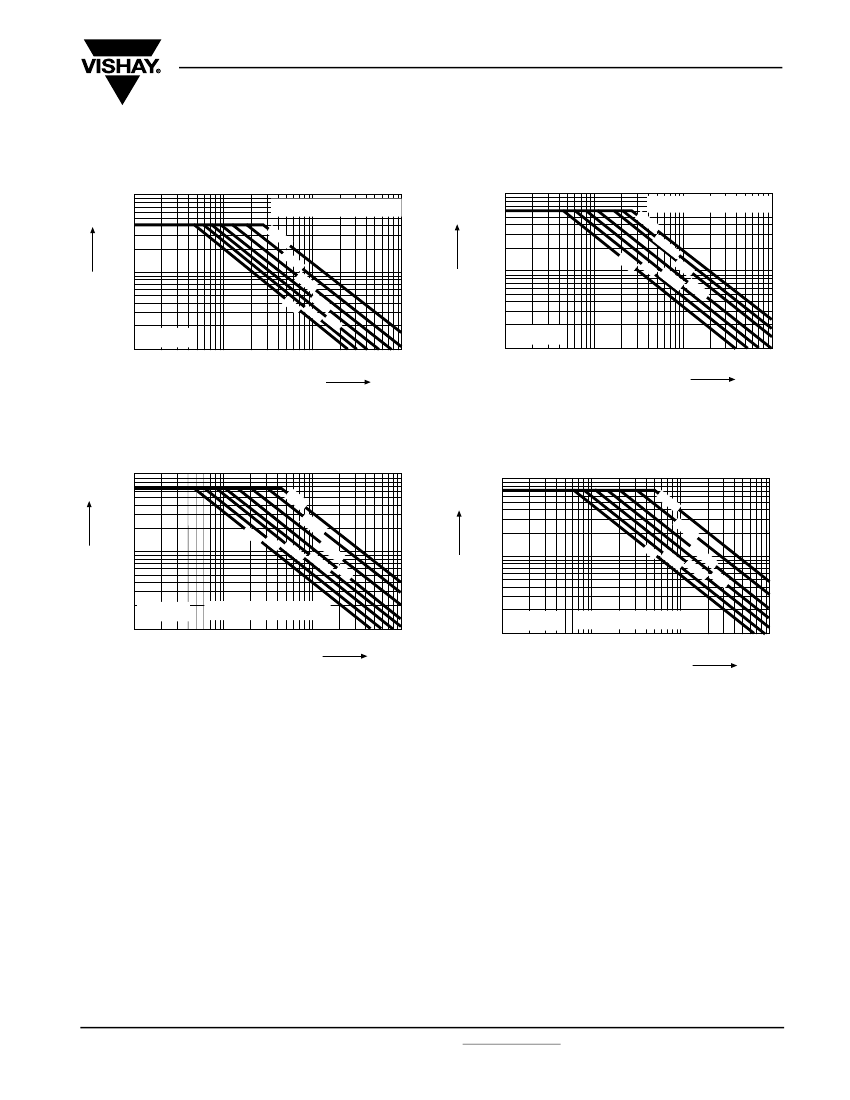

Permissible AC Voltage versus Frequency
Permissible AC Voltage versus Frequency
VRMS
VRMS
1000
7
5
3
2
100
7
5
3
2
1600 VDC
10
10
3
2
3
5 7 10
4
2
3
10
00
22
00
47
0
02
2
0
0.
01
1000
7
5
3
2
100
7
5
3
2
1600 VDC
10
00
22
00
0.
22
0.
1 0.
04
7
0.
0.
1 0
.0
4
47
00
7 0.0
22 0
.0
1
Capacitance in pF and µF
5 7 10
5
2
3
5
7 10
6
f [Hz]
Capacitance in pF and
∝F
5 7 10
4
2
3
5 7 10
5
2
3
5
7 10
6
f [Hz]
10
10
3
2
3
Permissible AC Voltage versus Frequency
Permissible AC Voltage versus Frequency
Document Number: 26020
Revision: 23-Jun-05
For technical questions contact; dc-film@vishay.com
www.vishay.com
3
