BX1194W datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> BX1194W

BX1194W: DescriptionAudio Transformers / Signal Transformers SMD SHDSL Line Xfmr 3000uH; CategoryPassive components; File Size77KB，1 Pages; ManufacturerPulse A Technitrol Company; Websitehttp://www.pulseeng.com

Download Datasheet Parametric Compare View All

BX1194W Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	BX1194W	-	-	View	Buy Now

BX1194W Overview

Audio Transformers / Signal Transformers SMD SHDSL Line Xfmr 3000uH

BX1194W Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Pulse A Technitrol Company
Product Category	Audio Transformers / Signal Transformers
RoHS	N
Termination Style	SMD/SMT
Isolation Voltage	2 kV
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Product	Signal
Application	SHDSL
Length	17.65 mm
Width	14.1 mm
Height	10 mm
NumOfPackaging	1
Factory Pack Quantity	60

Preview

Download Datasheet

View All

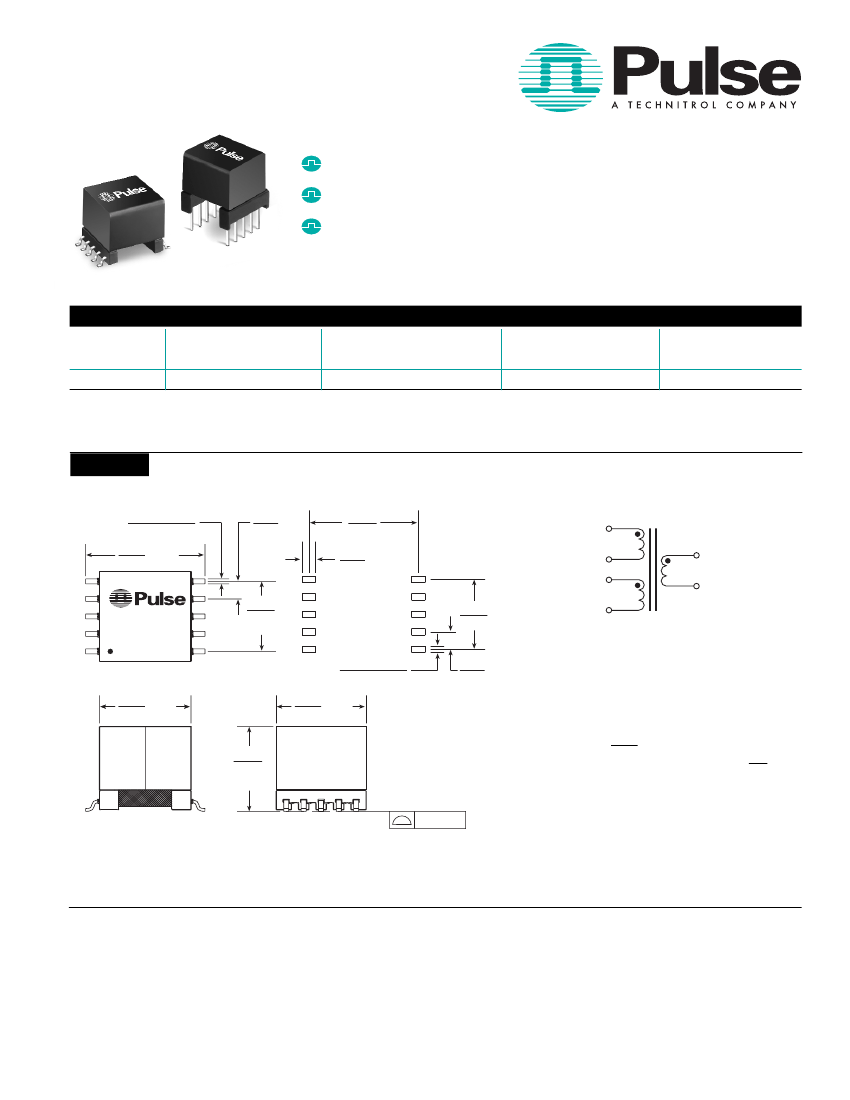

SHDSL LINE TRANSFORMERS

For use with Infineon Chipset

Matched to Infineon PEF24624, Socrates Bis 16 Chipset

Excellent THD performance with bias current

Designed to meet UL, CSA and EN60950 requirements

for supplementary insulation and 250V working voltage

Electrical Specifications @ 25°C — Operating Temperature -40°C to +85°C

Part

Number

BX1194W

OCL

Line

(mH ±6%)

3.0

Turns Ratio

(line:chip)

(line:sense)

4.5:1

Isolation

Voltage

(Vrms)

1500

THD @ 3kHz

1Vrms, 35mA

(dB MIN)

-76

Mechanical

BX1194W

Schematic

10 X .028

± .002

0,71

± 0,05

.695

17,65 MAX

.098

2,50

.605

15,37

.100

2,54

Primary

(Line)

.394

10,00

4.5:1:1

Secondary

(Chip)

Date Code

Country of Mfg.

BX1194W

.394

10,00

MAX

10 X .051

± .002

1,30

± 0,05

.098

2,50

Weight

......................6.2 grams

Tape & Reel.................150/reel

Tray/Tube

......................60/tray

Dimensions:

Inches

Unless otherwise specified, all tolerances are ± .010

0,25

.555

14,10MAX

.485

12,32

MAX

.530

13,46MAX

.005/0,13

10 SURFACES

For More Information:

Pulse Worldwide

Headquarters

12220 World Trade Dr.

San Diego, CA 92128

U.S.A.

www.pulseeng.com

Tel: 858 674 8100

Fax: 858 674 8262

Pulse

Europe

Einsteinstrasse 1

D-71083 Herrenberg

Germany

Pulse China Headquarters

B402, Shenzhen

Tech-Innovation International

Tenth Kejinan Rd.

High-Tech Industrial Park

Nanshan District, Shenzhen

China

Tel: 86 755 33966678

Fax: 86 755 33966700

Pulse North China

Room 1503

XinYin Building

No. 888 YiShan Rd.

Shanghai 200233

China

Tel: 86 21 54643211/2

Fax: 86 21 54643210

Pulse South Asia

150 Kampong Ampat

#07-01/02

KA Centre

Singapore 368324

Pulse North Asia

No. 26

Kao Ching Rd.

Yang Mei Chen

Tao Yuan Hsien

Taiwan, R. O. C.

Tel: 886 3 4641811

Fax: 886 3 4641911

Tel: 49 7032 7806 0

Fax: 49 7032 7806 12

Tel: 65 6287 8998

Fax: 65 6280 0080

Performance warranty of products offered on this data sheet is limited to the parameters specified. Data is subject to change without notice. Other brand and product

www.pulseeng.com

B835.A (7/07)
