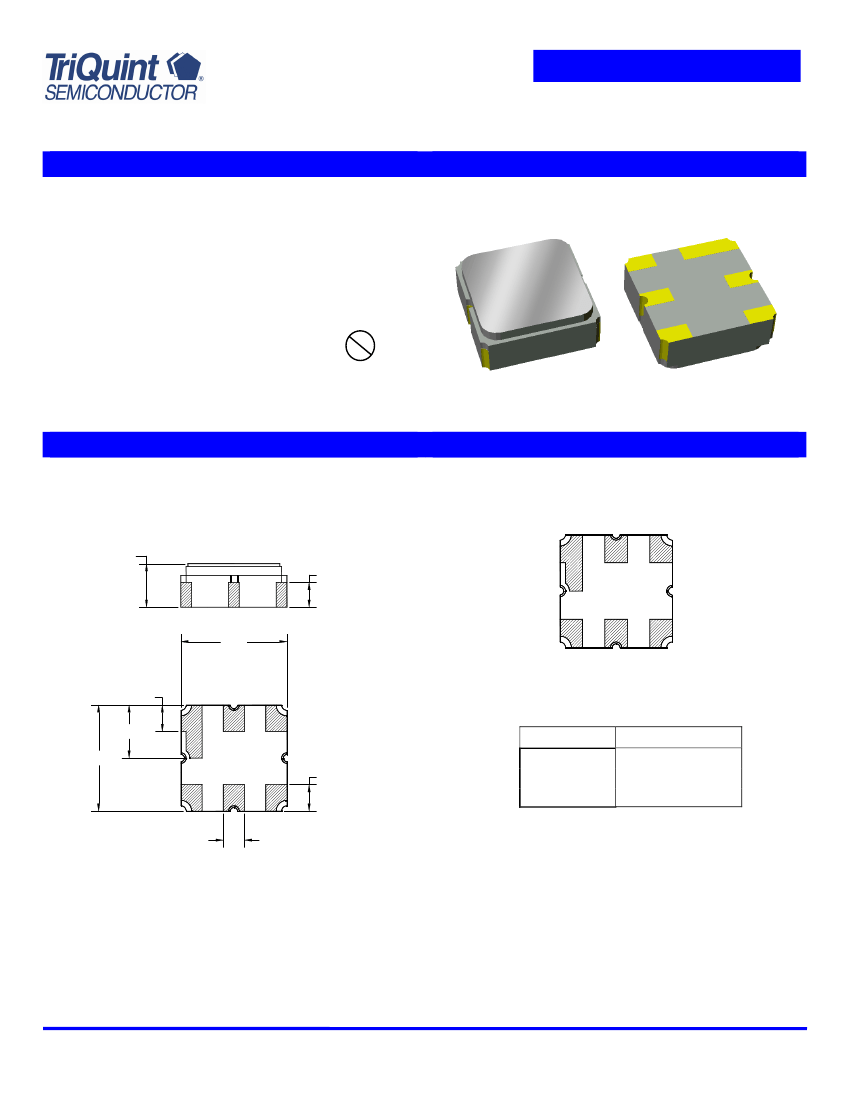

All specifications are based on the TriQuint test circuit shown below
In production, devices will be tested at room temperature to a guardbanded specification to ensure electrical compliance over
temperature
Electrical margin has been built into the design to account for the variations due to temperature drift and manufacturing tolerances
Typical values are based on average measurements at room temperature
Amplitude ripple is defined as the worst case difference between the peak and adjacent valley within the defined frequency points
This is the optimum impedance in order to achieve the performance shown
Test Circuit:
50
Ω
Single-ended
No impedance matching
required
2
50
Ω
5
50
Ω
1,3,4,6
50
Ω
Single-ended
No impedance matching
required
Subject to change or obsolescence without notice
Rev -
09/12 TriQuint Semiconductor, Inc.
Page 2 of 5
Data Sheet
Part Number 857191
810 MHz SAW Filter

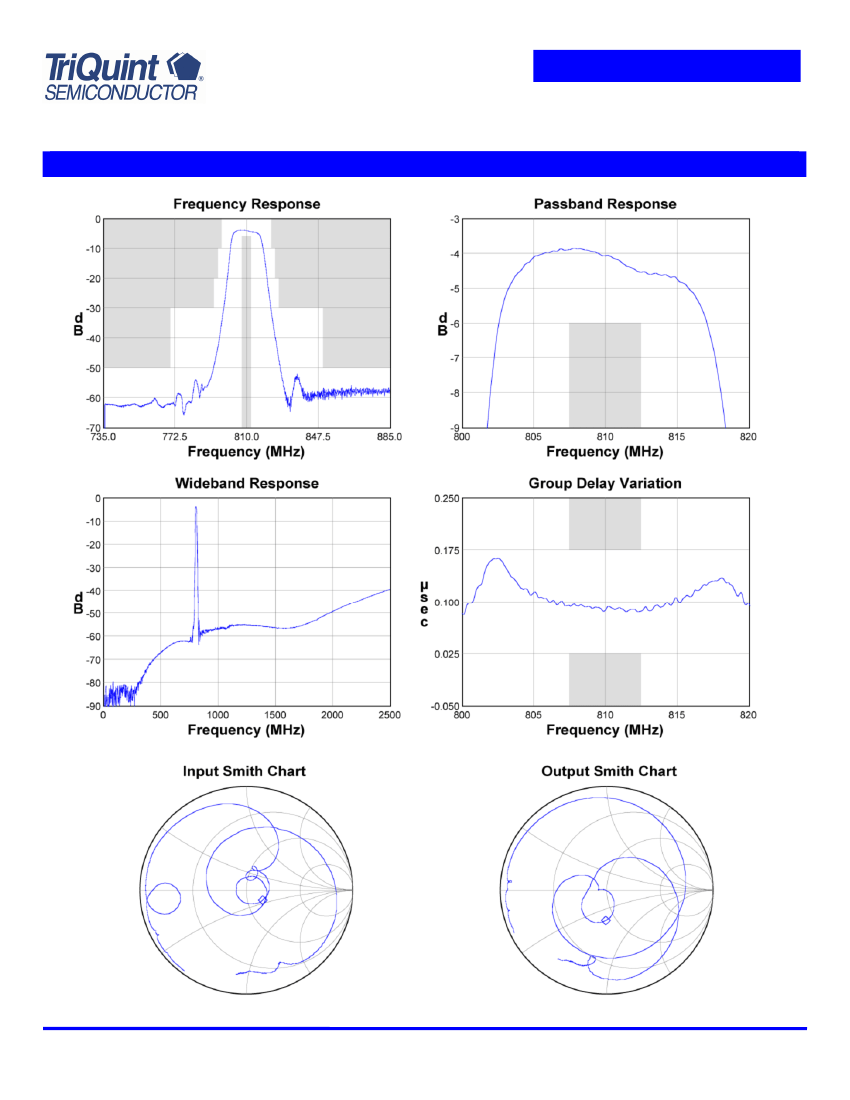

Typical Performance
(at room temperature)
Subject to change or obsolescence without notice
Rev -
09/12 TriQuint Semiconductor, Inc.
Page 3 of 5
Data Sheet
Part Number 857191
810 MHz SAW Filter
Matching Schematics
50
Ω
Single-ended
No impedance
matching required
2
50
Ω
5
50
Ω
1,3,4,6
50
Ω
Single-ended
No impedance matching
required
Marking
Sawtek
logo
Marking
code
PCB Footprint
3.20 SQ
.96
KJ
YYWW
1.70
1.27
.81
ID dot
Date code
.38
The date code consists of: YY = last 2 digits of year,
WW = work week
This footprint represents a recommendation only
Dimensions shown are nominal in millimeters
Tape and Reel
12.8
2.7
Ø330
Sawtek
logo
4.0
0.21
2.0
Ø1.5
A
1.75
5.5
ID dot
Ø102
Ø20.2
Ø13.0
2.0
Direction of travel
12.0
3.25
1.4
Section A-A
3.25
4.0
Ø1.5
A
Dimensions shown are nominal in millimeters
Packaging quantity: 5000 units/reel
Subject to change or obsolescence without notice
Rev -
09/12 TriQuint Semiconductor, Inc.
Page 4 of 5
Data Sheet
Maximum Ratings
Parameter
Operating Temperature Range
Storage Temperature Range
Part Number 857191
810 MHz SAW Filter
Symbol
T
T
stg
Minimum
-55
-55
Maximum
+85
+85
Unit
o
o
C
C
Important Notes
Warnings
•
•
•
•
Electrostatic Sensitive Device (ESD)
Avoid ultrasonic exposure
RoHS Compliance
This product complies with EU directive 2002/95/EC (RoHS)
Pb
Solderability
Compatible with JESD22-B102, Pb-free process, 260C peak reflow temperature
(see
soldering profile)
Links to Additional Technical Information
PCB Layout Tips
S-Parameters
Qualification Flowchart
RoHS Information
Soldering Profile
Other Technical Information
TriQuint’s liability is limited only to the Surface Acoustic Wave (SAW) component(s) described in this data sheet. TriQuint does not accept any liability
for applications, processes, circuits or assemblies, which are implemented using any TriQuint component described in this data sheet.
