311-1600-50K datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> 311-1600-50K

Preview

311-1600-50K: DescriptionPotentiometers 16MM LINEAR 50K; CategoryPassive components; File Size124KB，1 Pages; ManufacturerXicon Passive Components; Websitehttp://www.xicor.com

Download Datasheet Parametric Compare View All

311-1600-50K Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	311-1600-50K	-	-	View	Buy Now

311-1600-50K Overview

Potentiometers 16MM LINEAR 50K

311-1600-50K Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Xicon Passive Components
Product Category	Potentiometers
RoHS	N
Termination Style	Through Hole
Product	Potentiometer
Number of Gangs	1 Gang
Resistance	50 kOhms
Taper	Linear
Mounting Style	Panel Mount
Power Rating	100 mW (1/10 W)
Tolerance	20 %
Number of Turns	1 Turn
Shaft Type	No Shaft
Shaft Diameter	16 mm
Shaft Length	4.3 mm
Type	Rotary
NumOfPackaging	1
Factory Pack Quantity	100

Preview

Download Datasheet

View All

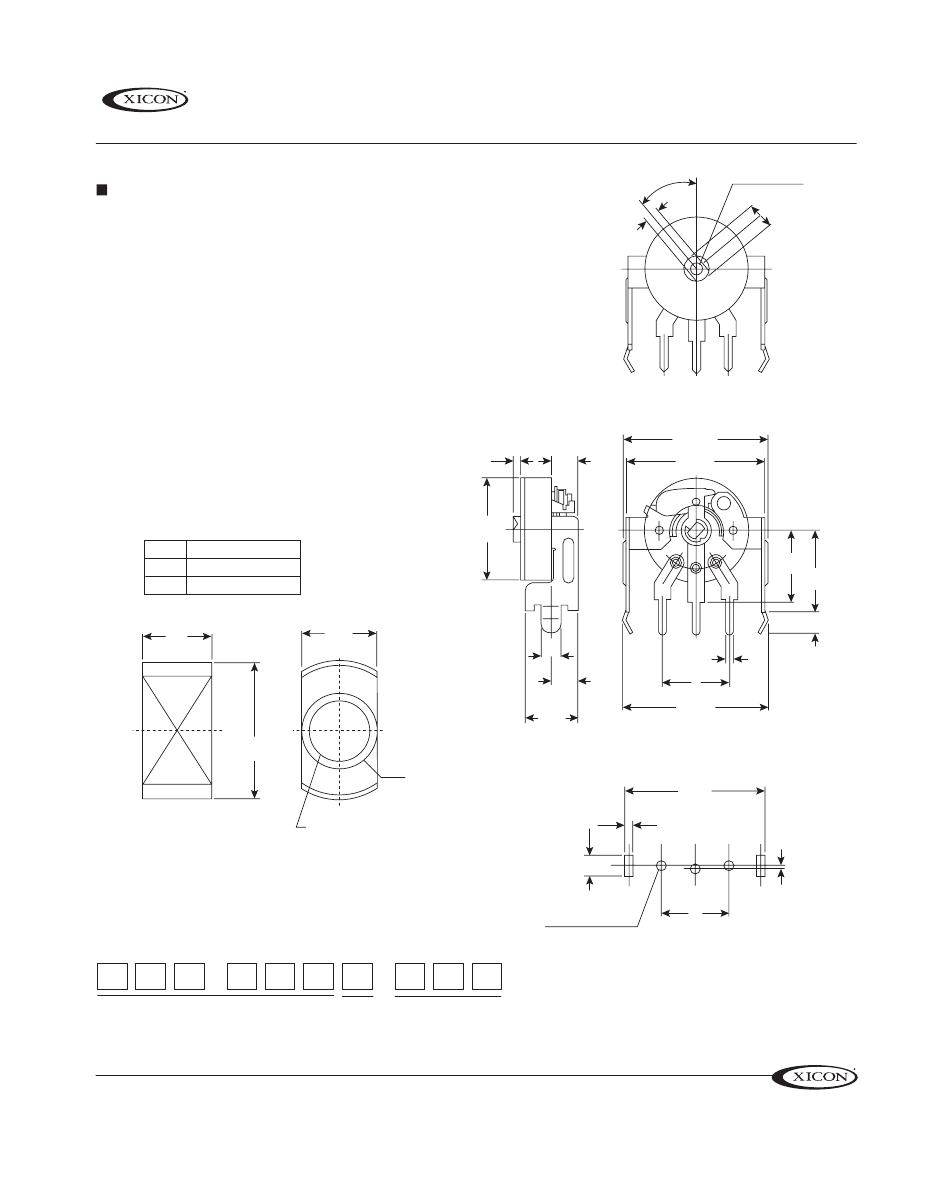

Molded Case Rotary Potentiometer

Specifications:

Electrical Characteristics:

• Total Resistance: 100Ω~ 1MΩ

• Total Resistance Tolerance: ±20%

• Max. Operation Voltage: Linear Taper B: AC 200V

• Rated Power: Linear Taper B: 0.1W

• Sliding Noise: Less than 100 mV

• Insulation Resistance: More than 50 MΩ at DC 500V

Durability:

• Rotational Life: 10,000 Cycles

2.4

40°

VTW Series

M1.7XP 0.35

ø4.0

4.3

1.2 ± 0.1

4

21.8

21

ø16

L

A

O

L 0.1

1.0~5.0

2.2 ± 0/0.1

ø4.0

11.5

13

A

3

4.1

7.6

O

C.03

21

M1.7XP 0.36 Deep 3.5

+0.2

-0

3.5

1.2

10

22

2 - 1.2

+0.2

-0

2 - 3.1

0.5

3 - ø1.4 - 0

+0.2

-0

Hole

10

Part Numbering System:

3

1

Series

1

-

1

6

0

Taper

-

1

0

Value

K

Taper - 0

-1

Linear

Audio

XICON PASSIVE COMPONENTS • (800) 628-0544

XC-600008

Date Revised: 9/30/05

Specifications are subject to change without notice. No liability or warranty implied by this information. Environmental compliance based on producer documentation.

311-1600-50K Related Products

	311-1600-50K	311-1600-1K	311-1600-100K	311-1600-100	311-1601-10K	311-1600-5K
Description	Potentiometers 16MM LINEAR 50K	Potentiometers 16MM LINEAR 1K	Potentiometers 16MM LINEAR 100K	Potentiometers 16MM LINEAR 100	Potentiometers 16MM AUDIO 10K	Potentiometers 16MM LINEAR 5K
Product Attribute	Attribute Value	Attribute Value	Attribute Value	Attribute Value	Attribute Value	Attribute Value
Manufacturer	Xicon Passive Components	Xicon Passive Components	Xicon Passive Components	Xicon Passive Components	Xicon Passive Components	Xicon Passive Components
Product Category	Potentiometers	Potentiometers	Potentiometers	Potentiometers	Potentiometers	Potentiometers
RoHS	N	N	N	N	N	N
Termination Style	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Radial
Product	Potentiometer	Potentiometer	Potentiometer	Potentiometer	Potentiometer	Potentiometer
Number of Gangs	1 Gang	1 Gang	1 Gang	1 Gang	1 Gang	1 Gang
Resistance	50 kOhms	1 kOhms	100 kOhms	100 Ohms	10 kOhms	5 kOhms
Taper	Linear	Linear	Linear	Linear	Audio	Linear
Mounting Style	Panel Mount	Panel Mount	Panel Mount	Panel Mount	Panel Mount	Panel Mount
Power Rating	100 mW (1/10 W)	100 mW	100 mW	100 mW	100 mW (1/10 W)	100 mW (1/10 W)
Tolerance	20 %	20 %	20 %	20 %	20 %	20 %
Number of Turns	1 Turn	1 Turn	1 Turn	1 Turn	1 Turn	1 Turn
Shaft Diameter	16 mm	16 mm	16 mm	16 mm	16 mm	16 mm
Shaft Length	4.3 mm	4.3 mm	4.3 mm	4.3 mm	4.3 mm	4.3 mm
Type	Rotary	Rotary	Rotary	Rotary	Rotary	Rotary
Factory Pack Quantity	100	100	100	100	100	100
Shaft Type	No Shaft	No Shaft	No Shaft	No Shaft	No Shaft	-
